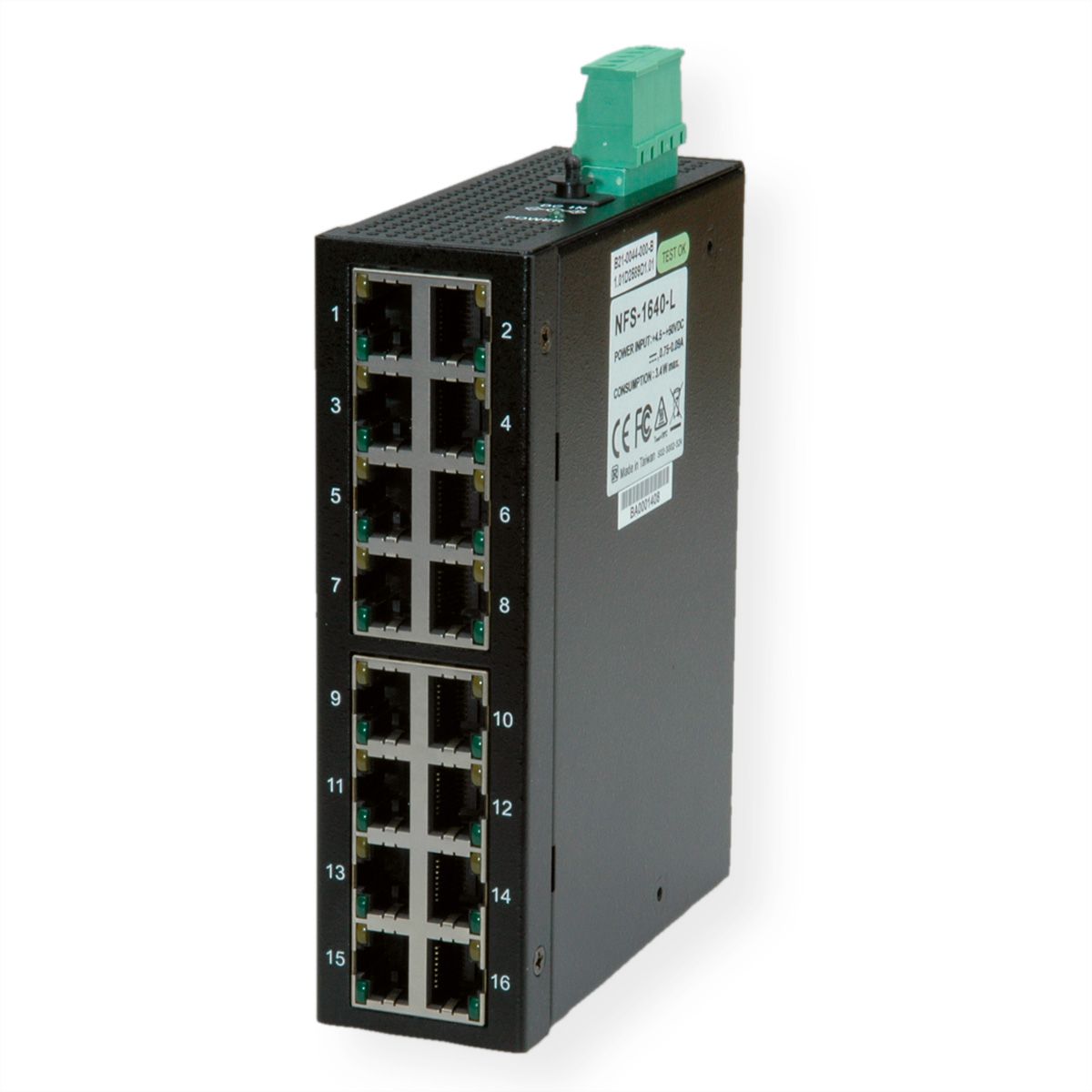

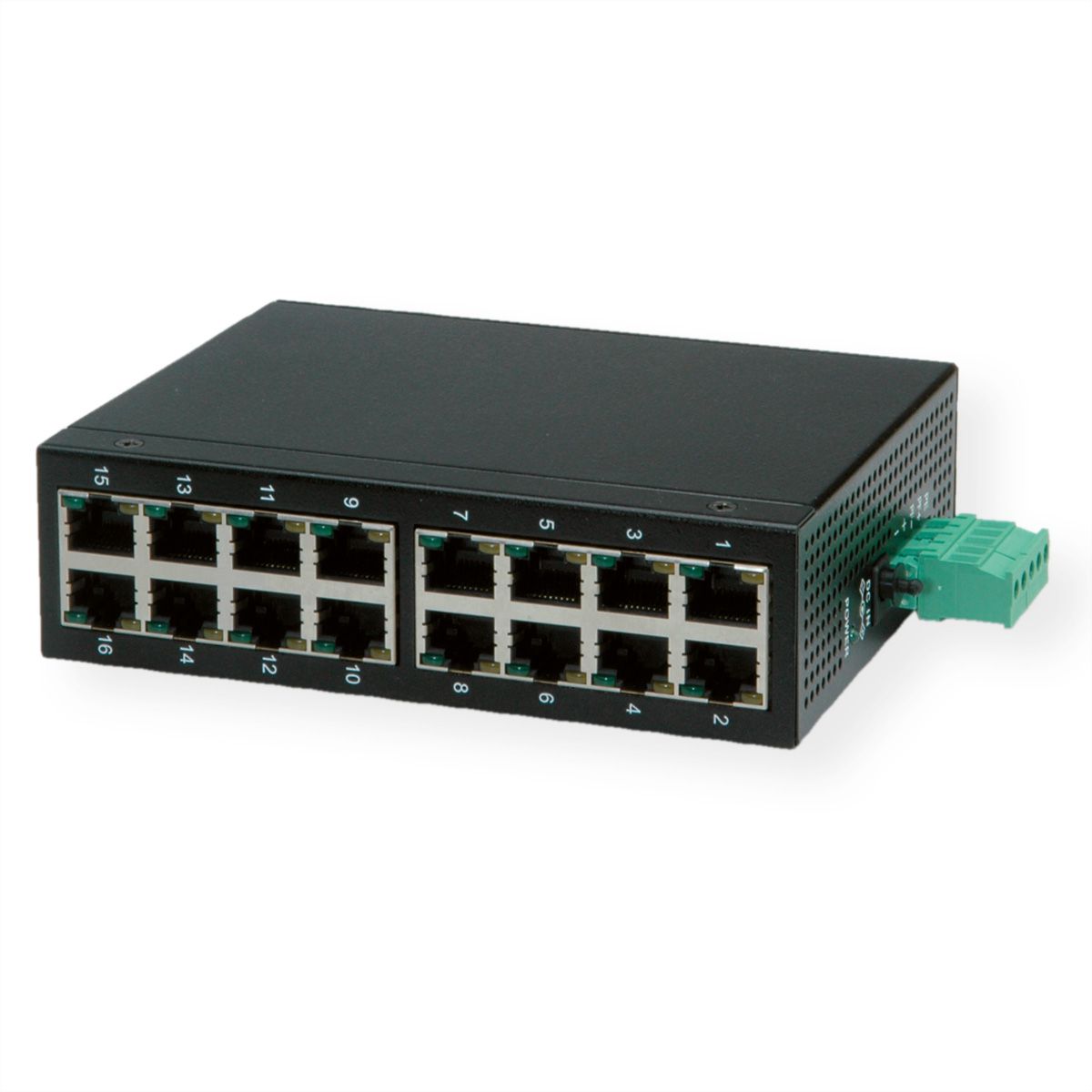

ROLINE Industrial Switch, 16x RJ-45, unmanaged

ROLINE Industrial Switch, 16x RJ-45, unmanaged

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21131157
Brand / Manufacturer ROLINE
Manuf. item no. 21.13.1157
EAN 7611990133635
Item weight 0.62 kg

Description

  • Fast Ethernet switch with 16 shielded 10/100 Base-T copper ports
  • Wide operating temperature range for temperature critical environment
  • Auto MDI/MDI-X crossover function
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation

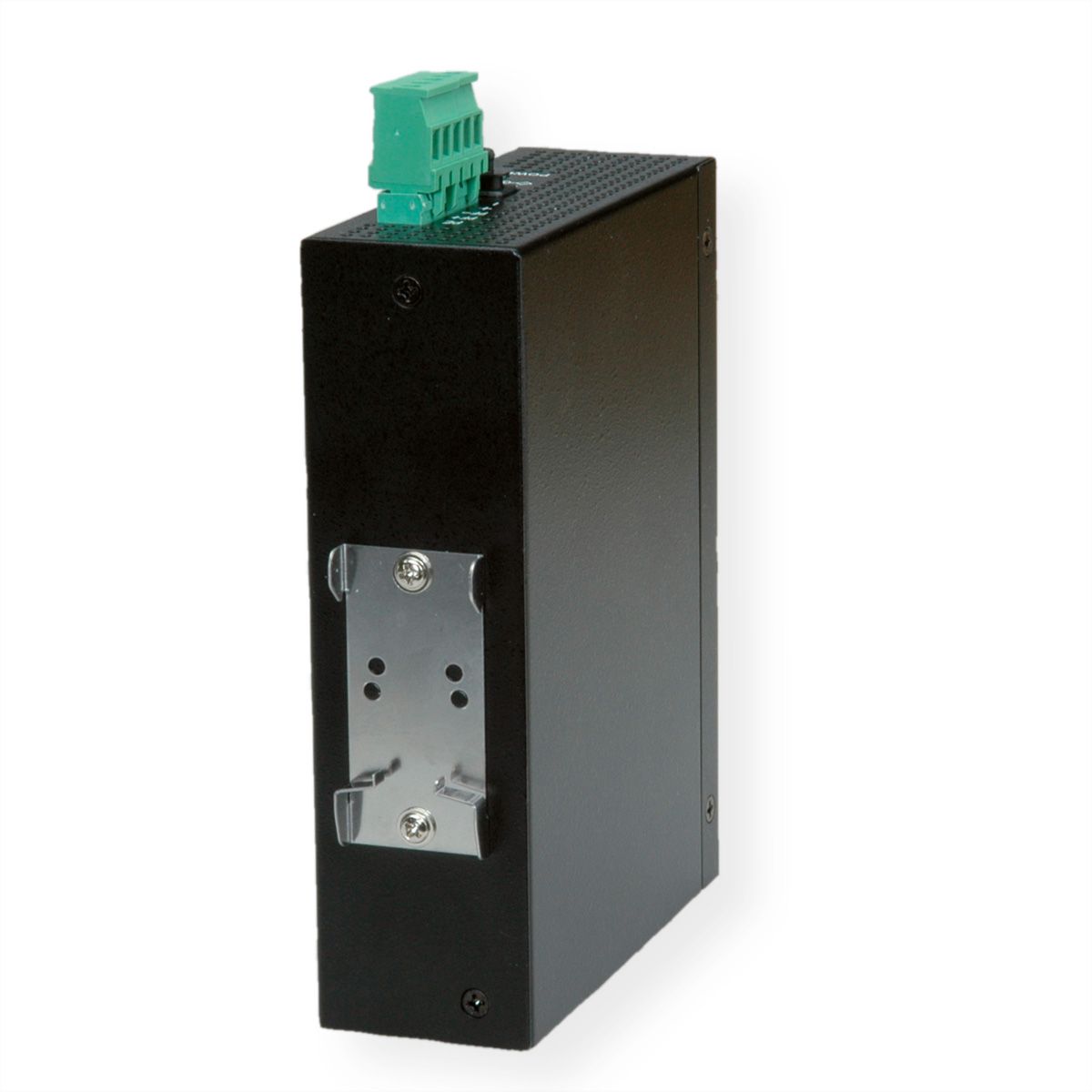

  • Supports DIN-rail mounting and panel mounting
  • Power: Input: 4.5 - 50V DC, Consumption: 3.4W (max.)
  • Operating Temperature: - 20 °C - +70 °C
  • DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
  • Dimensions: 140 x 106 x 40 mm (WxDxH)
  • As according power supply we recommend 21.13.1226
  • Contents: Switch

Specifications

Manufacturer ROLINE
Product group Network Switches
Product type Fast Ethernet Switch
Colour black
Network standard Fast Ethernet
LAN (Mbps) 10/100
Quantity of ports 16
Fast Ethernet Ports RJ-45 16
Mounting form DIN Rail
Management no
Stackable no
Technical particularity - 20 ºC - +70 ºC
Dimensions (HxWxD) 140 x 40 x 106 mm
Power supply unit (internal/external) External
Mains connection Loose cable / screw terminals
Operating temperature min. -20 °C
Operating temperature max. 70 °C
Height 140 mm
Width 40 mm
Depth 106 mm
Weight 531.5 g
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 210 mm
Package weight (single piece) 0.62 kg

Downloads

Product data sheet - English (46.8 KB)

Download

Manufacturer data sheet - English (438.7 KB)

Download

Accesories

The products of our own brand ROLINE are designed for professional continuous operation.

With a 5-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
