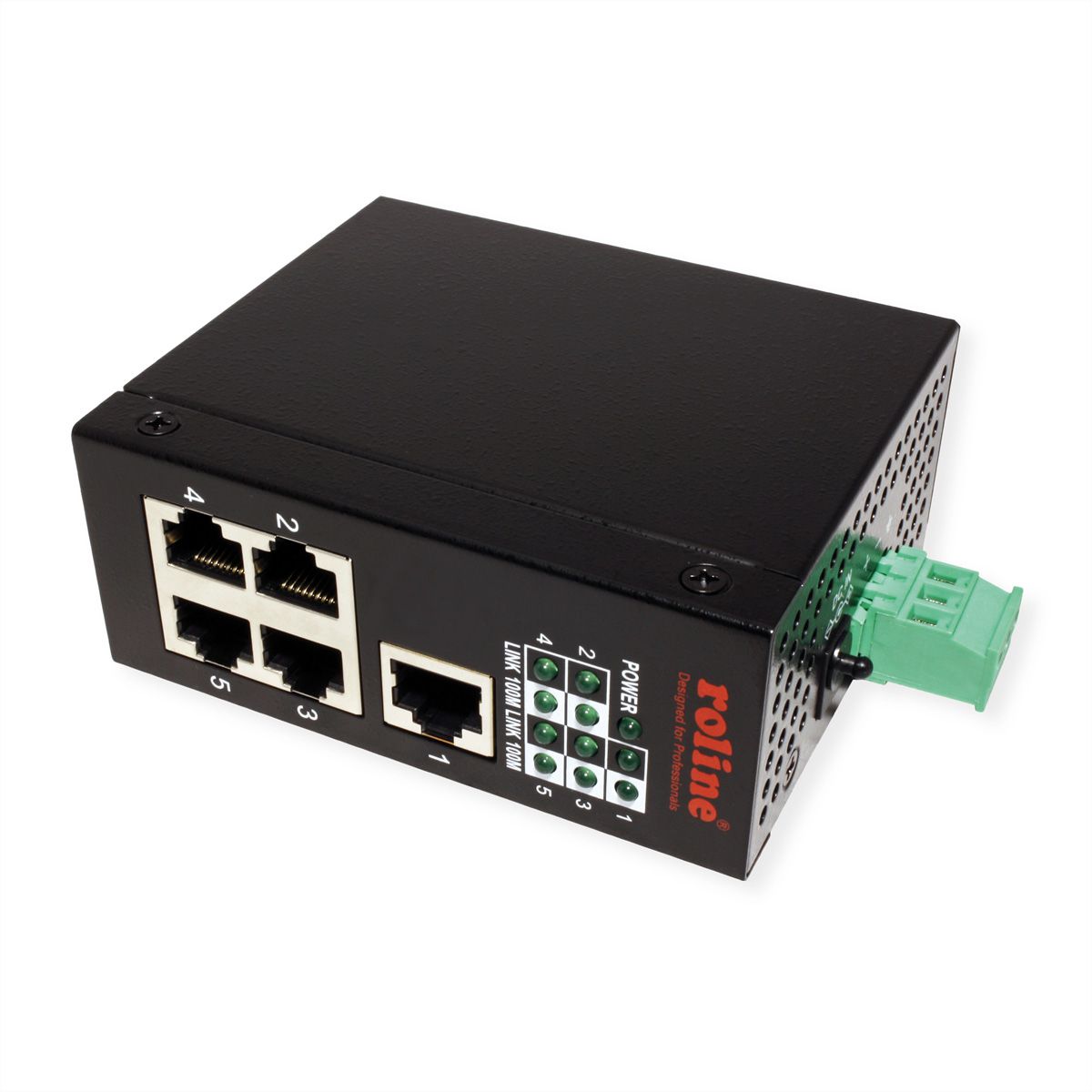

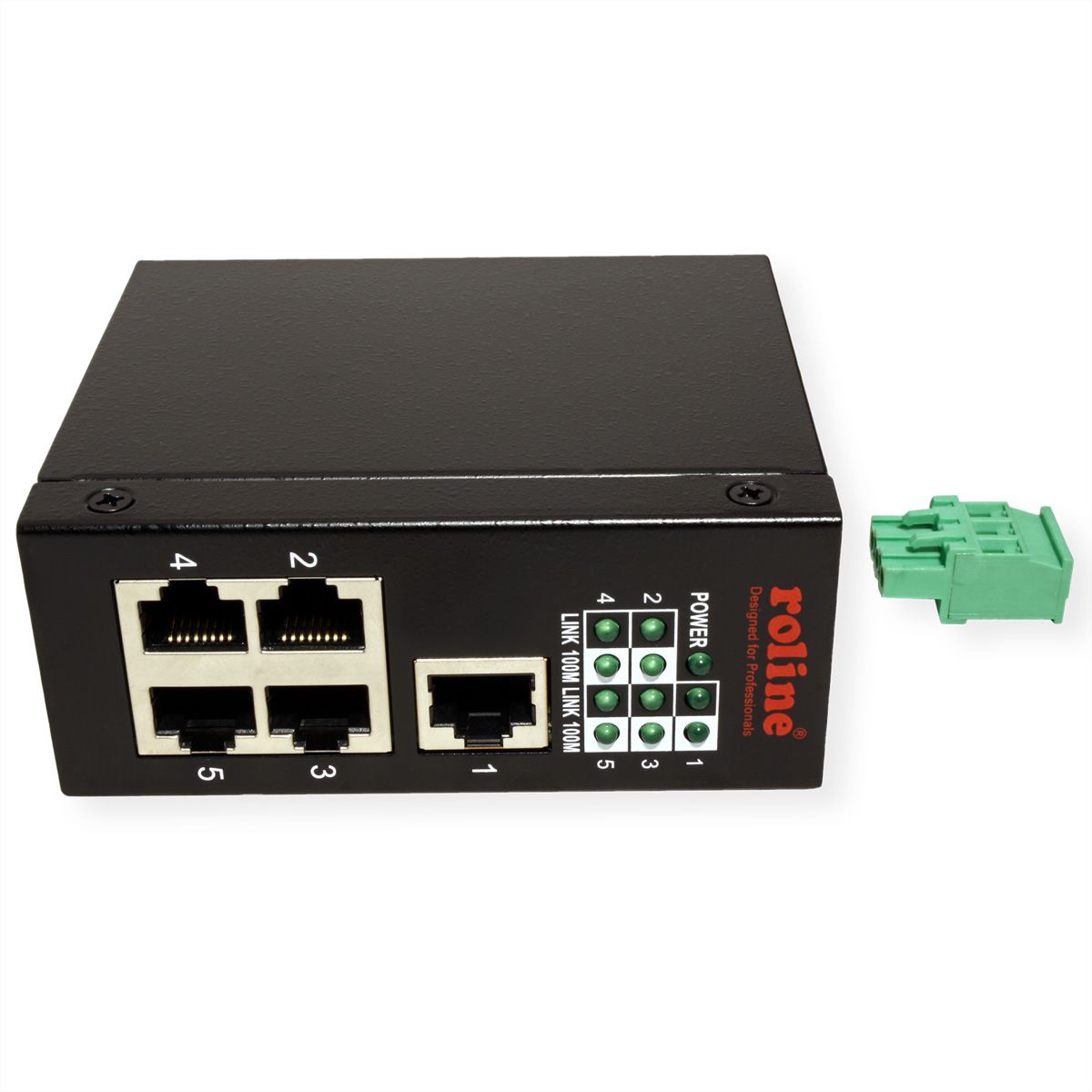

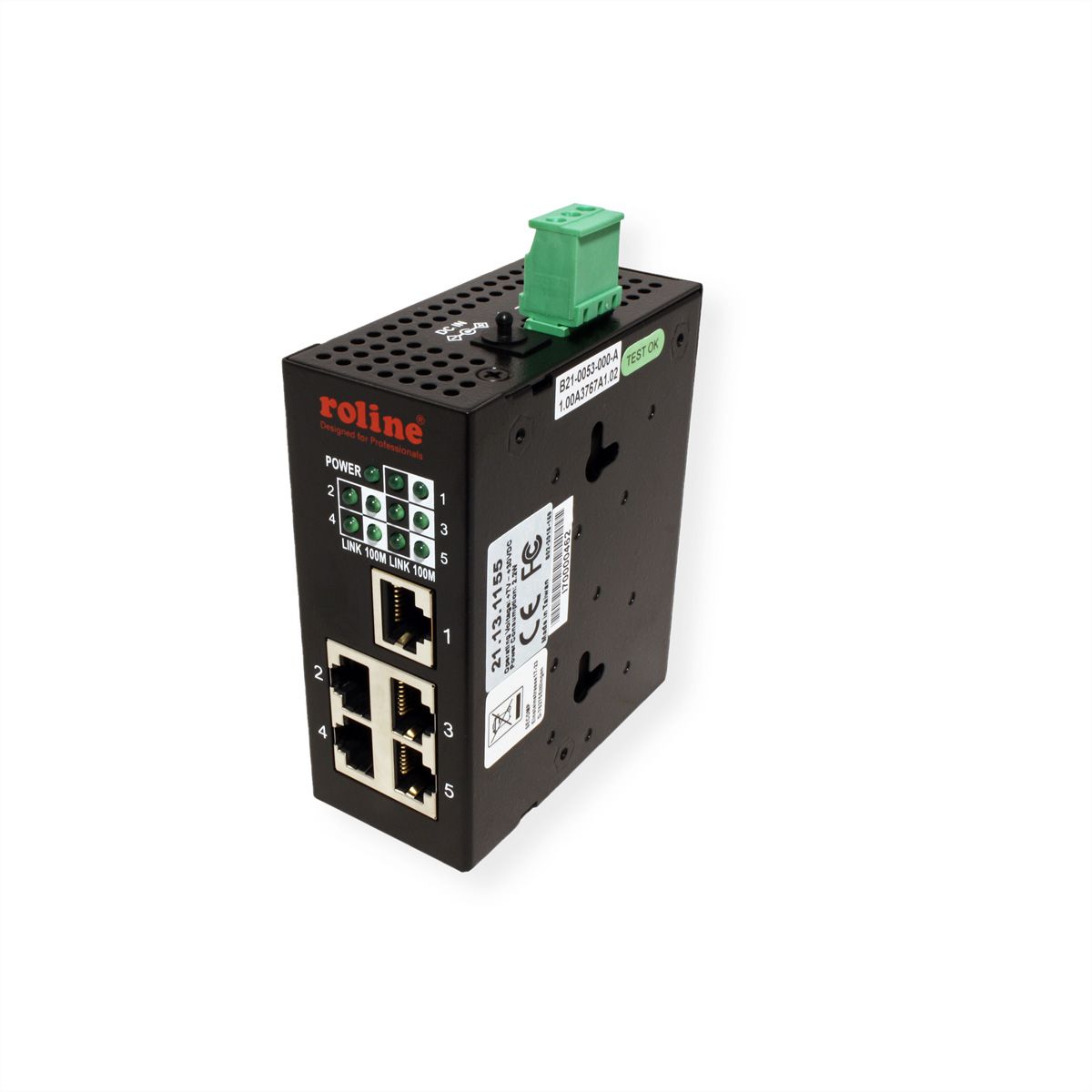

ROLINE Industrial Switch, 5x RJ-45, unmanaged

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21131155
Brand / Manufacturer	ROLINE
Manuf. item no.	21.13.1155
EAN	7611990189151
Item weight	0.274 kg

Description

Fast Ethernet switch with 5 shielded 10/100 Base-T copper ports
Wide operating temperature range for temperature critical environment
Auto MDI/MDI-X crossover function
Supports IEEE 802.3x flow control for full-duplex operation
Supports Back-pressure flow control for half-duplex operation

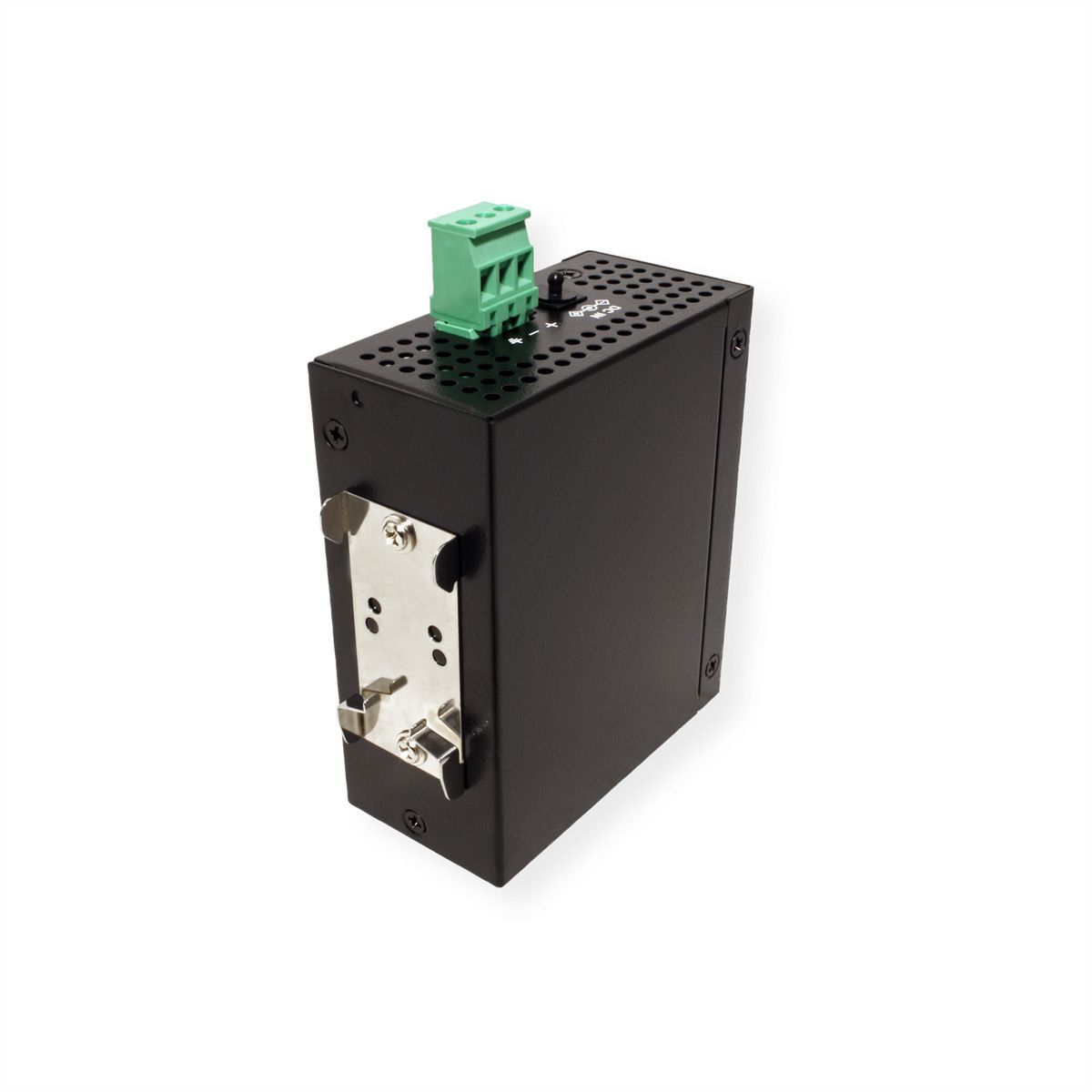

Supports DIN-rail mounting
Power: Input: 5 - 30V DC, Consumption: 2.2W (max.)
Operating Temperature: - 10 °C - +70 °C

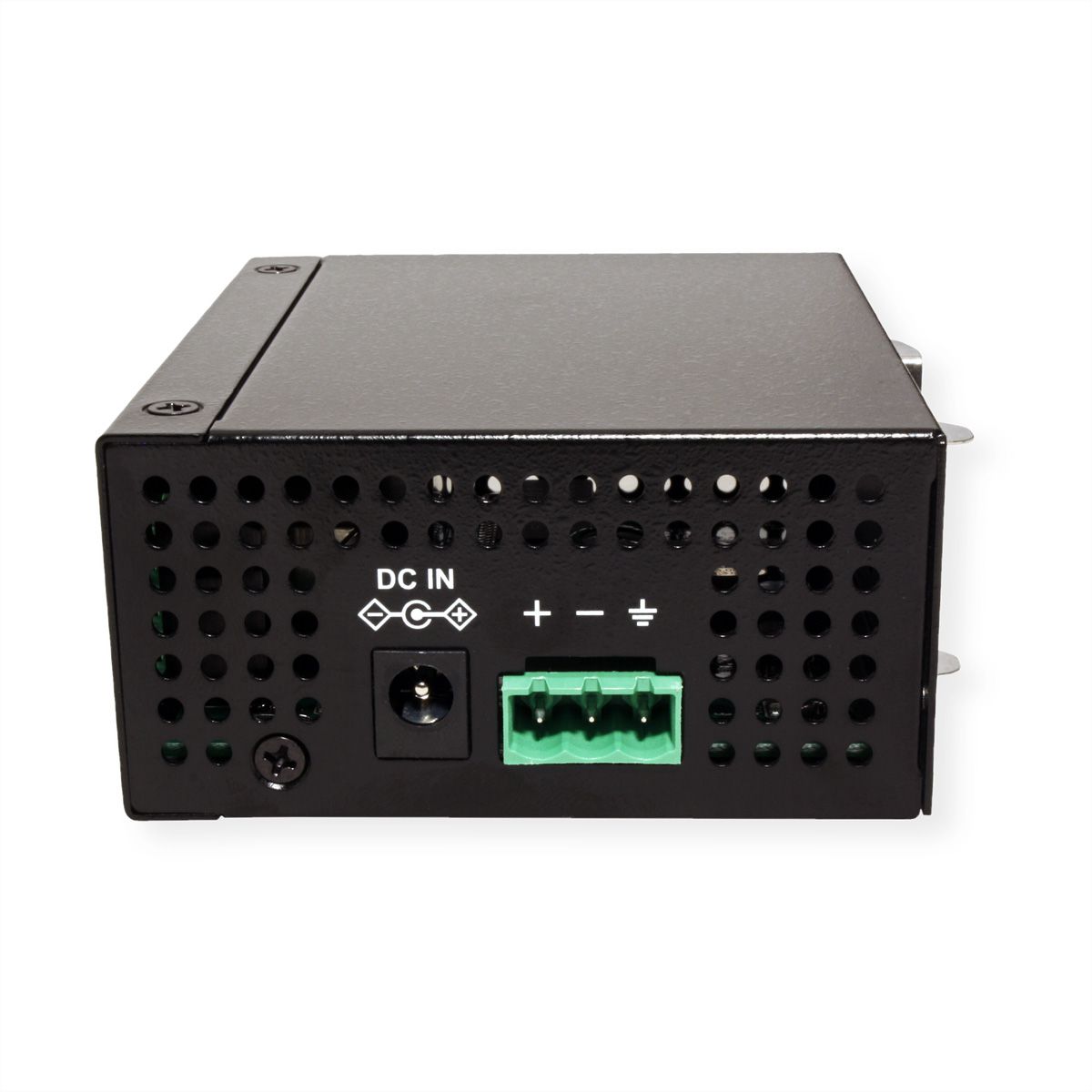

DC Input via terminal block or DC power jack ( 6.3mm / 2.0mm)
Dimensions: 40 x 80 x 95 mm (WxDxH)
As according power supply we recommend 21.13.1226

Specifications

Manufacturer	ROLINE
Product group	Network Switches
Product type	Fast Ethernet Switch
Colour	black
Scope of delivery	Switch
Network standard	Fast Ethernet
LAN (Mbps)	10/100
Quantity of ports	5
Fast Ethernet Ports RJ-45	5
Mounting form	DIN Rail
Management	no
Stackable	no
Dimensions (HxWxD)	95 x 40 x 80 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Operating temperature min.	-10 °C
Operating temperature max.	70 °C
Height	95 mm
Width	40 mm
Depth	80 mm
Weight	281.09 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.274 kg
