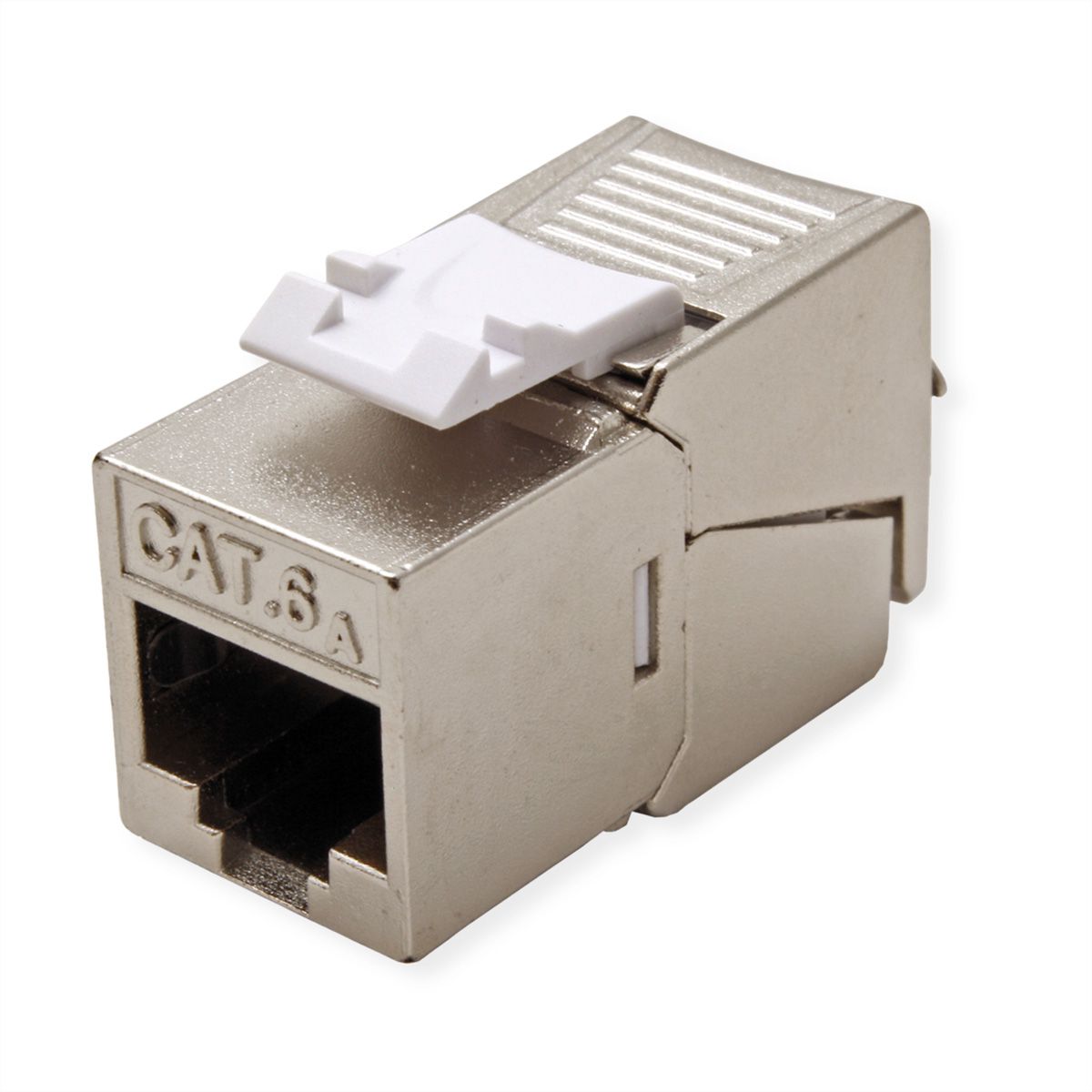

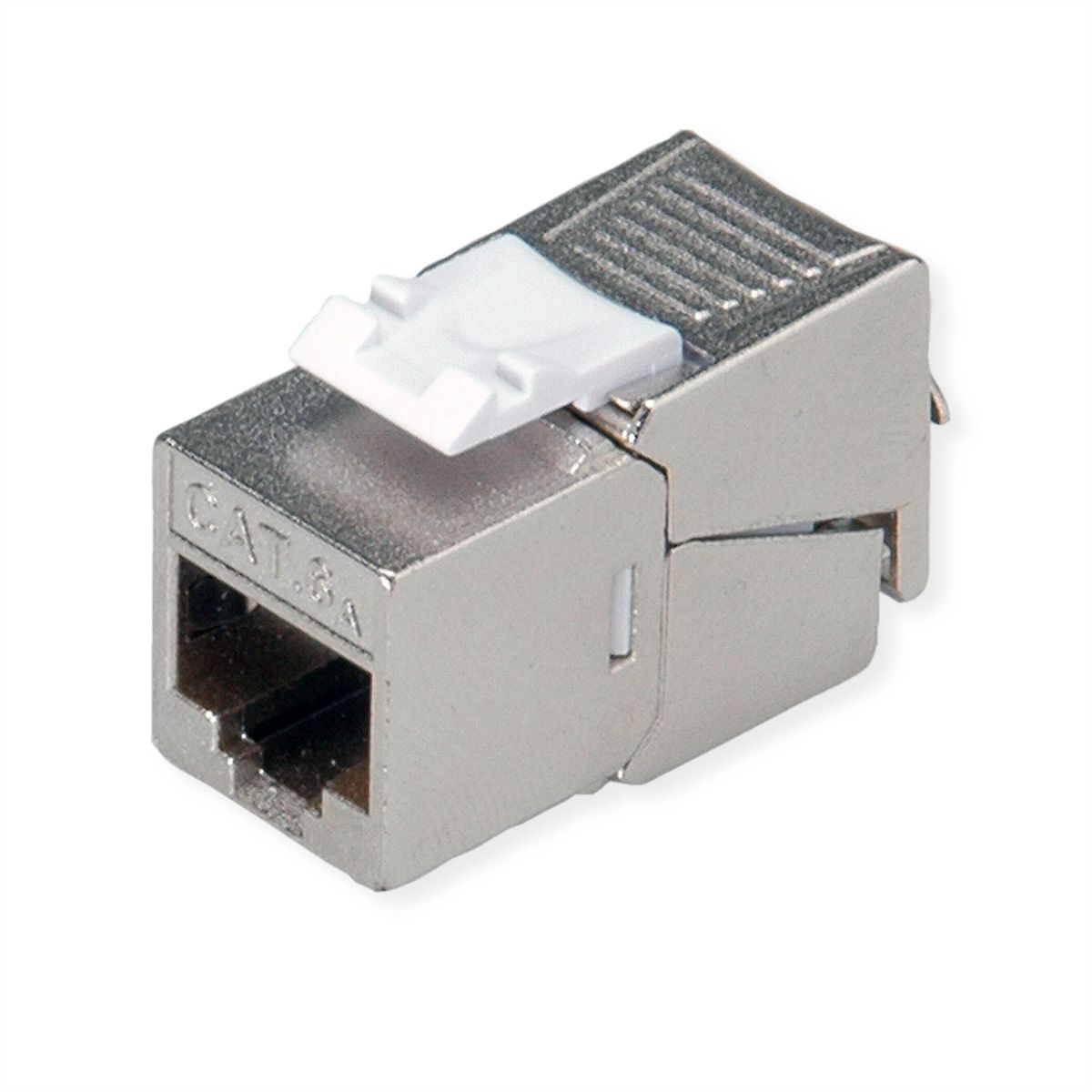

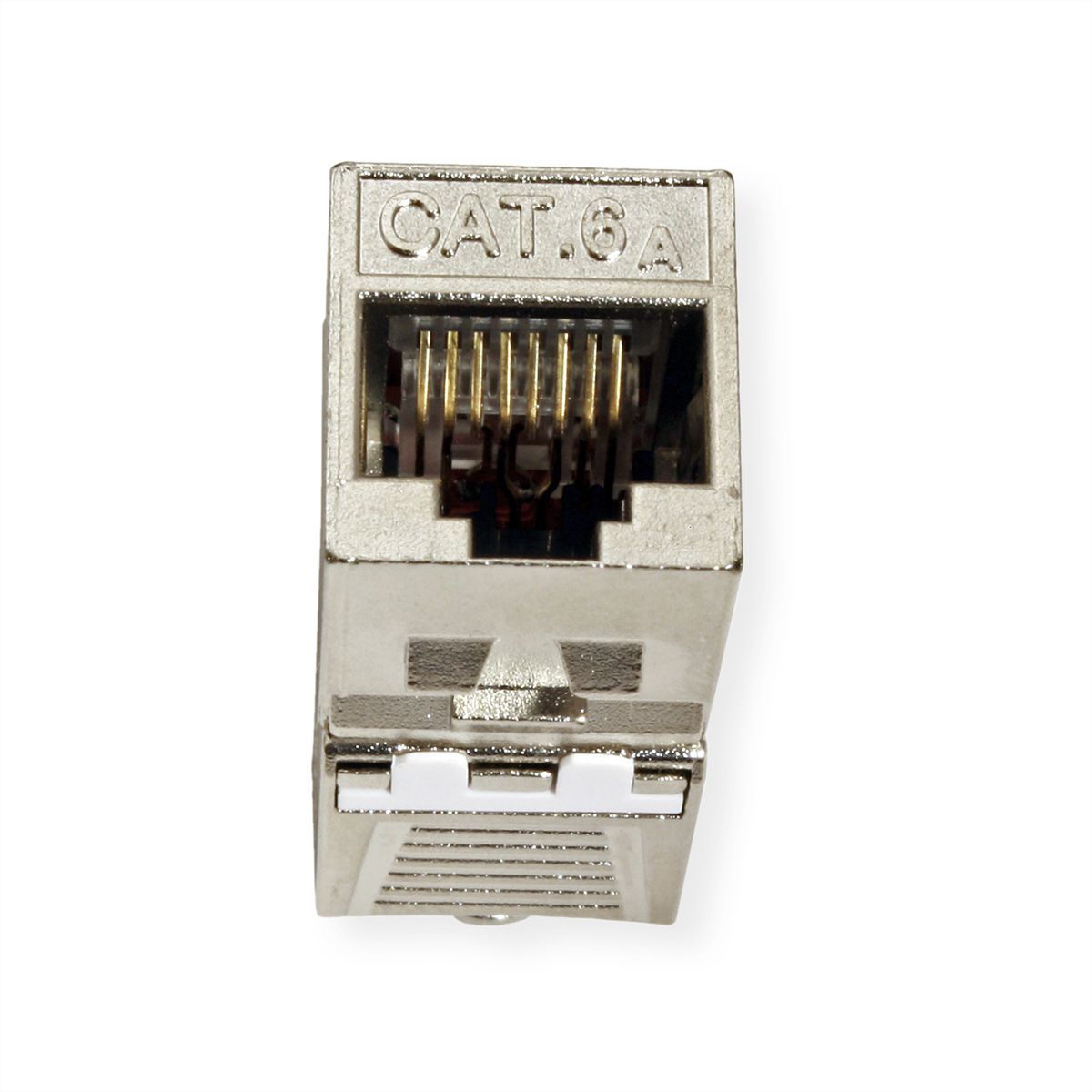

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, STP, tool-free, SLIM, silver

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26110378
Brand / Manufacturer	ROLINE
Manuf. item no.	26.11.0378
EAN	7611990111015
Item weight	0.1 kg

Description

Keystone in proven ROLINE quality!

The ROLINE Cat.6A Keystones are ideal for use in Gigabit Ethernet networks

They support data transfer rates up to 10 Gbit/s with a bandwidth of 500 MHz

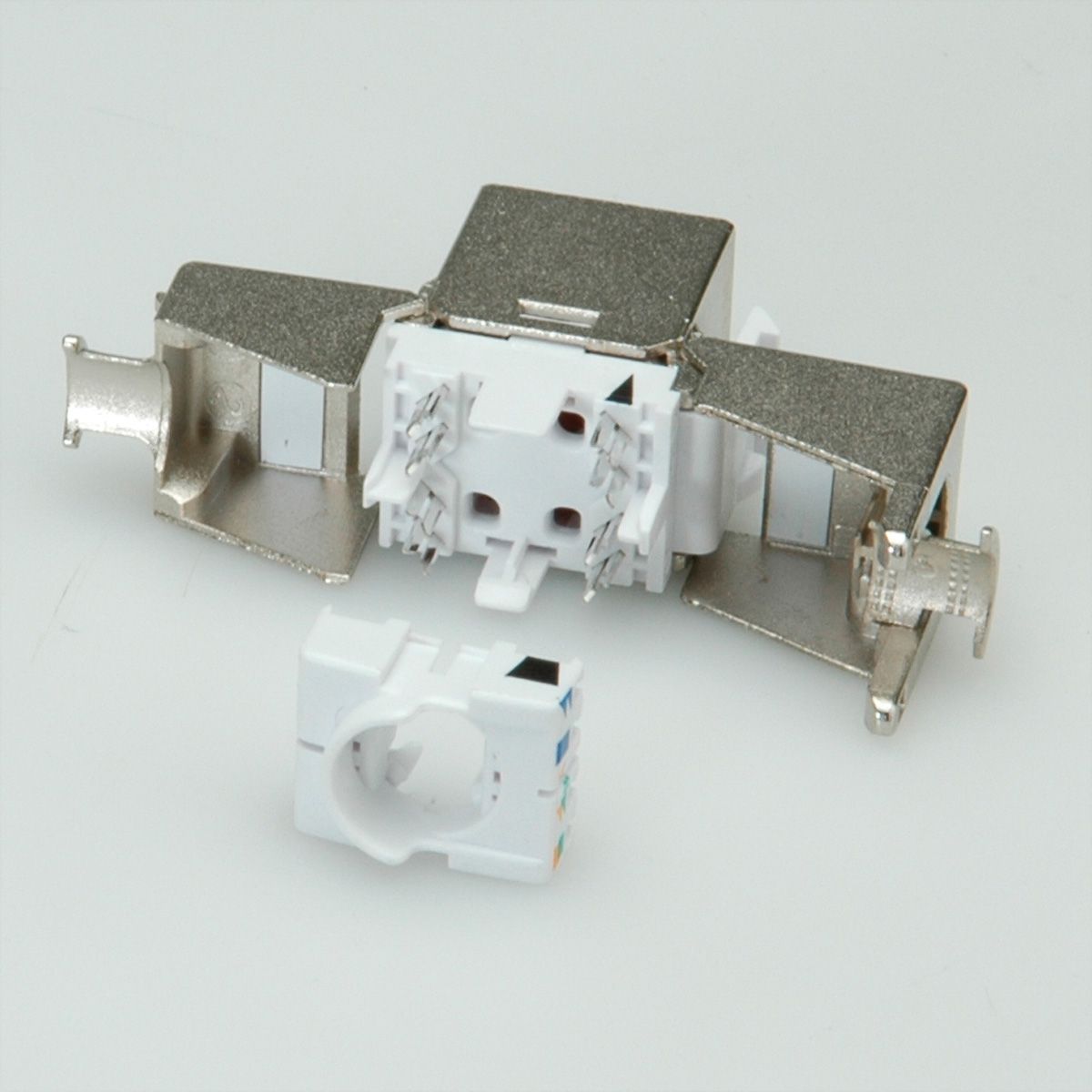

Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.0357) or light gray (26.11.0356).

Or in combination with a module receptacle (25.16.8579) you can realise a junction box.

The Keystones are coded according to EIA/TIA 568

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Connection direction	Straight
Height	21 mm
Width	12 mm
Depth	36 mm
Weight	19 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	60 mm
Package weight (single piece)	0.1 kg
