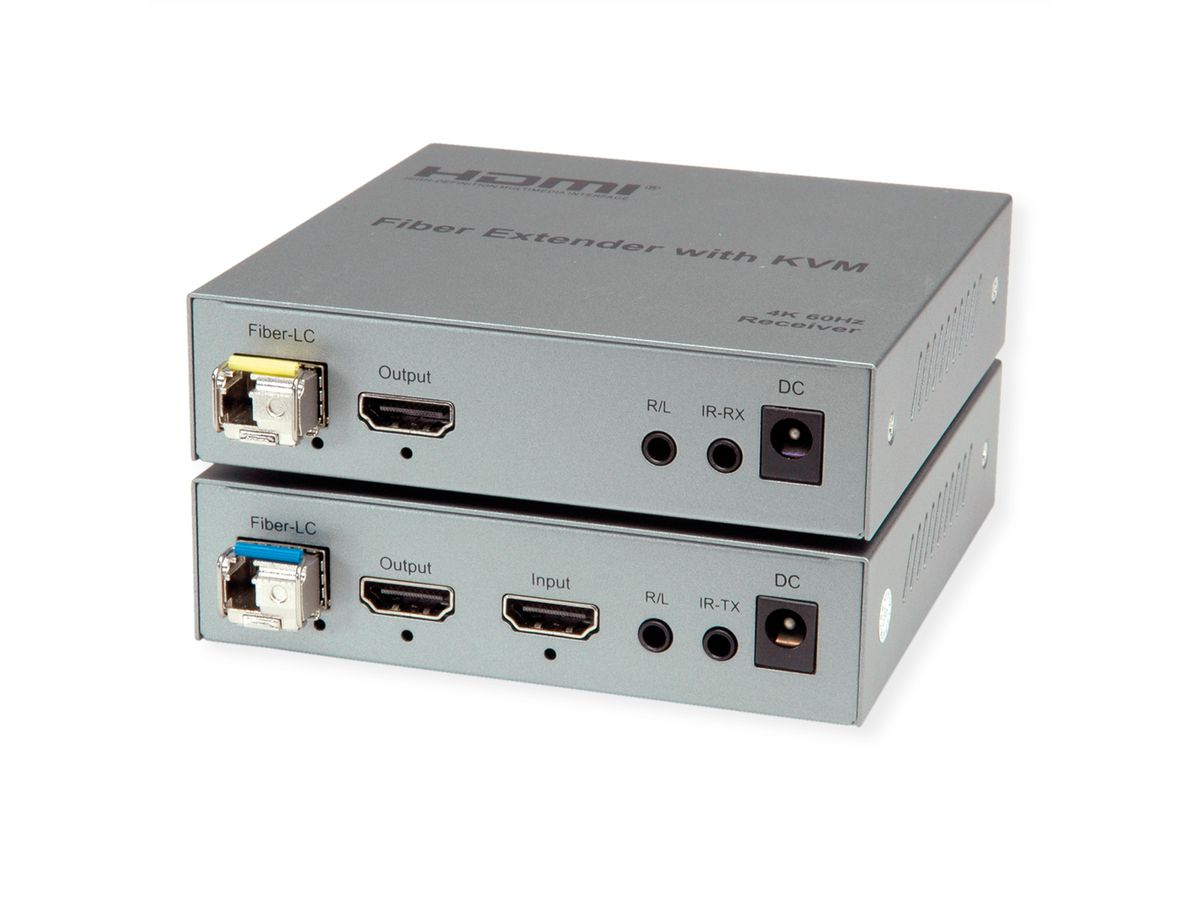

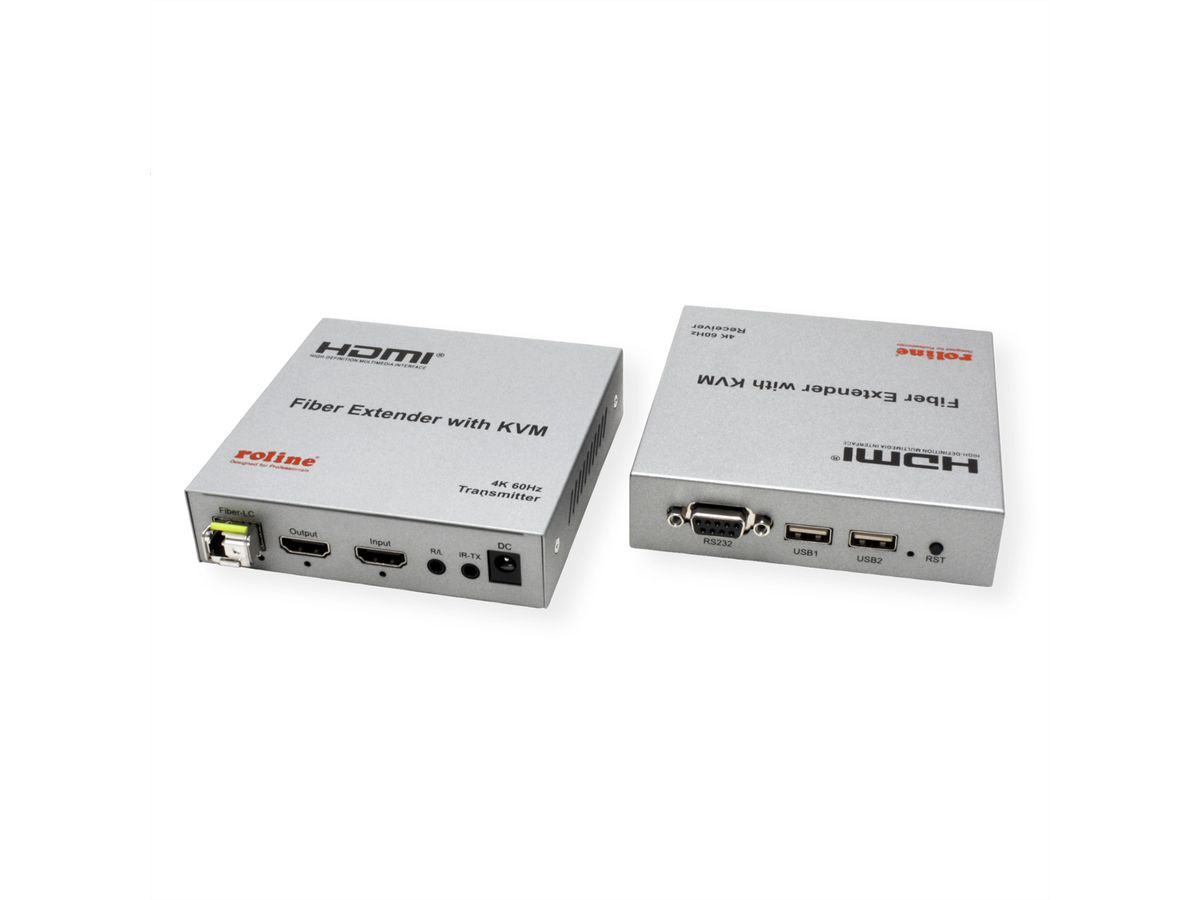

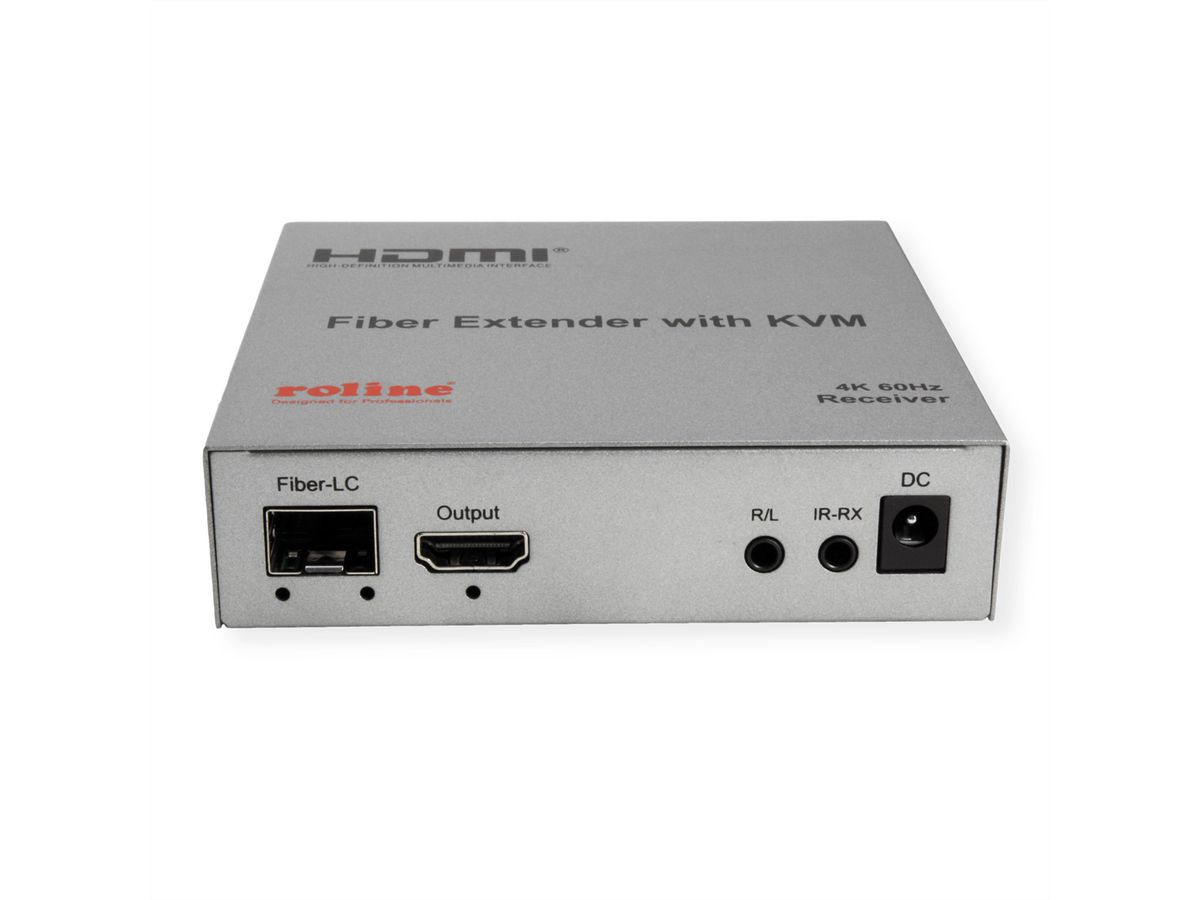

ROLINE KVM Extender over Fiber Optic, HDMI 4K, USB, 20 km
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14013363 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 14.01.3363 |
| EAN | 7630049631977 |
| Item weight | 1 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

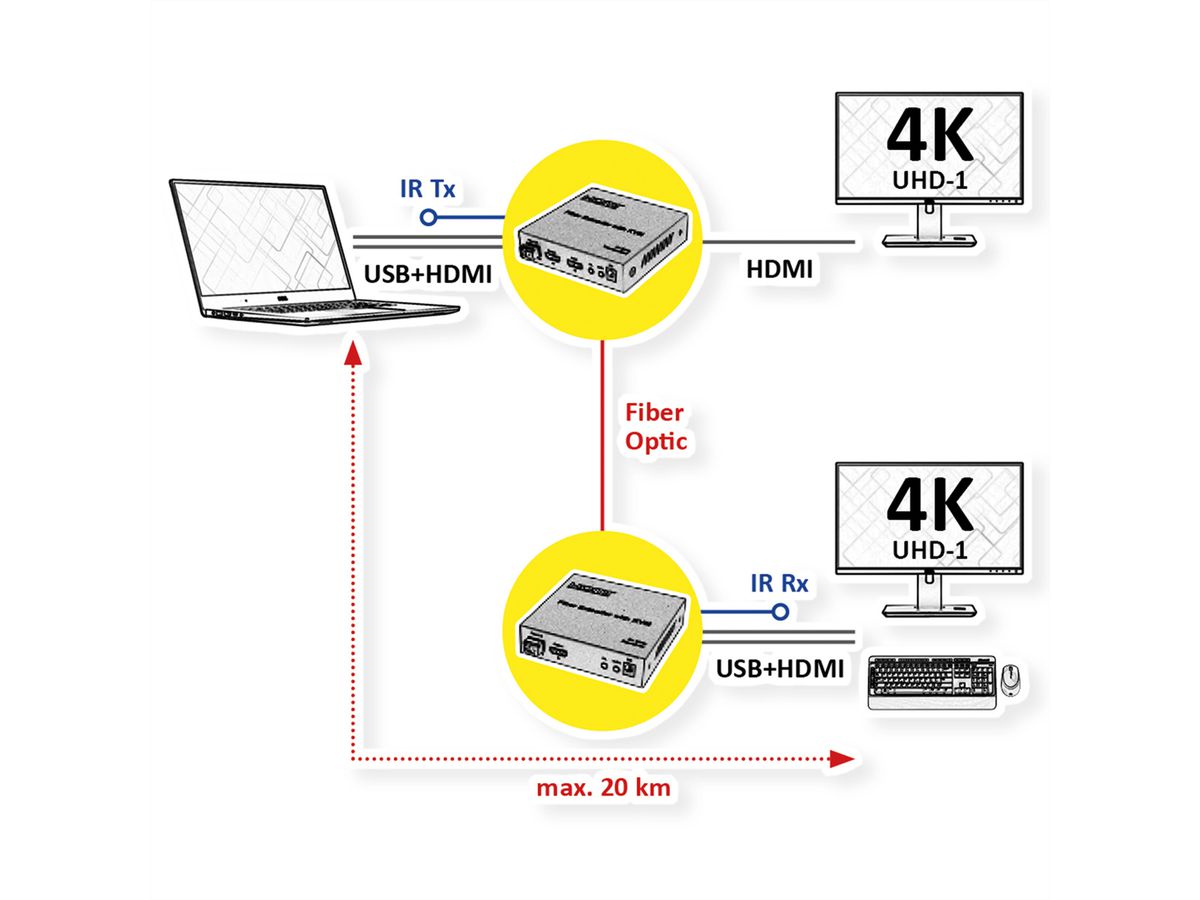

The KVM extension transmits HD audio and video signals as well as USB signals up to 20 km via a bidirectional fiber optic single-fiber cable. This allows a computer system to be controlled up to 20 km away via the remote console (HDMI 4K monitor, USB keyboard and USB mouse).
- Areas of application: Security control, multimedia teaching, HDMI signal extension
- Max. Resolution: 3840x2160 @60Hz
- Use of bidirectional fiber optic simplex cables for low costs with stable signal transmission

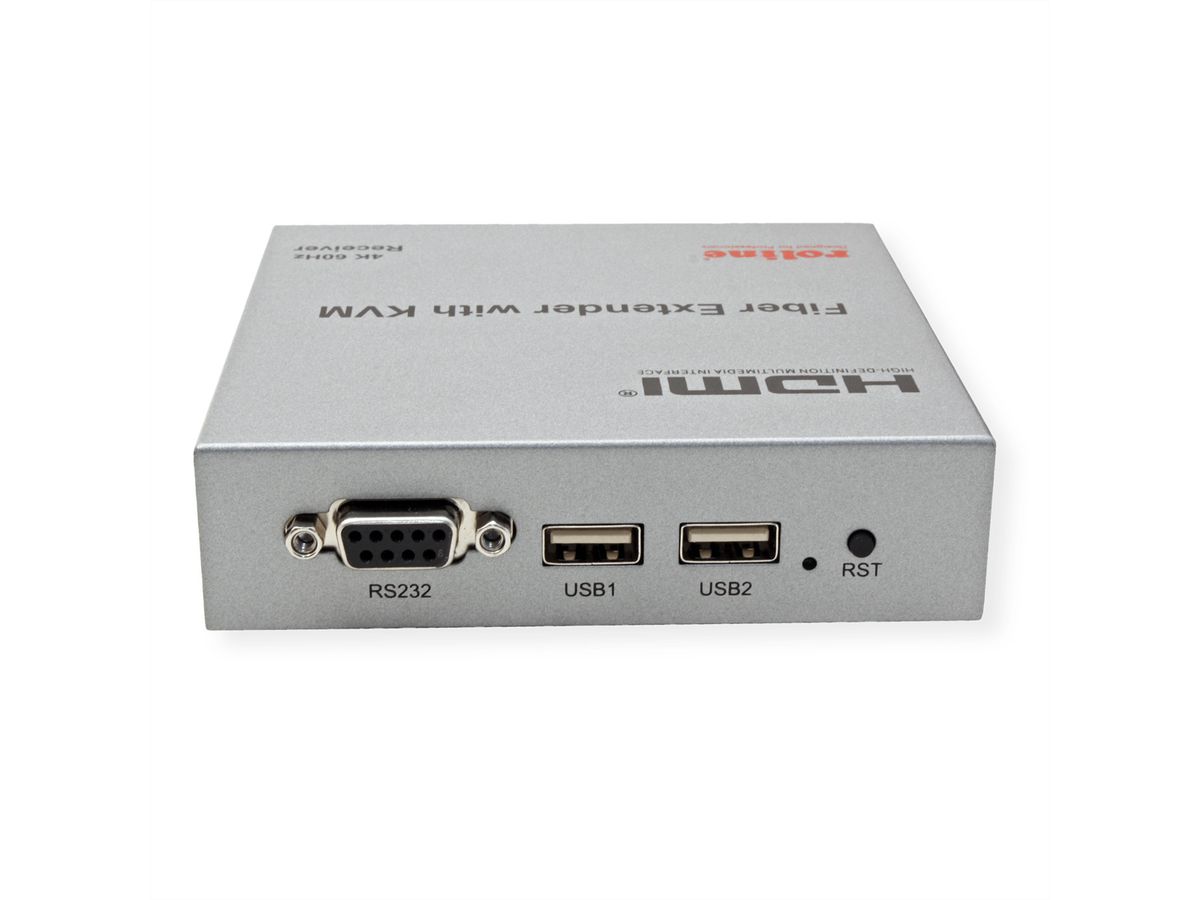

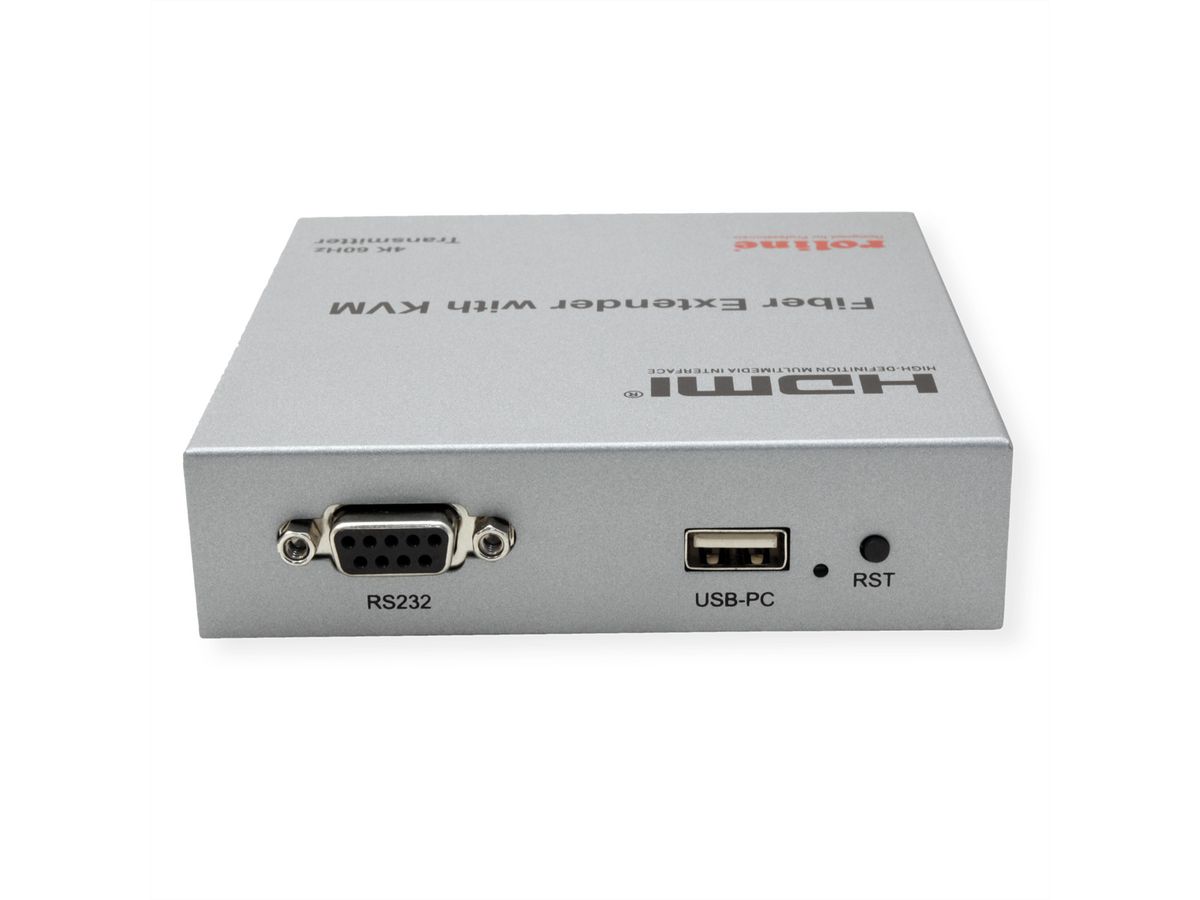

- Supports audio connection 3.5 mm (L-PCM), IR and RS232
- Solid metal housing

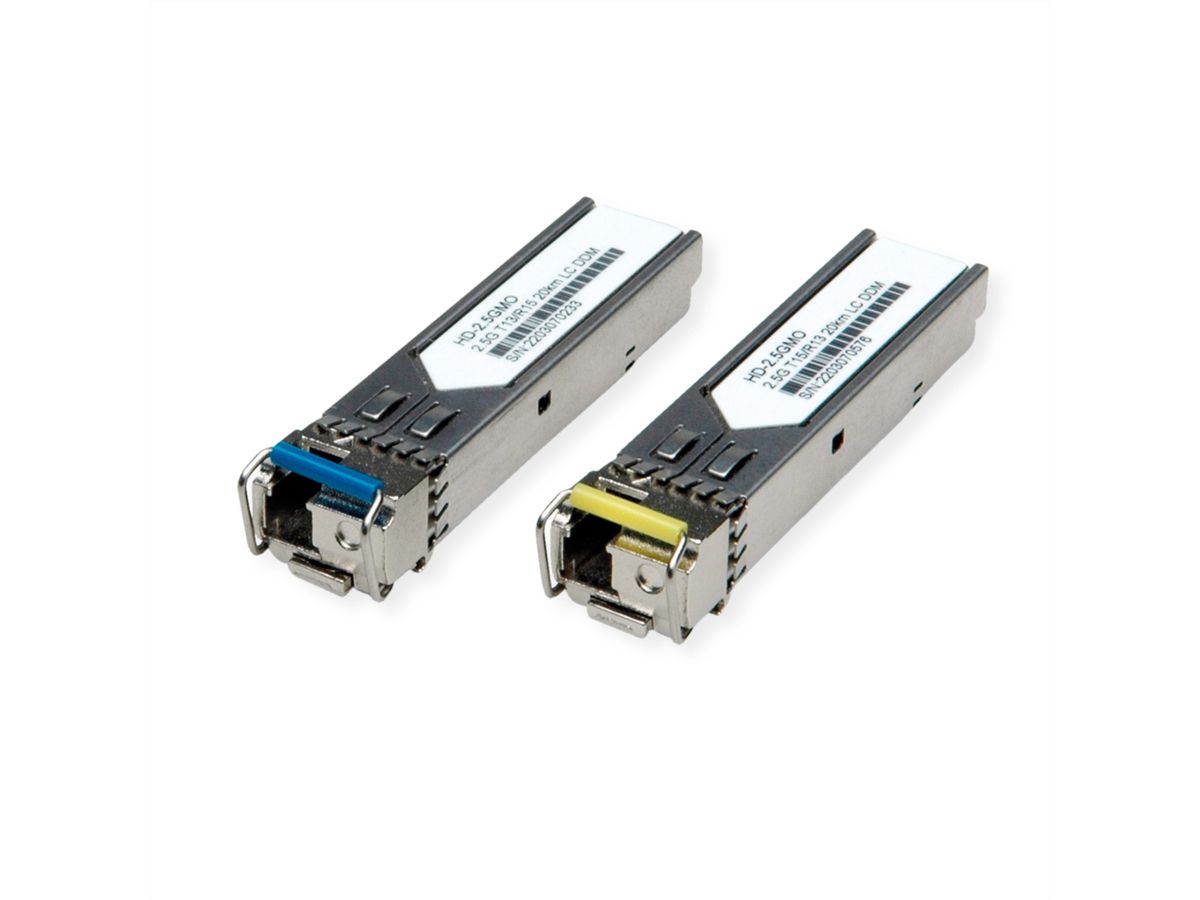

- SFP modules (Single Mode Fiber) included (transmitter/receiver)

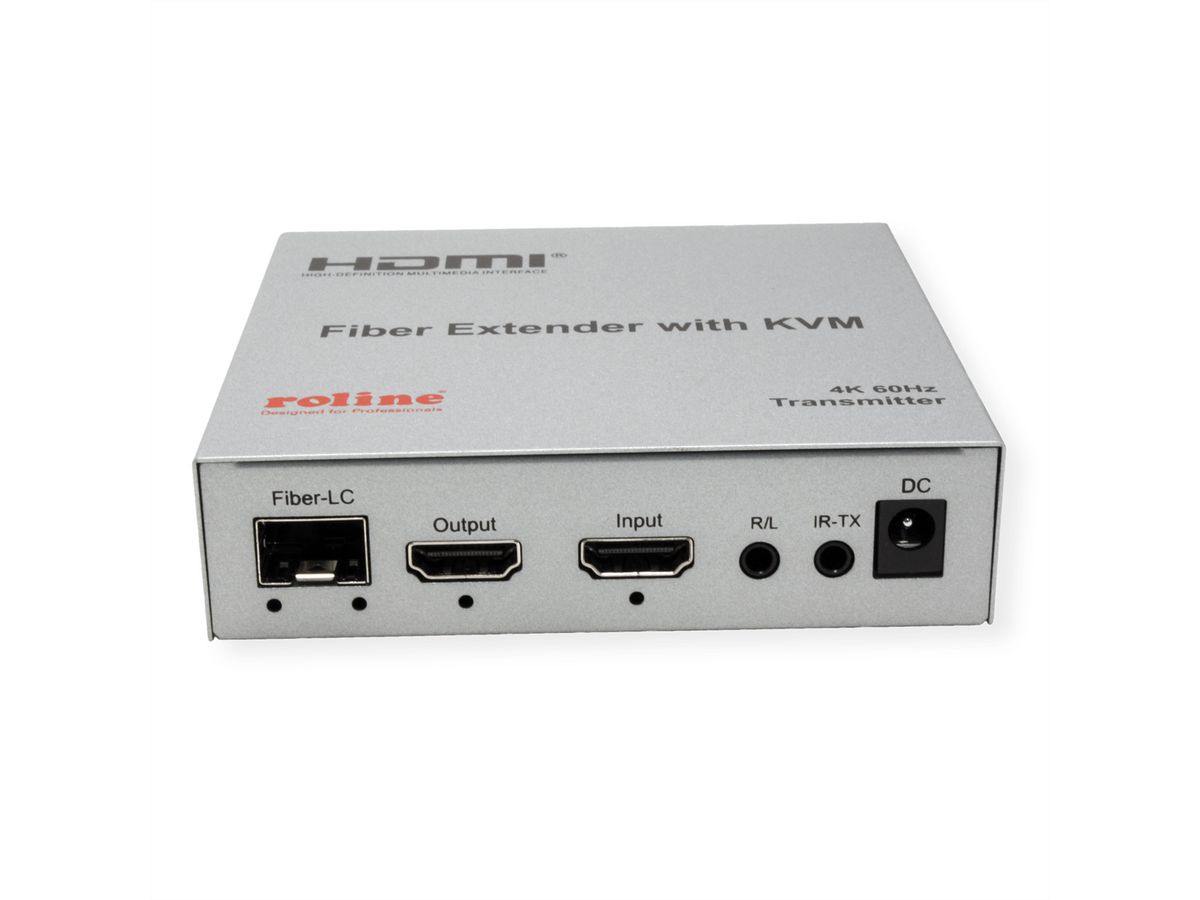

- An additional HDMI monitor can be connected to the transmitter
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | KVM (IP) extensions |
| Product type | KVM-Extender, HDMI |
| Colour | silver |
| Length | 20 km |

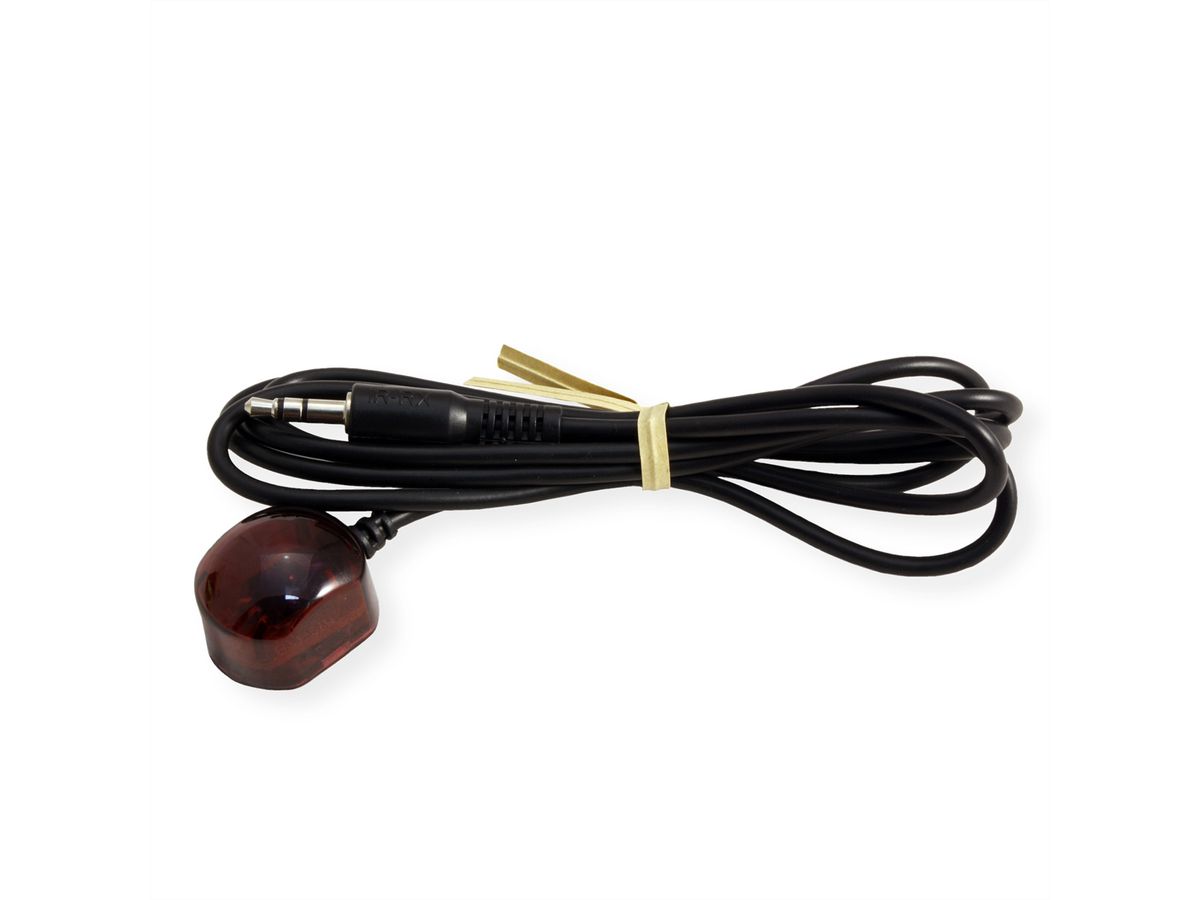

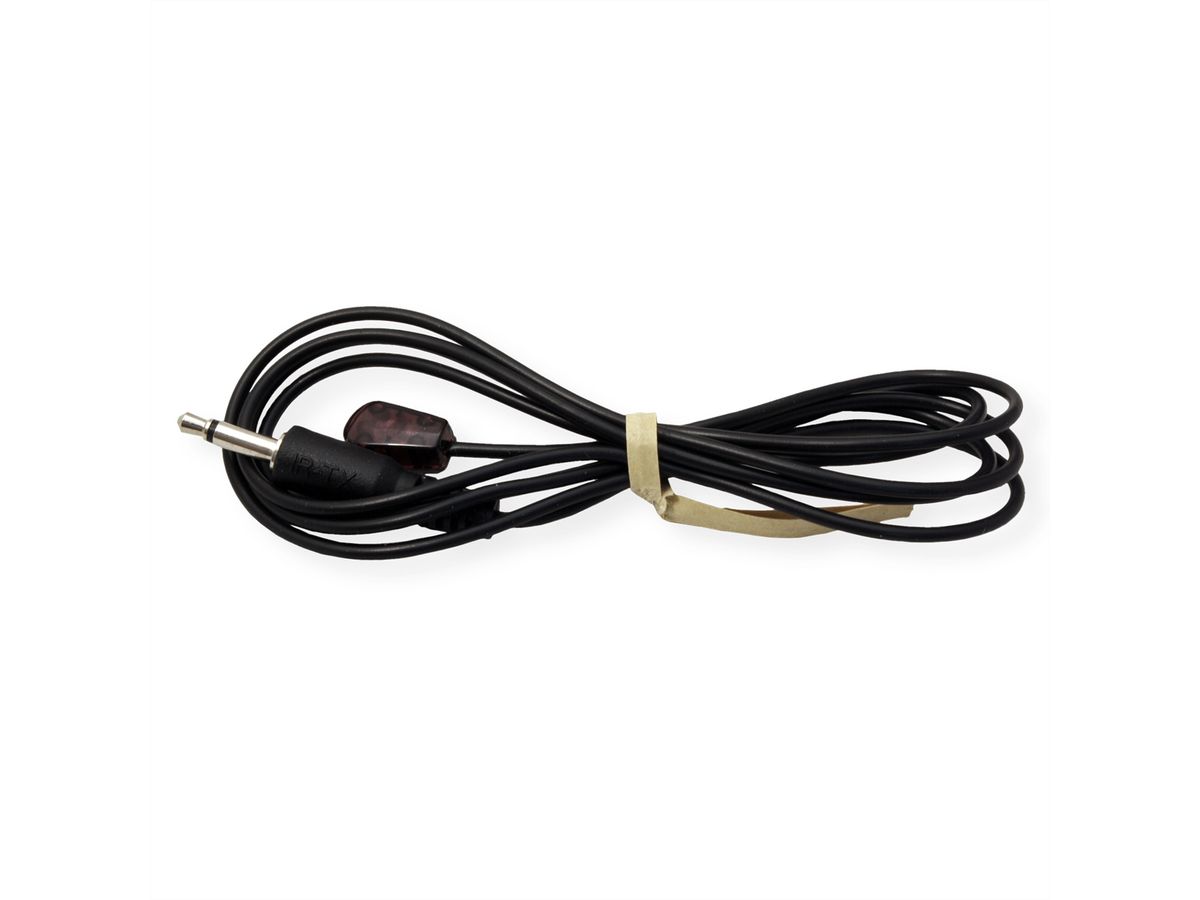

| Scope of delivery | Transmitter, receiver, 2x SFP module, 2x power supply unit (12 V, 2 A), IR transmitter/receiver pair, operating instructions |
| Interface | HDMI |
| Inputs | 1 |
| Outputs | 1 |
| Max. distance | 20 km |
| Supported PC-Systems | USB |
| PC: monitor connection | HDMI |
| PC: mouse/keyboard connection | 2x USB |
| PC: connection on moulded cables | no |
| Analogue Console: Monitor connection | HDMI |
| Analogue Console: Mouse/Keyboard connection | USB |
| Integrated console | no |
| Switching over Scan Run | yes |
| Print button on device | yes |
| Switching over OSD | no |
| Integrated Hub | no |
| Keyboard/mouse emulation | yes |
| 19" compatible | no |
| Cascadable | no |
| Hot plug compatible | yes |
| Max. resolution (nominal) | 3840 x 2160 @60Hz |
| Colour (Design profile) | silver |
| Material (casing) | Metal |
| Power supply unit required | yes |
| Power supply output | DC 12 V / 2 A |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 55 °C |
| Height | 17 mm |
| Width | 106 mm |
| Depth | 106 mm |
| Weight | 273 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 250 mm |
| Package weight (single piece) | 1 kg |
