Description

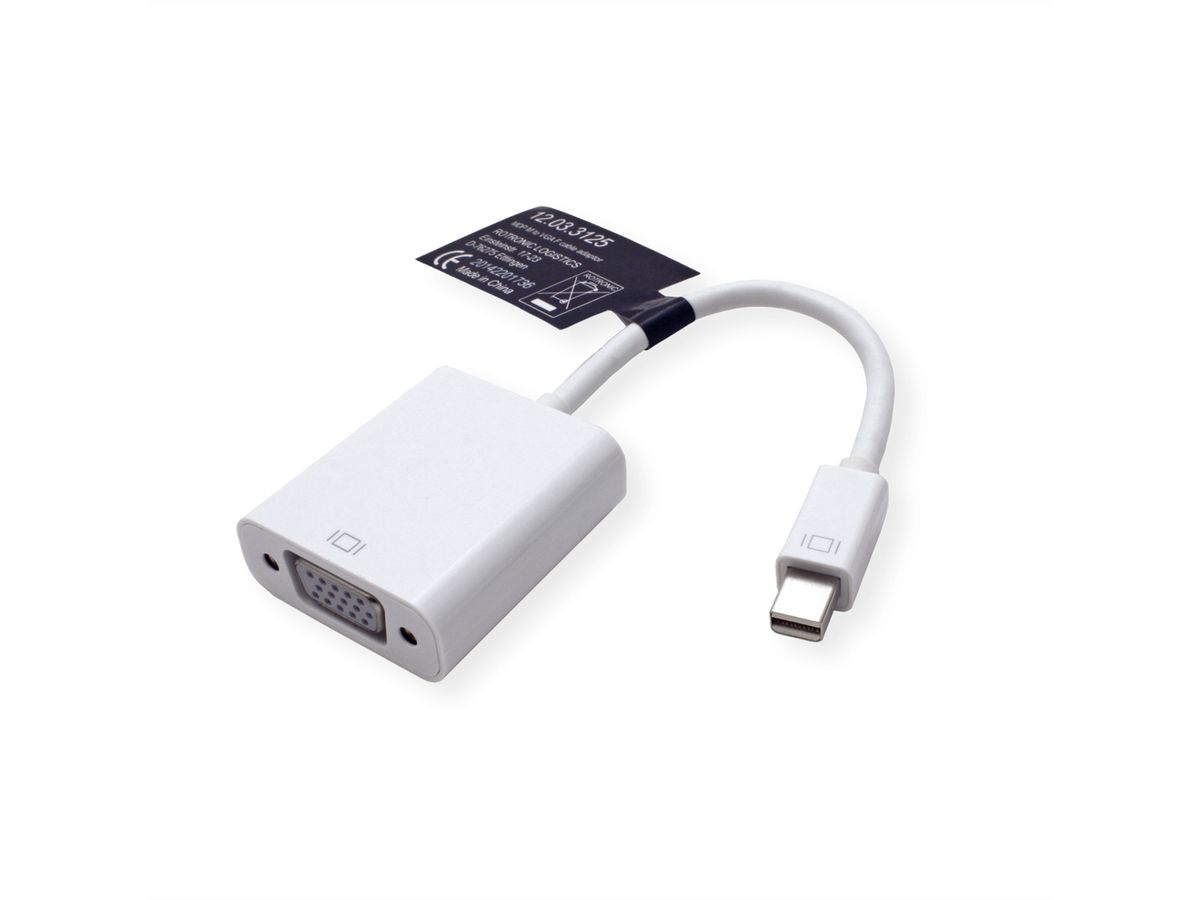

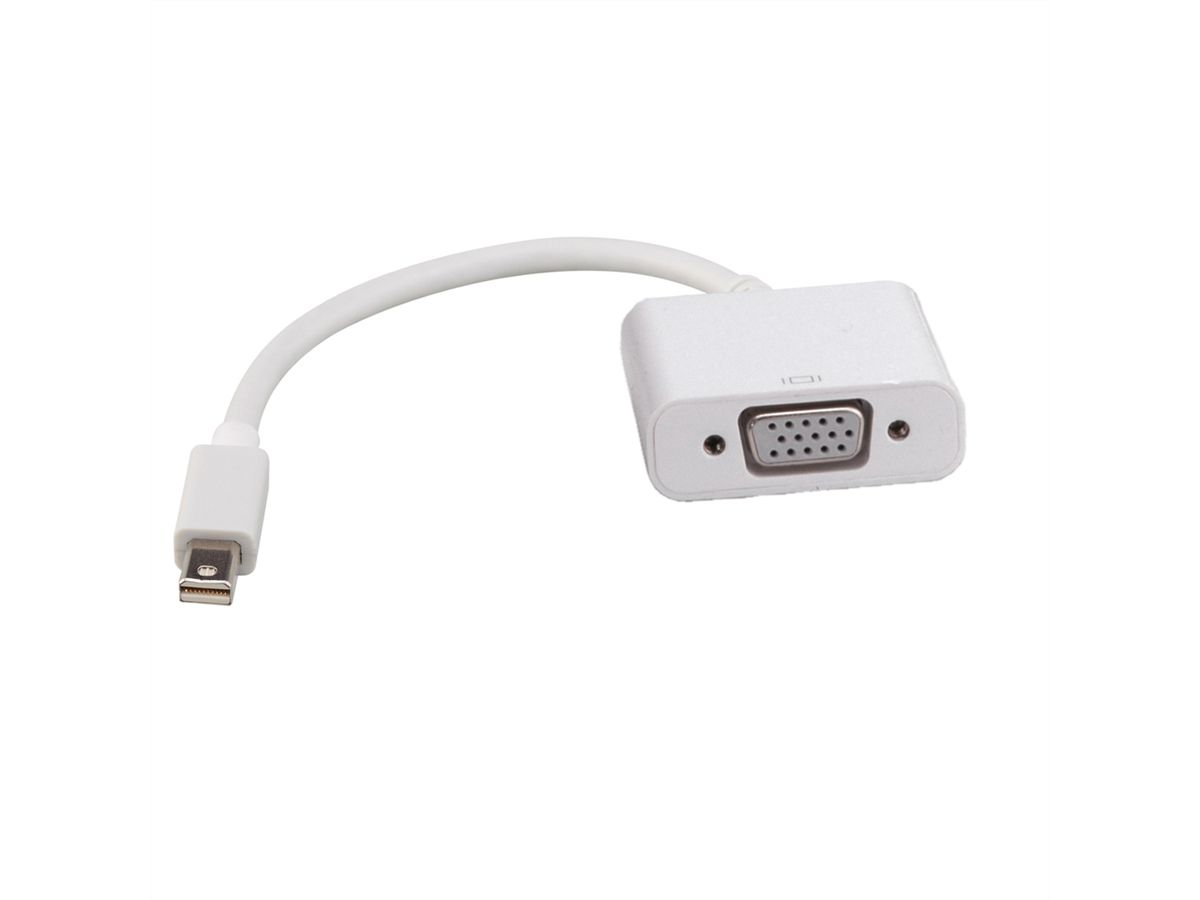

Mini DisplayPort to VGA cable adapter for connecting a graphics card with Mini DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

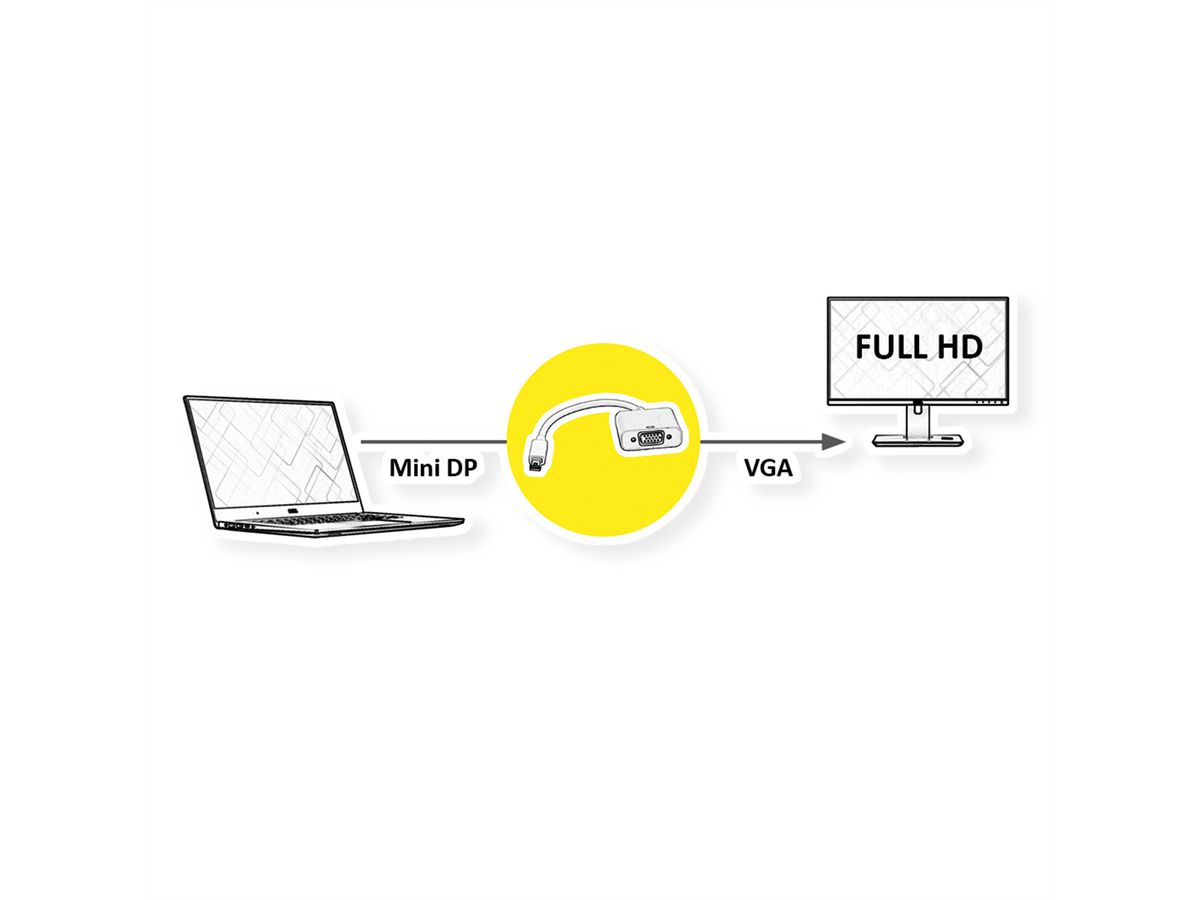

• For connecting a graphic card with Mini DisplayPort connector to a VGA monitor by using a VGA M-M cable
• Connectors: Mini DisplayPort Male and VGA Female
• Cable length: ca. 10 cm
• Remark: The Mini DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	Mini DisplayPort-VGA Adapter
Colour	white
Length	0.1 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	Mini DisplayPort Male
Side 2 connection (Peripherals)	VGA Female
Side 1 Connector Type	Mini DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Active / Passive	Active
Area of application	External
Weight	26.2 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.04 kg
