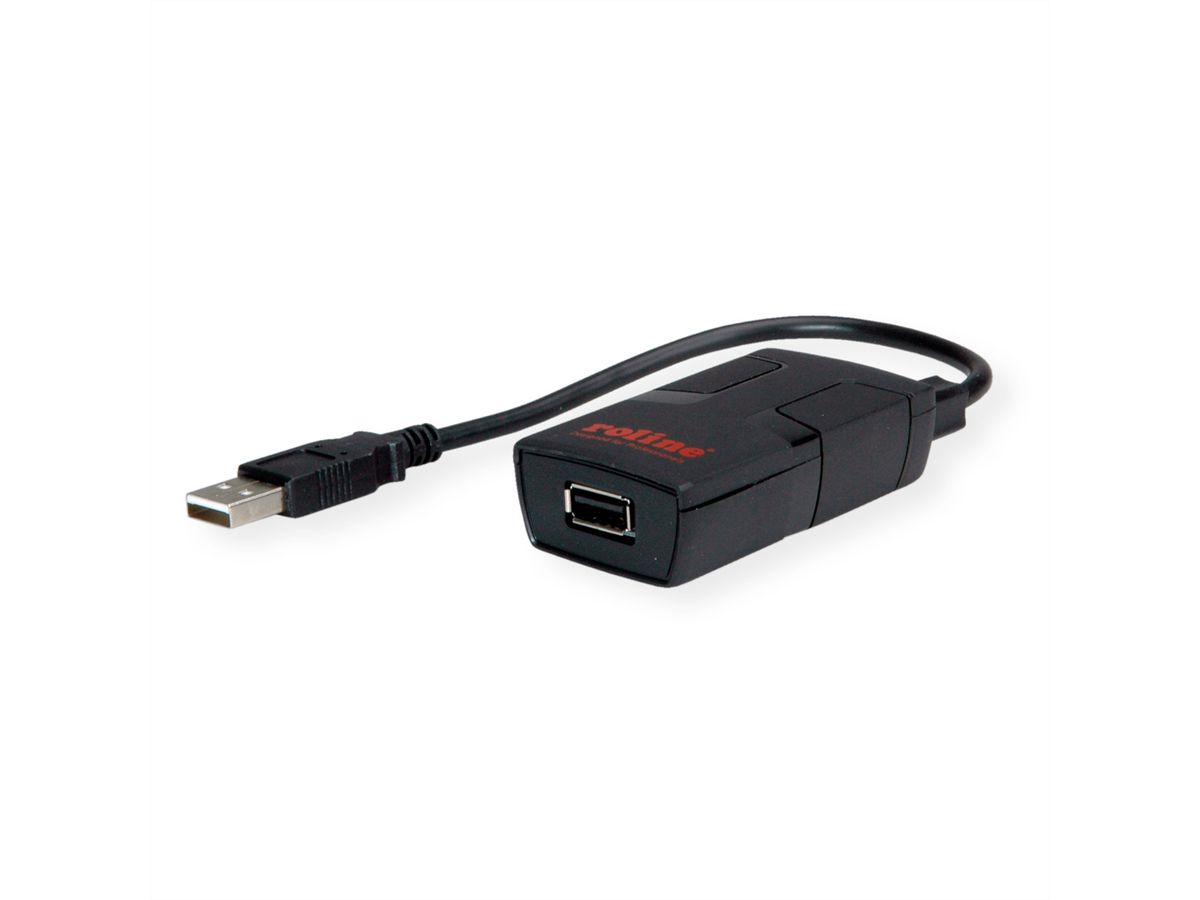

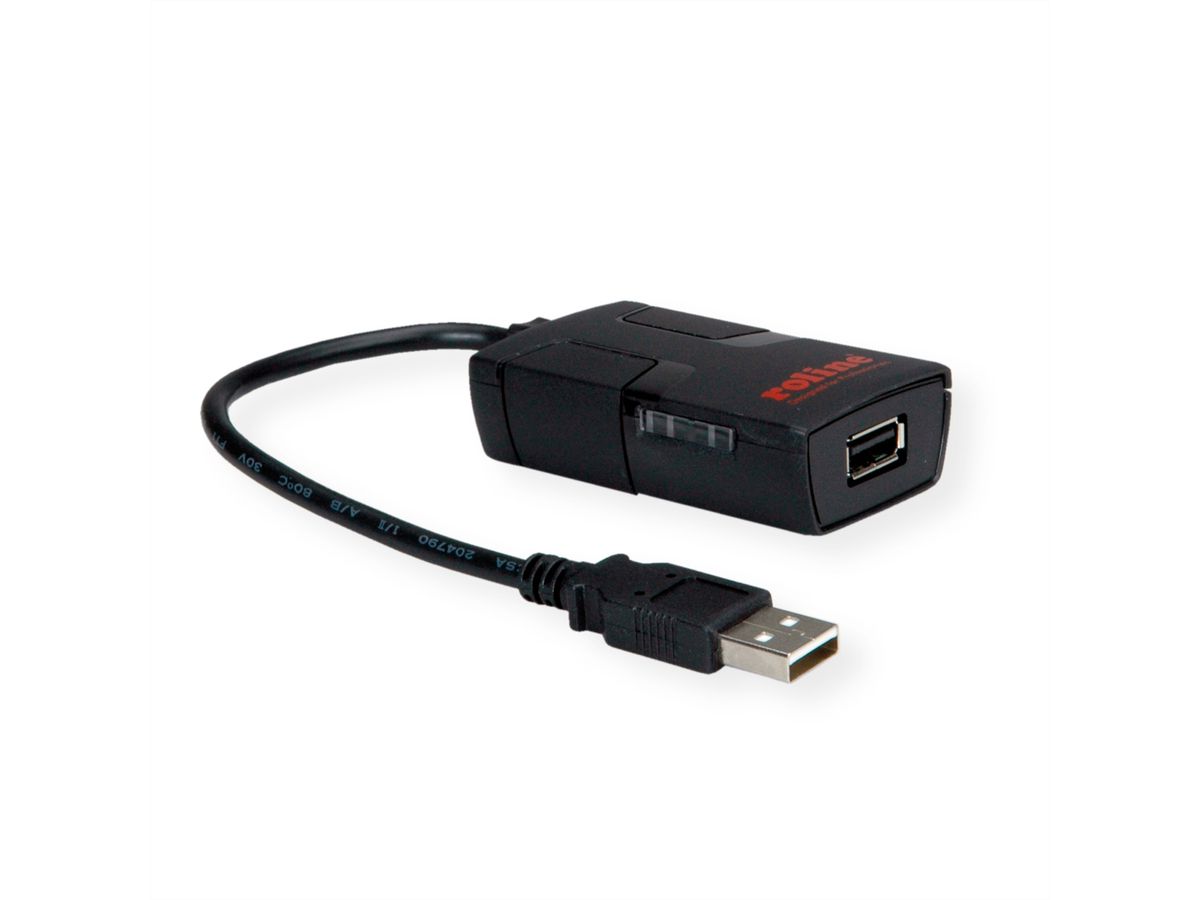

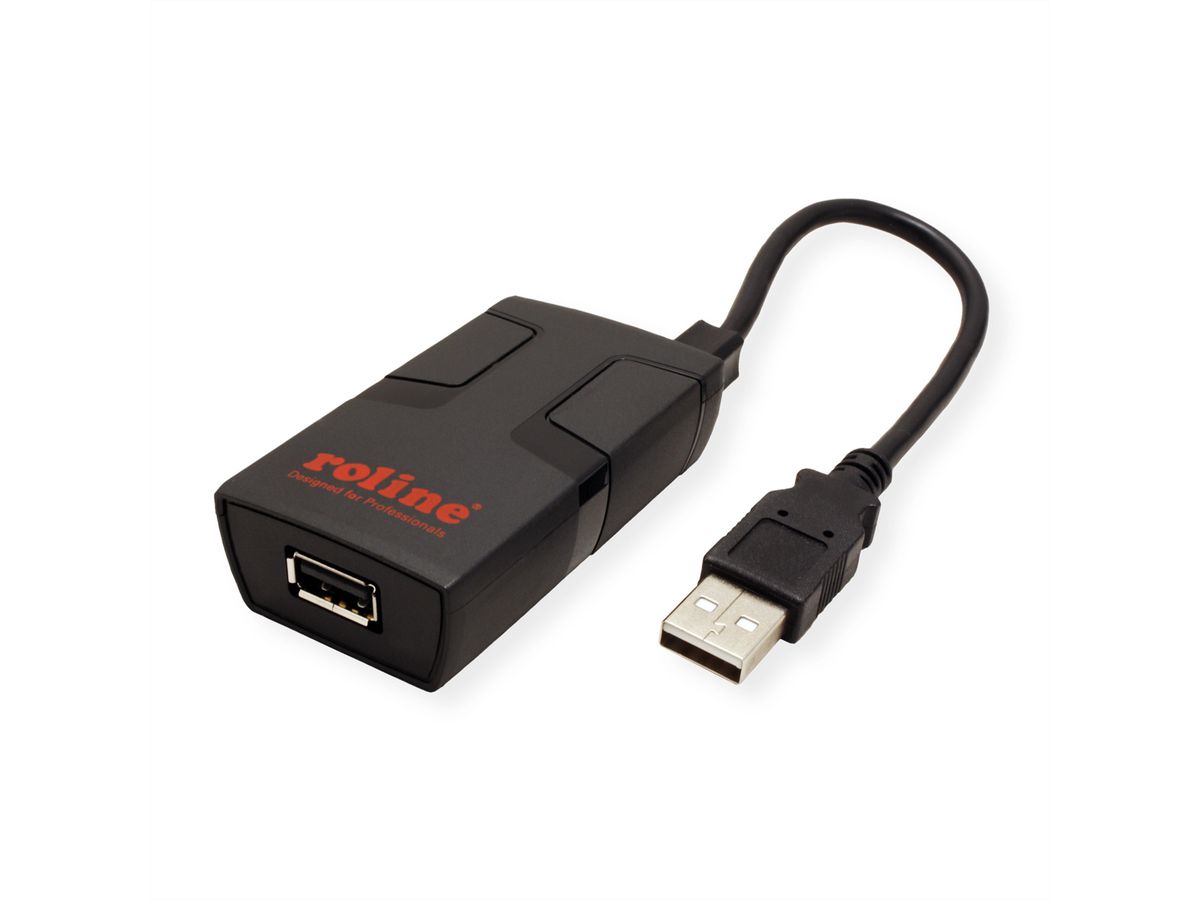

ROLINE Opto Bridge USB-USB

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 02/17/2025

Item no.	12021091
Brand / Manufacturer	ROLINE
Manuf. item no.	12.02.1091
EAN	7630049612938
Item weight	0.07 kg

Description

This small, industrial - grade isolator is very easy to use and provides a high-voltage barrier protection against surges, noise and ground loop errors. Suitable for use in sensitive applications like automotive measurements.

Effective protection of the USB interface through galvanic isolation (opto-coupler)

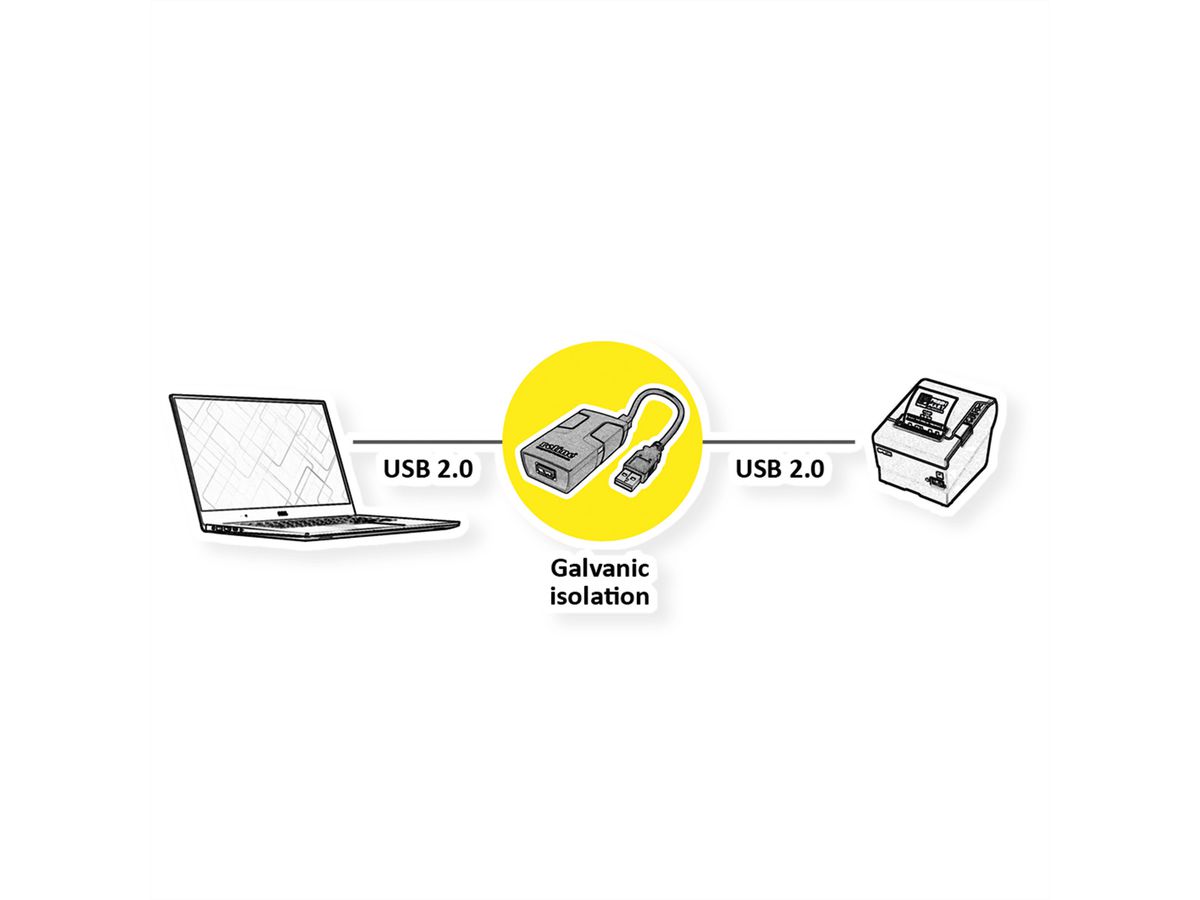

Isolates a USB device galvanically from the USB host
Insulation voltage max. 5000V eff.
LED indicators
Data transfer rate: max. 12MBit/s, USB 2.0 compatible
Connections: USB A connector and USB A plug cable

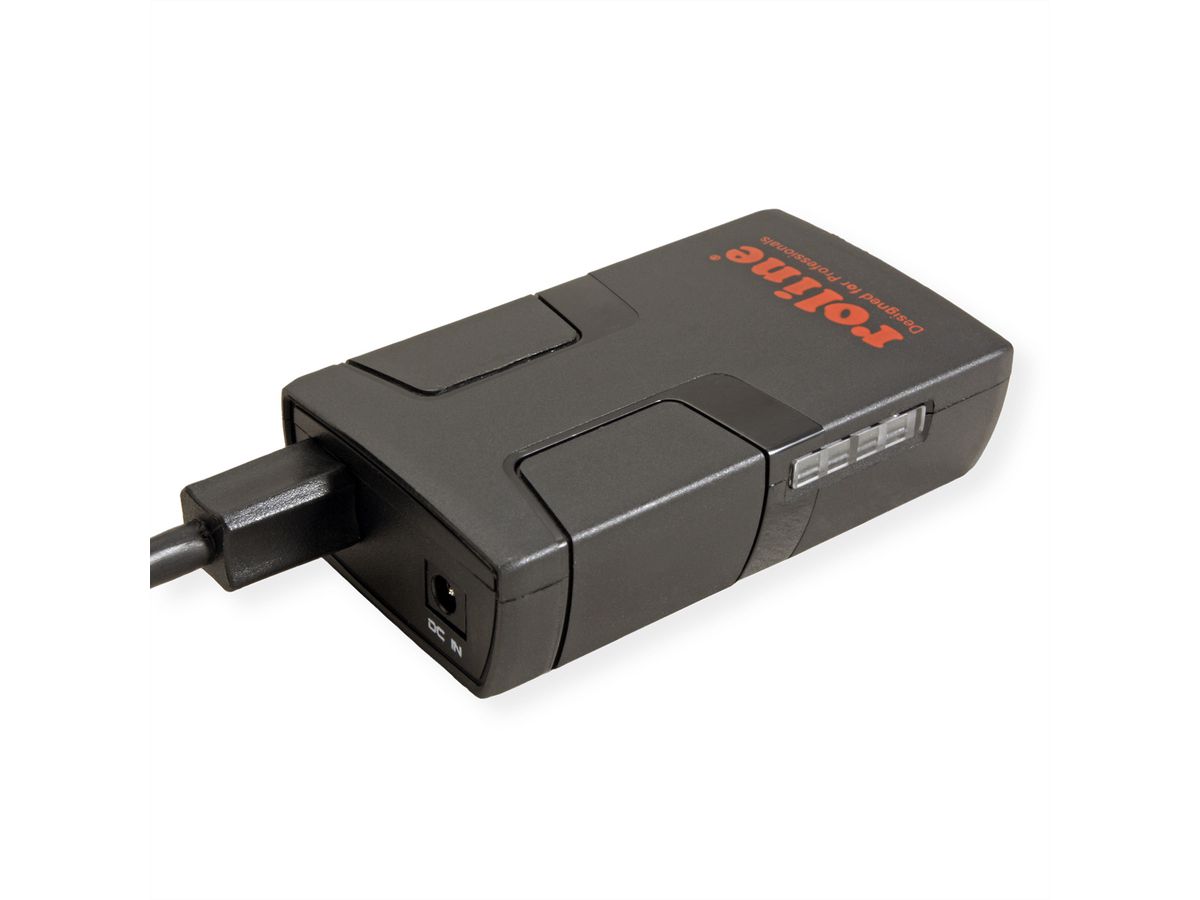

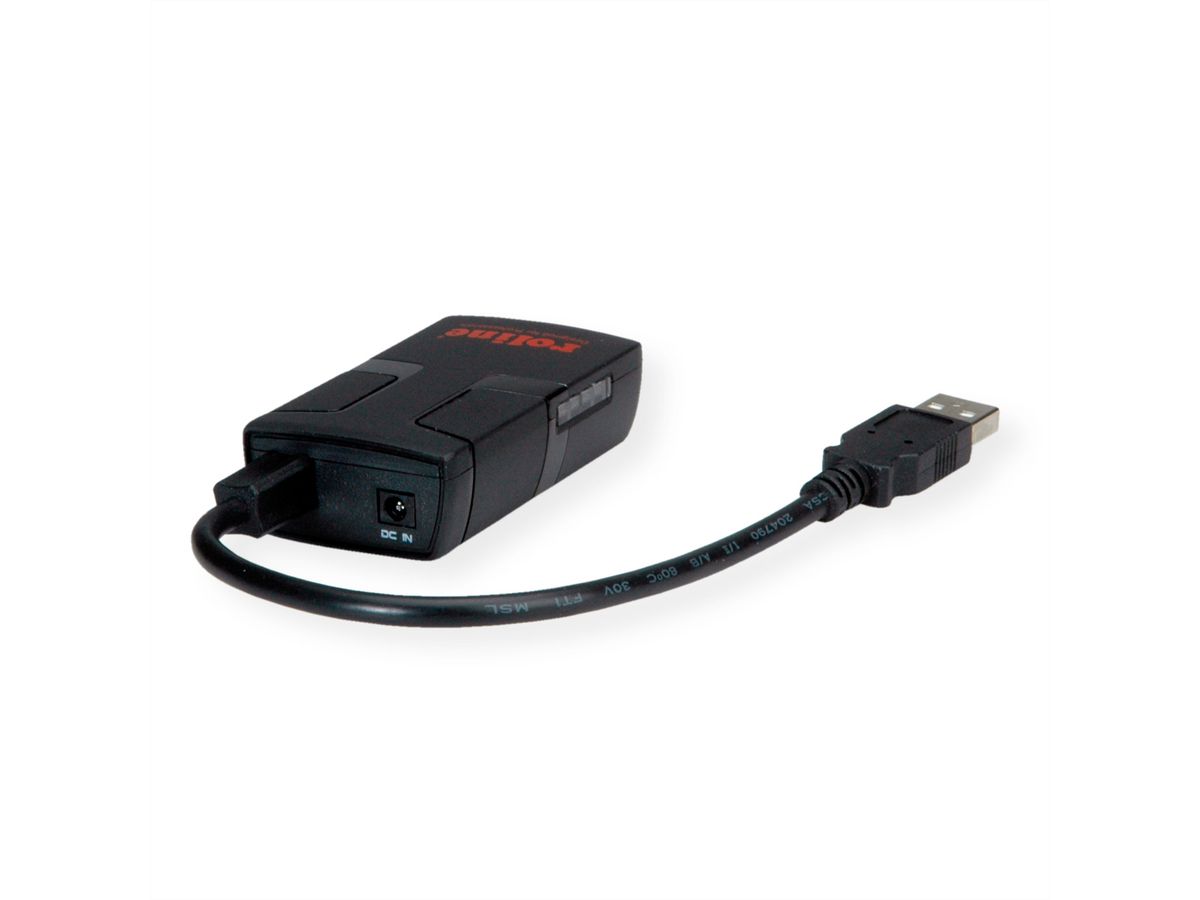

Optional: External power supply 19.11.1097 (500mA), e.g. for powering larger hard disks (3.5" HDDs)

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	Galvanic isolation interface
Colour	black
Side 1 connection (PC)	USB Stecker
Side 2 connection (Peripherals)	USB Buchse
Side 1 Connector Type	USB 2.0 Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	USB 2.0 Type A
Side 2 Connector Gender	Female
Area of application	External
Dimensions (HxWxD)	20x39x66mm
Technical particularity	Isolation voltage 5000V
Height	20 mm
Width	39 mm
Depth	66 mm
Weight	48.7 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.07 kg
