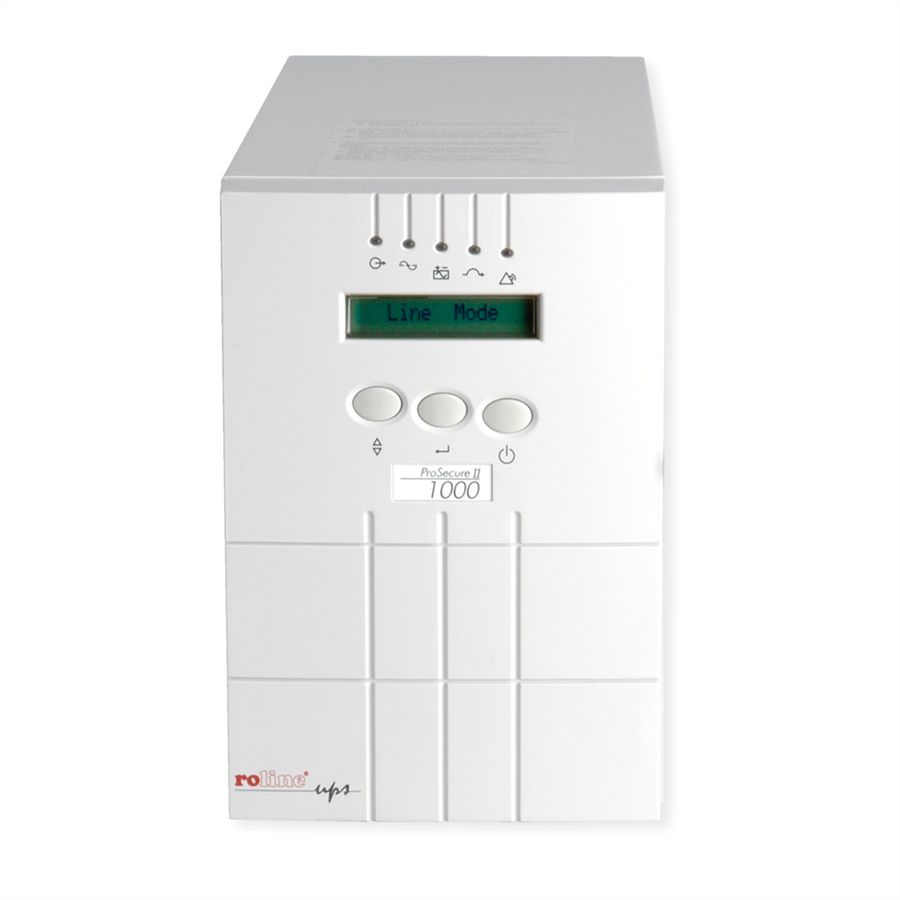

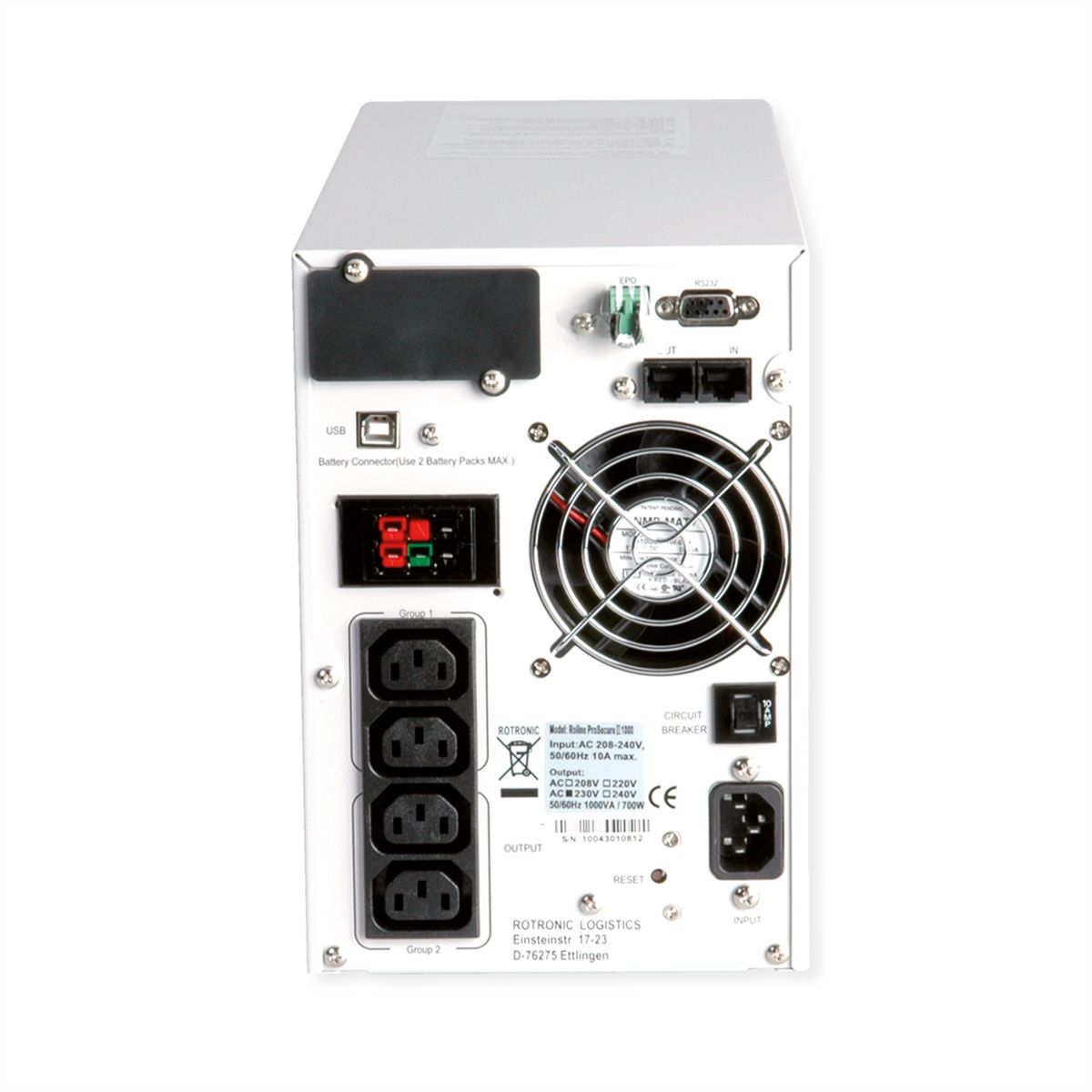

ROLINE ProSecure II 1000 - Online UPS

ROLINE ProSecure II 1000 - Online UPS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 19401082
Brand / Manufacturer ROLINE
Manuf. item no. 19.40.1082
EAN 7611990154845
Item weight 15 kg
Output (VA/W)
Interface
ROLINE

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
  • Cold start function (DC power on)
  • Lightning and surge protection
  • Battery replacement warning
  • Emergency Power Off function
  • Battery remain time display
  • LCD display front panel
  • Power factor correction
  • Support USB communication
  • Multiple language LCD display
  • On line output voltage selected
  • Hot swappable battery by user
  • True on-line technology provides all power protection
  • Pure sine-wave output with less than 3% THD
  • Fully digitized microprocessor controlled
  • Short Circuit and overload protection
  • Advanced battery management (ABM)
  • Automatic battery charge in UPS off mode
  • Automatic diagnostics & battery check
  • RS-232 communication port with monitoring software
  • Network/fax/modem surge protection
  • Extended back up time with battery pack
  • Load segmentation receptacles controllable
  • High efficiency mode selectable
  • Fan speed auto control when loads varies
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64, MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
  • Contents: UPS, cable set, UPS management software

Specifications

Manufacturer ROLINE
Product group UPS
Product type UPS Online
Colour grey
Scope of delivery UPS, Software, Cable Set
Classification (IEC 62040-3) VFI-SS-111
UPS technology Online
Power class 1000 ... 1900 VA
Output (VA/W) 1000 / 700
Efficiency 95 %
Backup time 6 min
Backup time full/half-load 6 / 10 min
Dimensions (HxWxD) 235 x 155 x 410 mm
Mounting form Tower
Voltage (input) 160-230 V
Voltage (output) 230 V
Output voltage regulation ± 2%
Frequency 50 Hz ± 3%
Connector type (input) cold connector IEC 320 C14
Outputs 4
Connector type (output) 4x cold connector IEC 320 C13
Phase in/output 230V/230V / 50Hz
Over current protection EMI,- RFI-Filter
Max. quantity of delay expansion units 2
Slots for adapter card 1
Interface RS232, USB
RS-232 Interface yes
USB 2.0 Interface yes
Hot swap batteries Yes, front side
Bypass Automatic + manual
Additional over current protector no
Activity Display
Activity LED 5
Activity Display LCD
incl.Management Software Windows
Internal cooling Active, fan
Ambient temperature 0 - 40 °C
Operating temperature min. 0 °C
Operating temperature max. 40 °C
Height 235 mm
Width 155 mm
Depth 410 mm
Weight 16 kg
Height of packaging (single piece) 350 mm
Width of packaging (single piece) 280 mm
Depth of packaging (single piece) 550 mm
Package weight (single piece) 15 kg
Delay expansion unit 2
Slot for adapter card 1
Conformity CE
Back up time
Power rating (VA / W) with 0 / 1 / 2 Battery pack (minutes), according to manufacturer
1000/700 6 / 33 / 67
900/630 7 / 39 / 77
800/560 8 / 45 / 87
700/490 10 / 55 / 102
600/420 13 / 67 / 125
500/350 18 / 80 / 150
400/280 24 / 105 / 200
300/210 38 / 150 / 280
200/140 60 / 240 / 450
100/70 95 / 500 / 900

Downloads

Product data sheet - English (57.4 KB)

Download

User manual - Deutsch (9.8 MB)

Download

User manual - English (9.8 MB)

Download
