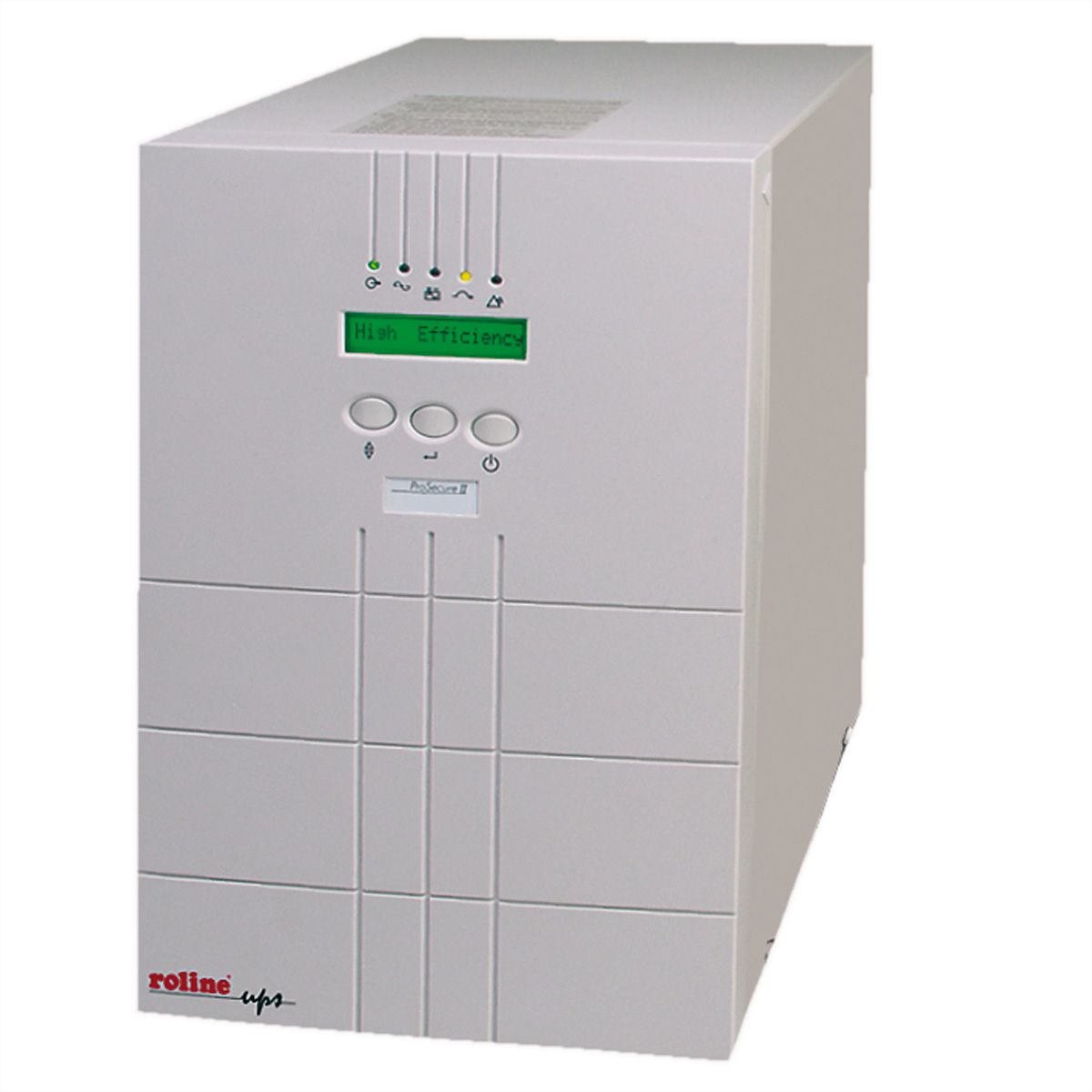

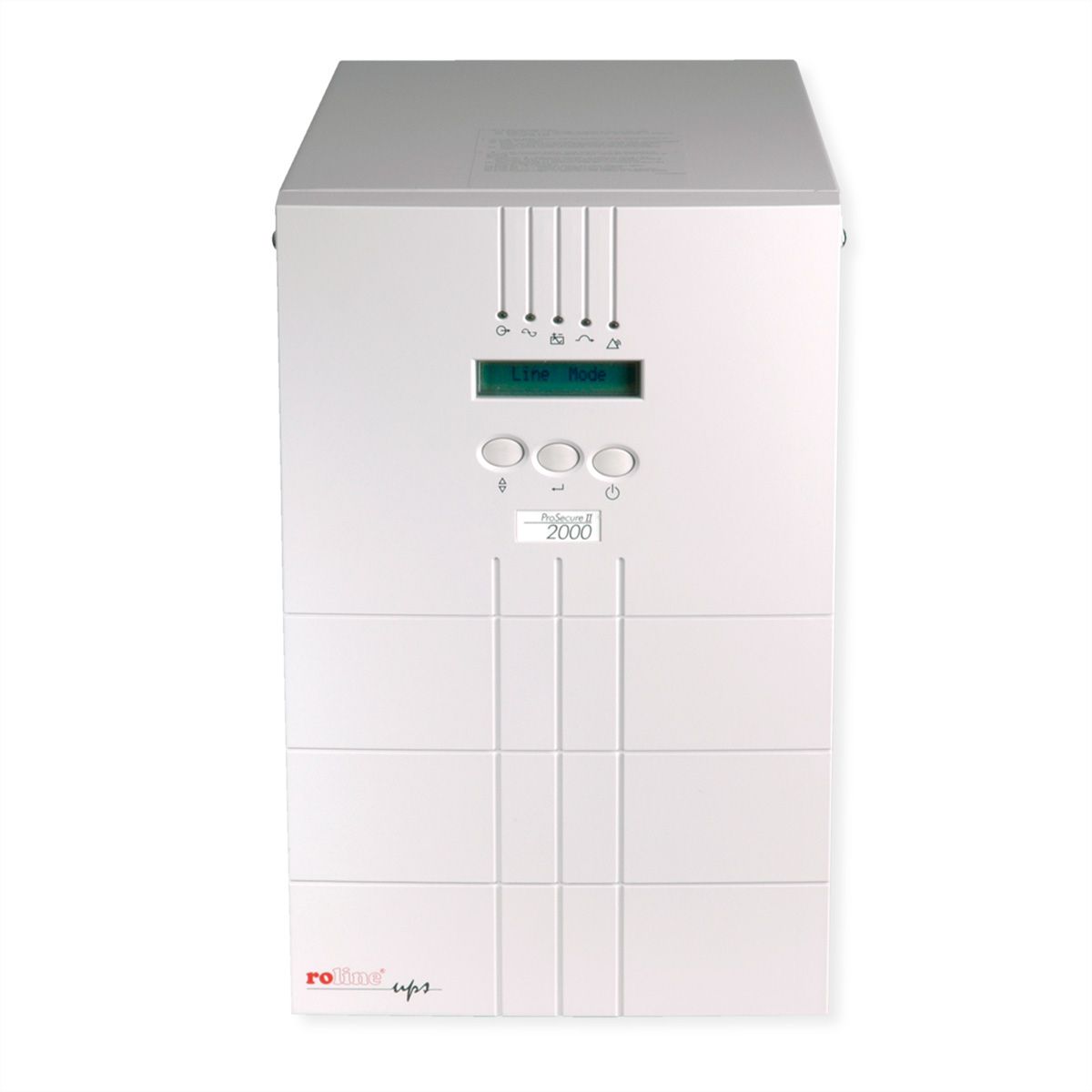

ROLINE ProSecure II 2000 - Online UPS

ROLINE ProSecure II 2000 - Online UPS

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Product is a shipping prodcut! Shipping costs may arise!
Item no. 19401084
Brand / Manufacturer ROLINE
Manuf. item no. 19.40.1084
EAN 7611990154852
Item weight 32 kg
Output (VA/W)
Interface
ROLINE

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:
  • Cold start function (DC power on)
  • Lightning and surge protection
  • Battery replacement warning
  • Emergency Power Off function
  • Battery remain time display
  • LCD display front panel
  • Power factor correction
  • Support USB communication
  • Multiple language LCD display
  • On line output voltage selected
  • Hot swappable battery by user
  • True on-line technology provides all power protection
  • Pure sine-wave output with less than 3% THD
  • Fully digitized microprocessor controlled
  • Short Circuit and overload protection
  • Advanced battery management (ABM)
  • Automatic battery charge in UPS off mode
  • Automatic diagnostics & battery check
  • RS-232 communication port with monitoring software
  • Network/fax/modem surge protection
  • Extended back up time with battery pack
  • Load segmentation receptacles controllable
  • High efficiency mode selectable
  • Fan speed auto control when loads varies
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64, MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX
  • Contents: UPS, cable set, UPS management software

Specifications

Manufacturer ROLINE
Product group UPS
Product type UPS Online
Colour grey
Scope of delivery UPS, Software, Cable Set
Classification (IEC 62040-3) VFI-SS-111
UPS technology Online
Power class 2000 ... 3000 VA
Output (VA/W) 2000 /1400
Efficiency 95 %
Backup time 6 min
Backup time full/half-load 6 / 10 min
Dimensions (HxWxD) 365 x 216 x 405 mm
Mounting form Tower
Voltage (input) 160-230V
Voltage (output) 230V
Output voltage regulation ± 2%
Frequency 50Hz ± 3%
Connector type (input) cold connector IEC 320 C14
Outputs 9
Connector type (output) 4x cold connector IEC 320 C13
Phase in/output 230V/230V / 50Hz
Over current protection EMI,- RFI-Filter
Max. quantity of delay expansion units 2
Slots for adapter card 1
Interface RS232, USB
RS-232 Interface yes
USB 2.0 Interface yes
Hot swap batteries Yes, front side
Bypass Automatic + manual
Additional over current protector no
Activity Display
Activity LED 5
Activity Display LCD
incl.Management Software Windows
Internal cooling Active, fan
Ambient temperature 0-40C
Operating temperature min. 0 °C
Operating temperature max. 40 °C
Height 365 mm
Width 216 mm
Depth 405 mm
Weight 31 kg
Height of packaging (single piece) 500 mm
Width of packaging (single piece) 340 mm
Depth of packaging (single piece) 520 mm
Package weight (single piece) 32 kg
Delay expansion unit 2
Slot for adapter card 1
Back up time
Power rating (VA / W) with 0 / 1 / 2 Battery pack (minutes), according to manufacturer
2000/1400 6 / 33 / 67
1800/1260 7 / 39 / 77
1600/1120 8 / 45 / 87
1400/980 10 / 55 / 102
1200/840 13 / 67 / 125
1000/700 18 / 80 / 150
800/560 24 / 105 / 200
600/420 38 / 150 / 280
400/280 60 / 240 / 450
200/140 95 / 500 / 900

Downloads

Product data sheet - English (59.4 KB)

Download

User manual - Deutsch (9.8 MB)

Download

User manual - English (9.8 MB)

Download
