The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21154318_2024_m_0_hi.jpg "ROLINE S/FTP Patch Cord Cat.6A / Class EA, LSOH, Slim PoE, grey, 0.5 m")
:strip_icc():strip_exif()/graphic/patchkabel_webgrafik_en.png "ROLINE S/FTP Patch Cord Cat.6A / Class EA, LSOH, Slim PoE, grey, 0.5 m")

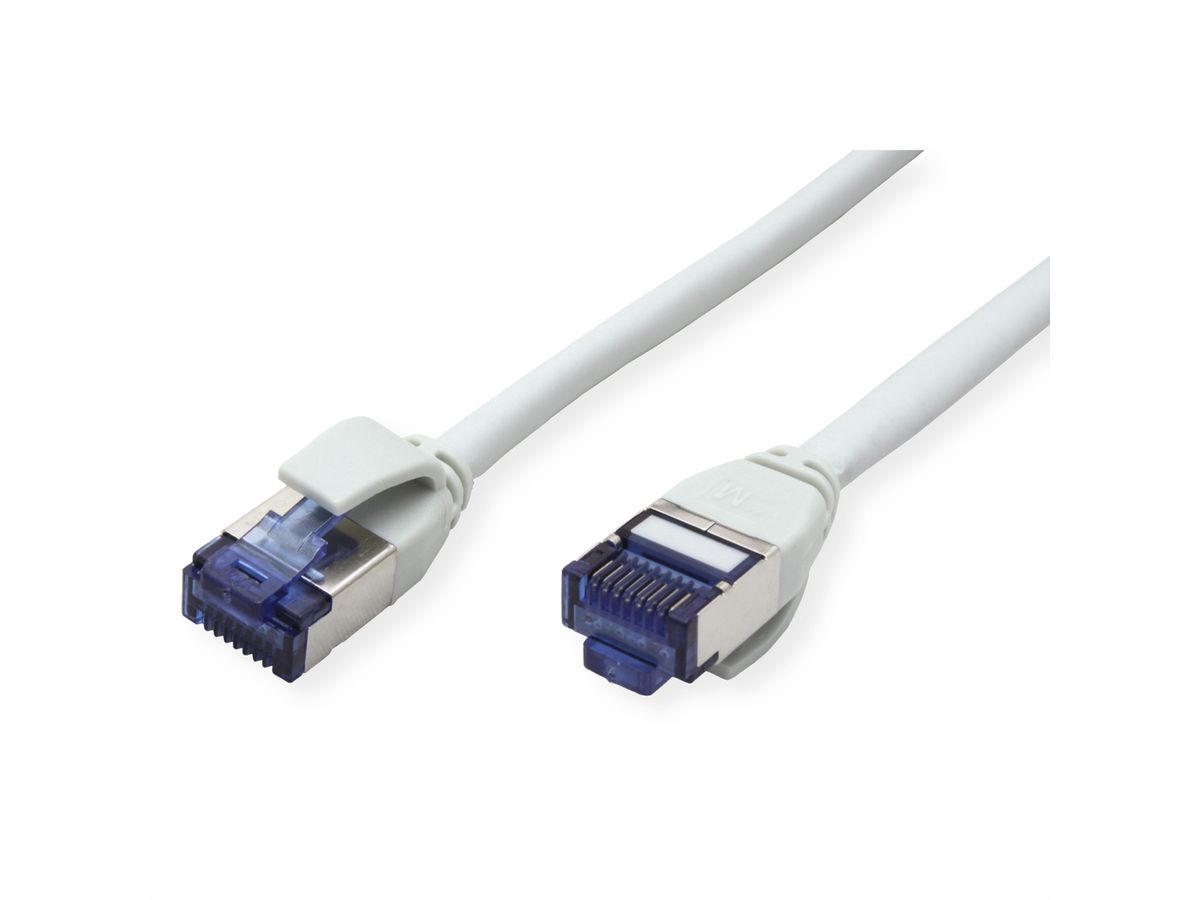

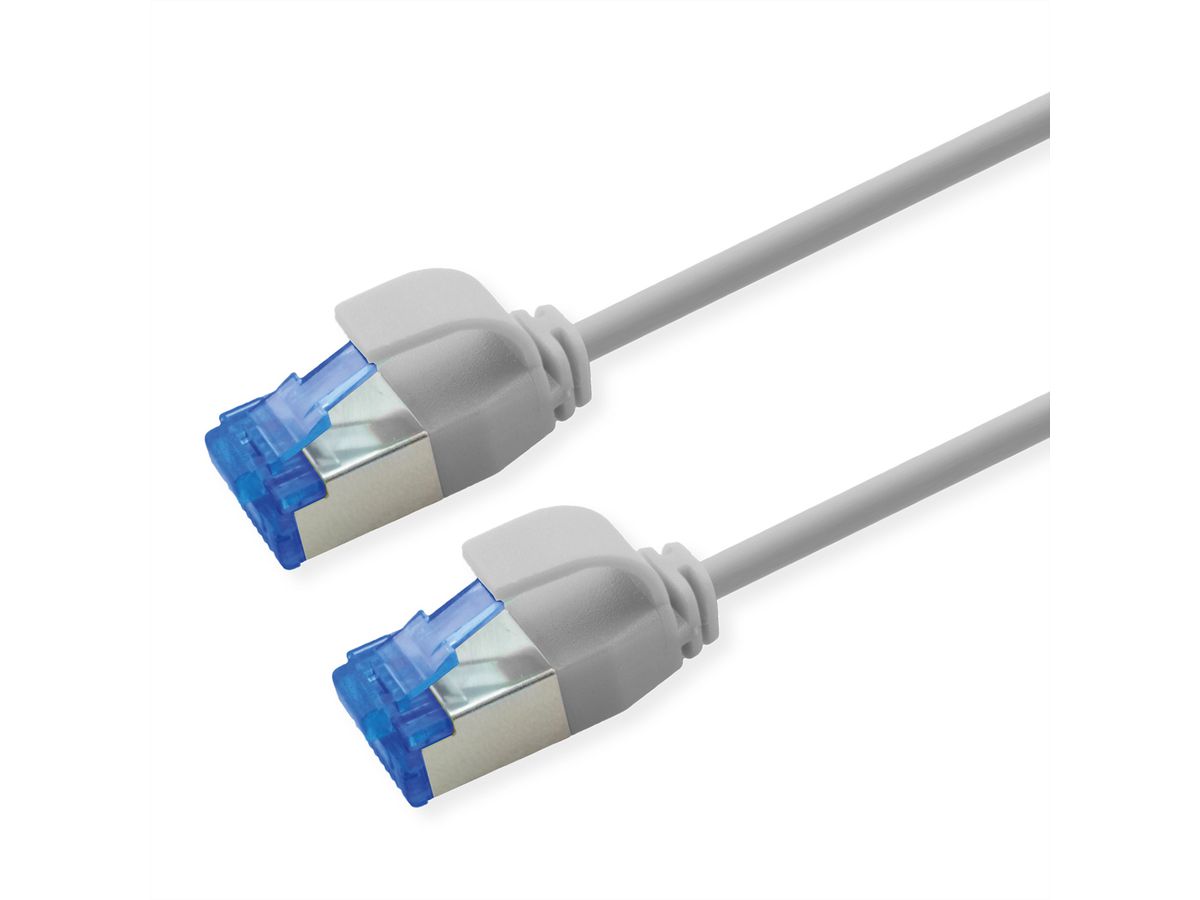

ROLINE S/FTP Patch Cord Cat.6A / Class EA, LSOH, Slim PoE, grey, 0.5 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21154310 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 21.15.4310 |
| EAN | 7630049634008 |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat6a.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
S/FTP (PiMF) Cat. 6A LSOH Patch Cord with shielded RJ-45 connectors on both sides. PoE-capable although it is slim, flexible and tangle-free.
- S/FTP (PiMF) LSOH Cat. 6A Patch Cord
- For use in Gigabit Ethernet networks, especially for connecting devices (e.g. IP cameras)
- Slim, flexible and tangle-free
- Suitable for PoE applications and multimedia applications where the extension is working over TP
- High quality plugs with gold plated contacts
- Durable due to moulded kink protection
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP Patchcord |
| Colour | grey |
| Length | 0.5 m |
| Shield type | PiMF |
| Transfer quality | Cat6A / Class EA |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 28 |
| Conductor type | Stranded |
| Locking lever | yes |
| Anti-kink sleeve | Moulded-on |
| Cable LSOH | yes |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 75 °C |
| Weight | 23 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
| Bend radius | Min. 27 mm |
| External cable diameter | 4.5 +/-0.2mm |
