ROLINE slide rail set variable depth, 350 to 600mm incl mounting material

ROLINE slide rail set variable depth, 350 to 600mm incl mounting material

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 26210113
Brand / Manufacturer ROLINE
Manuf. item no. 26.21.0113
EAN 7630049601161
Item weight 2.71 kg
ROLINE

Description

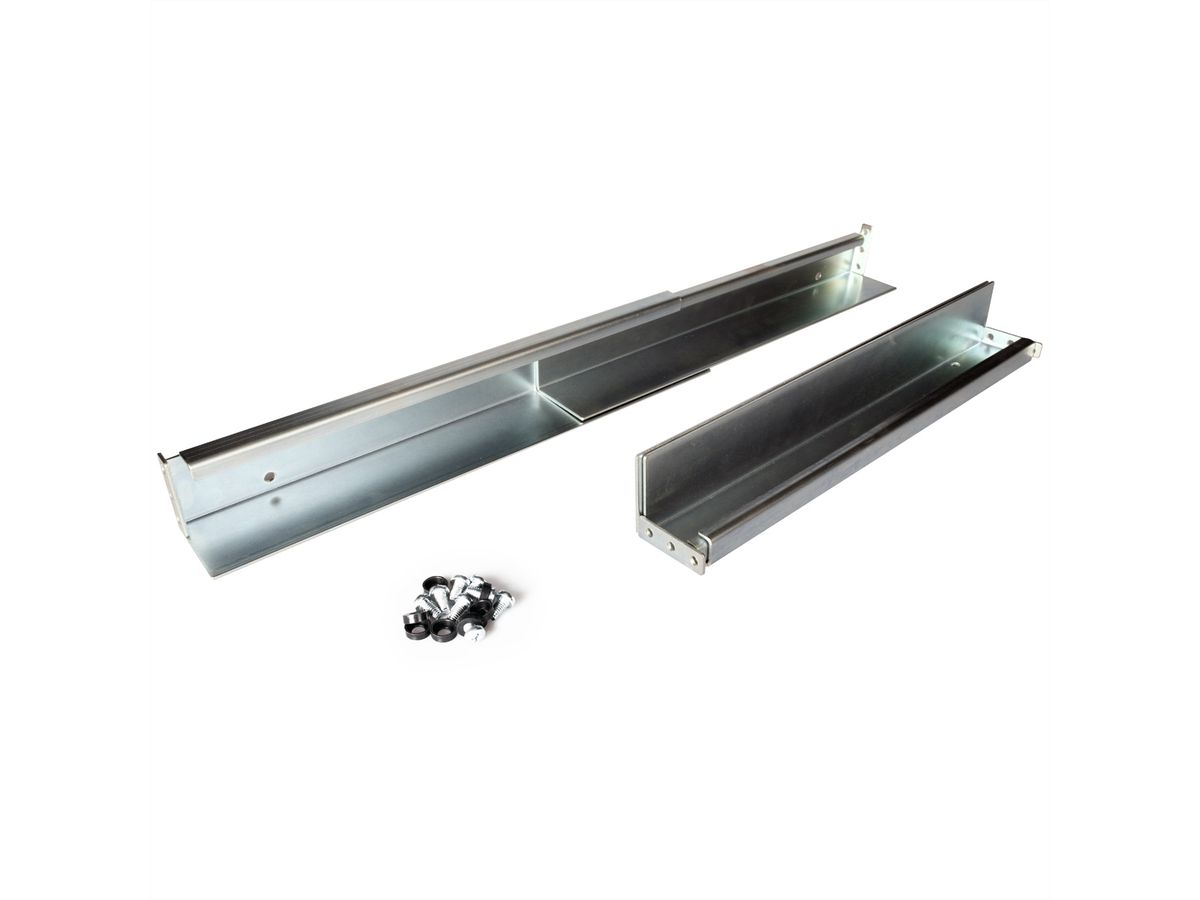

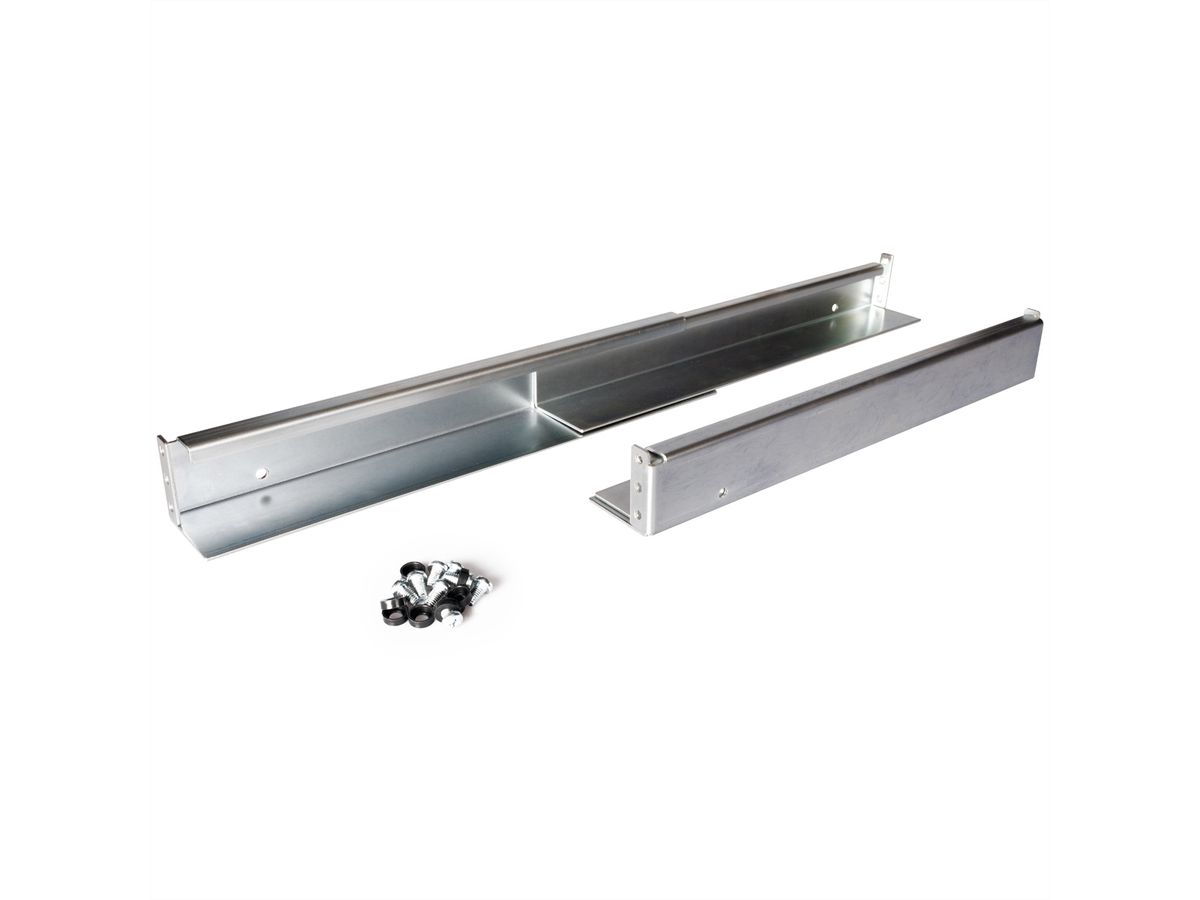

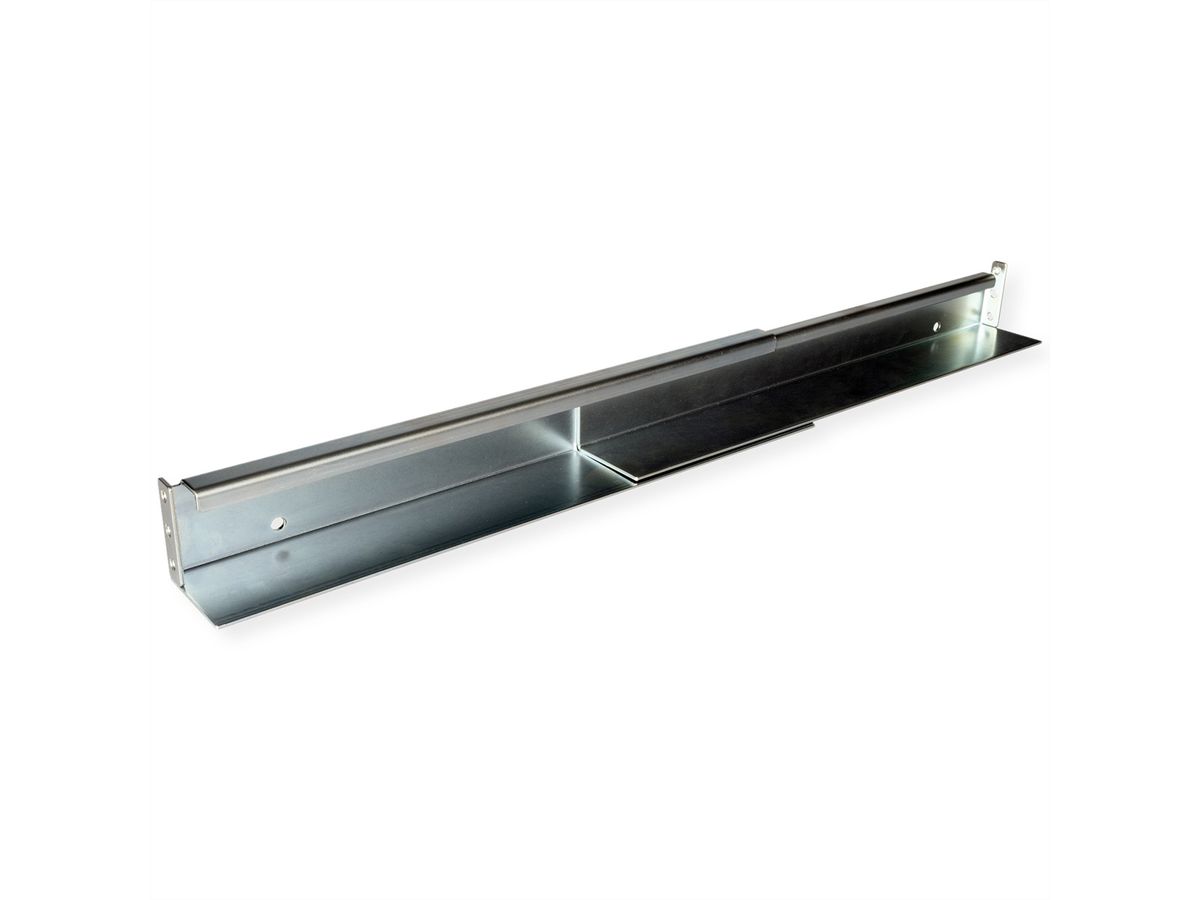

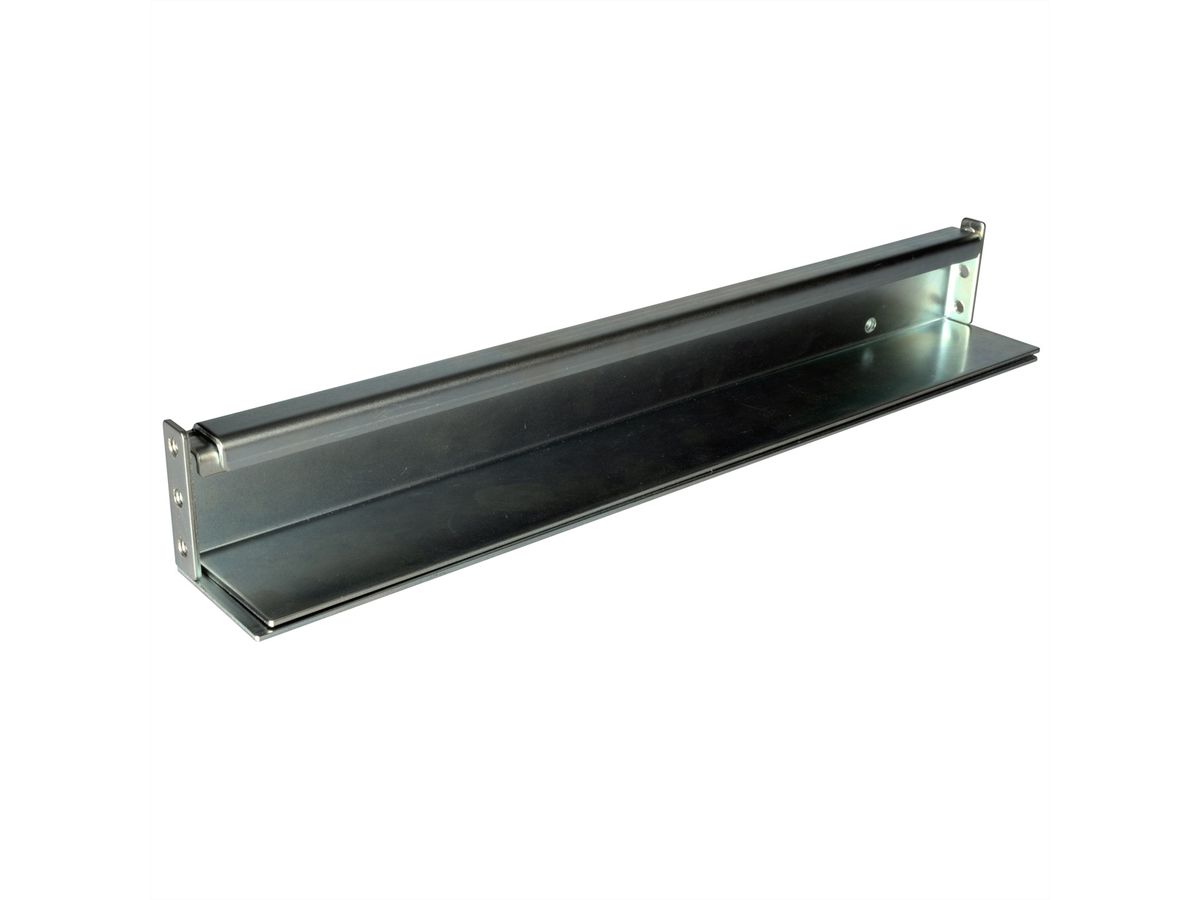

ROLINE slide rail set depth variable 350 to 600mm incl mounting material

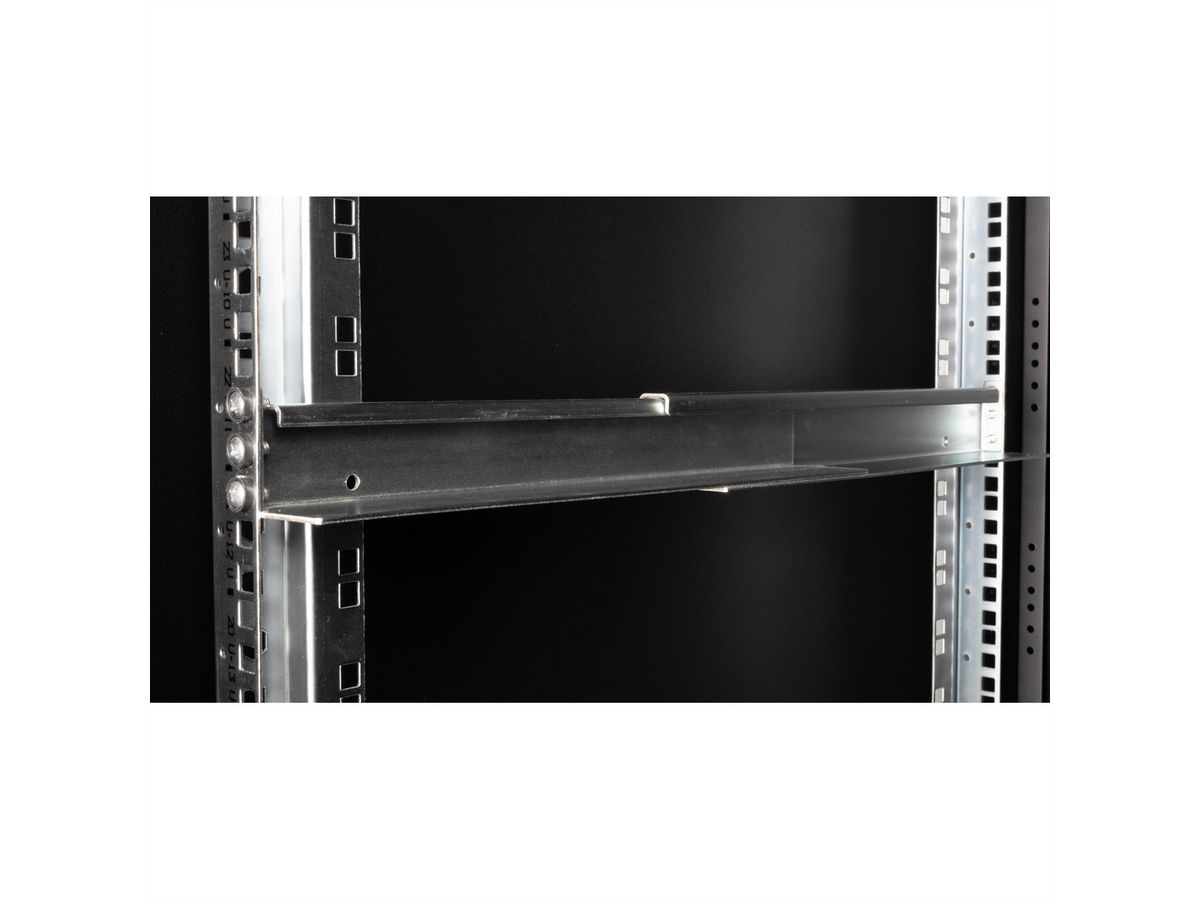

The L-Support slide rails facilitate the installation of heavy plug-in units in all ROLINE 19" network or server enclosures. They are attached to the four 19" profile rails and are made of galvanised sheet steel with a load capacity of 100 kg, thus ensuring optimum support for your components.

Specifications

Manufacturer ROLINE
Product group 19"- / 10" technology
Product type 19"-Slide
Colour silver
Scope of delivery L-support slide rail set (two rails - for left and right 19" profile rails), mounting material
Material group Steel
Maximum weight capacity 100 kg
Height 52 mm
Width 44 mm
Depth 350 mm
Weight 2650 g
Height of packaging (single piece) 370 mm
Width of packaging (single piece) 65 mm
Depth of packaging (single piece) 65 mm
Package weight (single piece) 2.71 kg

Downloads

Product data sheet - English (40.0 KB)

Download

Technical drawing - English (166.6 KB)

Download
