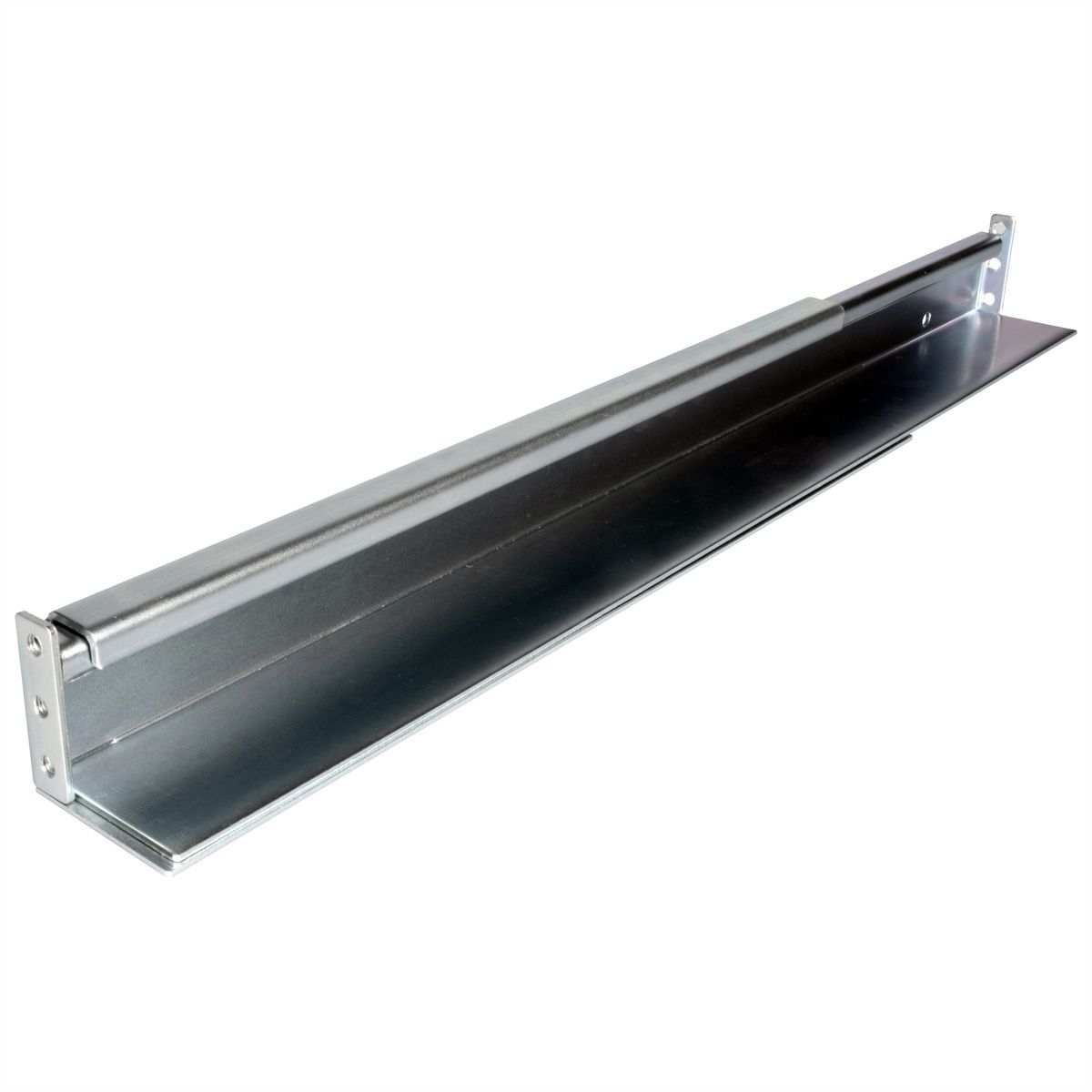

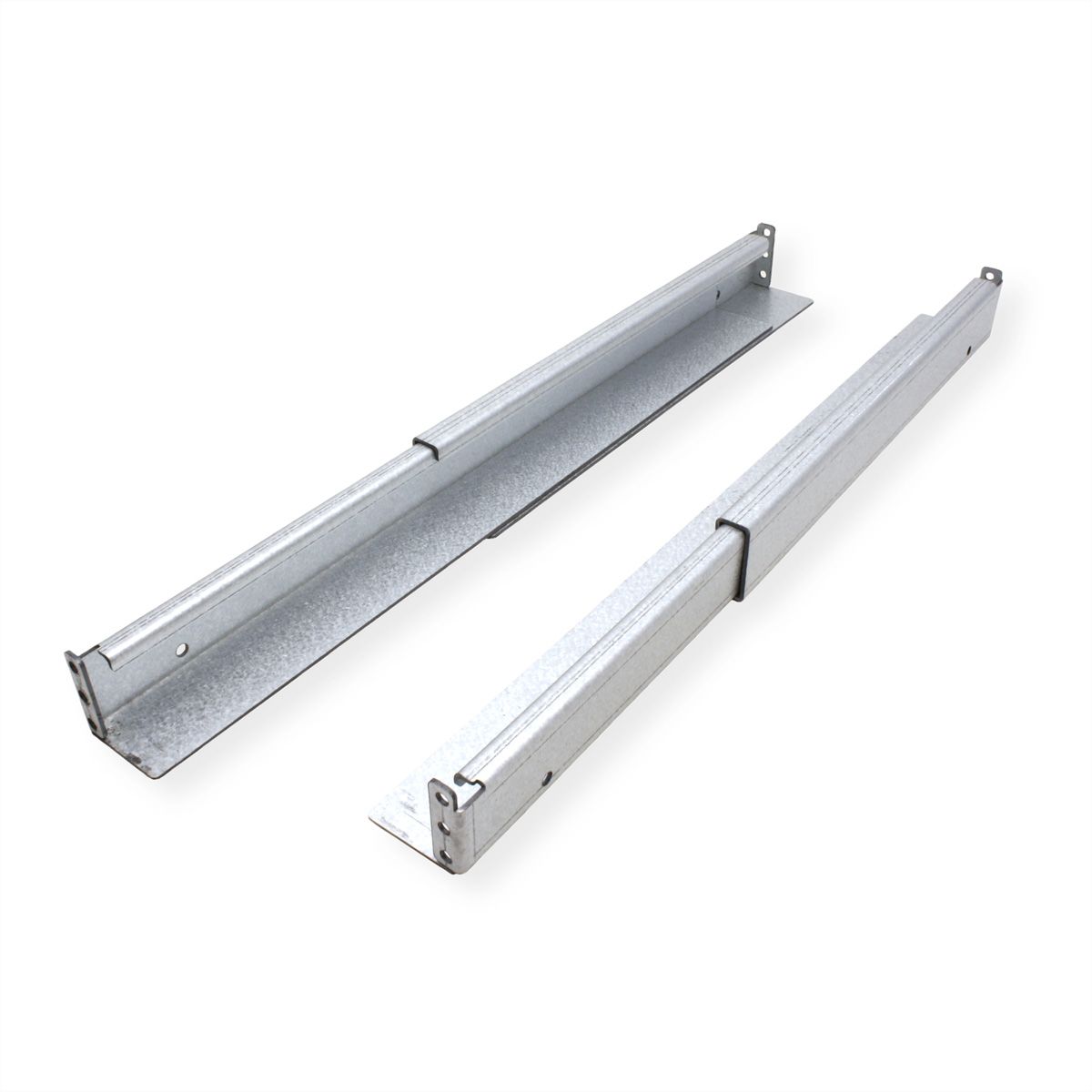

ROLINE slide rail set variable depth, 500 to 750mm incl mounting material

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/25/2024

Item no.	26210114
Brand / Manufacturer	ROLINE
Manuf. item no.	26.21.0114
EAN	7630049601178
Item weight	3.28 kg

Description

ROLINE slide rail set variable depth 500 to 750mm incl mounting material

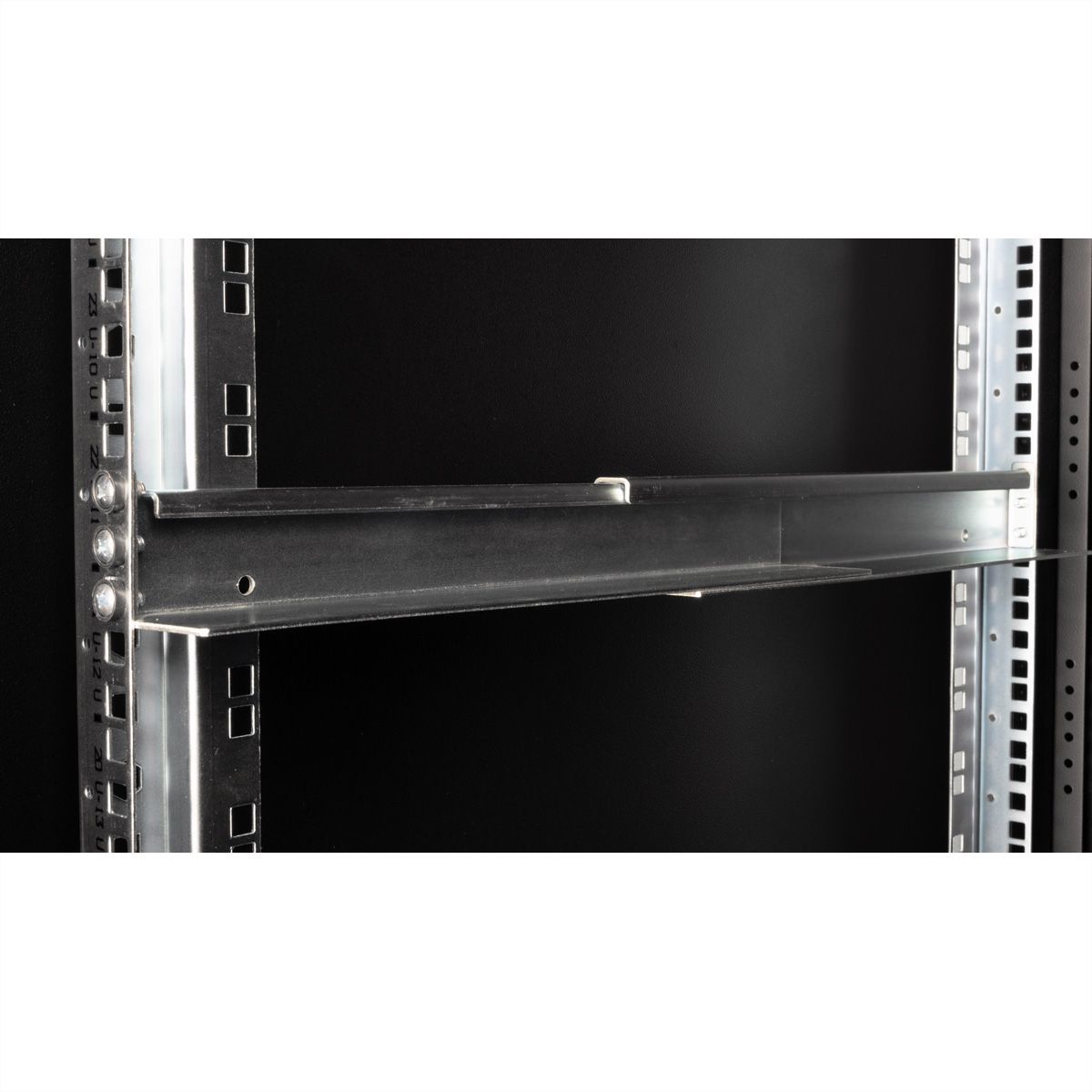

The L-Support slide rails facilitate the installation of heavy slide-in units in all ROLINE 19" network or server enclosures. They are attached to the four 19" profile rails and are made of galvanised sheet steel with a load capacity of 100 kg, thus ensuring optimum support for your components.

Specifications

Manufacturer	ROLINE
Product group	19"- / 10" technology
Product type	19"-Slide
Colour	silver

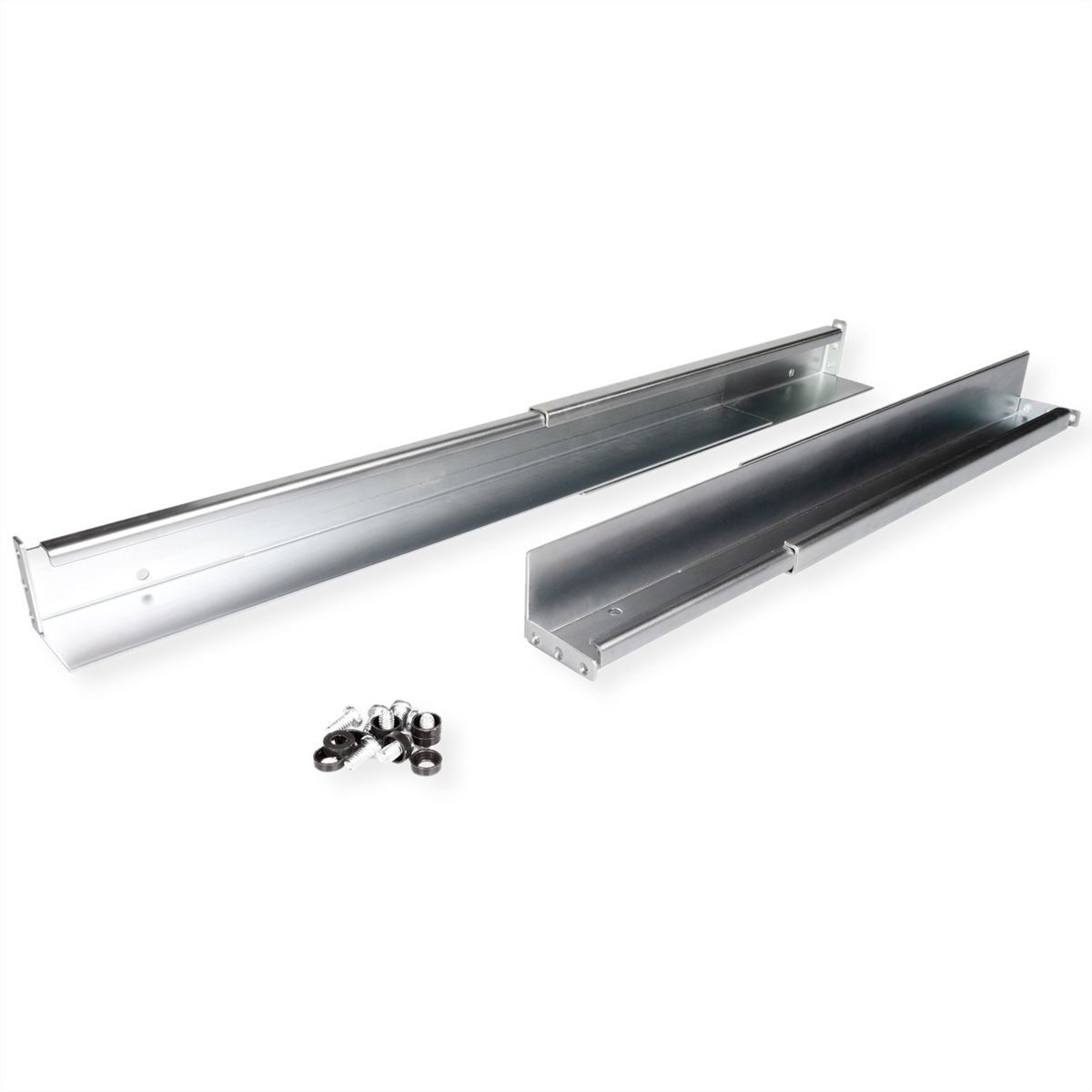

Scope of delivery	L-Support slide rail set (two rails - for left and right 19" profile rails), fastening material
Material group	Steel
Maximum weight capacity	100 kg
Height	52 mm
Width	44 mm
Depth	500 mm
Weight	3.2 kg
Height of packaging (single piece)	570 mm
Width of packaging (single piece)	65 mm
Depth of packaging (single piece)	65 mm
Package weight (single piece)	3.28 kg

Downloads

Product data sheet - English (40.2 KB)

Download

Technical drawing - English (166.6 KB)

Download
