ROLINE USB 2.0 Extender over RJ-45, PoC, 4x USB, max. 50m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	12041101
Brand / Manufacturer	ROLINE
Manuf. item no.	12.04.1101
EAN	7611990138265
Item weight	0.6 kg

Description

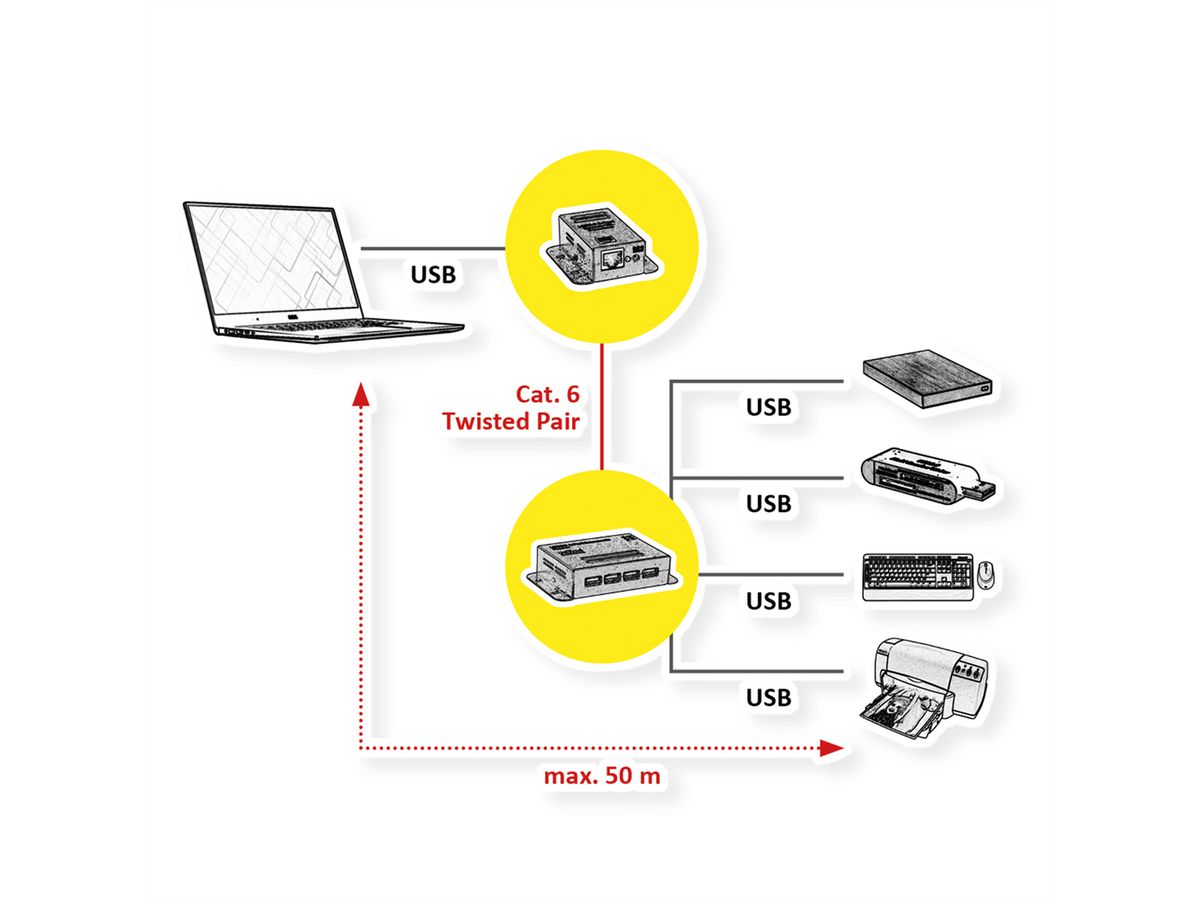

Extends your USB Port over RJ45 (up to 50 meters) and allows the connection of up to four (4x) USB2.0 devices (hub functionality)
For example to connect an USB printer in another room with your PC
Supports USB 2.0, downwards compatible with USB 1.1/1.0
Hot plug
No additional software for extender required
Connection via Cat.5e/Cat. 6 Twisted Pair cable
Supports data rates up to 480Mbit/s
Transmitter: USB A Male connector / RJ45
Receiver: 4x USB A Female connector / RJ45
Supports PoC (Power over Cable)
External power supply is needed for transmitter (included, 24 VDC, 0.5A)
Metal case, wall mounting option

Contents: Master unit (RJ45 Female; USB Type A Male), remote unit (RJ45 Female; USB Type A Female), power supply (24 VDC, 0.5A)

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB extension
Colour	black
Scope of delivery	Master unit (RJ45F, USB Type A M with 28cm cable), Remote unit (RJ45F, USB Type A F)
Transfer quality	USB 2.0 Hi-Speed 480 Mbit/s
Side 1 connection (PC)	USB A Male
Side 2 connection (Peripherals)	USB A Female
Side 1 Connector Type	USB 2.0 Type B
Side 1 Connector Gender	Female
Side 2 Connector Type	USB 2.0 Type A
Side 2 Connector Gender	Female
Conversion direction	USB - TP - USB
Area of application	External
Technical particularity	Connection over Twisted Pair Cable
Weight	255.4 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	200 mm
Depth of packaging (single piece)	230 mm
Package weight (single piece)	0.6 kg

Downloads

Product data sheet - English (51.3 KB)

Download

Manufacturer data sheet - English (322.0 KB)

Download

User manual - Deutsch (386.0 KB)

Download

User manual - English (391.0 KB)

Download

User manual - Français (160.5 KB)

Download
