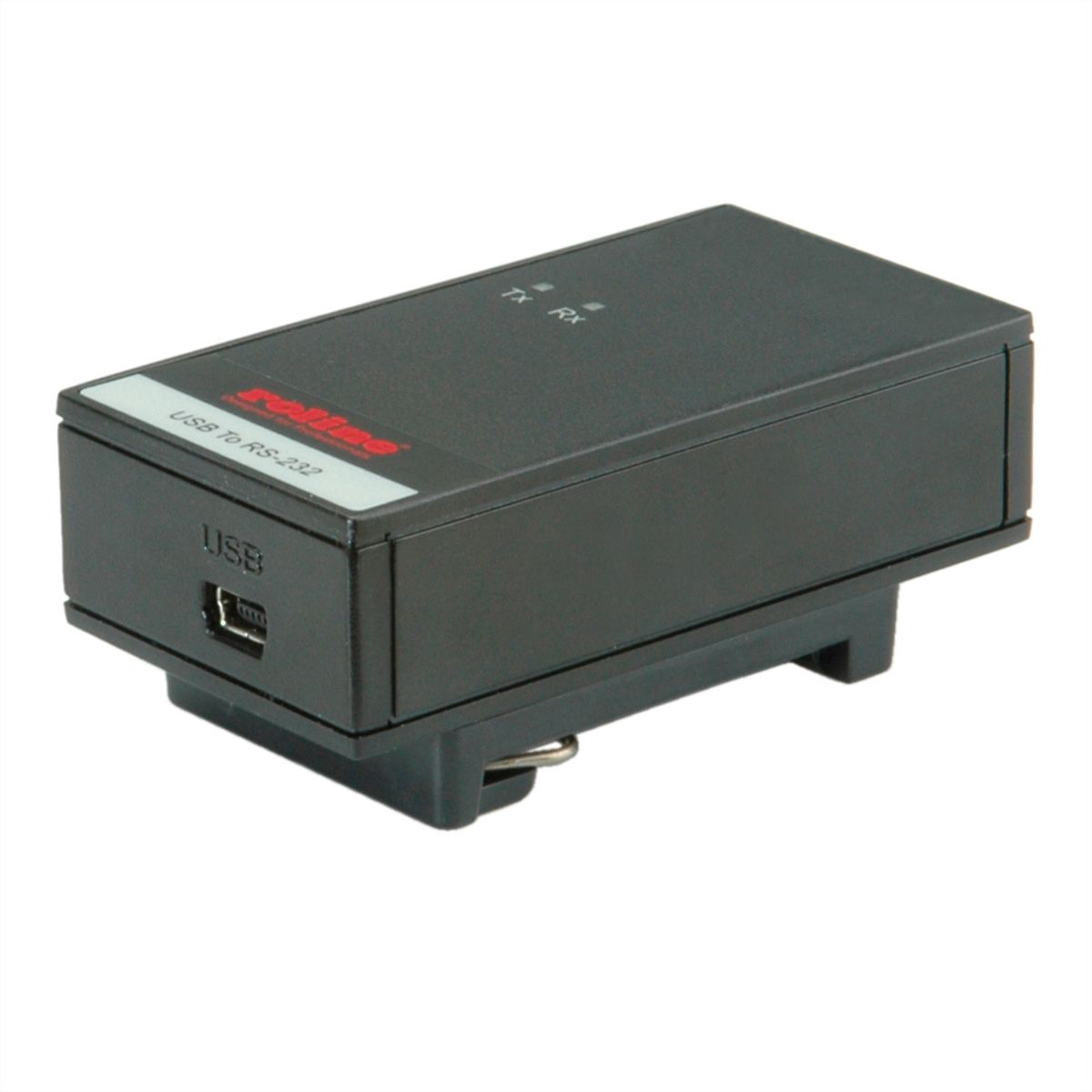

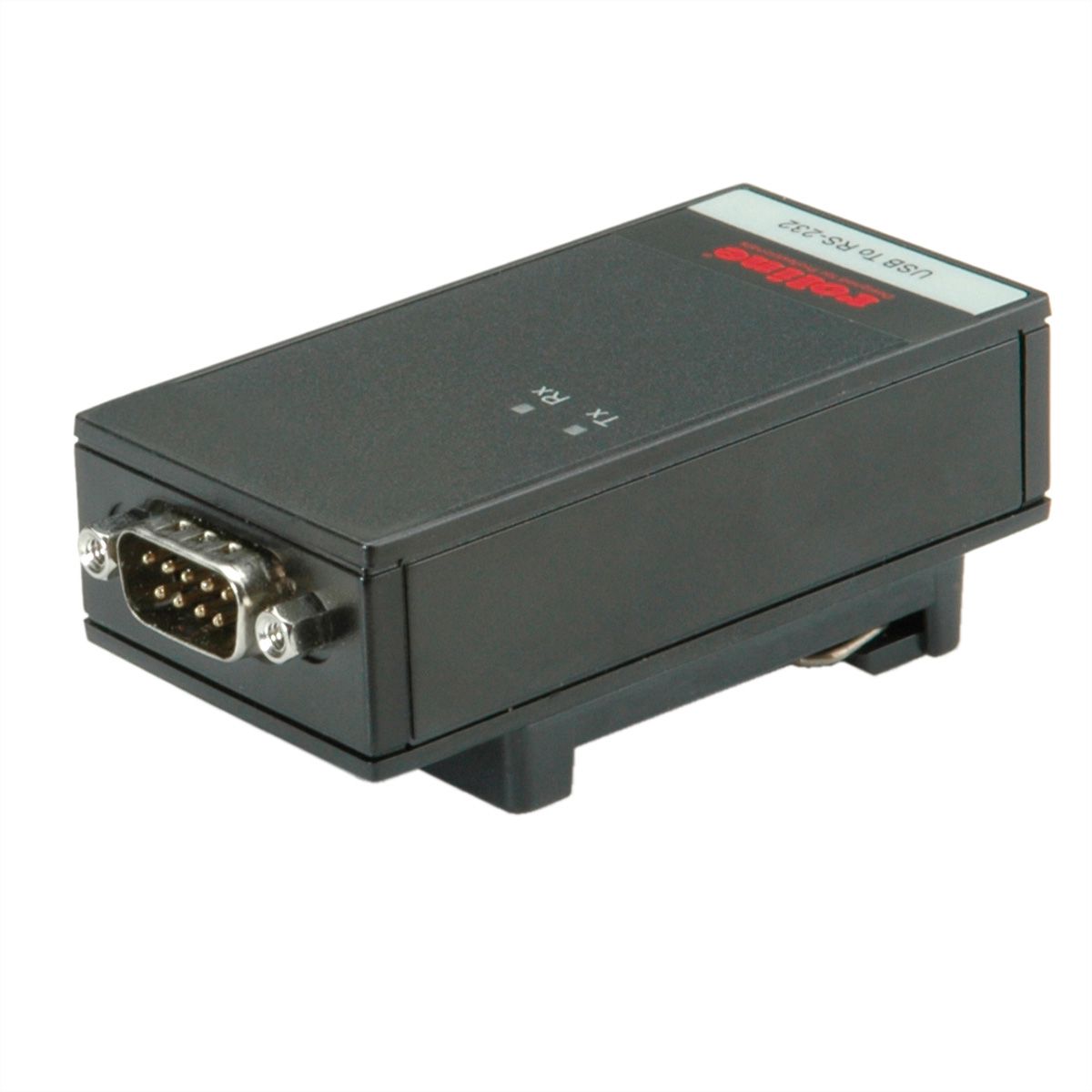

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 1 Port
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 12021001 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 12.02.1001 |
| EAN | 7611990194810 |
| Item weight | 0.18 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

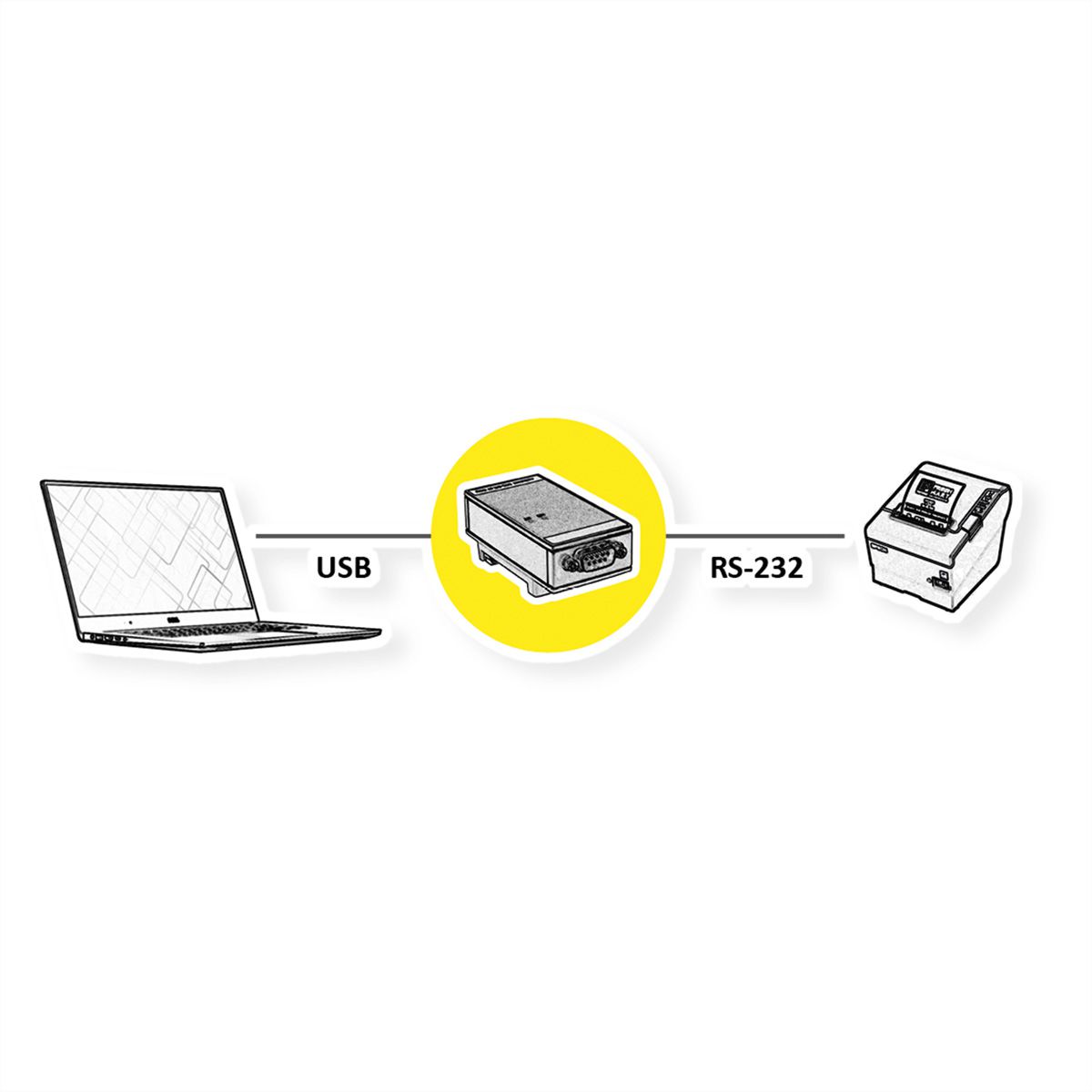

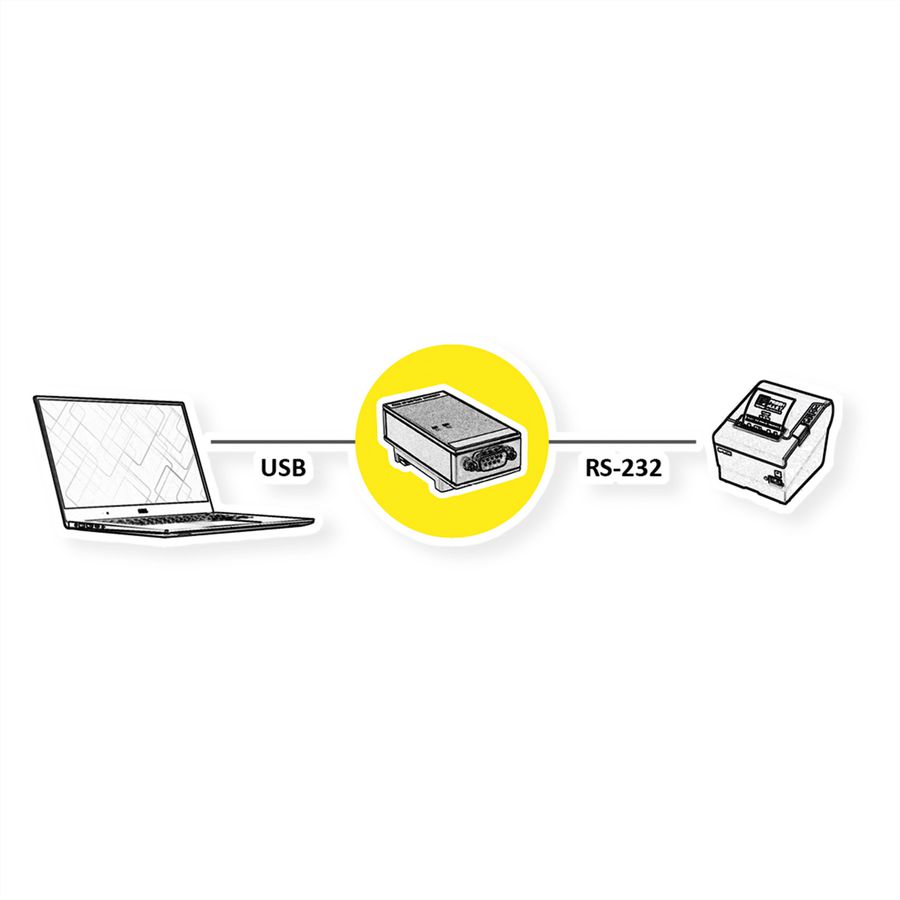

Converter to connect serial devices to a USB port on your PC- Compatible with USB 2.0, USB 1.1, USB 1.0
- Data transfer rate of up to 115 Kbit/s
- 15 KV ESD protection for all RS232 ports
- Connectors: 1x DB9 Male, 1x Mini USB type B

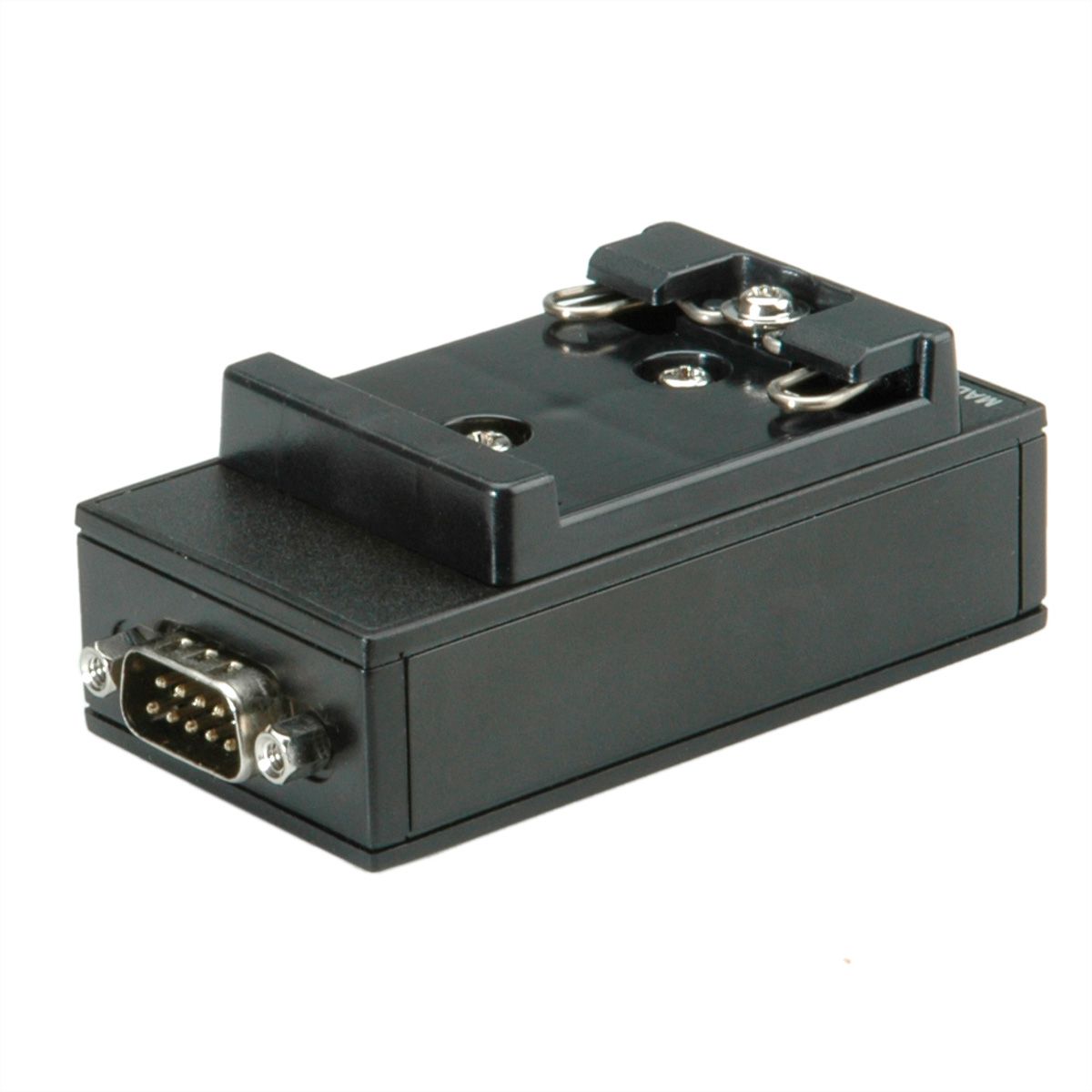

- For DIN Rail mounting
- Windows 98SE/ME/2000/Server 2003/XP/Server 2008/XP/Vista/7
- Power supply over Mini USB type B connector (40mA)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | USB - Serial Converter |
| Colour | black |
| Scope of delivery | converter, driver CD, manual |
| Side 1 connection (PC) | Mini USB |
| Side 2 connection (Peripherals) | 1 x DB9 Male |
| Side 1 Connector Type | USB 2.0 Type A |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | D-Sub 9-pin (DE-9) |
| Side 2 Connector Gender | Male |
| Conversion direction | serial - USB |
| Area of application | External |
| Dimensions (HxWxD) | 22,5 x 42,5 x 85 mm |
| Technical particularity | for DIN Rail |
| Height | 22.5 mm |
| Width | 42.5 mm |
| Depth | 85 mm |
| Weight | 44.8 g |
| Height of packaging (single piece) | 45 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 190 mm |
| Package weight (single piece) | 0.18 kg |
