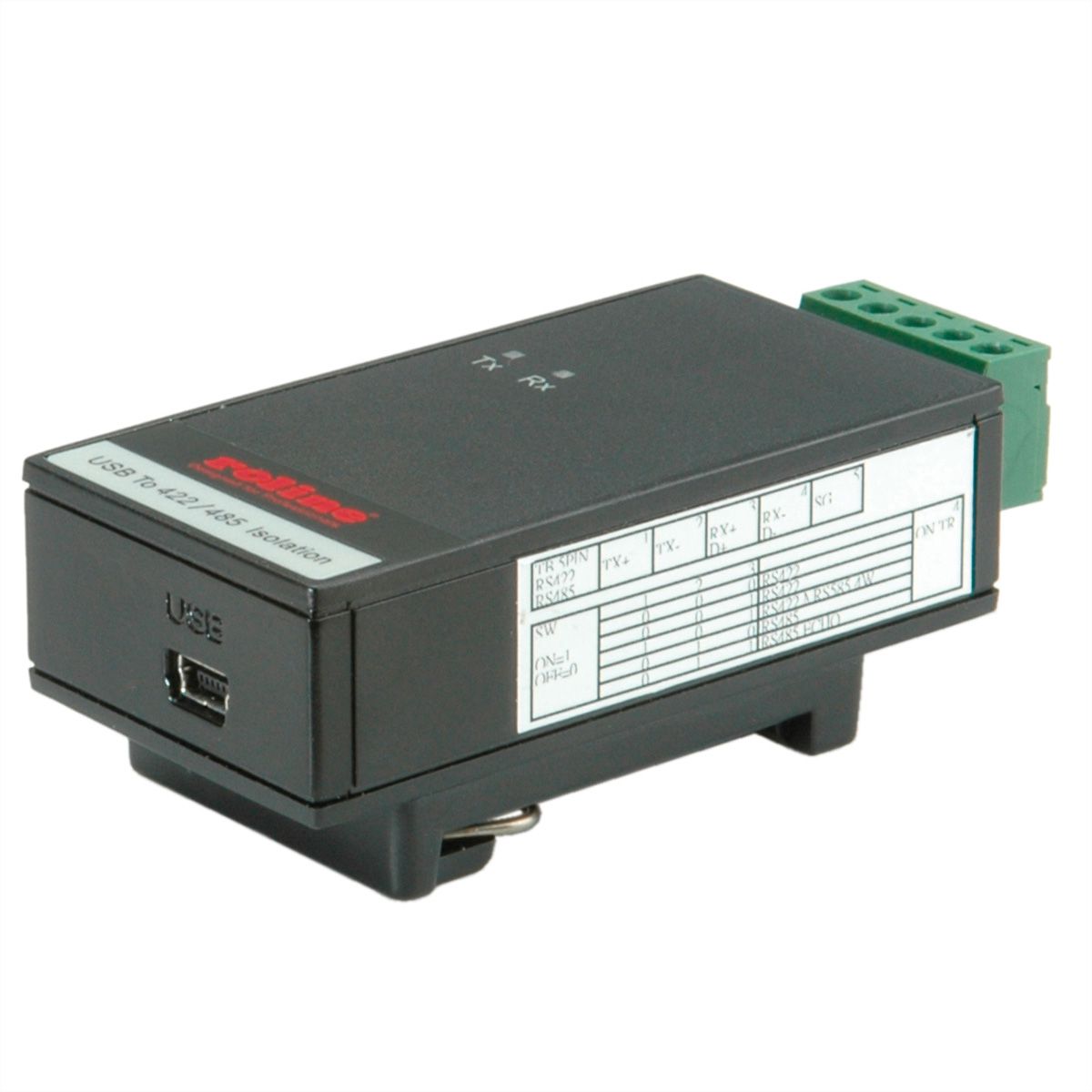

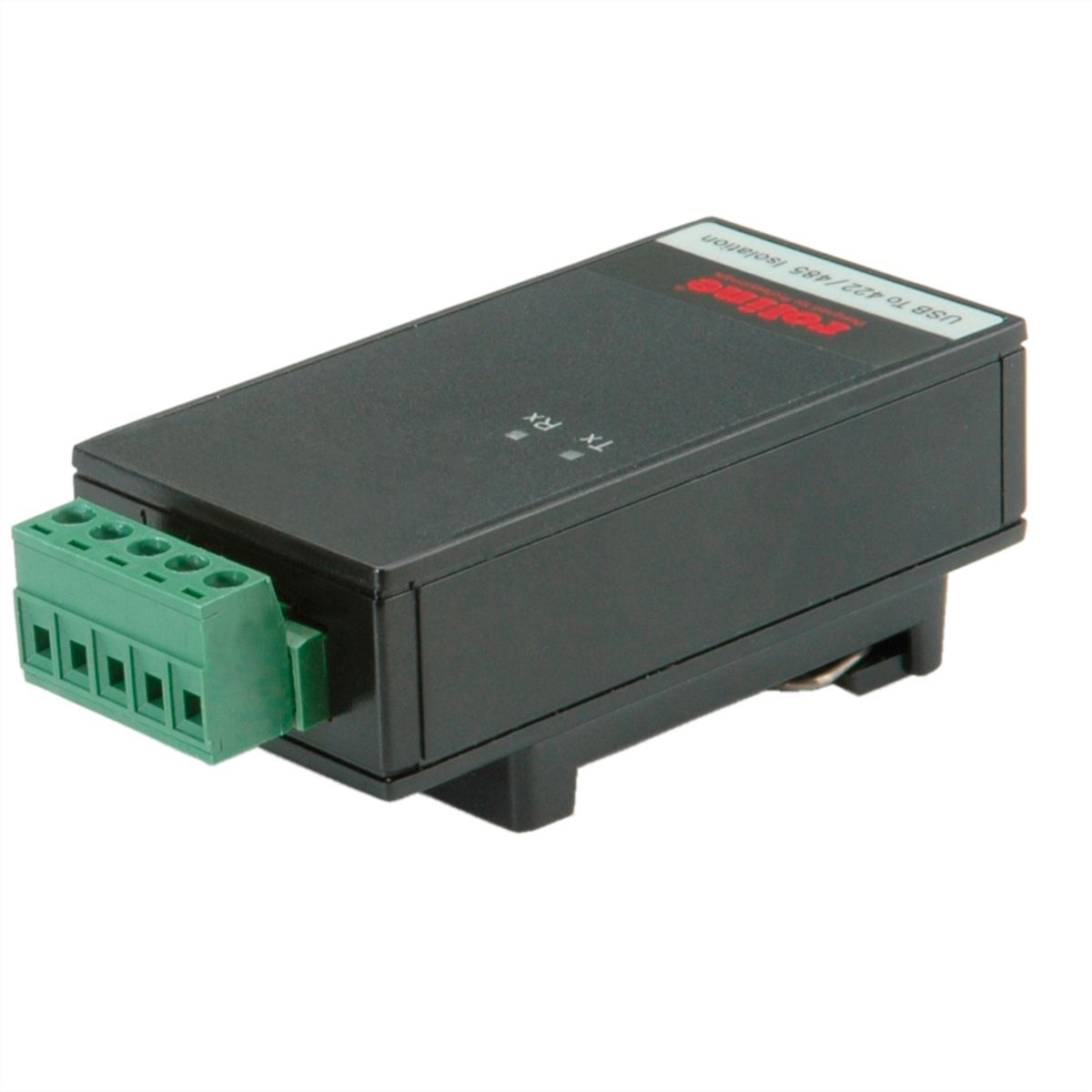

ROLINE USB 2.0 to RS422/485 Adapter, with Isolation, for DIN Rail

ROLINE USB 2.0 to RS422/485 Adapter, with Isolation, for DIN Rail

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 12021004
Brand / Manufacturer ROLINE
Manuf. item no. 12.02.1004
EAN 7611990194841
Item weight 0.2 kg

Description

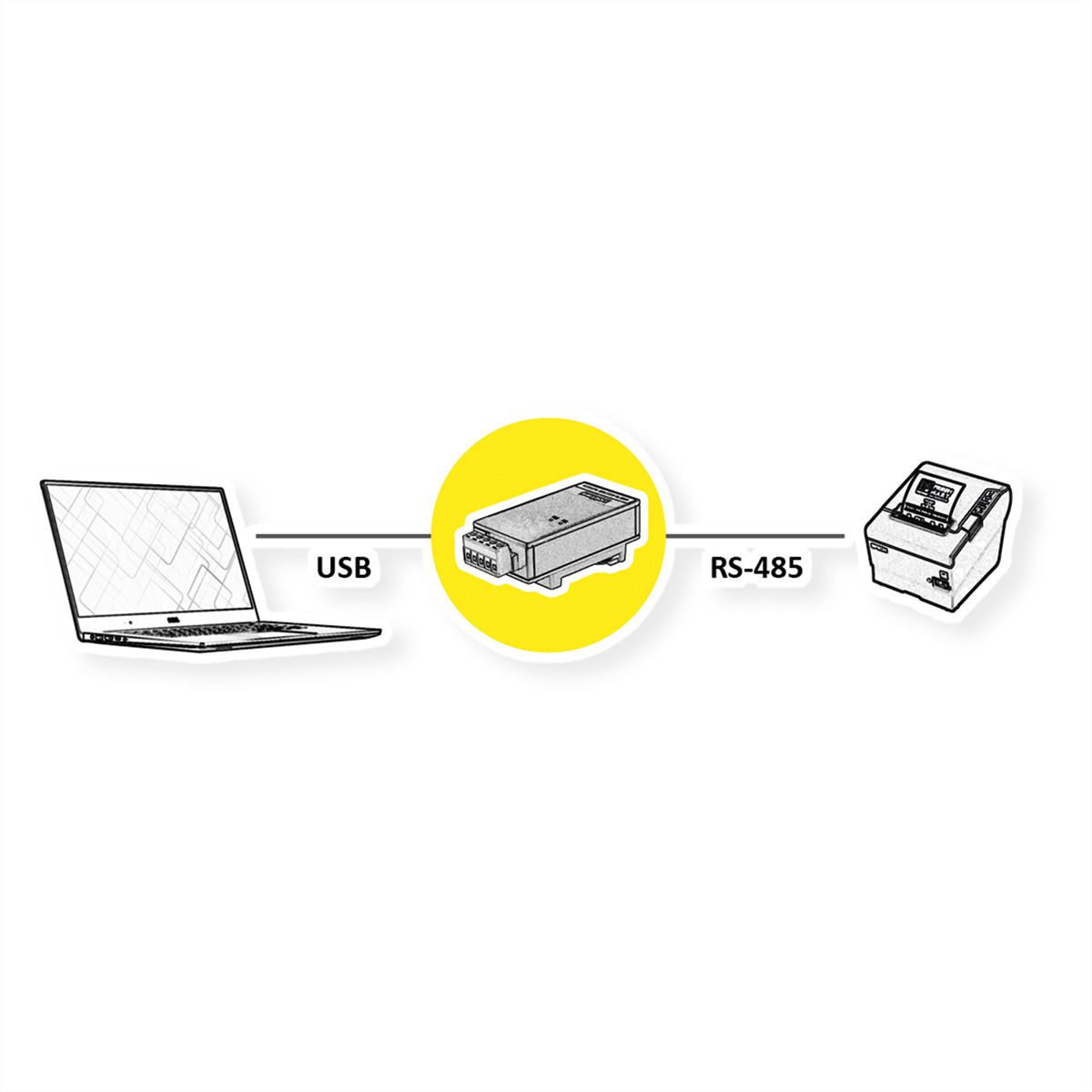

  • Converter to connect serial devices to a USB port on your PC
  • Mode: Asynchronous serial communication
  • Compatible with USB 2.0, USB 1.1, USB 1.0
  • Isolation 3000 VDC (optical)
  • Connectors: 5-pin terminal block, 1x Mini USB type B
  • Data transfer rate of up to 115 Kbit/s
  • Terminal resistance and Echo mode
  • DIP switches for terminal settings
  • Signals: TX+, TX-, RX+, RX-, SGND
  • Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
  • Status LEDs

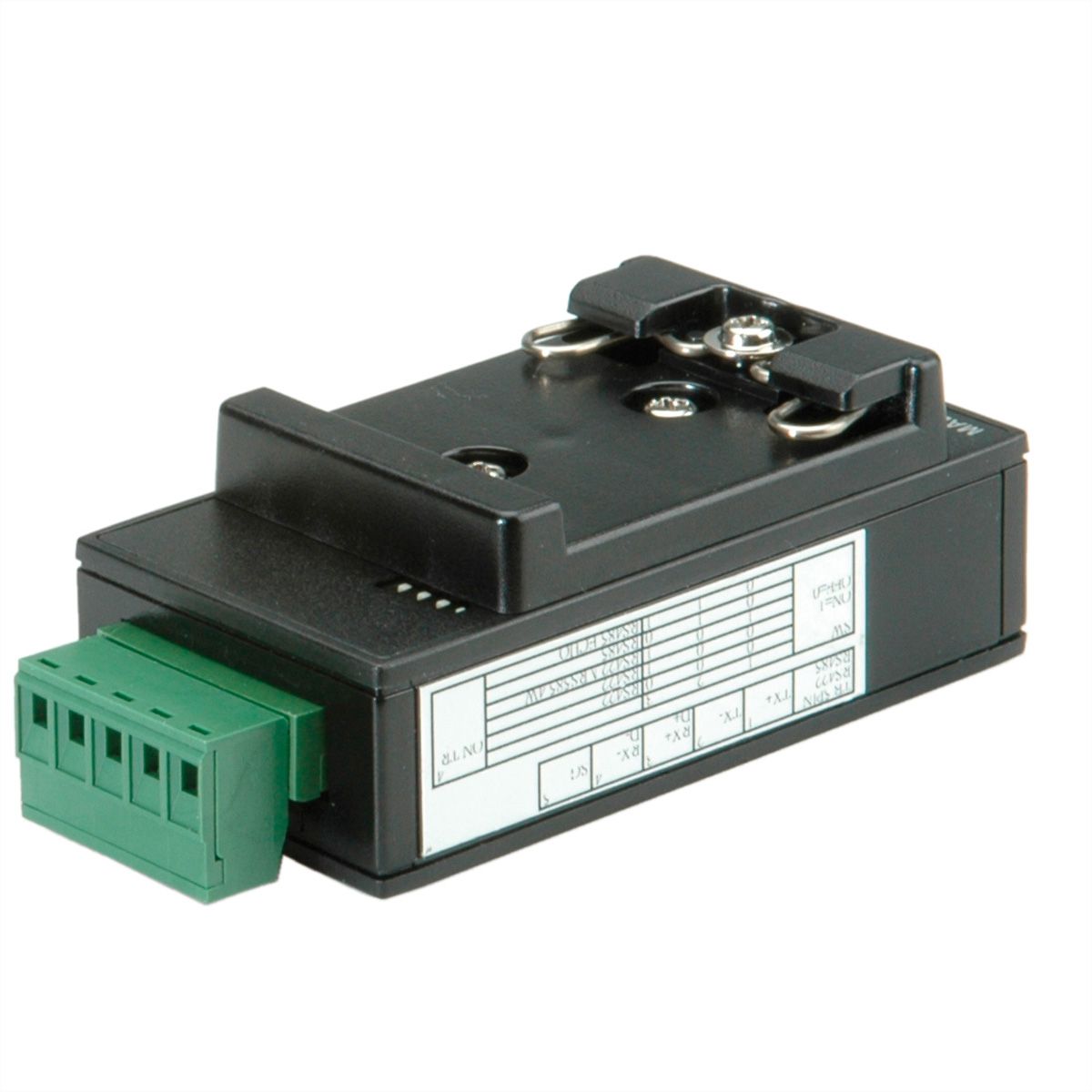

  • For DIN rail mounting
  • Power supply over Mini USB type B connector (54 mA)
  • Windows 98SE/ME/2000/Server 2003/XP/Server 2008/XP/Vista/7

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB - Serial Converter
Colour black
Scope of delivery Converter, USB cable, driver CD, manual
Side 1 connection (PC) Mini USB
Side 2 connection (Peripherals) Terminal block
Side 1 Connector Type USB 2.0 Type A
Side 1 Connector Gender Male
Side 2 Connector Type Terminal block, 5-pin
Side 2 Connector Gender Female
Conversion direction RS422/RS485- USB
Area of application External
Technical particularity DIN Rail
Weight 123.6 g
Height of packaging (single piece) 45 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.2 kg
