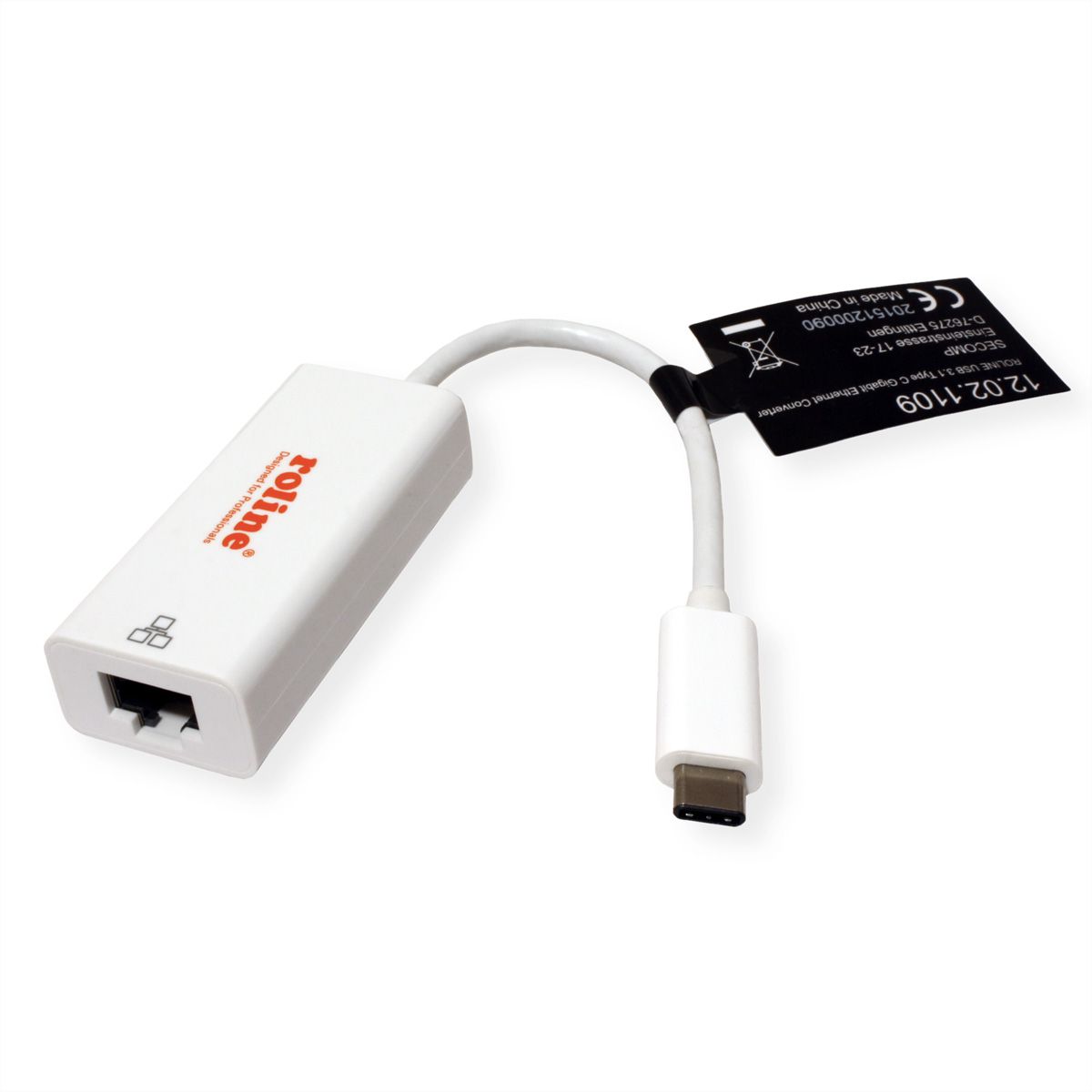

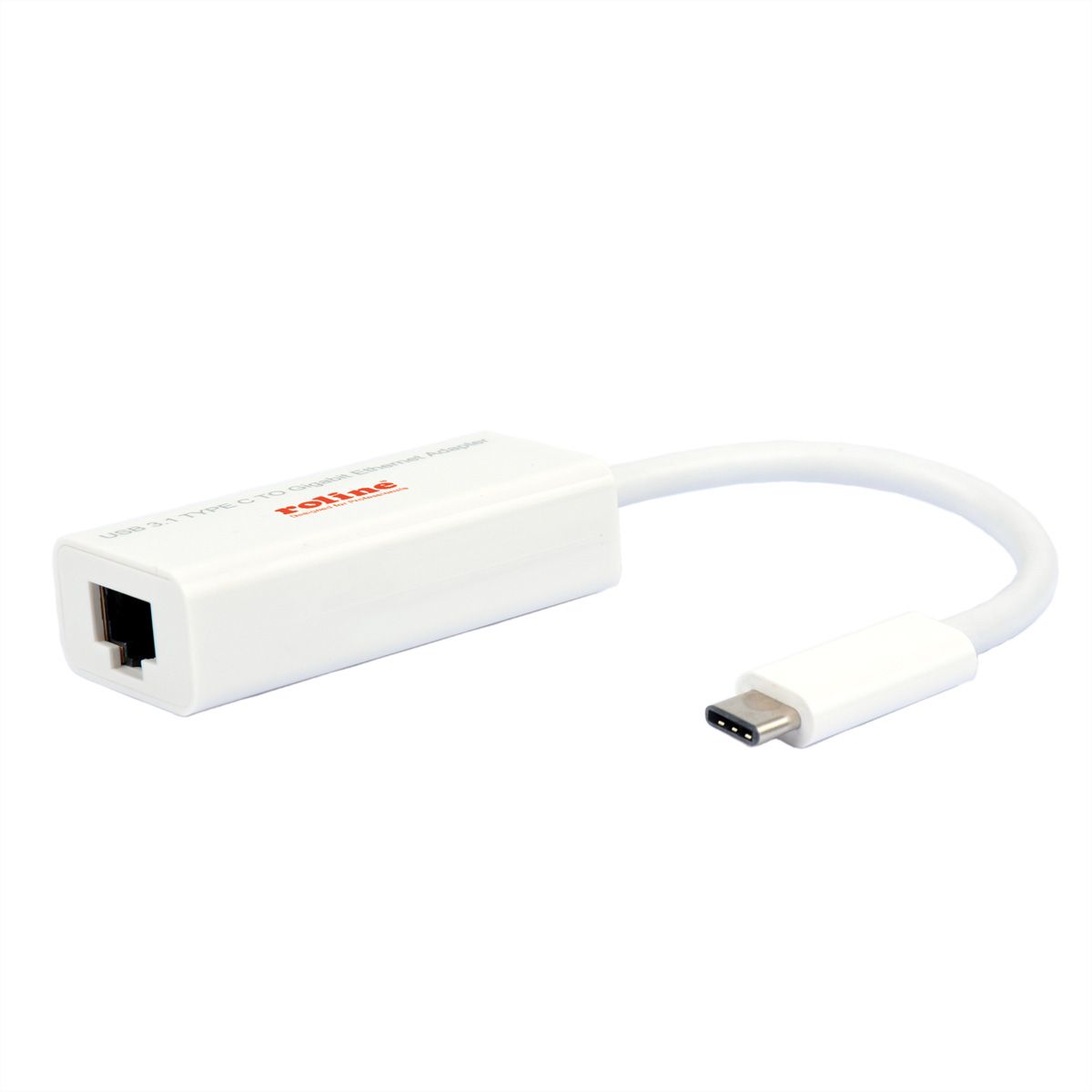

ROLINE USB 3.2 Gen 2 to Gigabit Ethernet Converter

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	12021109
Brand / Manufacturer	ROLINE
Manuf. item no.	12.02.1109
EAN	7611990131068
Item weight	0.05 kg

Description

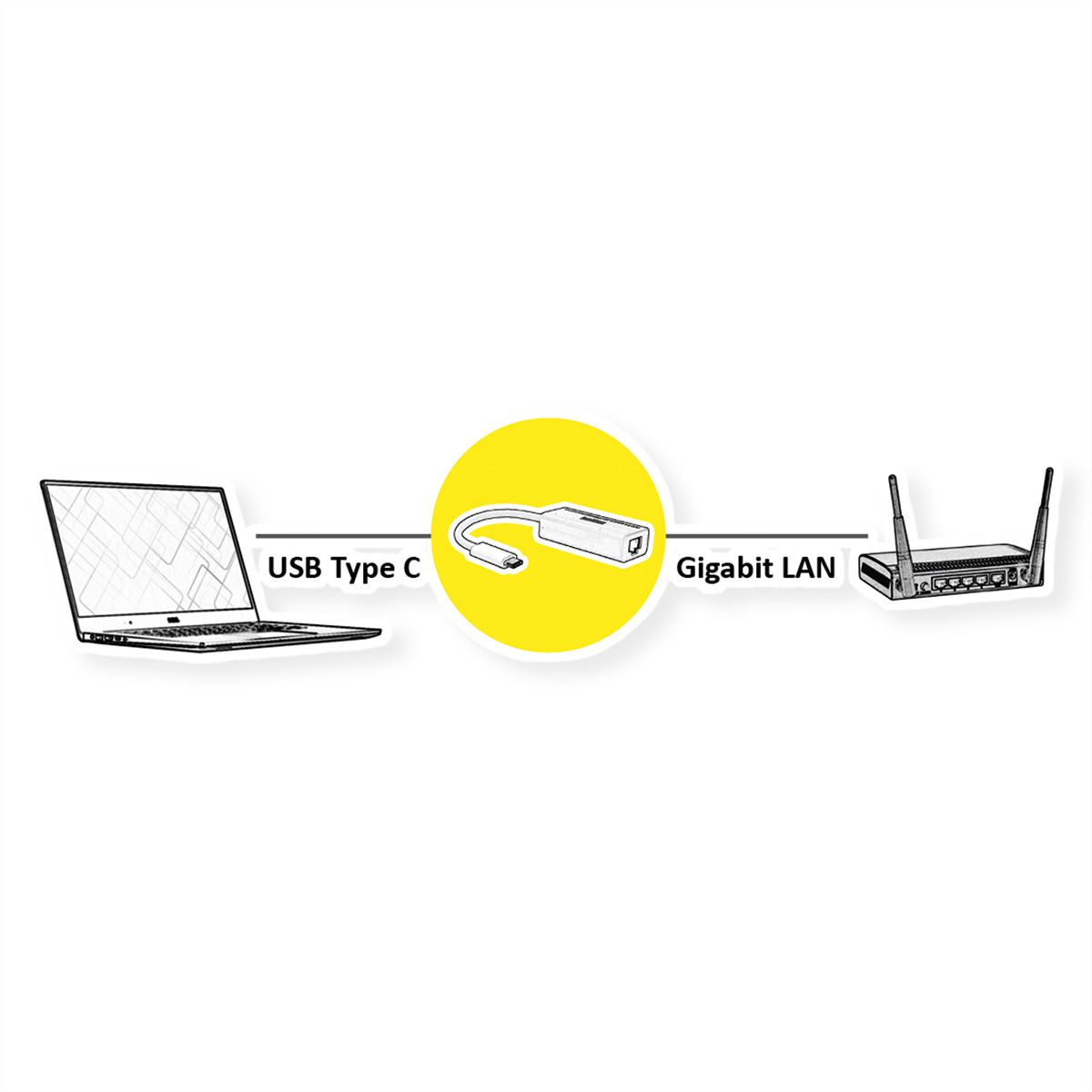

With this converter you connect your PC or notebook with USB 3.1 / USB 3.2 Gen 2 Type C interface to a Gigabit Ethernet network.

This converter is a cost effective solution to convert a USB 3.1 / USB 3.2 Gen 2 port into a 10/100/1000Base-T Ethernet port

Supports 10/100/1000 Mbit/s auto-sensing capability
Supports USB 3.1 / USB 3.2 Gen 2
Type C Connector
Bus powered
Supports both full-duplex and half-duplex operation in Gigabit Ethernet
Supports Windows XP/Vista/7/8/10, Mac OS X

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Network adapters
Product type	Gigabit Ethernet Converter
Colour	white
Scope of delivery	Converter, manual
BUS system	USB
LAN (Mbps)	10/100/1000
Quantity of ports	1
Connection ports	1x RJ-45 F, 1x USB 3.0 Type C M
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Full duplex	yes
Wake on LAN	no
Network topology	Ethernet
Operating System	Windows XP / 7 / 8, Mac OS 10
Dimensions (HxWxD)	16 x 26 x 60 mm
Operating temperature min.	0 °C
Operating temperature max.	45 °C
Height	16 mm
Width	26 mm
Depth	60 mm
Weight	21.04 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	110 mm
Depth of packaging (single piece)	230 mm
Package weight (single piece)	0.05 kg

Downloads

Product data sheet - English (39.3 KB)

Download

Manufacturer data sheet - English (298.6 KB)

Download

User manual - Deutsch (312.9 KB)

Download

User manual - English (314.6 KB)

Download
