Description

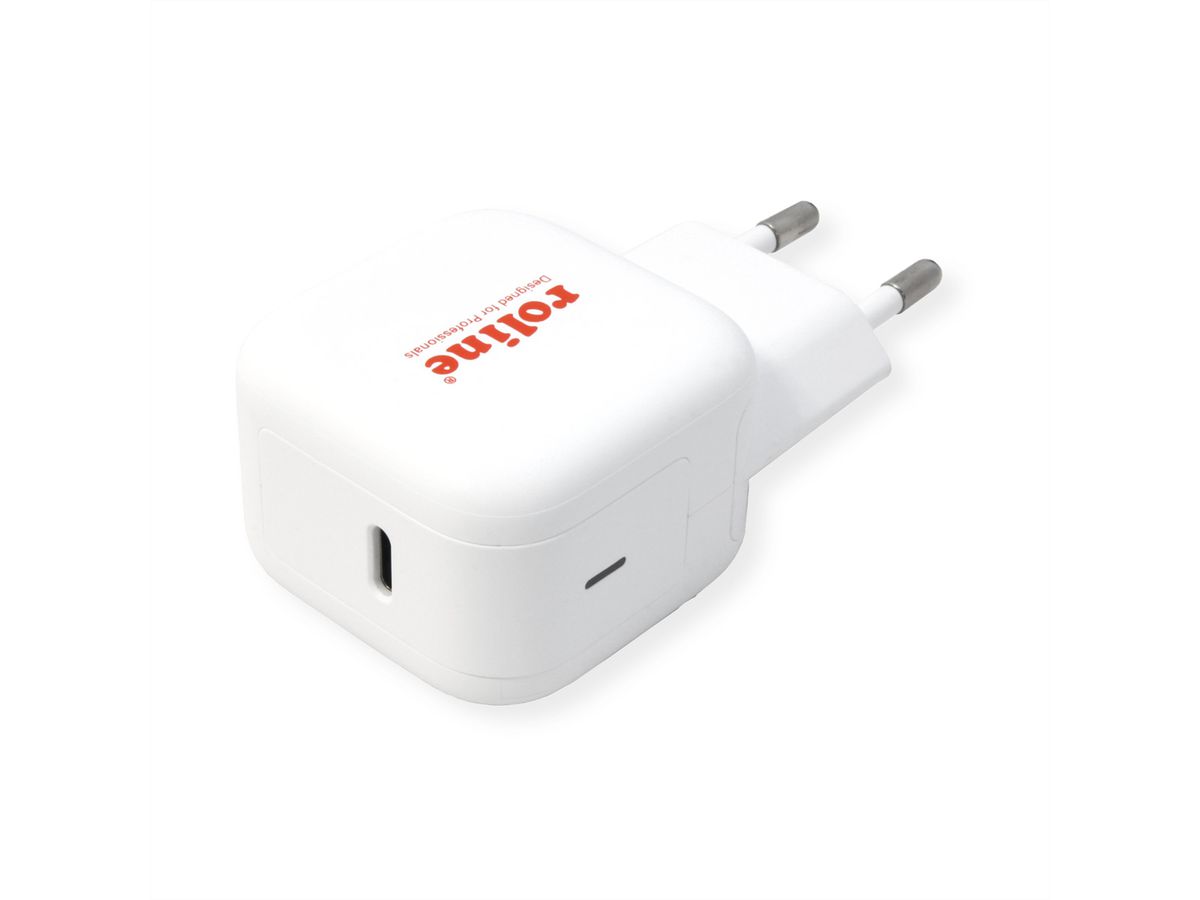

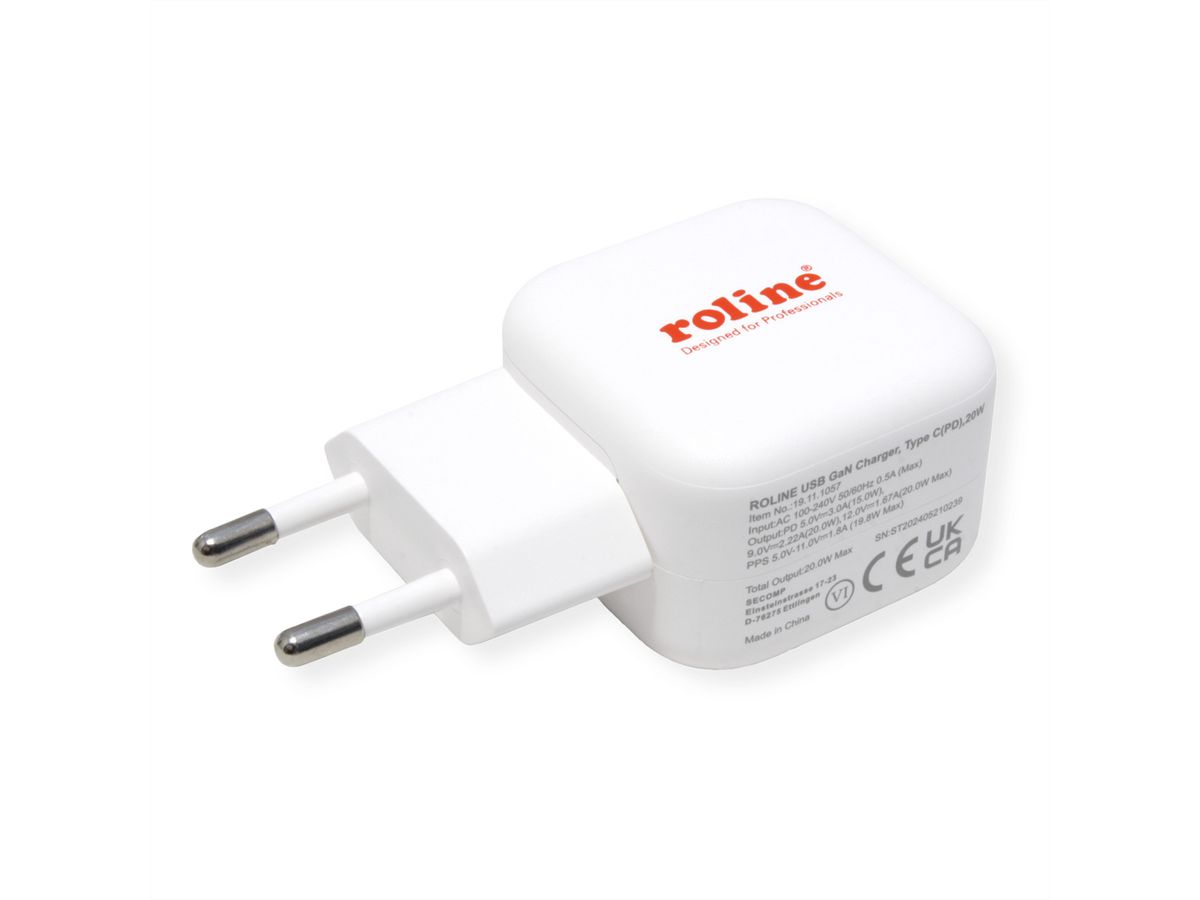

1-Port USB Wall Charger, 1x Type C with maximum 20W for powering a smartphone/tablet, external SSD/HDD or other devices.

• For charging or as a power supply from a device via its USB Type C input
• Perfect supplement for your Wireless Charger, as the scope of delivery often does not include plug-in power supplies
• Suitable, for example, for smartphone/tablet, external SSD/HDD enclosures and other devices
• Charger with one USB Type C socket
• Input: 100 - 240 V AC, 50 - 60 Hz, 0.5A max
• Output: 5V/3A; 9V/2.22A; 12V/1.67A

Advantages of GaN technology

• GaN or gallium nitride - crystalline material with more advantageous properties compared to silicon
• Powerful, efficient power supply
• Enables more compact charger design
• Low heat generation
• Allows a higher density of electronic components

Specifications

Manufacturer	ROLINE
Product group	Voltage converter
Product type	USB charger
Colour	white
Input	100-240 VAC
Output	5V/3A; 9V/2.22A; 12V/1.67A
Output	20 W
Dimensions (HxWxD)	30 x 42 x 80 mm
Input connector	Euro Plug
Output connector	1x USB Type C F
Supported charging technology	GaN
Mains connection	Euro plug, Type-C
Height	30 mm
Width	42 mm
Depth	80 mm
Weight	52 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	80 mm
Package weight (single piece)	0.08 kg
