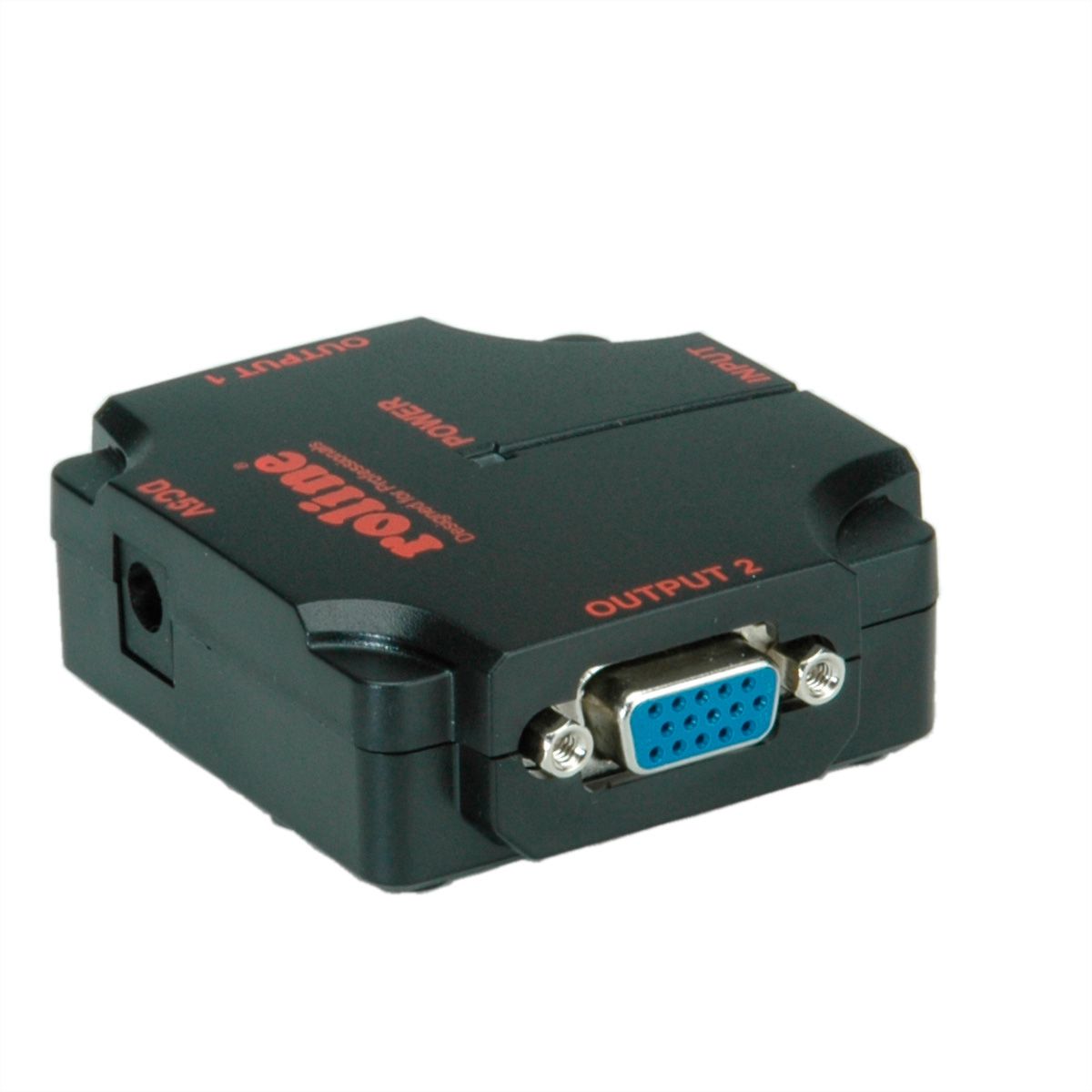

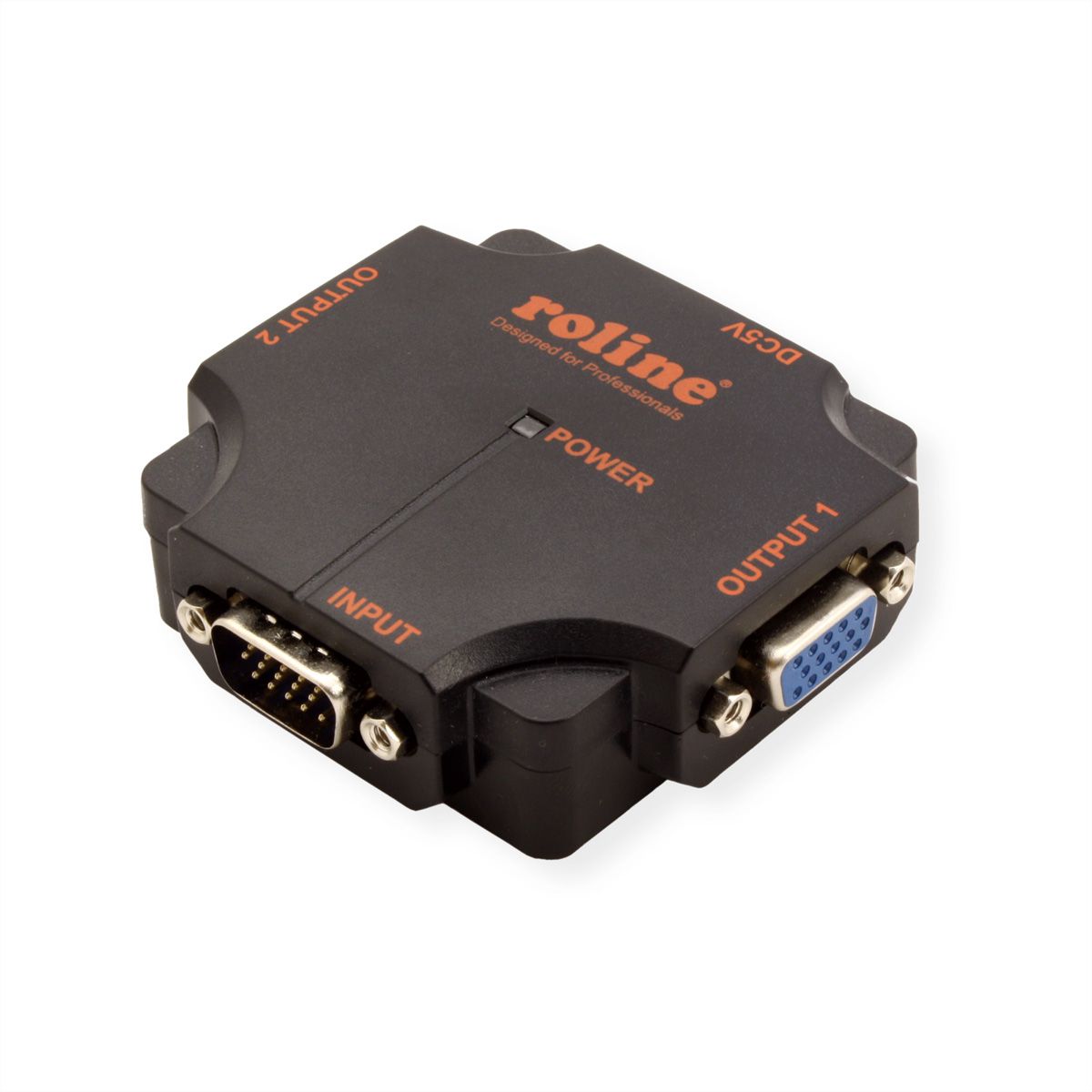

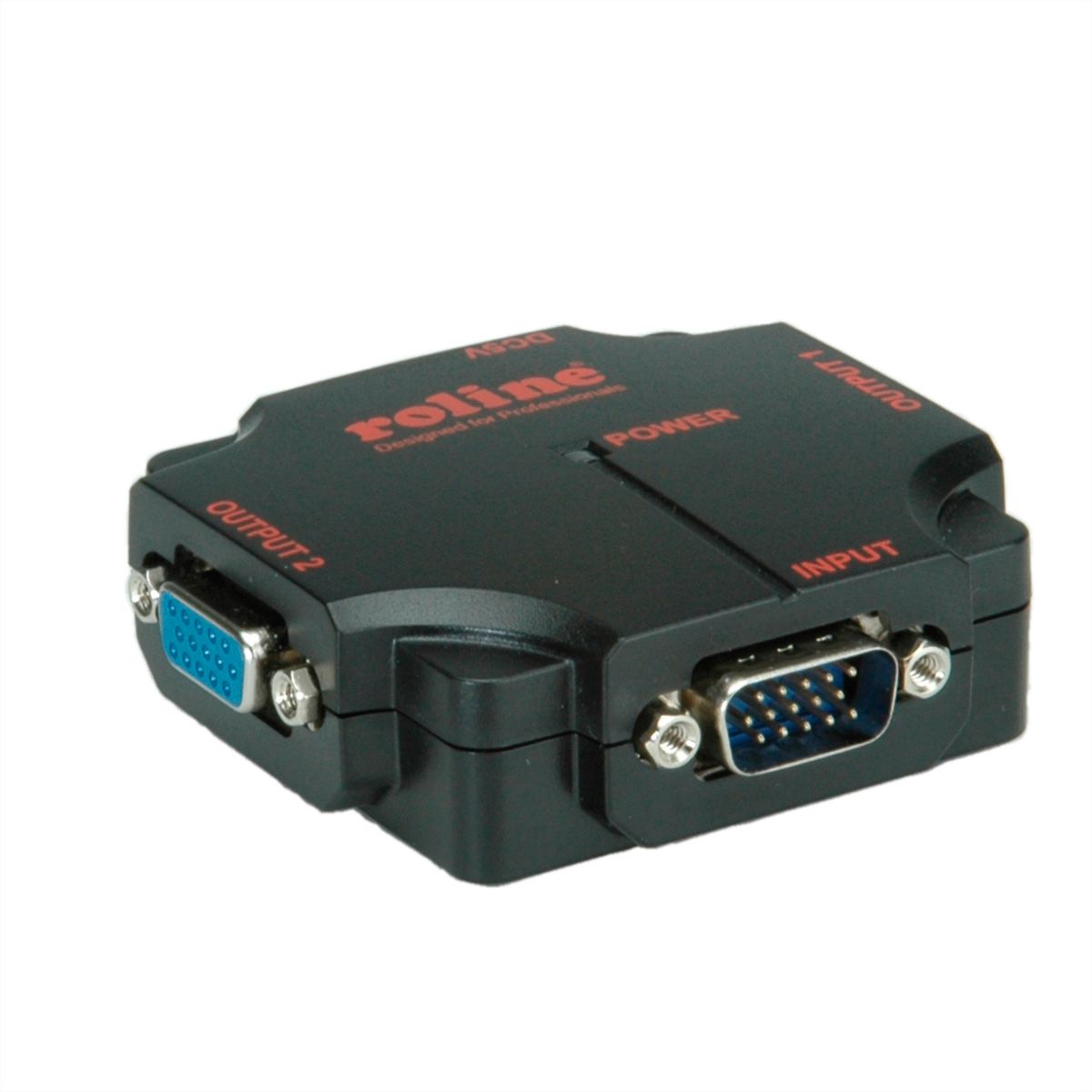

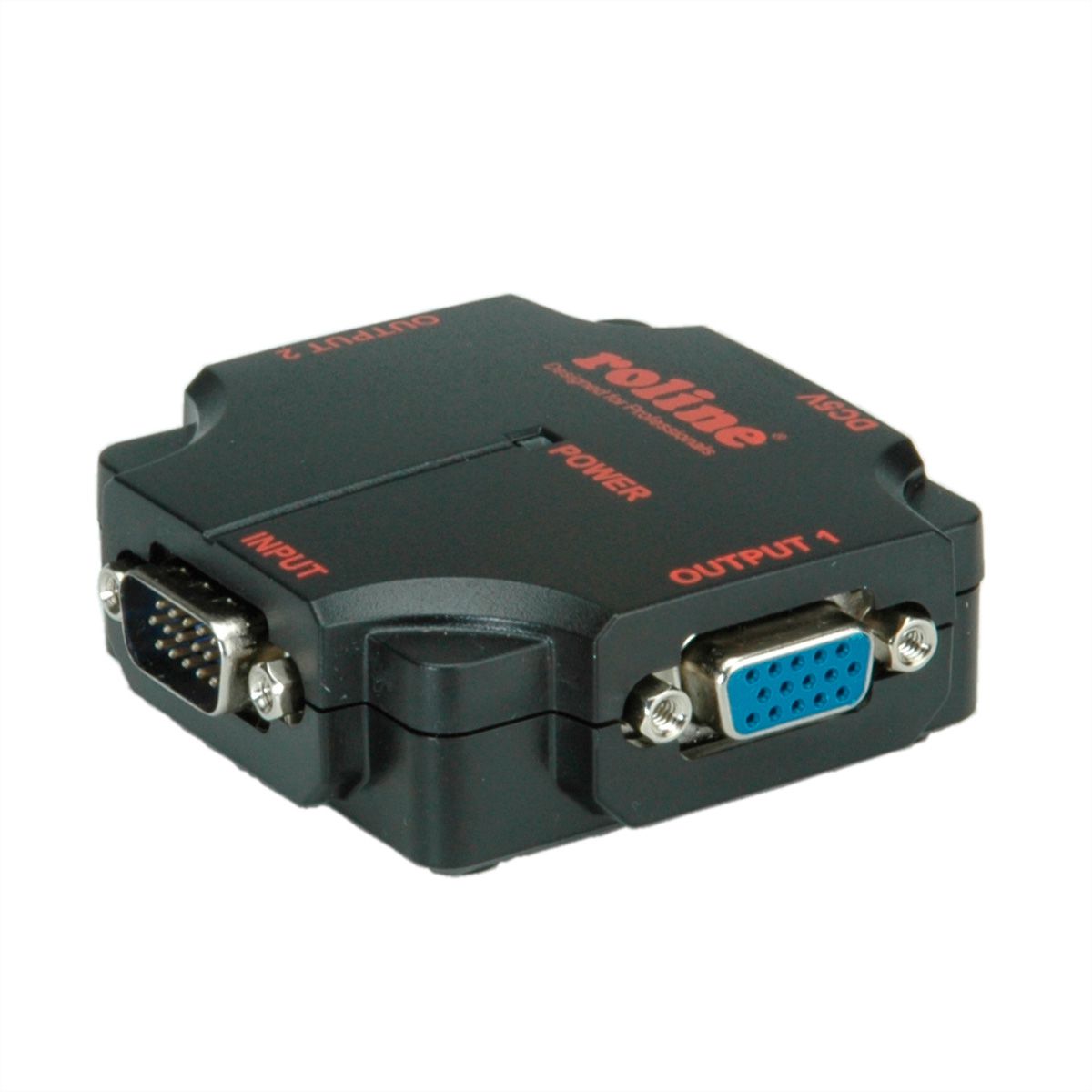

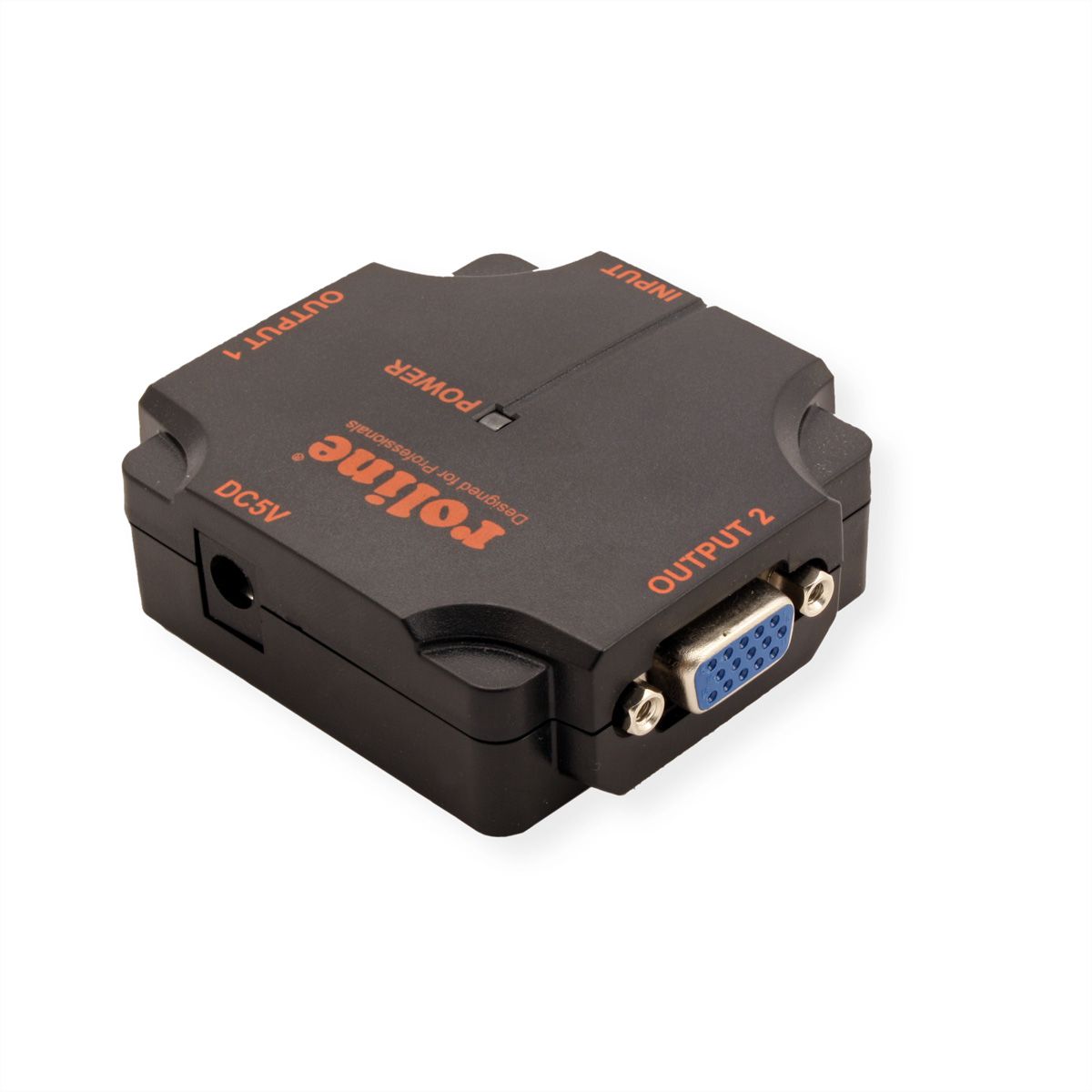

ROLINE VGA Video Splitter, 450 MHz, 2-way

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	14013534
Brand / Manufacturer	ROLINE
Manuf. item no.	14.01.3534
EAN	7611990121168
Item weight	0.15 kg

Description

Applications

- High Quality Multimedia Presentations
- Video Conferencing
- Education
- Public Broadcasting Systems
- Demos

Features

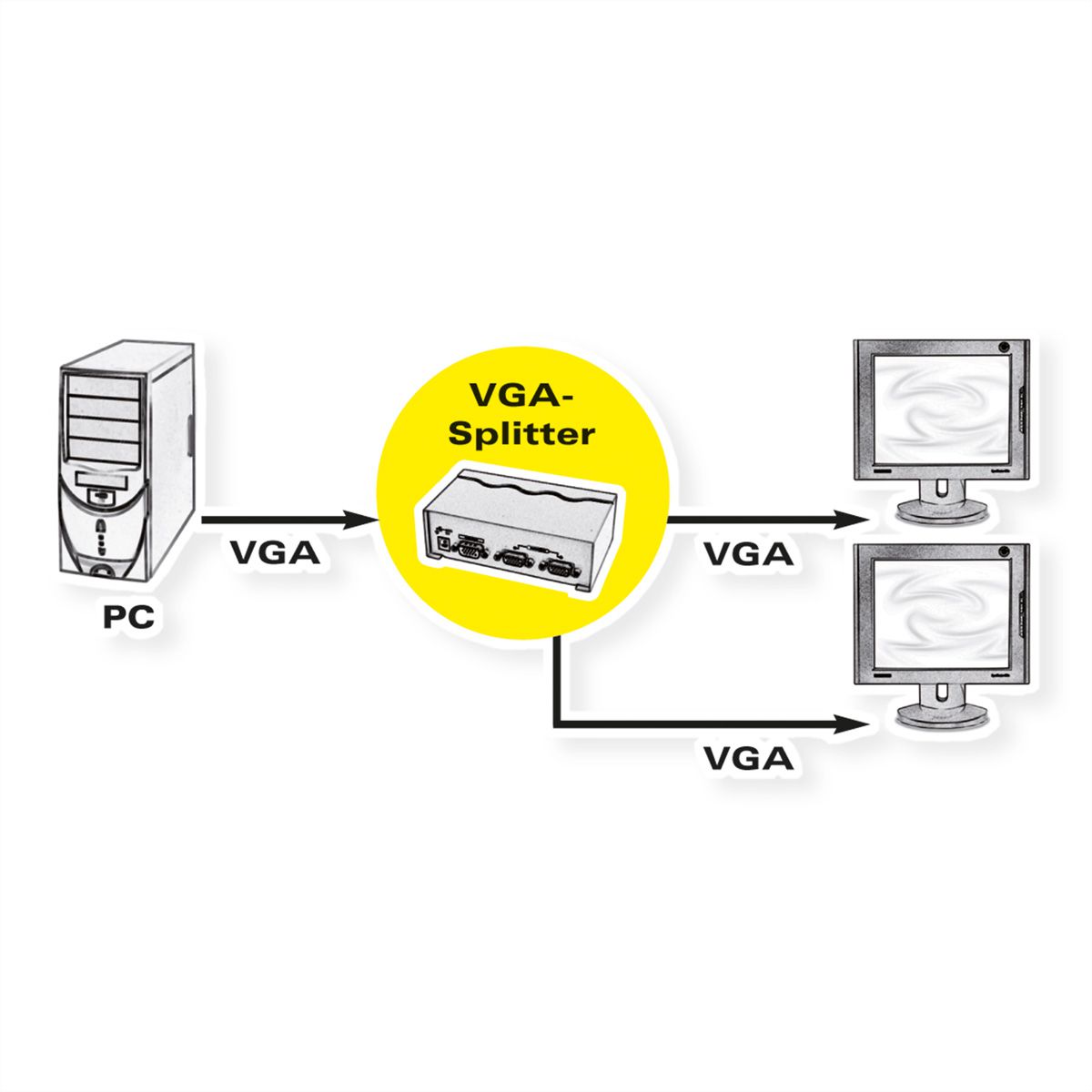

Duplicates one video signal to two outputs
Supports 450 MHz bandwidth
Max. resolution (nominal): 1920 x 1440
DDC compatible
USB Bus powered (USB power cable included)
Cascadable
Plastic casing

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	VGA-Video- Splitter
Colour	black
Scope of delivery	Splitter, USB power cable (1.1m)
Interface	VGA
Inputs	1
Outputs	2
Max. bandwidth	450 MHz
Video input	1x HD 15pin M
Video output	2x HD 15pin F
Video band width	450 MHz
Max. resolution (nom.)	1920 x 1080
Dimensions (HxWxD)	25 x 70 x 66 mm
Height	25 mm
Width	70 mm
Depth	66 mm
Weight	101.4 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.15 kg

Downloads

Product data sheet - English (46.5 KB)

Download

Manufacturer data sheet - English (1.3 MB)

Download
