Description

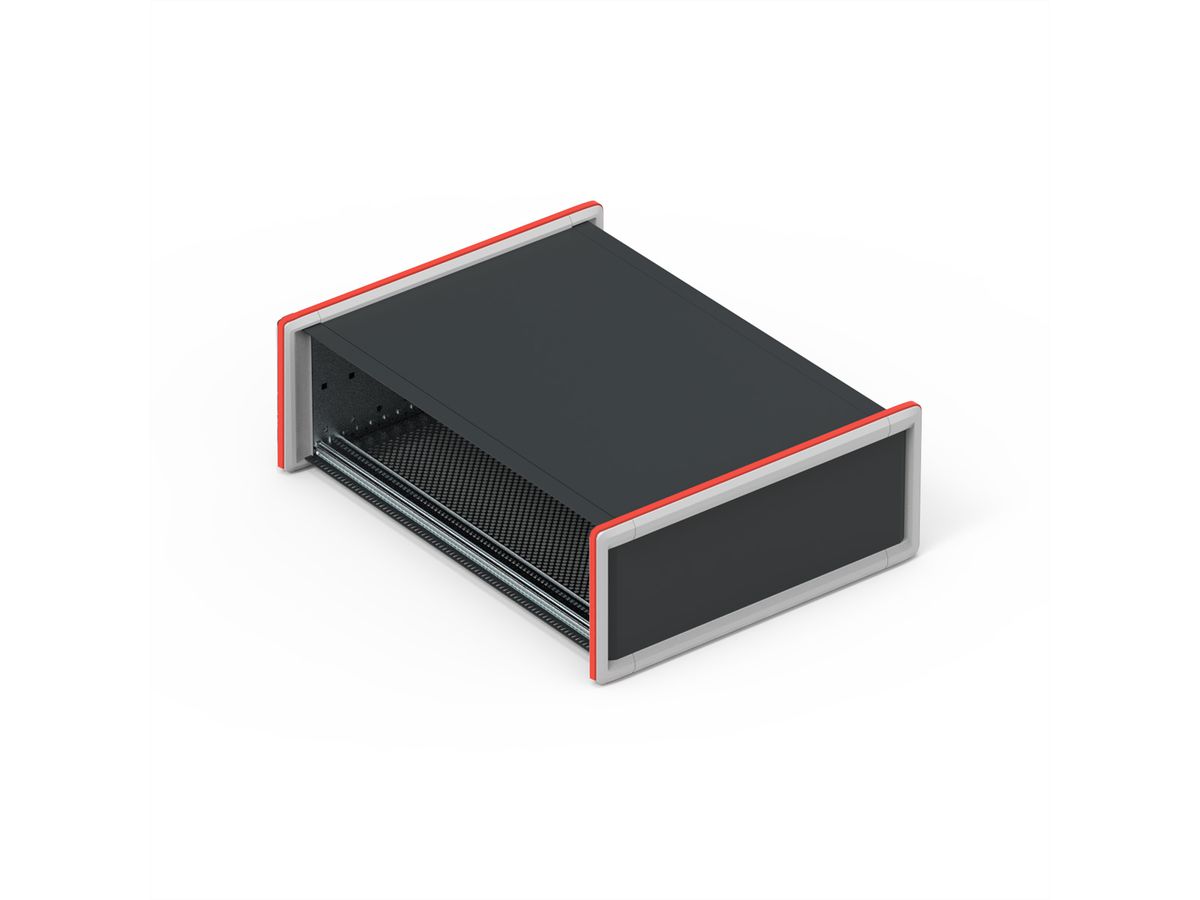

RatiopacPRO Style, Front and Rear Trim Circulating, Standard Screwing, 2 U, 84 HP, 415,5 mm

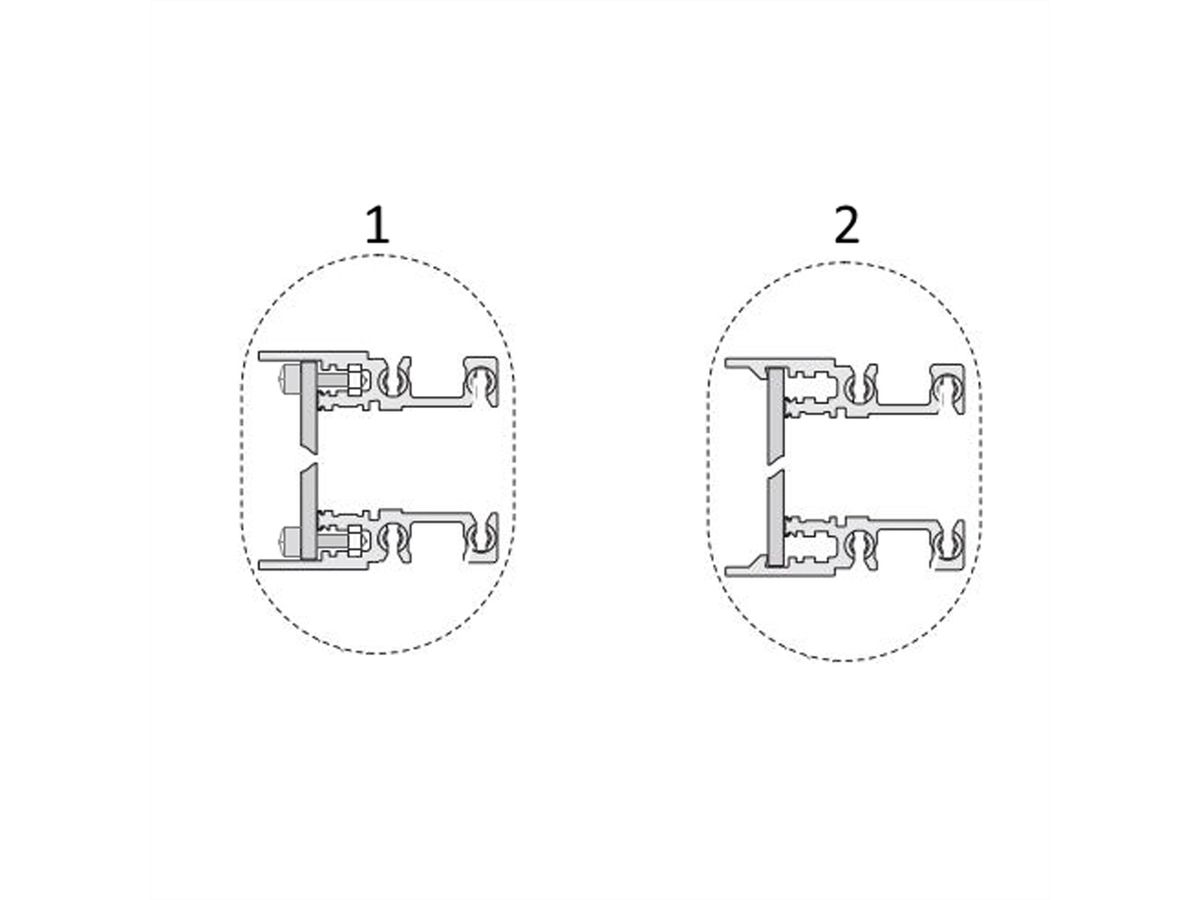

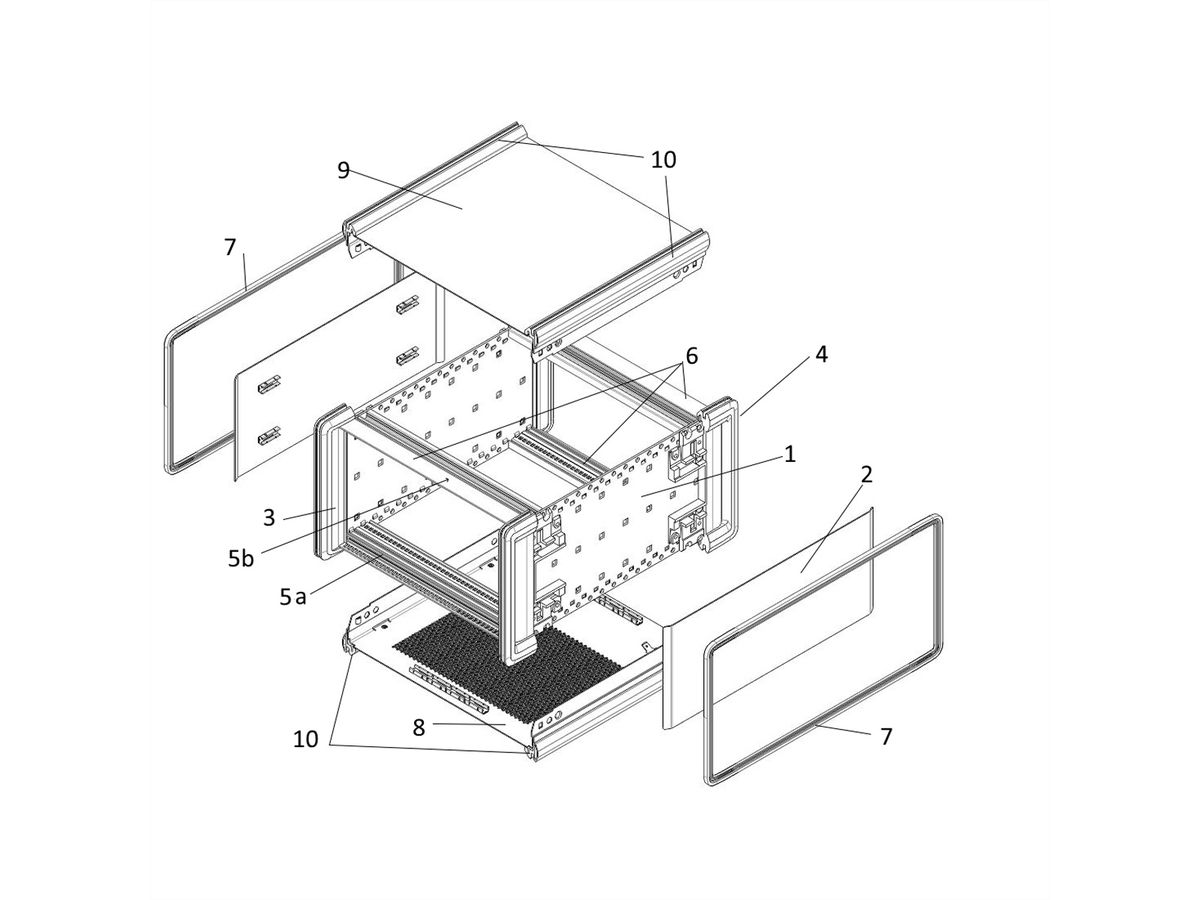

High-quality protection for your electronic components in modular 19" desktop enclosures RatiopacPRO Style. Highlight your brand identity with customisable design options. Desktop case with protective frame design and rubber strips around the frame for even more protection. Enclosure for 19" components (guide rails) or proprietary components (mounting plate). Additional components must be added to the enclosure to establish EMC shielding. Front and rear prepared for front panel mounting with collar screws and nipples.

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	19"-Subrack
Height units	2 U
Width units	84 HP
Maximum weight capacity	25 kg
Height	112 mm
Width	460.9 mm
Depth	478 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - Deutsch (879.6 KB)

Download

Manufacturer data sheet - English (879.1 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

More about SCHROFF
