Description

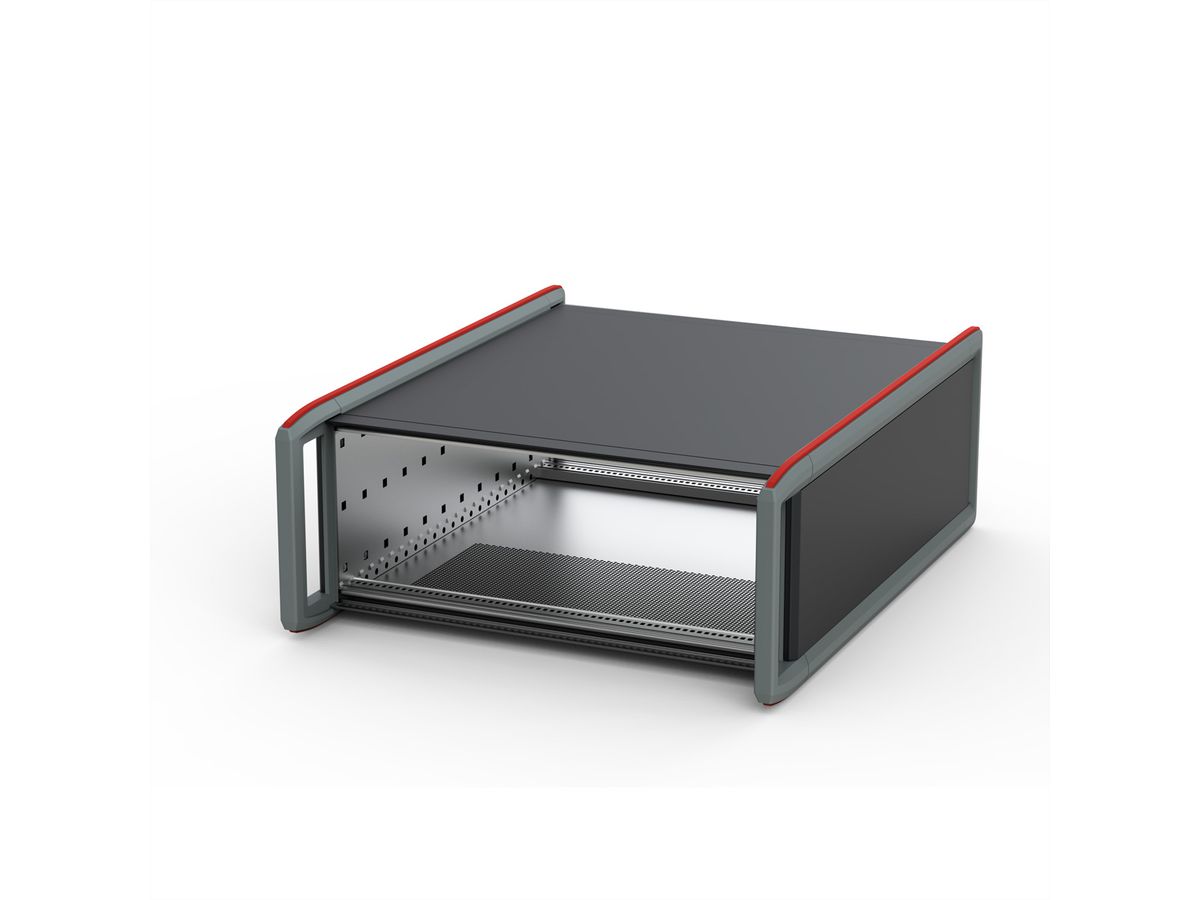

RatiopacPRO Style, Front Handles and Rear Circulating Trim, Screwless Front, 3 U, 63 HP, 355,5 mm

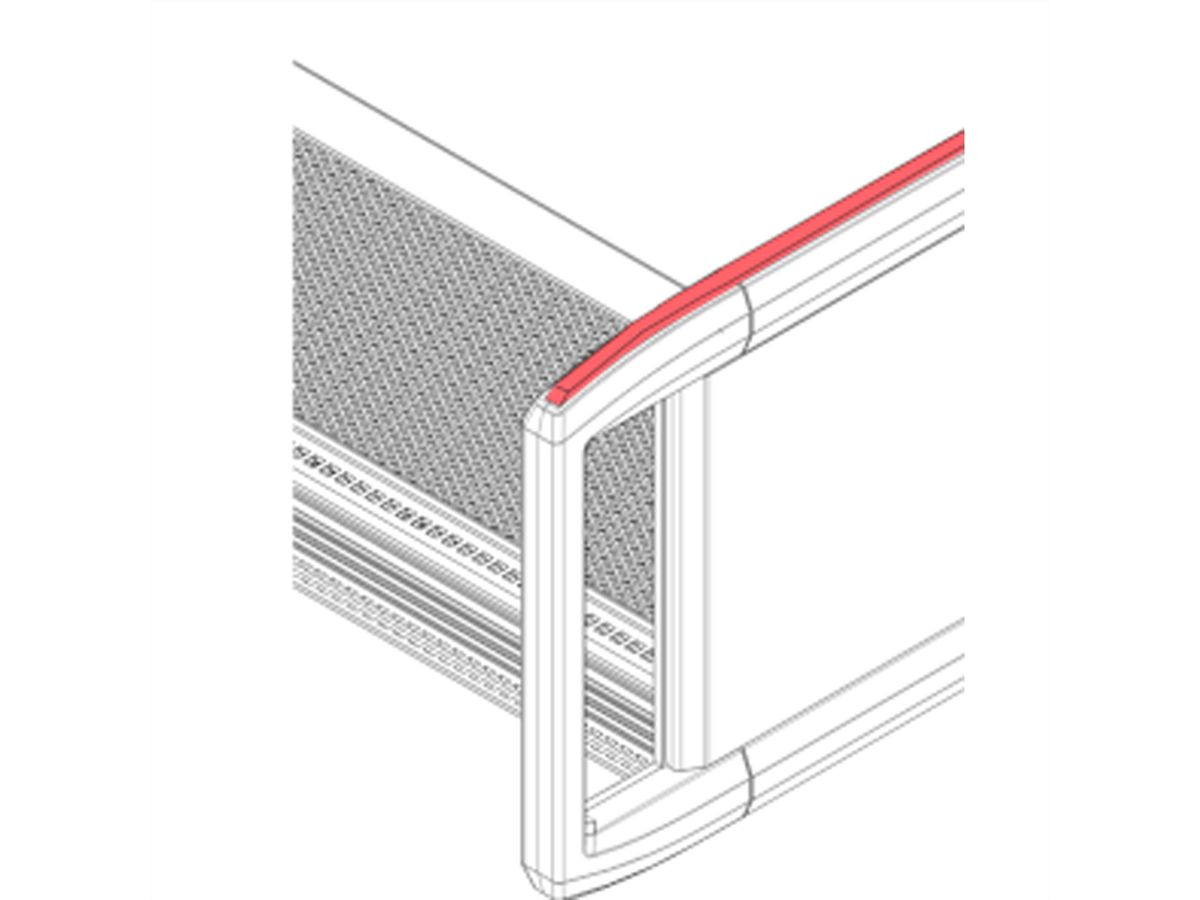

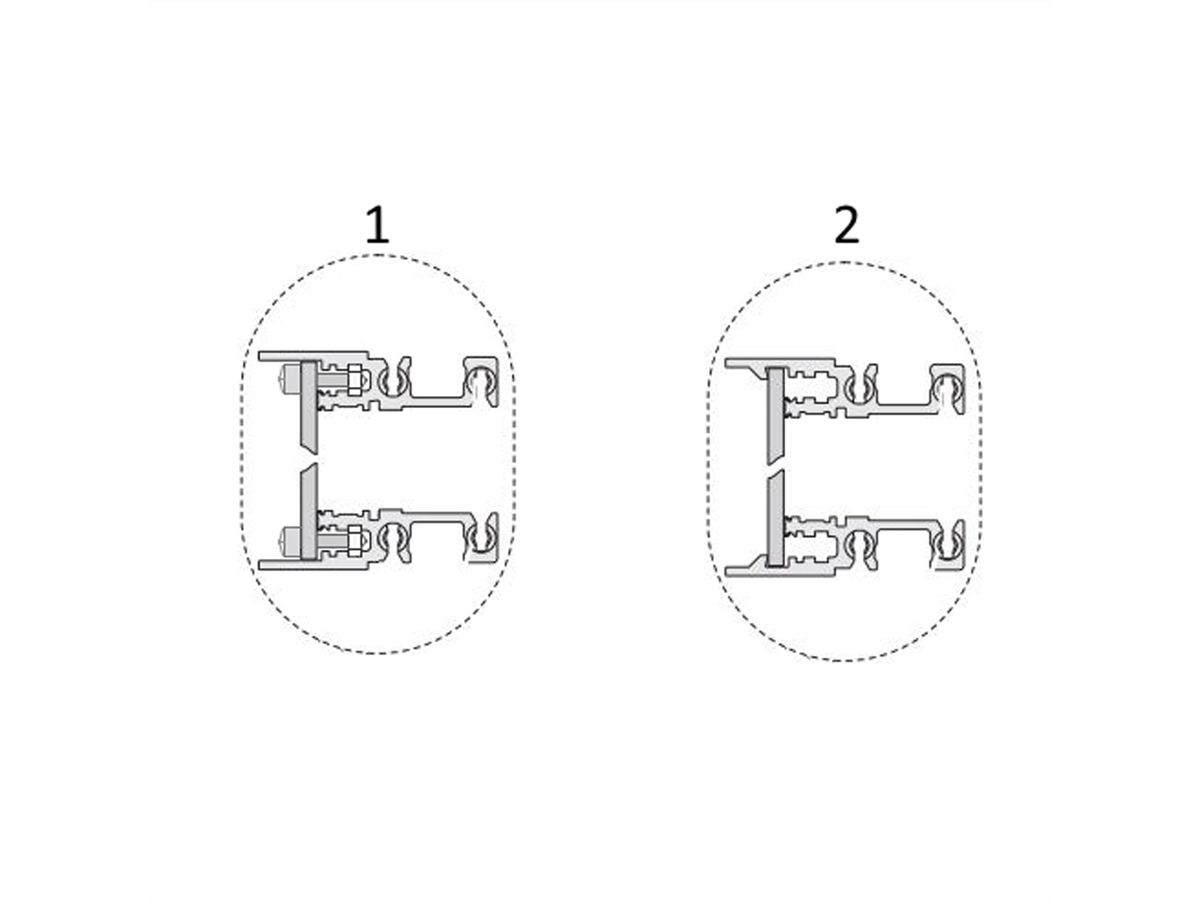

High-quality protection for your electronic components in modular 19" desktop enclosures RatiopacPRO Style. Highlight the identity of your brand with customisable design options. Desktop enclosure with protective frame design and front handles for easy handling. Rear side with circulating rubber strip to protect the enclosure during transport. Enclosure for 19" components (guide rails) or proprietary components (mounting plate). To establish EMC shielding, additional components must be added to the enclosure. Front prepared for front panel mounting without screws and rear prepared for standard front panel mounting

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	19"-Subrack
Height units	3 U
Width units	63 HP
Maximum weight capacity	25 kg
Height	157 mm
Width	354.2 mm
Depth	442 mm
Weight	3.73 kg
Height of packaging (single piece)	120 mm
Width of packaging (single piece)	370 mm
Depth of packaging (single piece)	410 mm
Package weight (single piece)	3.725 kg

Downloads

Manufacturer data sheet - Deutsch (1,007.3 KB)

Download

Manufacturer data sheet - English (1,006.8 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
