Description

Patch cables LED-Duplex OS2

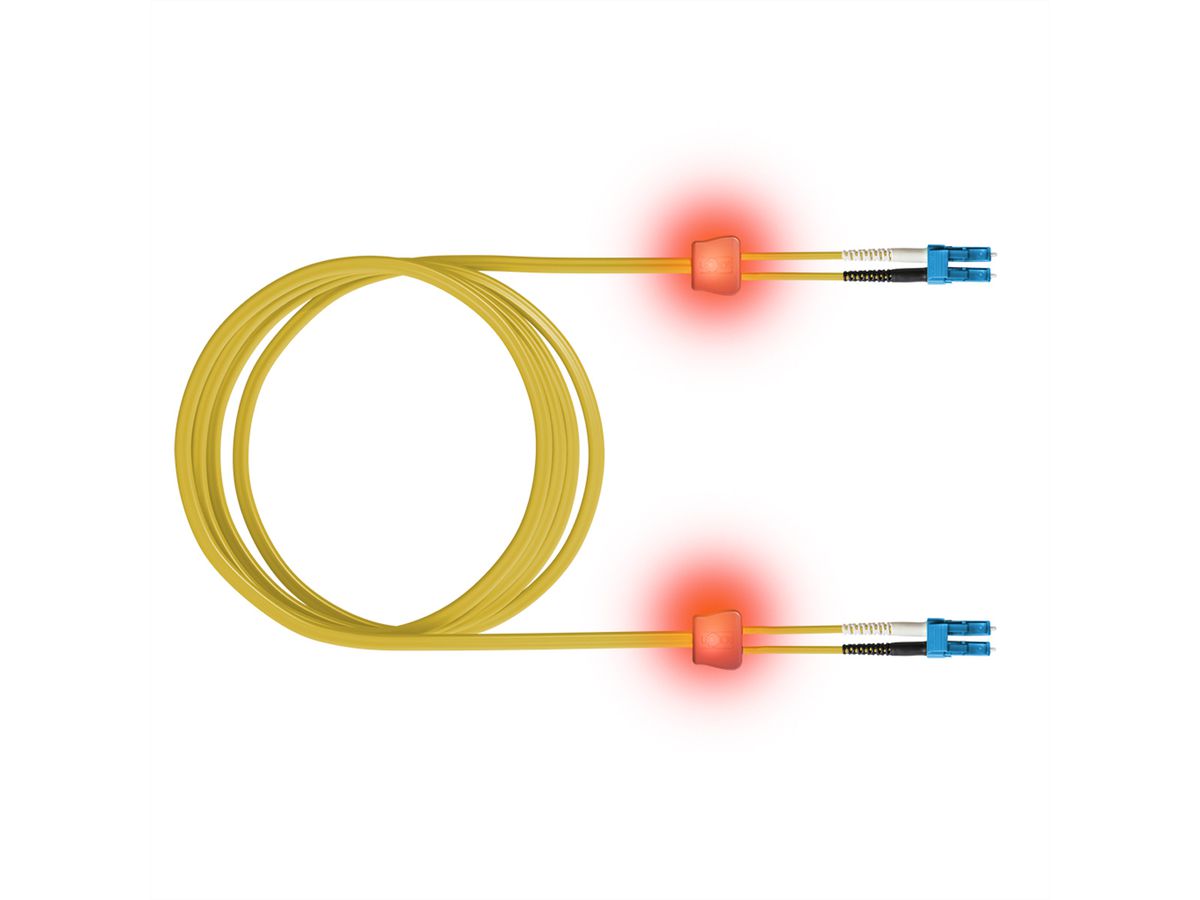

The FO-LED patch cable was developed especially for the use in offices, industry and computer centers. The cable design and the fibers insensitive to bending guarantee that the optical transfer parameters offer a maximum of data security. The patented process for the easy mapping of the cable ends to each other significantly increases the operating safety, an unintended pulling of the patch lines is almost impossible. Both cable ends will be electrically excited and are therefore illuminated after contact establishment of one patch cable side with the detector.

Specifications

Manufacturer	EasyLan
Product group	Fibre optic cable
Product type	Fibre Optic Jumper Cables OS2
Colour	yellow
Length	10 m
Quantity of fibre	2
Cable type	Duplex Cable
External cable	no
Fibre section	Single mode 9/125µm OS2
Connection ports	LC / LC
Side 1 Connector Type	LC
Side 2 Connector Type	LC
Aramid strain relief	yes
Cable LSOH	yes
Tensile-loaded capacity	100 N
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	220 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.216 kg

Downloads

Manufacturer data sheet - English (195.4 KB)

Download

Alternatives

saCon FO-LED patch cables duplex 9/125µm OS2, LC/LC, yellow, 1 m

Item no.:	21162211
Manuf. item no.	LSD02200010

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

saCon FO-LED patch cables duplex 9/125µm OS2, LC/LC, yellow, 2 m

Item no.:	21162212
Manuf. item no.	LSD02200020

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

saCon FO-LED patch cables duplex 9/125µm OS2, LC/LC, yellow, 3 m

Item no.:	21162213
Manuf. item no.	LSD02200030

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Show all

With EASYLAN products, you can keep track of the network jungle. These include the saCon™ S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot PushPull IP20 patch cables with PushPull locking instead of the usual jack release.
