Description

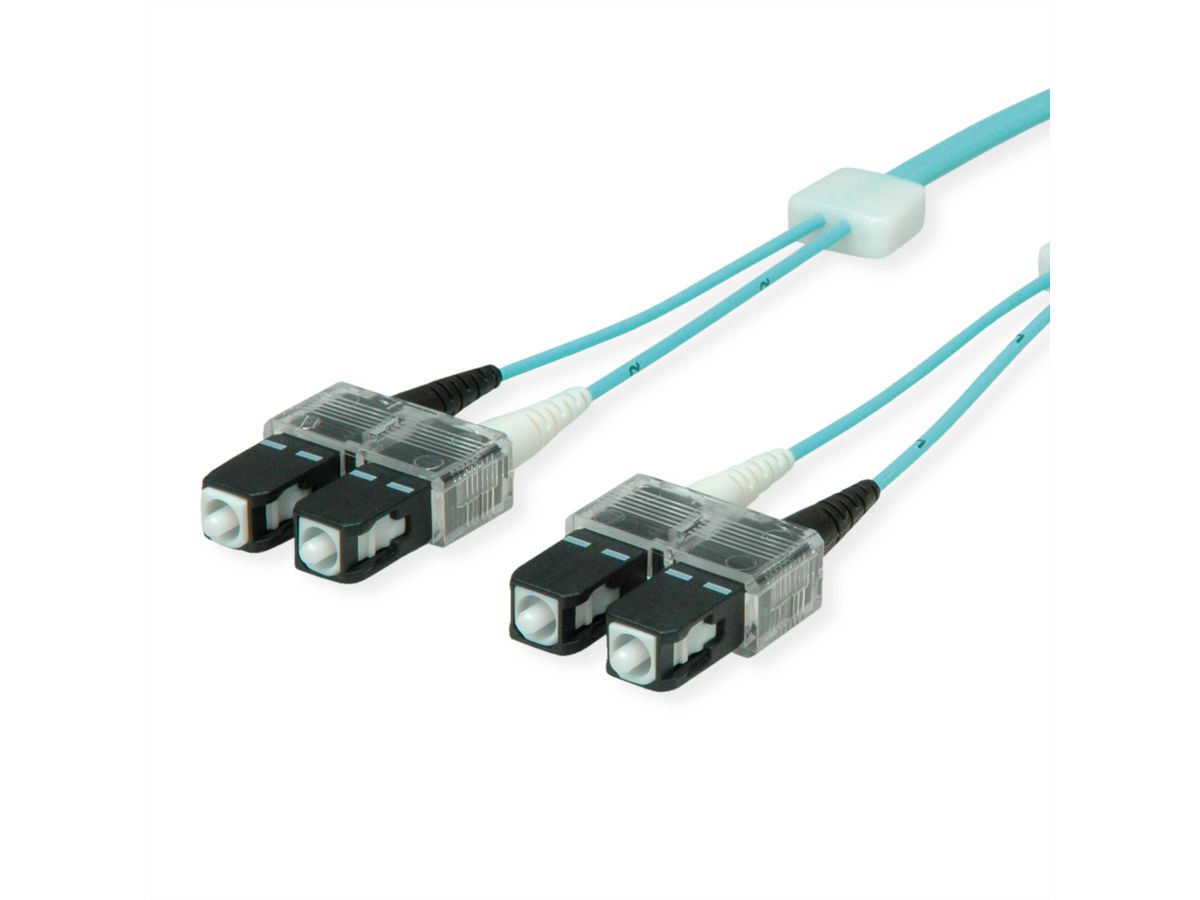

Patch cables LED-Duplex OM3

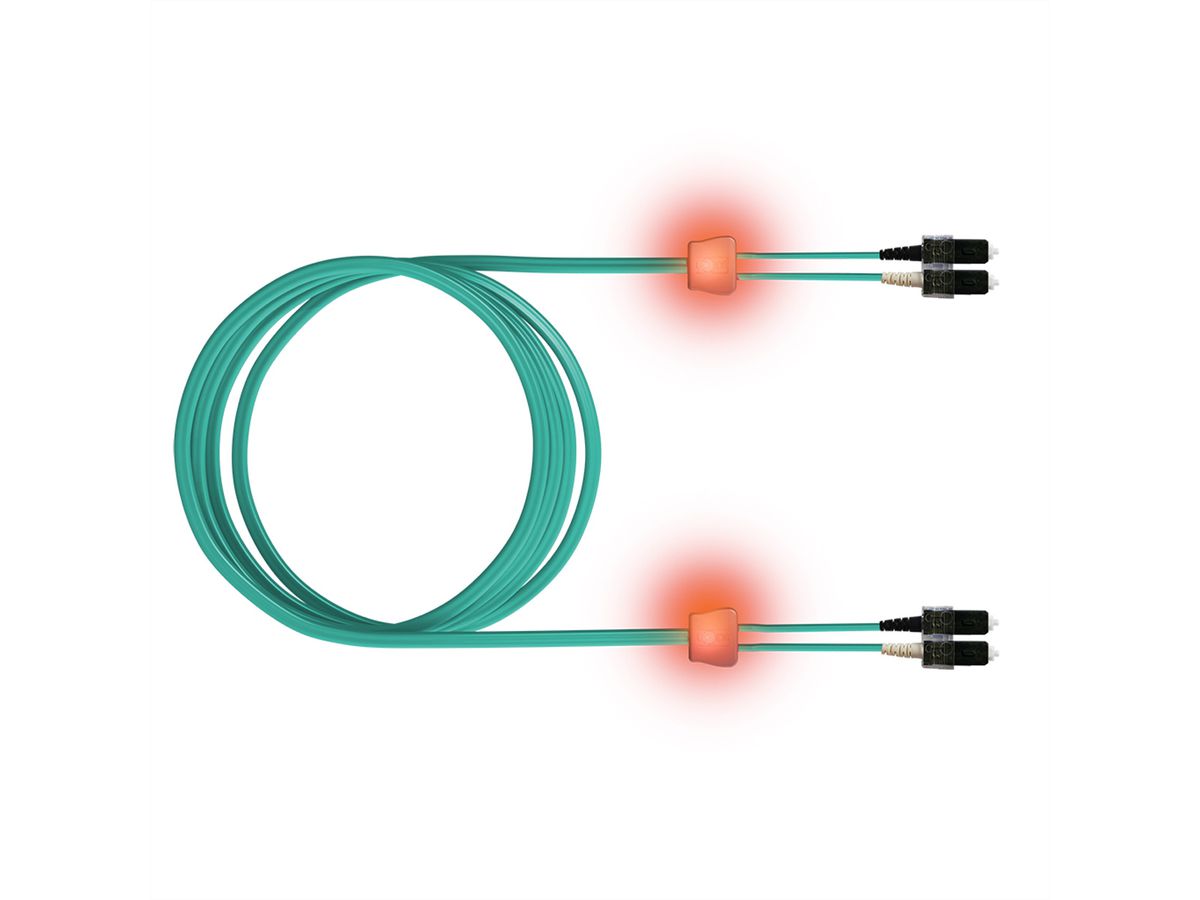

The FO LED patch cable has been developed especially for use in offices, industry and data centers. The cable design ensures that the optical transmission parameters offer a maximum of data security. The patented method that permits cable ends tob e easily matched to one another significantly increasees operational safety, and unintentional disconnection of patch cables is virtually impossible. After the detector makes contact with one end of the cable, both cable ends are electrically excited and light up. Use of an non-approved detector may result in permanent damage to the FO LED patch cable.

Specifications

Manufacturer	EasyLan
Product group	Fibre optic cable
Product type	Fibre Optic Jumper Cables OM3
Colour	turquoise
Length	1 m
Quantity of fibre	2
Cable type	Duplex Cable
External cable	no
Fibre section	Multi mode 50/125µm OM3
Connection ports	SC / SC
Side 1 Connector Type	SC
Side 2 Connector Type	SC
Aramid strain relief	yes
Cable LSOH	yes
Tensile-loaded capacity	100 N
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	180 mm
Depth of packaging (single piece)	190 mm
Package weight (single piece)	0.038 kg

Downloads

Manufacturer data sheet - English (195.4 KB)

Download

Alternatives

saCon Patch cables LED-Duplex 50/125µm OM3, SC/SC, turquoise, 2 m

Item no.:	21162242
Manuf. item no.	LSD31100020

None EUR incl. VAT

Deliverable approx. 01/06/2025

saCon Patch cables LED-Duplex 50/125µm OM3, SC/SC, turquoise, 3 m

Item no.:	21162243
Manuf. item no.	LSD31100030

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

saCon Patch cables LED-Duplex 50/125µm OM3, SC/SC, turquoise, 5 m

Item no.:	21162245
Manuf. item no.	LSD31100050

None EUR incl. VAT

Deliverable approx. 01/06/2025

Show all

Compatible with

EasyLan DualBoot® LED Detector

Item no.:	21152208

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

EasyLan DualBoot® LED Detector Pro

Item no.:	21152298

None EUR incl. VAT

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

With EASYLAN products, you can keep track of the network jungle. These include the DualBoot® LED S/FTP and fiber optic LED patch cables with light identification, the injectors for feeding energy into the patch cables and the marking clips. But also the DualBoot IP20 patch cables with PushPull locking instead of the usual jack release.

More about EASYLAN
