Description

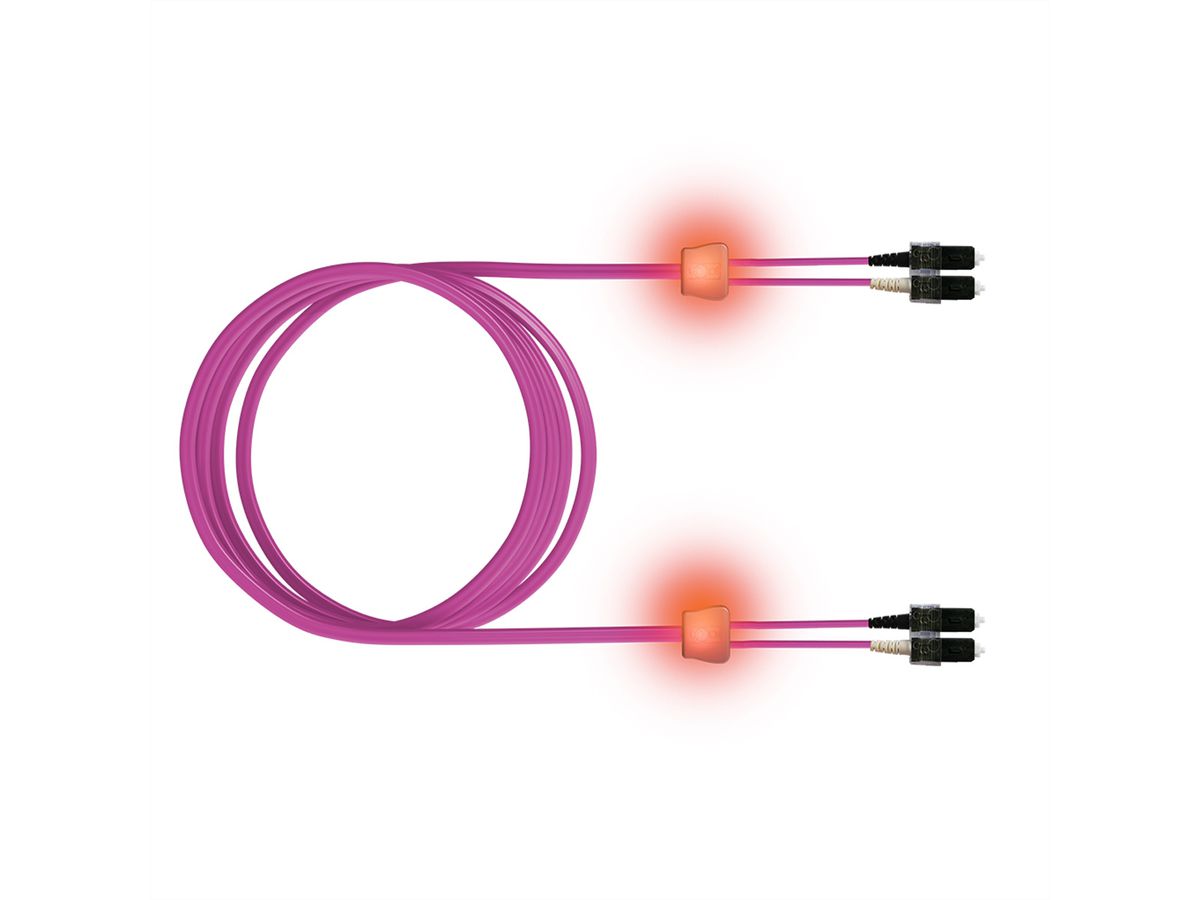

Patch cables LED-Duplex OM4

The FO LED patch cable has been developed especially for use in offices, industry and data centers. The cable design ensures that the optical transmission parameters offer a maximum of data security. The patented method that permits cable ends tob e easily matched to one another significantly increasees operational safety, and unintentional disconnection of patch cables is virtually impossible. After the detector makes contact with one end of the cable, both cable ends are electrically excited and light up. Use of an non-approved detector may result in permanent damage to the FO LED patch cable.

Specifications

Manufacturer	EasyLan
Product group	Fibre optic cable
Product type	Fibre Optic Jumper Cables OM4
Colour	violet
Length	1 m
Quantity of fibre	2
Cable type	Duplex Cable
External cable	no
Fibre section	Multi mode 50/125µm OM4
Connection ports	SC / SC
Side 1 Connector Type	SC
Side 2 Connector Type	SC
Aramid strain relief	yes
Cable LSOH	yes
Tensile-loaded capacity	100 N
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	180 mm
Depth of packaging (single piece)	190 mm
Package weight (single piece)	0.038 kg

Downloads

Manufacturer data sheet - English (195.4 KB)

Download
