SCHROFF 19'' Fan Unit, 1 U, Speed Control and Monitoring, 3 Fans, 24 VDC, Speed-controlled and function-monitored

SCHROFF 19'' Fan Unit, 1 U, Speed Control and Monitoring, 3 Fans, 24 VDC, Speed-controlled and function-monitored

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 26150824
Brand / Manufacturer SCHROFF
Manuf. item no. 10713099
EAN 4036088113833
Item weight 2.49 kg

Description

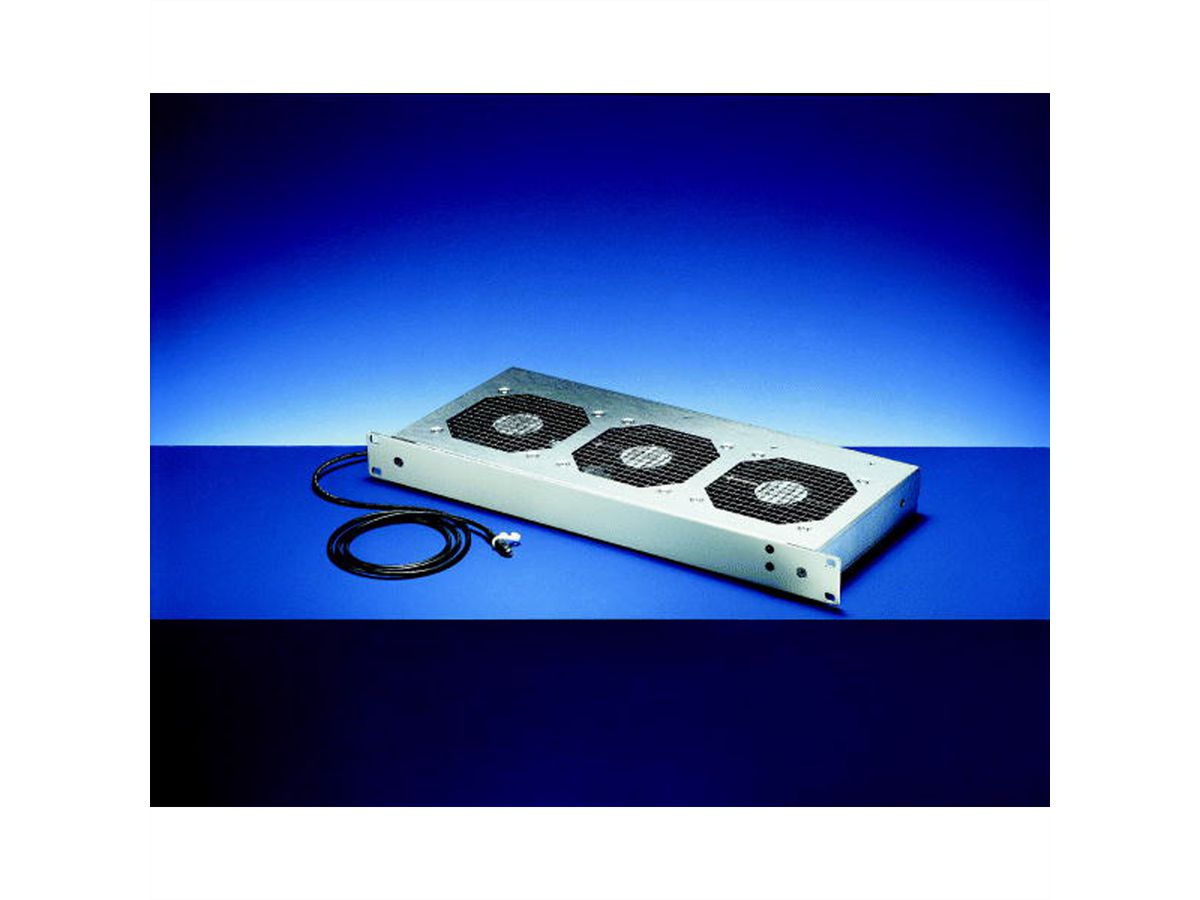

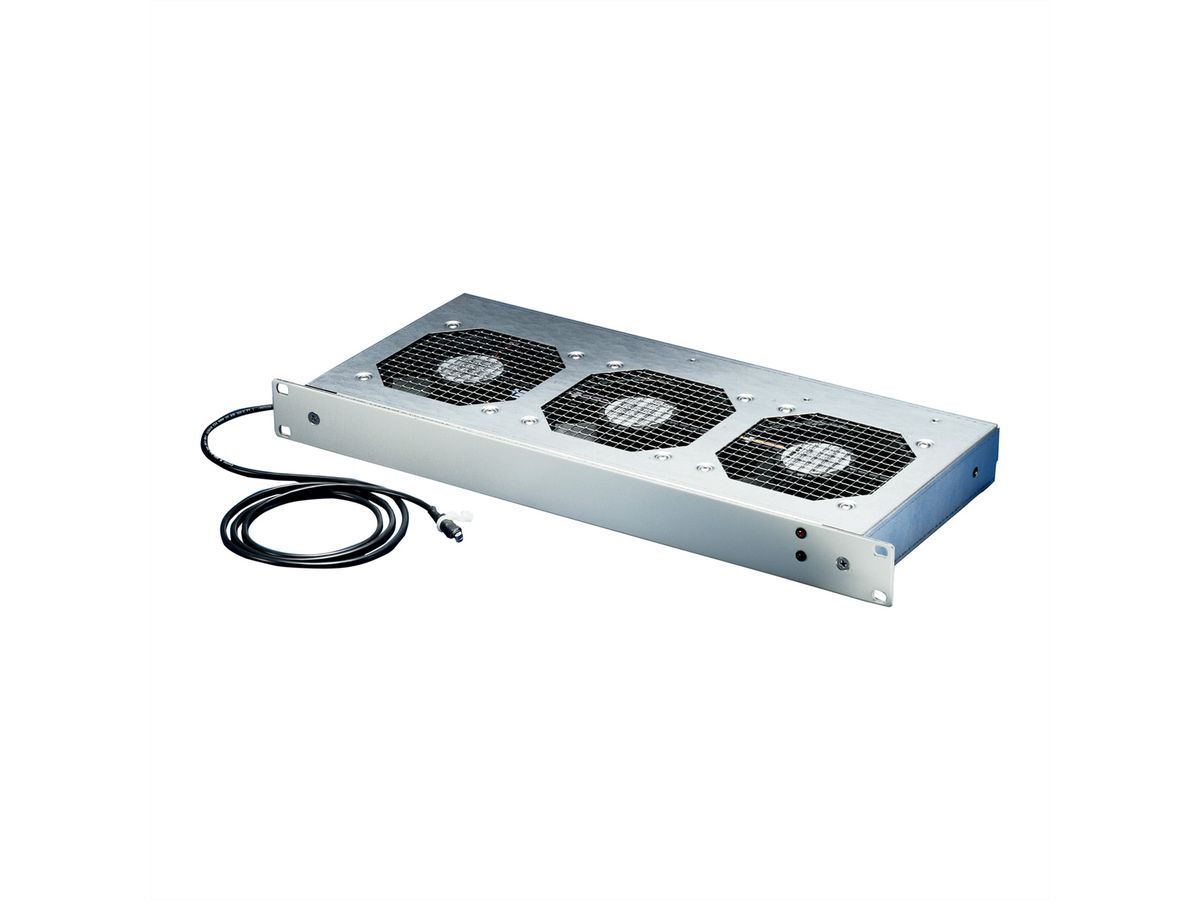

19" fan unit, 1 U, speed control and monitoring, 3 fans, 24 VAC

FAN TRAY 1U 3FANS 24V TEMP.

Noise optimisation through temperature-dependent air flow rate - Selectable operating range: 20 ... 40 °C and 30 ... 50 °C - External sensor, max. speed is automatically set in the event of sensor breakage - Function monitoring with LEDs and via potential-free contact - Protection against accidental contact in accordance with EN 294 (ISO 13857)

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type Fan
Height units 1 U
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 510 mm
Depth of packaging (single piece) 250 mm
Package weight (single piece) 2.49 kg

Downloads

Manufacturer data sheet - Deutsch (453.0 KB)

Download

Manufacturer data sheet - English (451.9 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
