Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26151007 |
|---|---|
| Brand / Manufacturer | SCHROFF |
| Manuf. item no. | 11596160 |
| Item weight | 22 kg |
:strip_icc():strip_exif()/logos/schroff.png "SCHROFF")

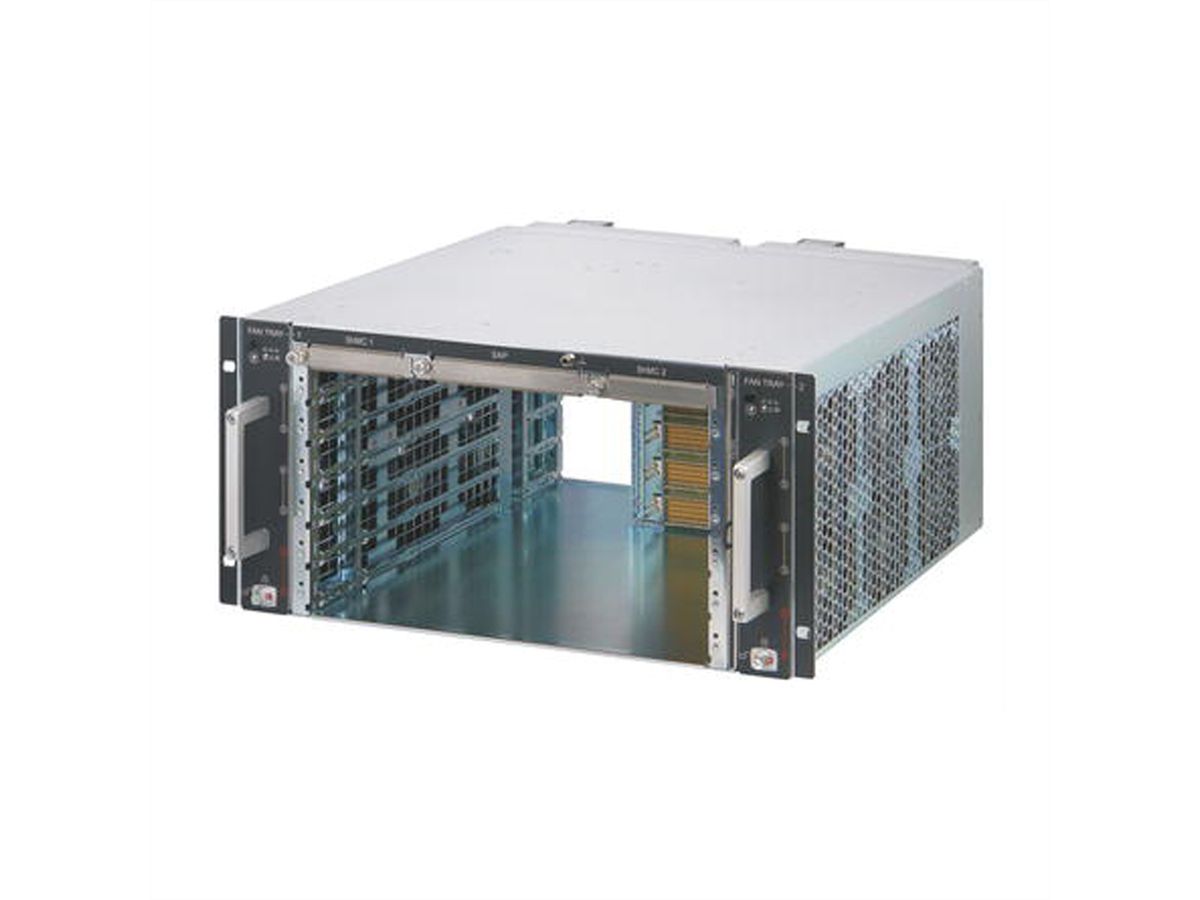

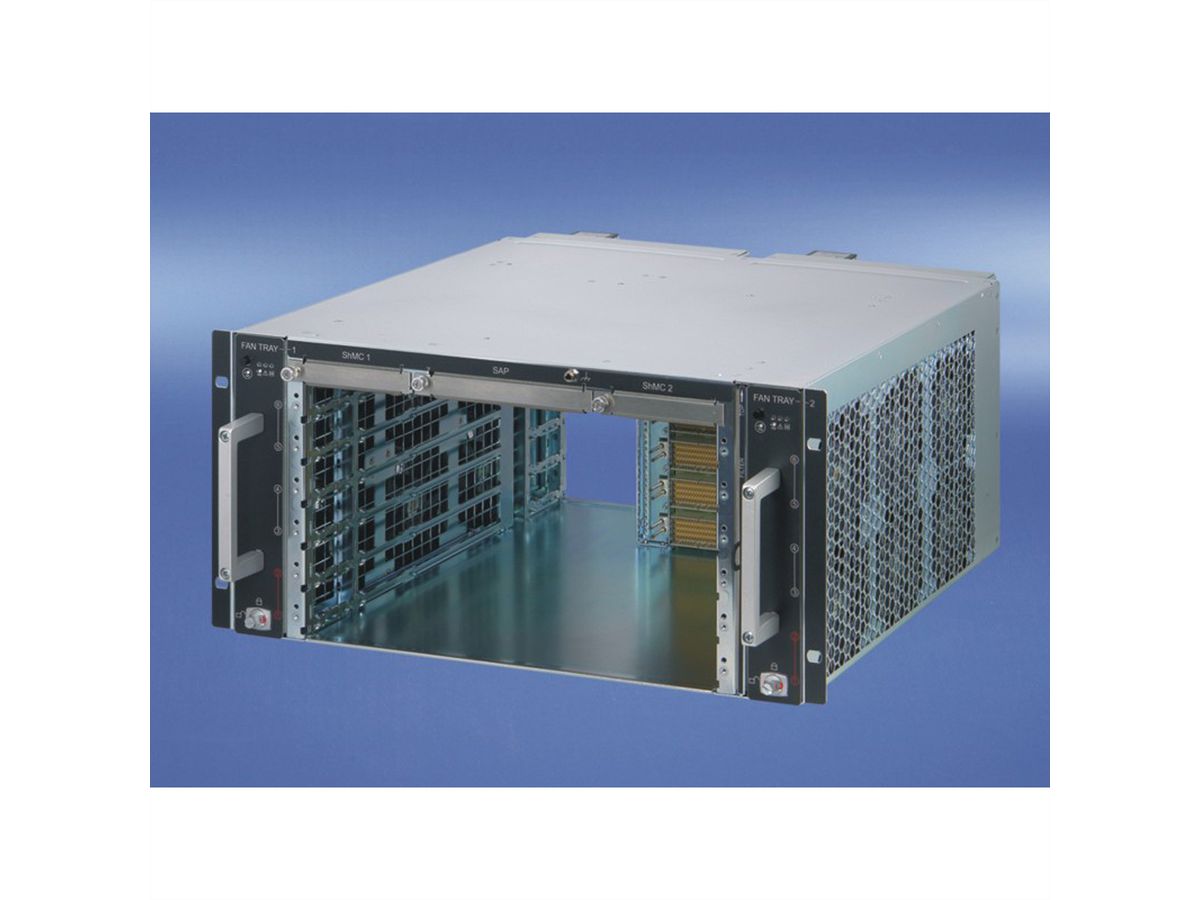

ATCA SYSTEM 5U 6S
Complies with AdvancedTCA specification PICMG 3.0 Rev. 3. 0 - 6-slot backplane with triple replicated mesh topology, 40 Gbps transfer rate (4 x 10 Gbps) - Busted IPMI - Horizontal installation of 6 AdvancedTCA boards (front) and 6 RTM boards (rear) - Two hot-swap fan trays (with 6 fans each) for cooling from right to left (push/pull cooling), > 350 W per board - Power consumption per board > 350 W - Prepared for two shelf managers with Pigeon Point ShMM 500 and one shelf alarm panel (SAP) - Power supply -48 VDC/-60 VDC via two redundant power entry modules (PEM) plugged into the rear - Power distribution to the backplane via two redundant power branches, separately fused with 30 A SI circuit breakers
| Manufacturer | SCHROFF |
|---|---|
| Product group | SCHROFF 19" cabinets & expansion parts |
| Product type | AdvTCA Systems |
| Height units | 5 U |
| Height | 222 mm |
| Depth | 464 mm |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 22 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/nvent_schroff.png)
The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.
The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
