SCHROFF CPCI System With ATX PSU. Desktop, 4 U, 8 Slot, 84 HP

SCHROFF CPCI System With ATX PSU. Desktop, 4 U, 8 Slot, 84 HP

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/09/2025
Item no. 26156010
Brand / Manufacturer SCHROFF
Manuf. item no. 24579602
Item weight 11 kg

Description

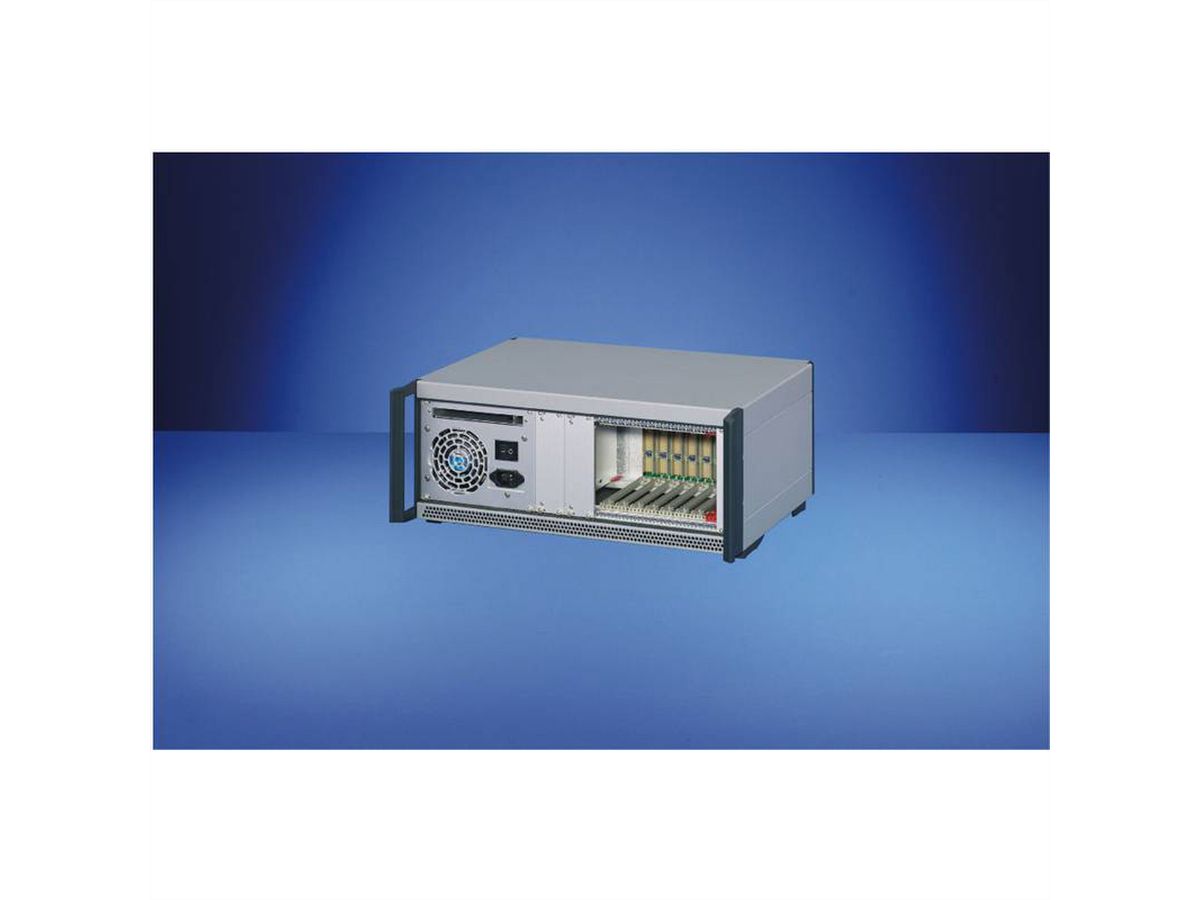

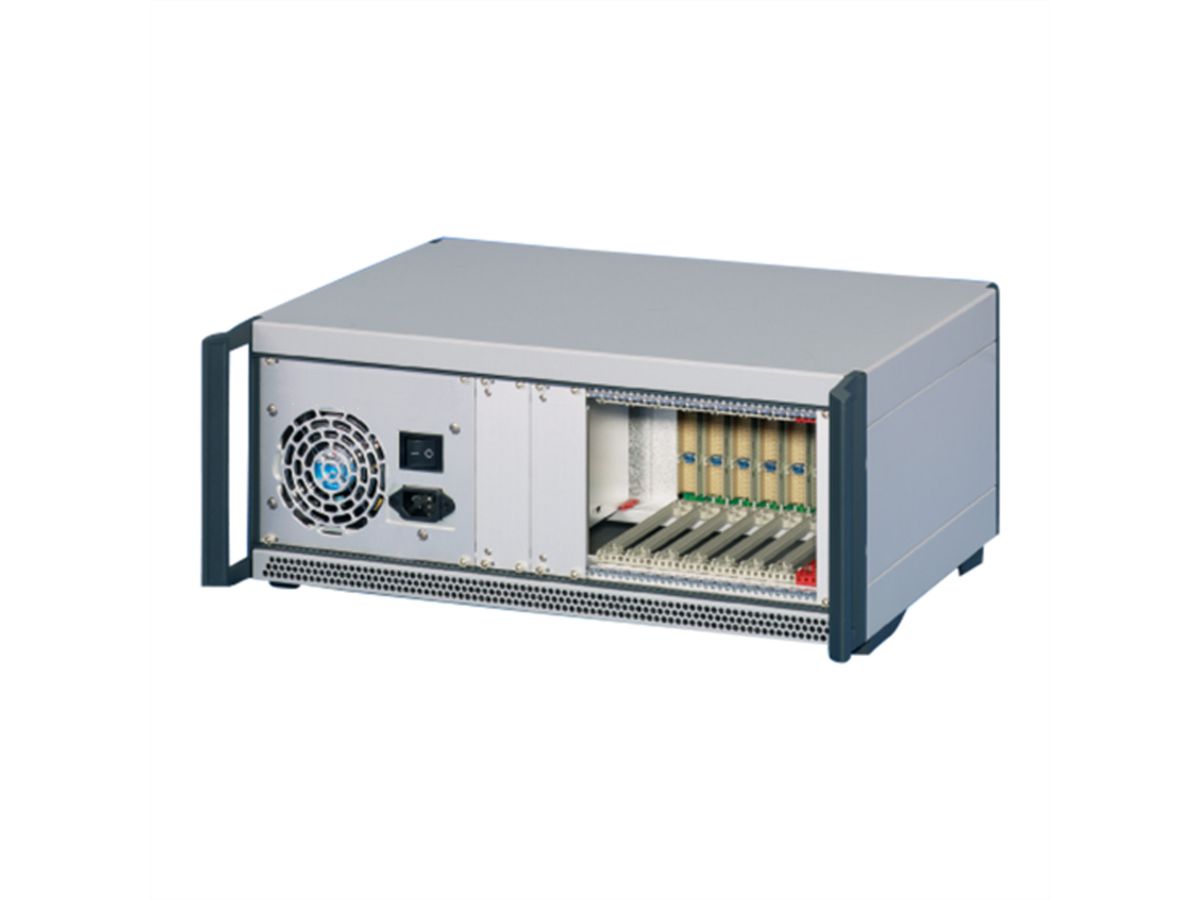

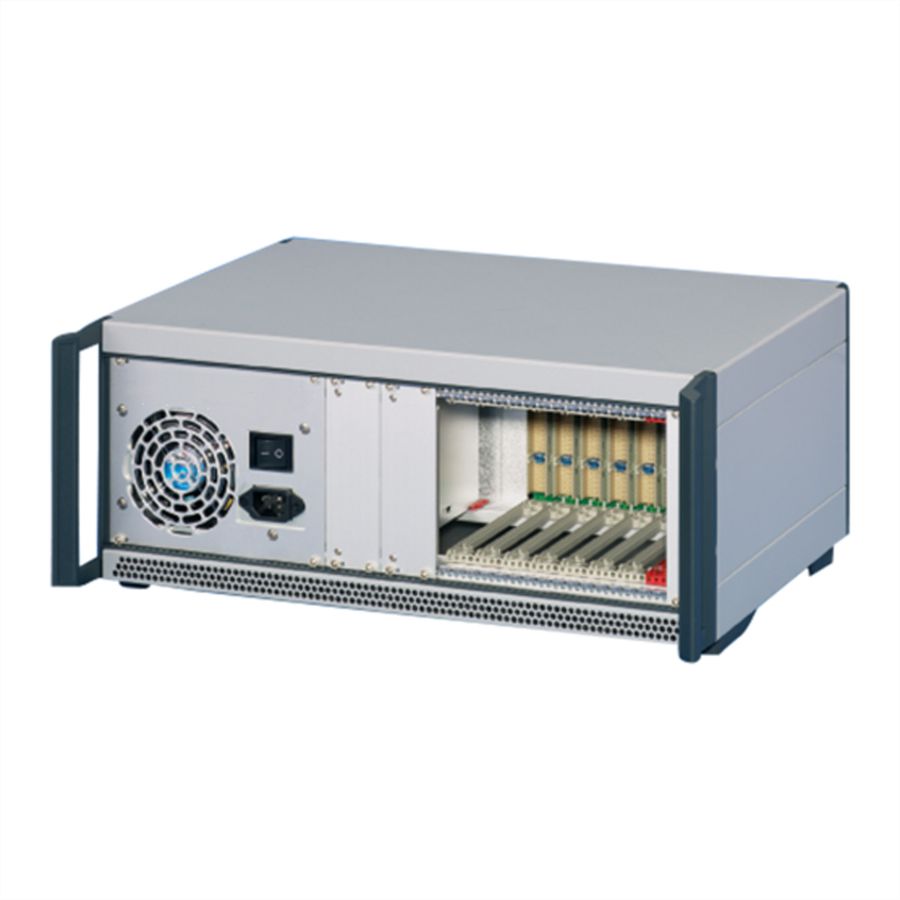

CPCI system with ATX power supply unit. Desktop, 4 U, 8 slot, 84 HP

CPCI SYST.4U 84HP 160/80D

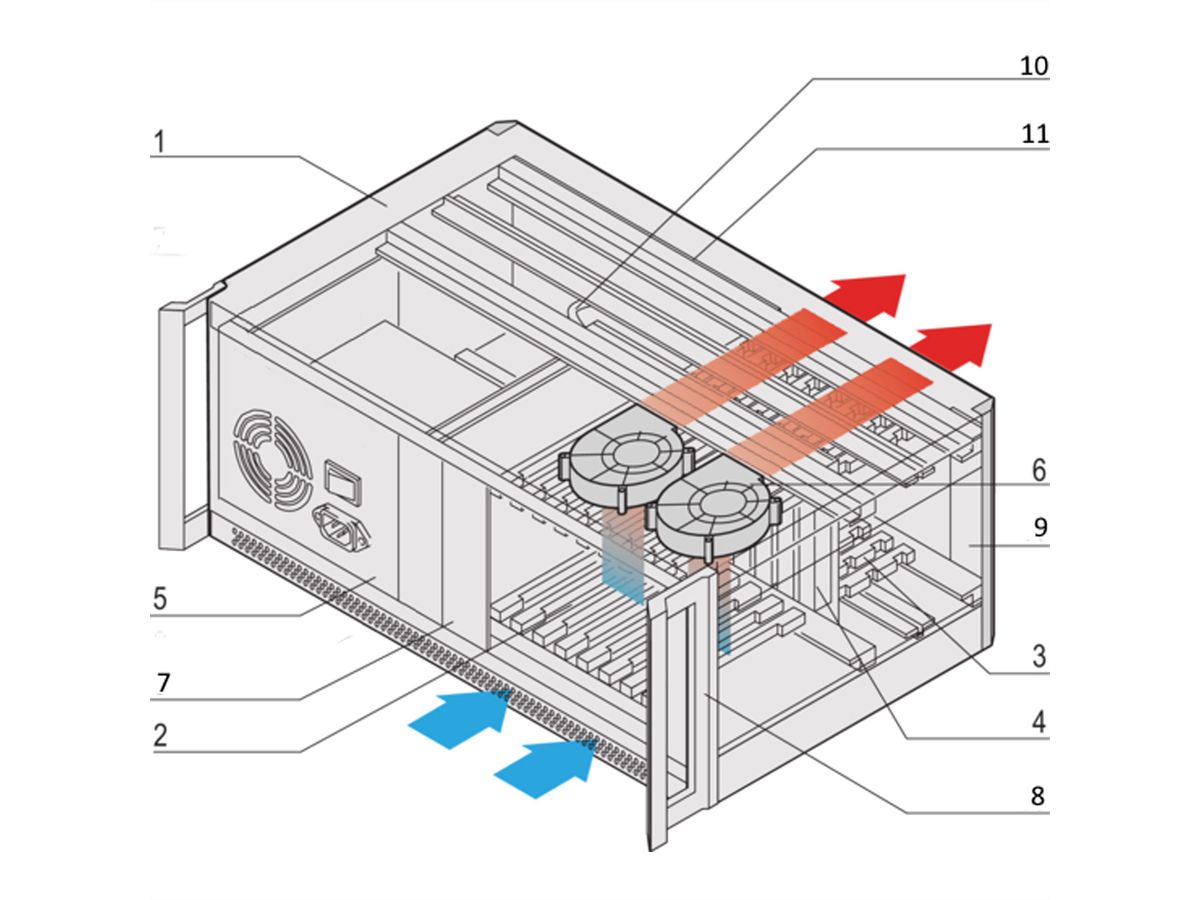

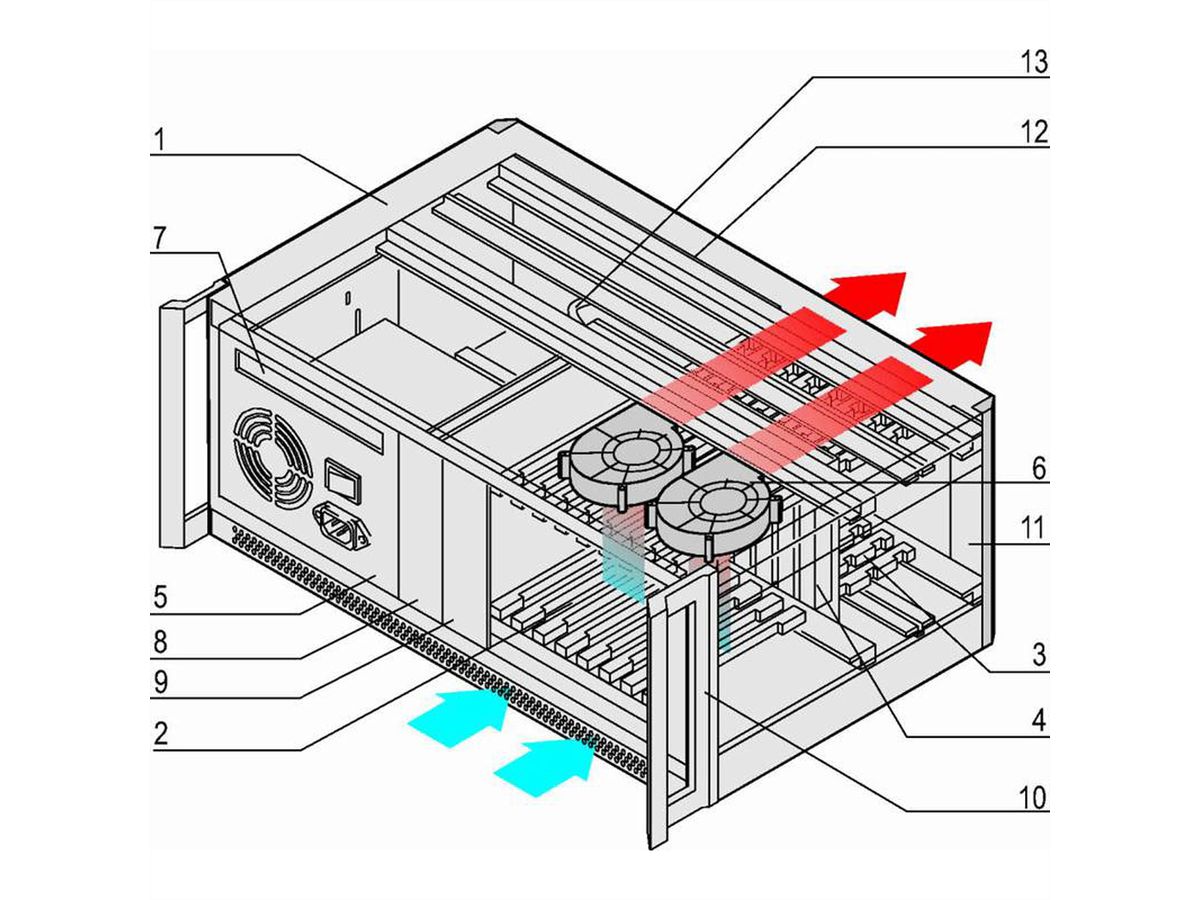

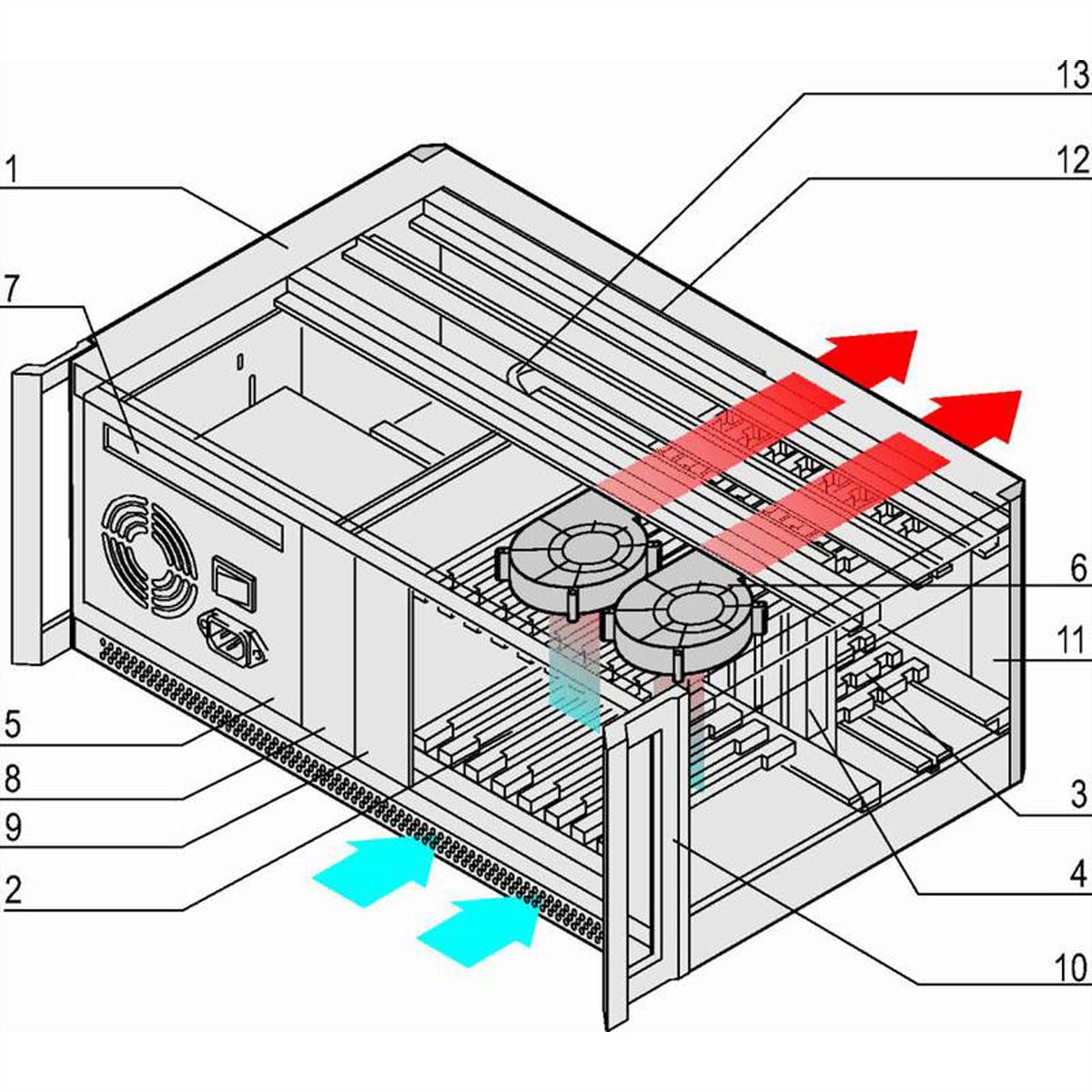

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with PICMG 2.0 Rev. 3 - System for vertical card installation with card format: Front: 3 U, 160 mm deep - Rear, rear I/O: 3 U, 80 mm deep - Backplane: 8 slot, 3 U, 32 bit, system slot on the right - 8 HP wide CPU can be used - ATX power supply unit, 300 W - Heat dissipation via two radial fans front to rear - Installation option for Slim-Line DVD drive and hard disc

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type CompactPCI backplanes
Height units 4 U
Height 177 mm
Depth 275 mm
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 11 kg

Downloads

Manufacturer data sheet - Deutsch (786.1 KB)

Download

Manufacturer data sheet - English (785.4 KB)

Download

PDF data sheet - Benutzeranleitung System - Deutsch (344.5 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
