SCHROFF CPCI System With Pluggable PSU, Desktop, 4 U, 8 Slot, 44 HP

SCHROFF CPCI System With Pluggable PSU, Desktop, 4 U, 8 Slot, 44 HP

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/09/2025
Item no. 26156011
Brand / Manufacturer SCHROFF
Manuf. item no. 24579604
Item weight 8.174 kg

Description

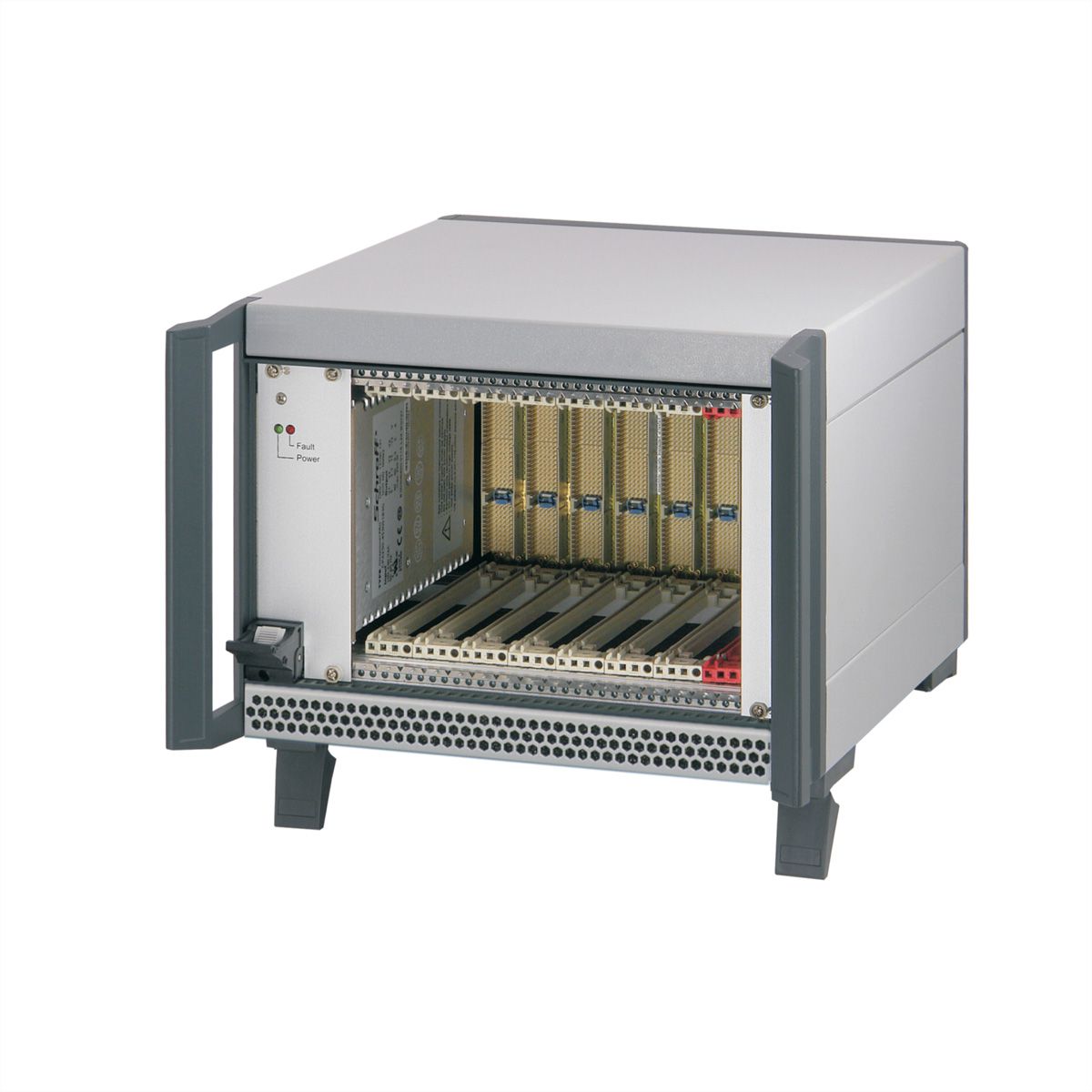

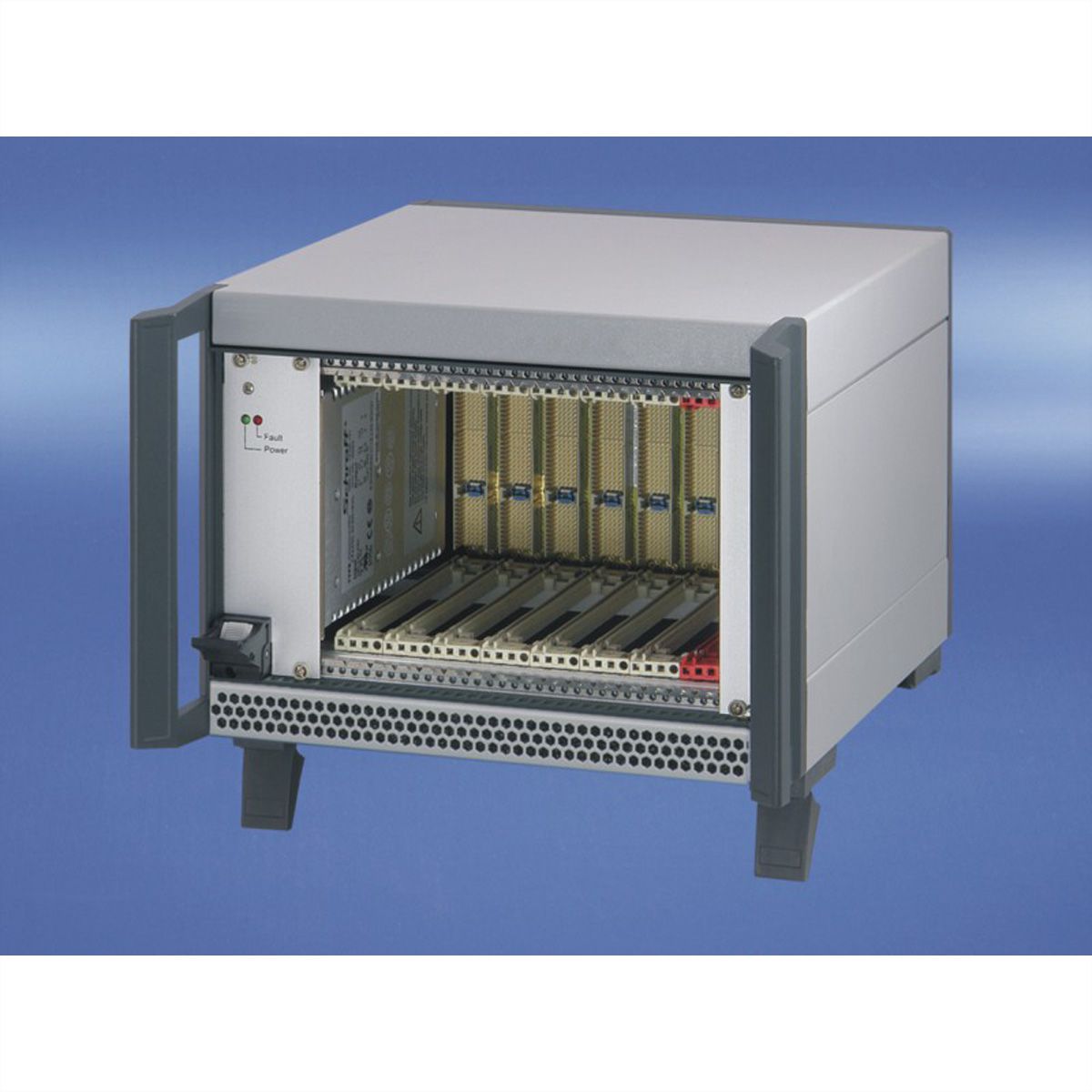

CPCI system with pluggable power supply, desktop, 4 U, 8 slot, 44 HP

RATIO/PRO 3/4U 44HP 275D 8SL

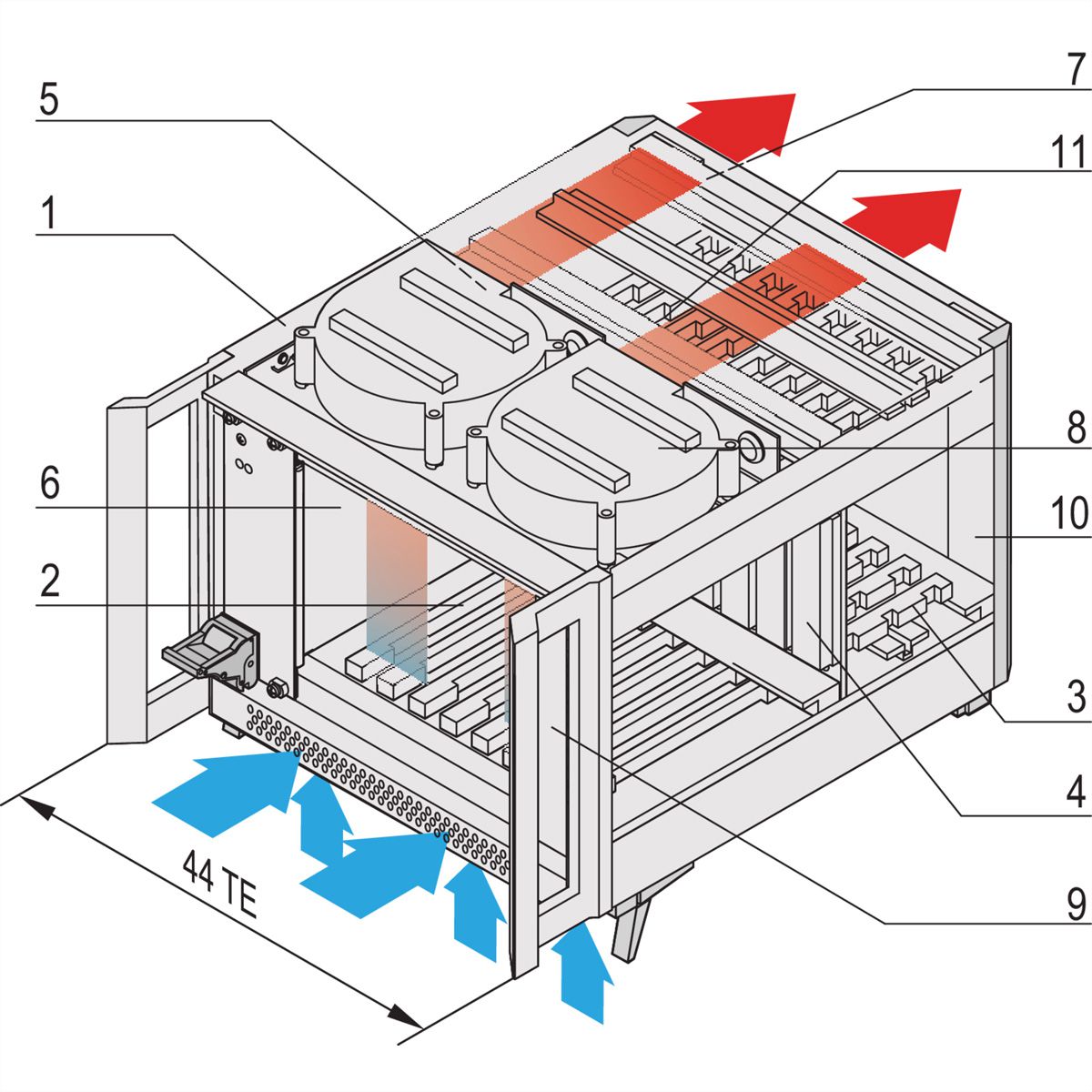

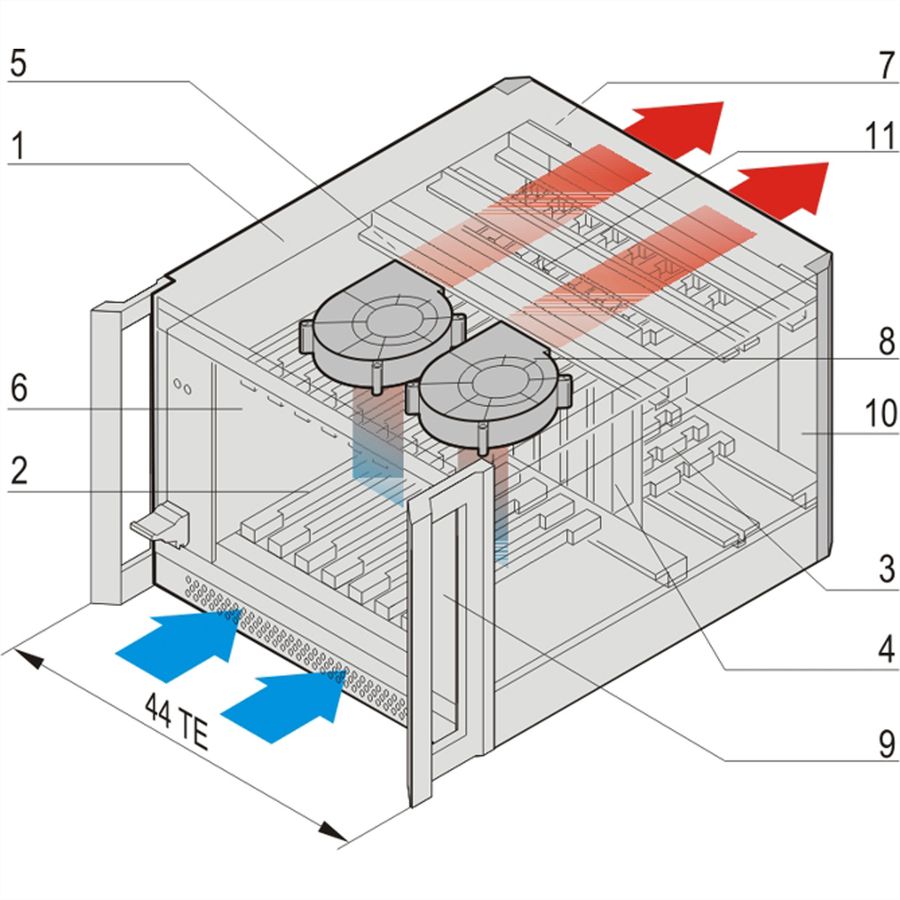

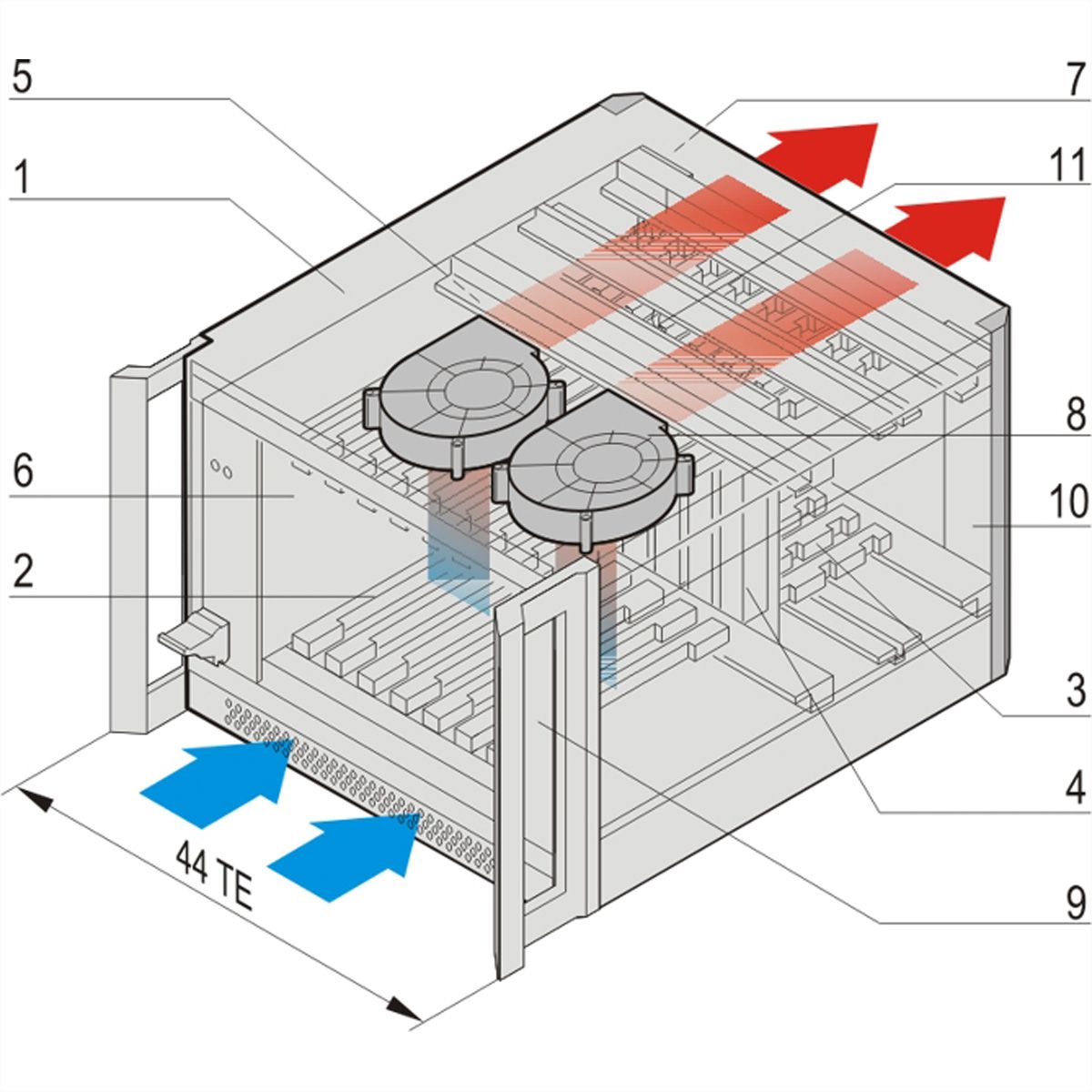

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with PICMG 2.0 Rev. 3 - System for vertical card installation with card format: Front: 3 U, 160 mm deep - Rear, rear I/O: 3 U, 80 mm deep - Backplane: 8 slot, 3 U, 32 bit, system slot on the right - 8 HP wide CPU can be used - 19" power supply unit, 250 W, 3 U, 8 HP - Heat dissipation via two radial fans from front to rear

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type CompactPCI backplanes
Height units 4 U
Height 177 mm
Depth 275 mm
Height of packaging (single piece) 370 mm
Width of packaging (single piece) 600 mm
Depth of packaging (single piece) 650 mm
Package weight (single piece) 8.174 kg

Downloads

Manufacturer data sheet - Deutsch (819.2 KB)

Download

Manufacturer data sheet - English (818.5 KB)

Download

PDF data sheet - Benutzeranleitung - Deutsch (430.6 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
