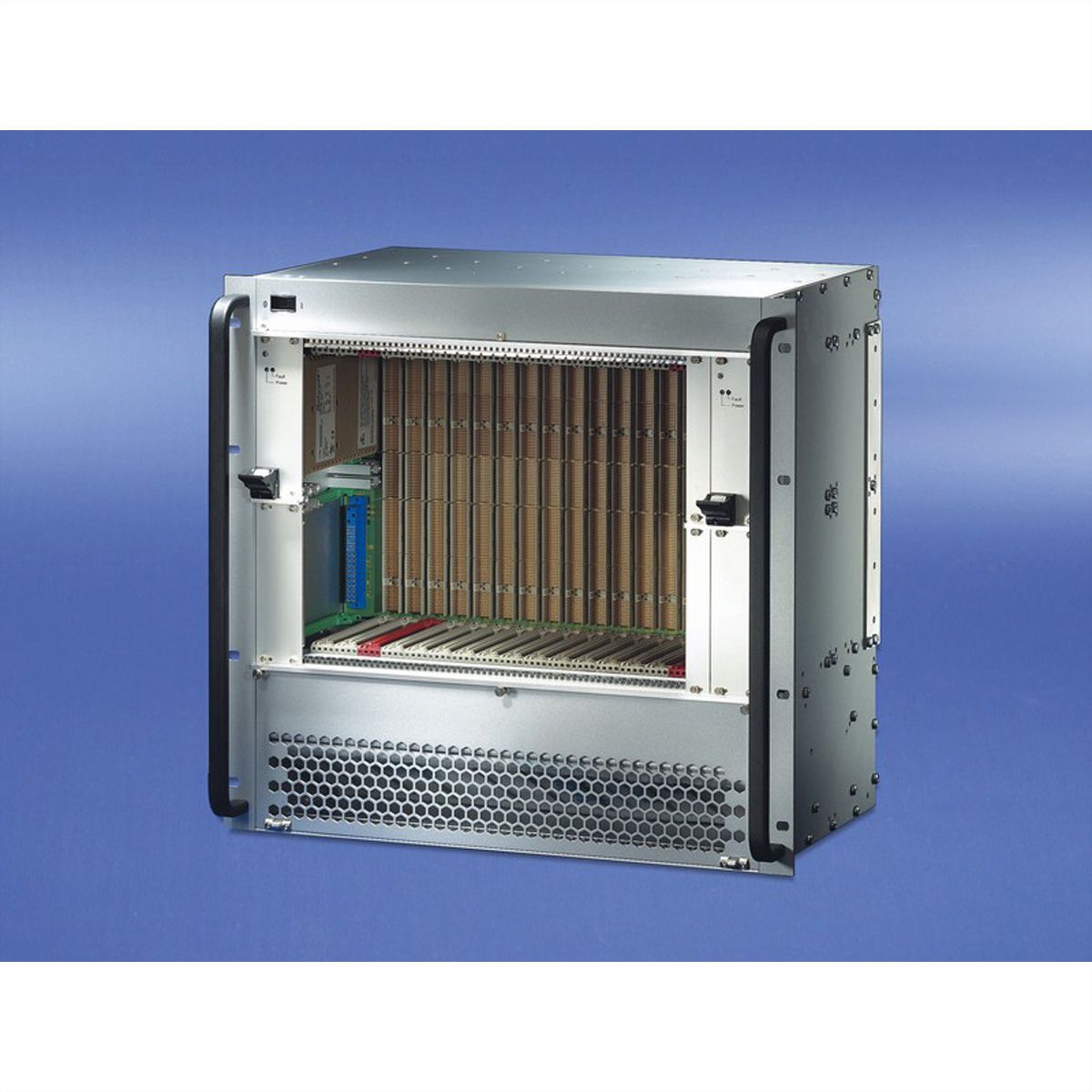

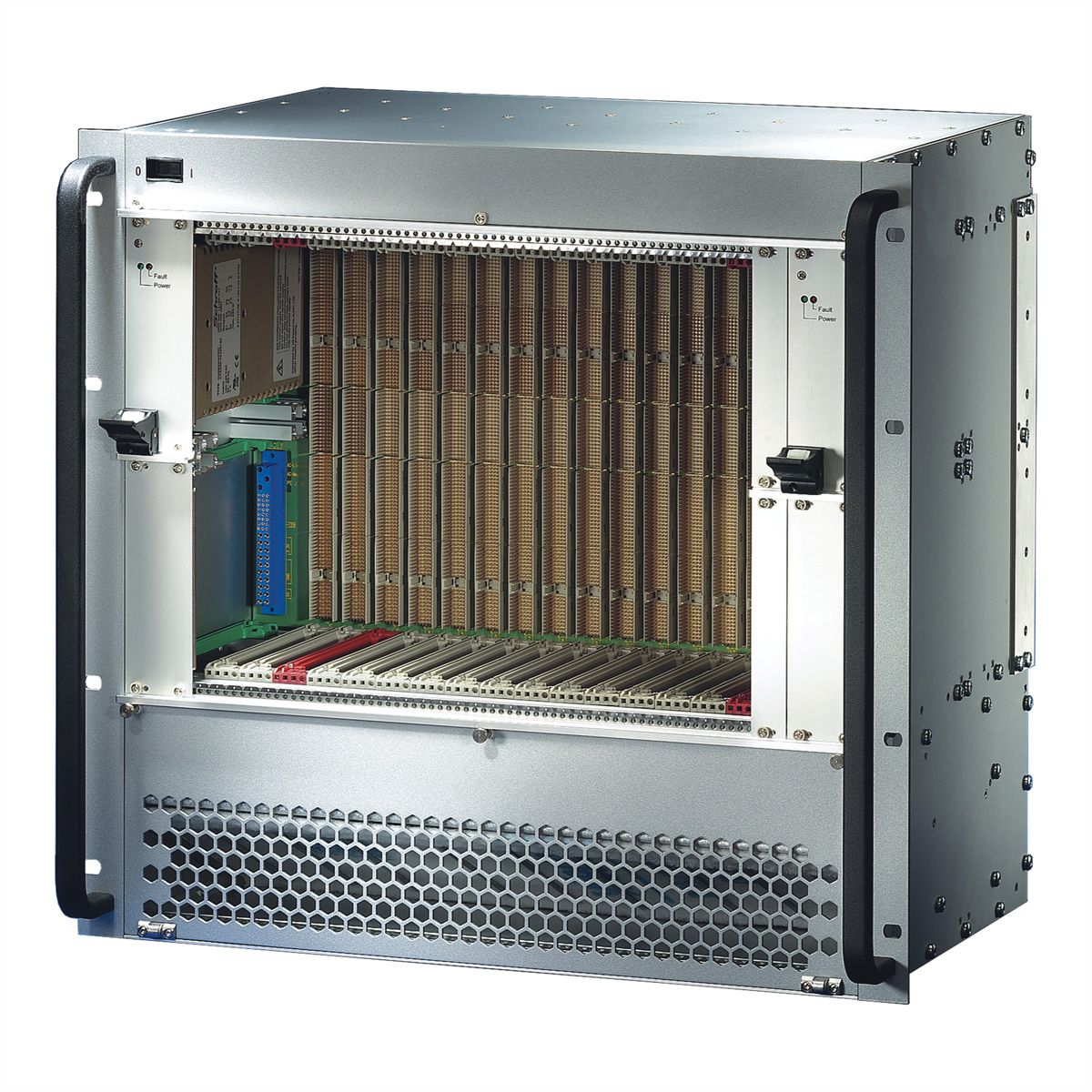

SCHROFF CPCI System With PSB, 10 U, 14 Slot

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 07/22/2024

Product is a shipping prodcut! Shipping costs may arise!

Item no.	26155971
Brand / Manufacturer	SCHROFF
Manuf. item no.	24579028
EAN	4036088197727
Item weight	20 kg

Description

CPCI system with PSB, 10 U, 14 slots

SUBR CPCI 2.16 10U 2/14SLOT

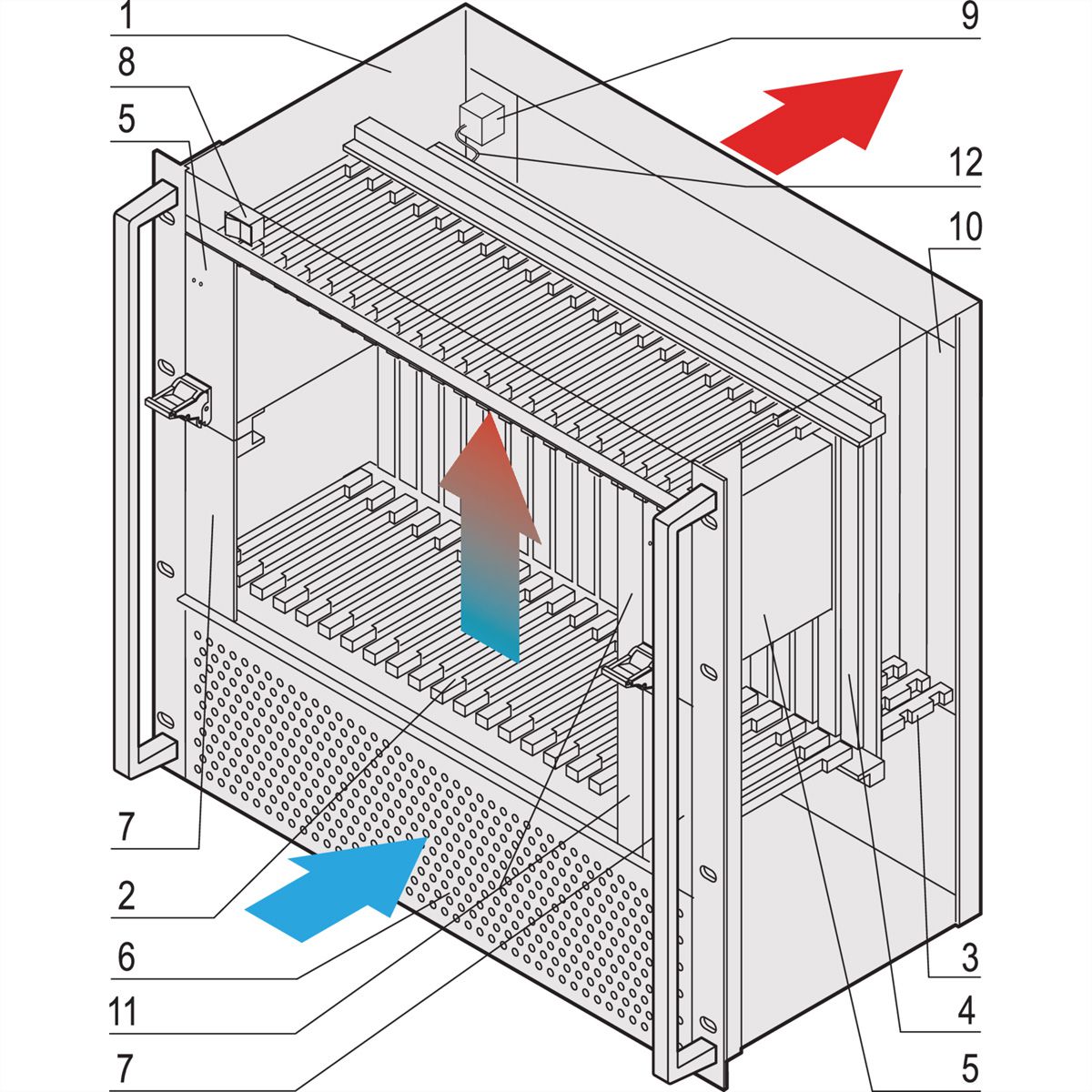

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with PICMG 2.16 - System for vertical card installation with card format: Front: 6 U, 160 mm deep - Rear, rear I/O: 6 U, 80 mm deep - Backplane: , PSB ( Package Switched Backplane), PICMG 2.1616 slot, 6 U, 64 bit (2 fabric/switch slots, 14 node slots) - Two 19" CompactPCI power supply units with 250 W (3 U, 8 HP), prepared for the installation of two additional 19" compatible power supply units - Heat dissipation through fan unit front to rear - Prepared for system monitoring with a Chassis Monitoring Module (CMM)

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	CompactPCI backplanes
Height units	10 U
Height	443.7 mm
Depth	275 mm
