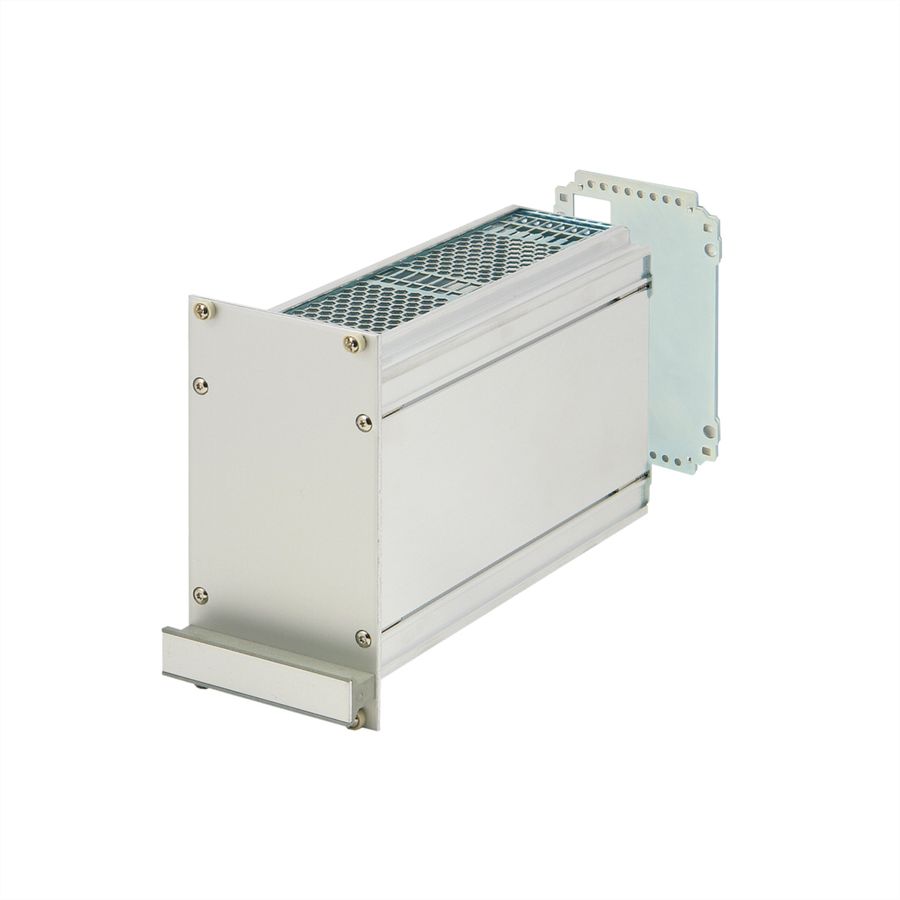

SCHROFF Frame Type Plug-In Unit PRO Kit, Perforated Covers, 1 Connector, 3 U, 8 HP, 227 mm

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 07/22/2024

Item no.	26156070
Brand / Manufacturer	SCHROFF
Manuf. item no.	24812258
Item weight	0.559 kg

Description

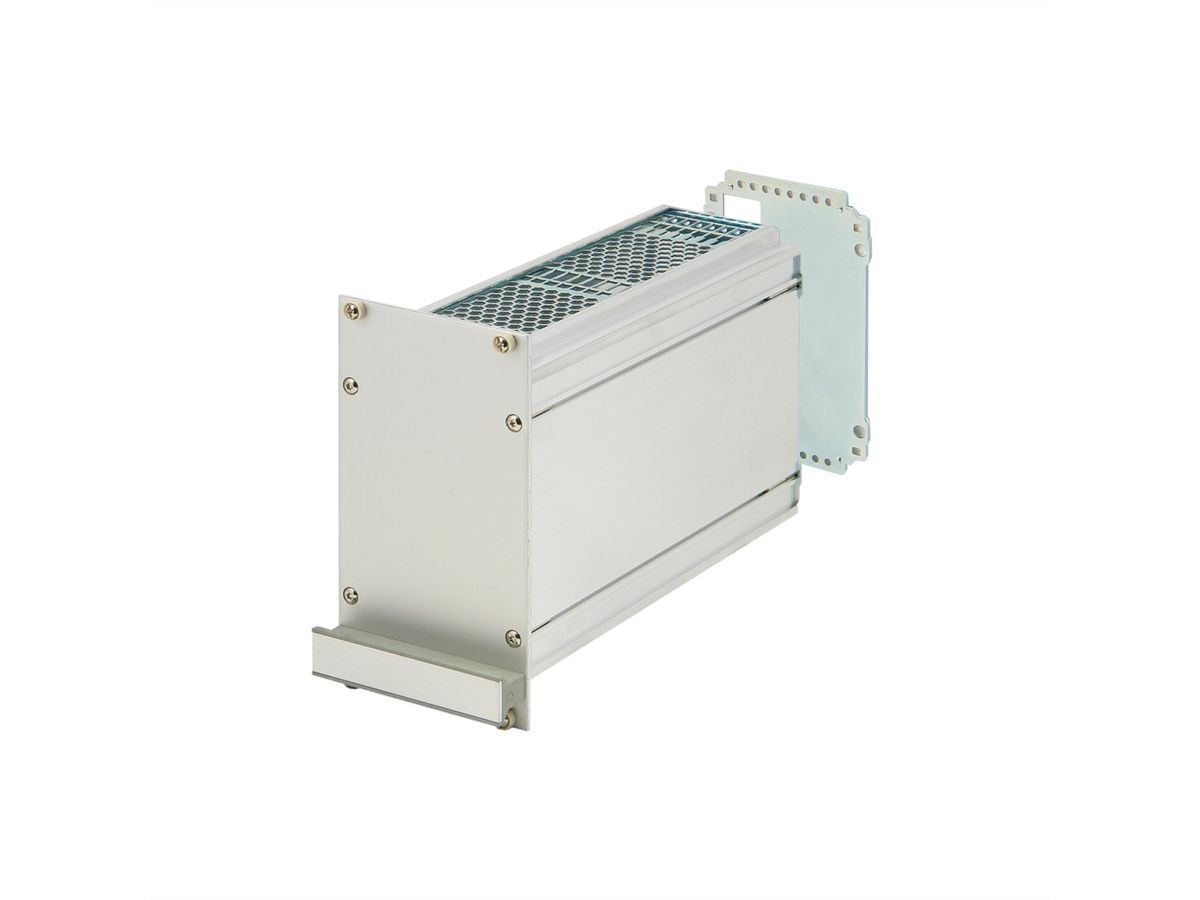

CassettePRO kit 3 HU 8HP 227mm deep, with perforated top/bottom panels, rear panel with 1 cut-out for 1 plug connector

PIU S1 GR 3U 8HP 227D

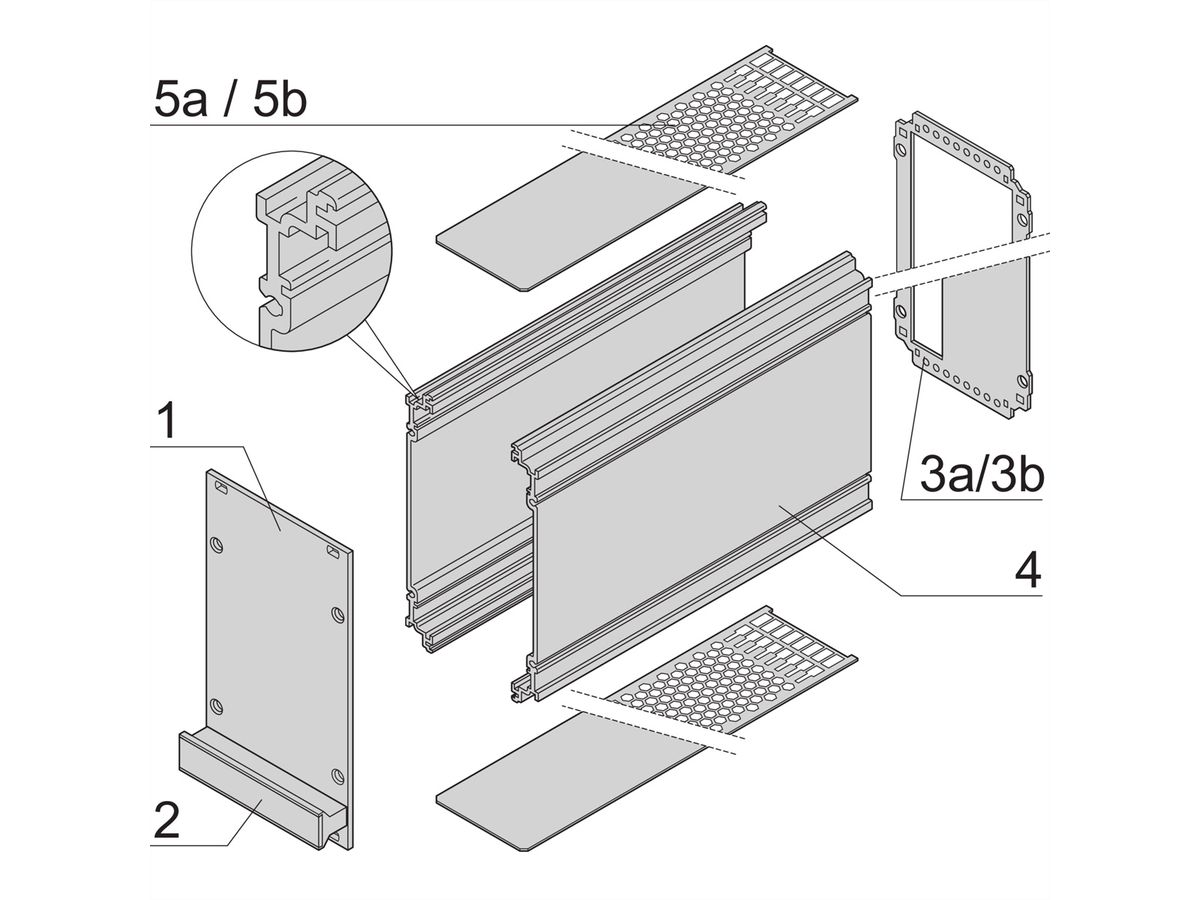

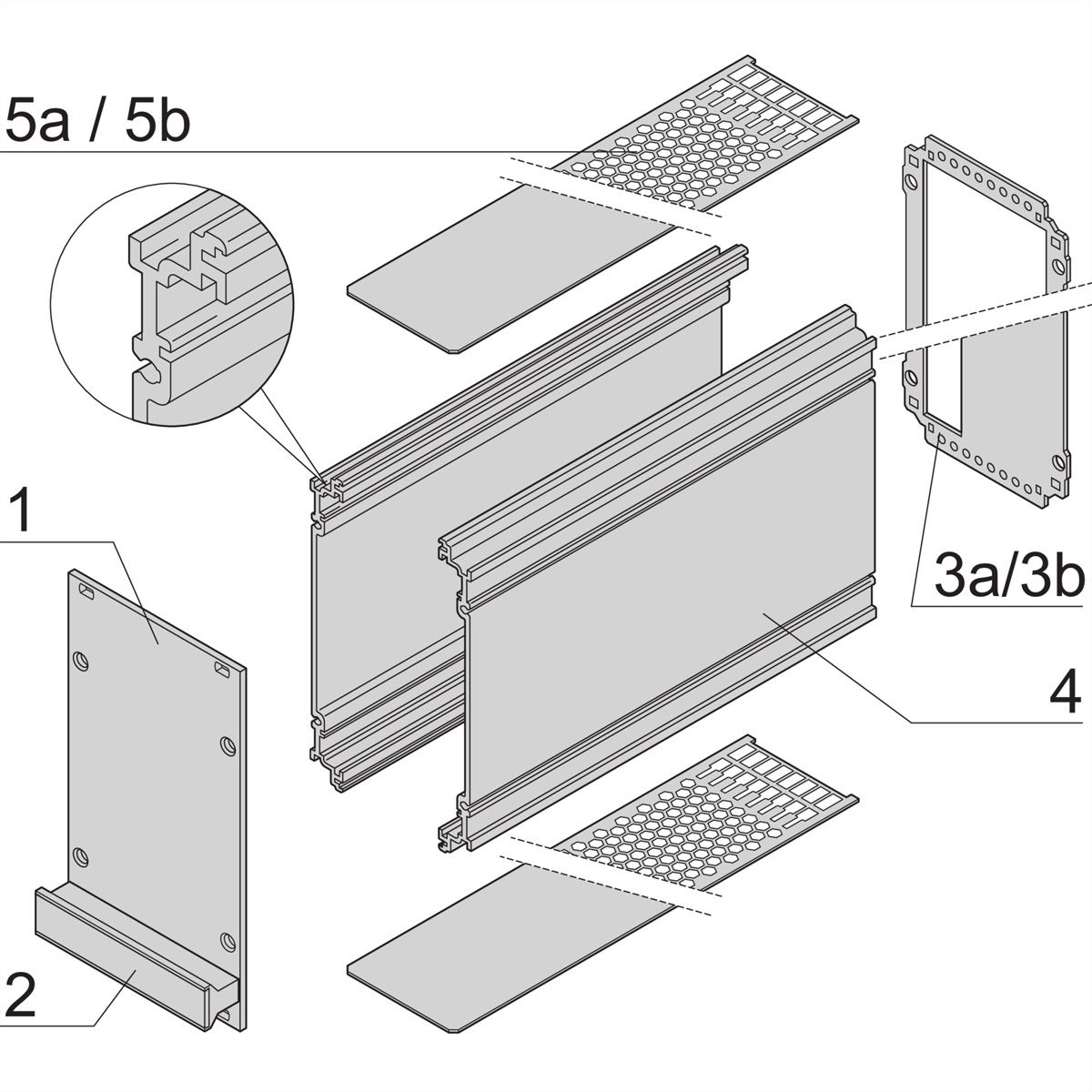

Right and left side panel profiles with groove, for inserting a PCB (standard-compliant position of the PCB only in the left side panel profile) - cover plate version (5a): For guide rail mounting (perforated, air flow rate approx. 60 %), please order guide rails separately - Rear panel version (3a): With a cut-out for a plug connector,plug connector to EN 60603 (DIN 41612), designs: B, C, D, F, H, Q, R, S

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	Cassettes
Height units	3 U
Width units	8 HP
Depth	227 mm
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	260 mm
Package weight (single piece)	0.559 kg

Downloads

Manufacturer data sheet - Deutsch (1.4 MB)

Download

Manufacturer data sheet - English (1.4 MB)

Download

Manufacturer data sheet - English (1.6 MB)

Download

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
