SCHROFF Frame Type Plug-In Unit PRO Kit, Perforated Covers, 1 Connector, 6 U, 8 HP, 167 mm

SCHROFF Frame Type Plug-In Unit PRO Kit, Perforated Covers, 1 Connector, 6 U, 8 HP, 167 mm

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/13/2024
Item no. 26156124
Brand / Manufacturer SCHROFF
Manuf. item no. 24812708
Item weight 0.909 kg

Description

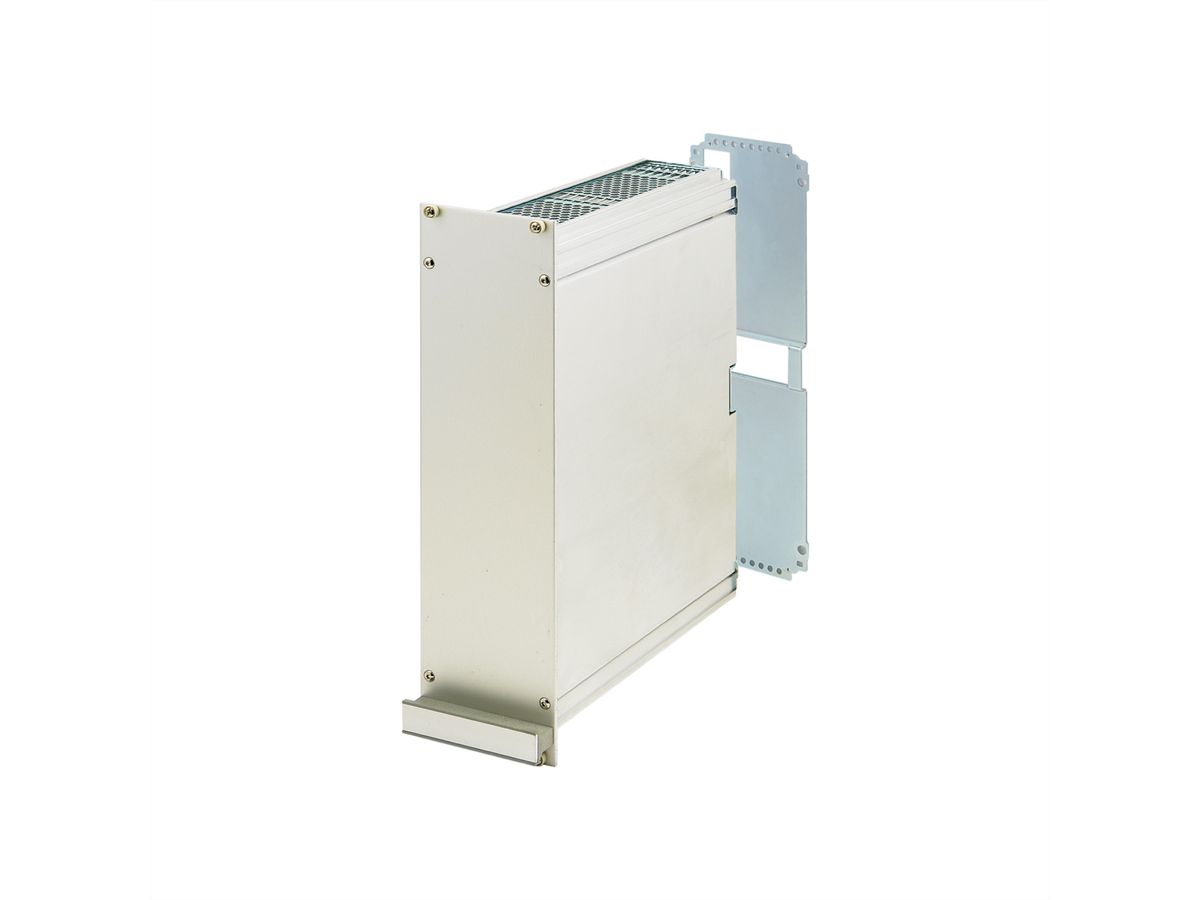

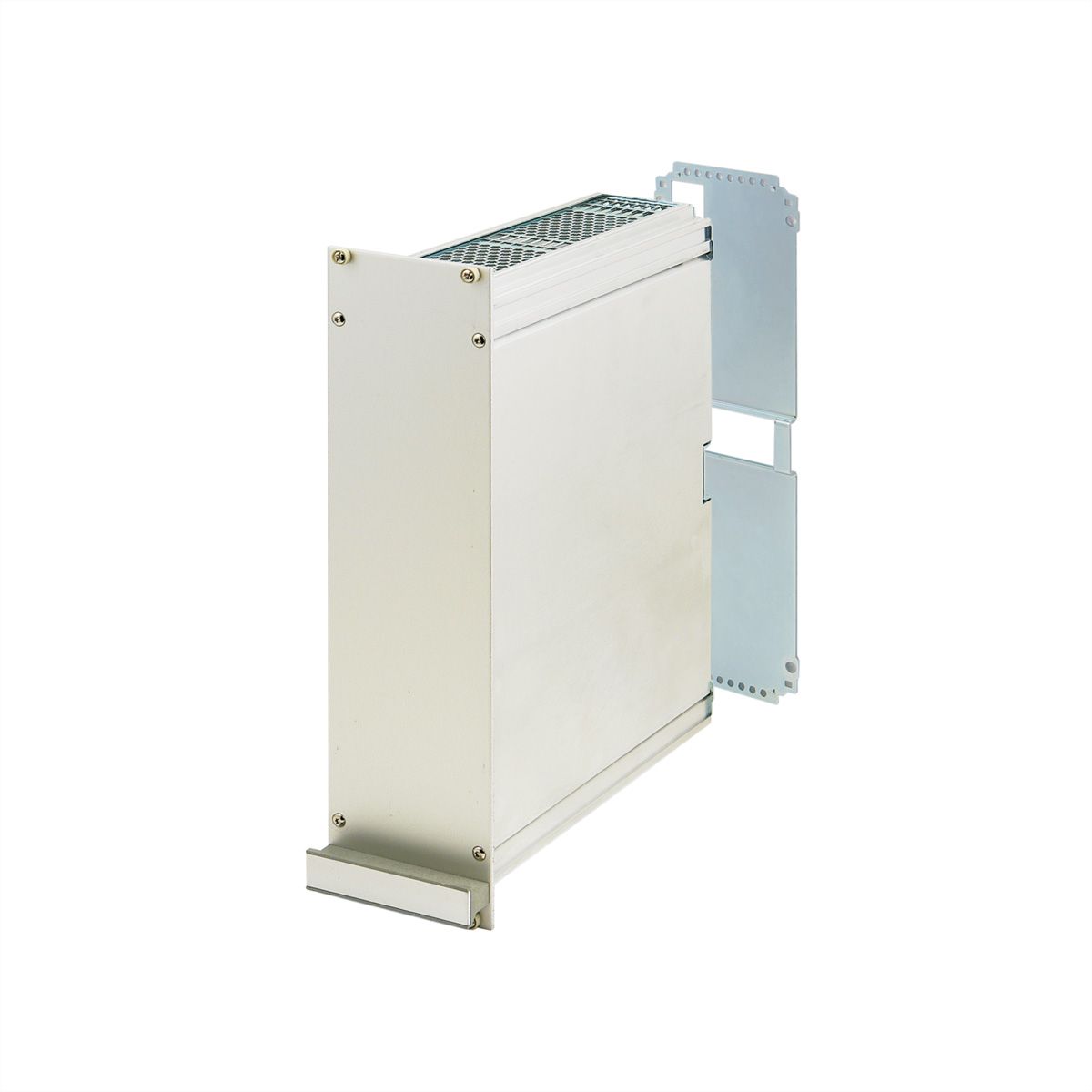

CassettePRO kit 6 U 8 HP 167 mm deep, with perforated top/bottom panels, rear panel with 1 cut-out for 1 connector

PIU S1 GR 6U 8HP 167D

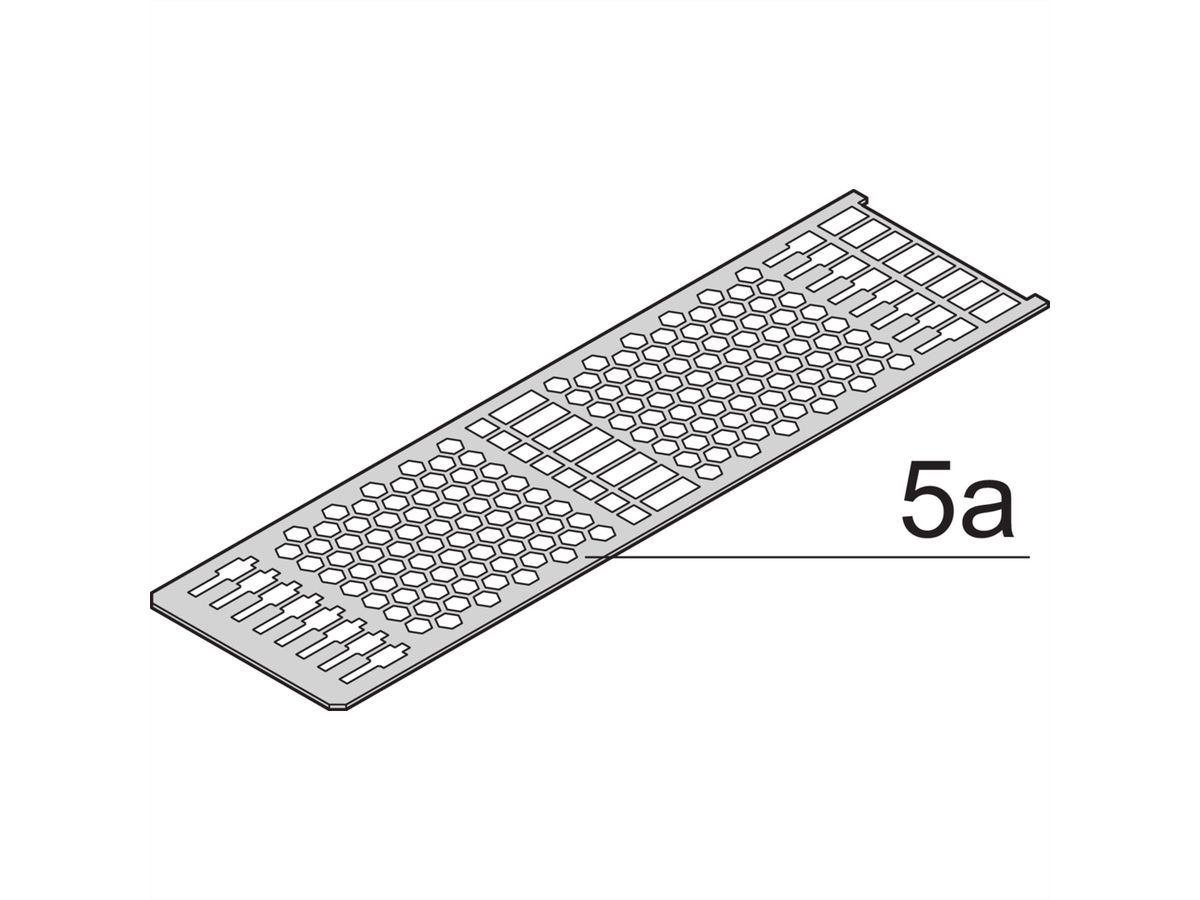

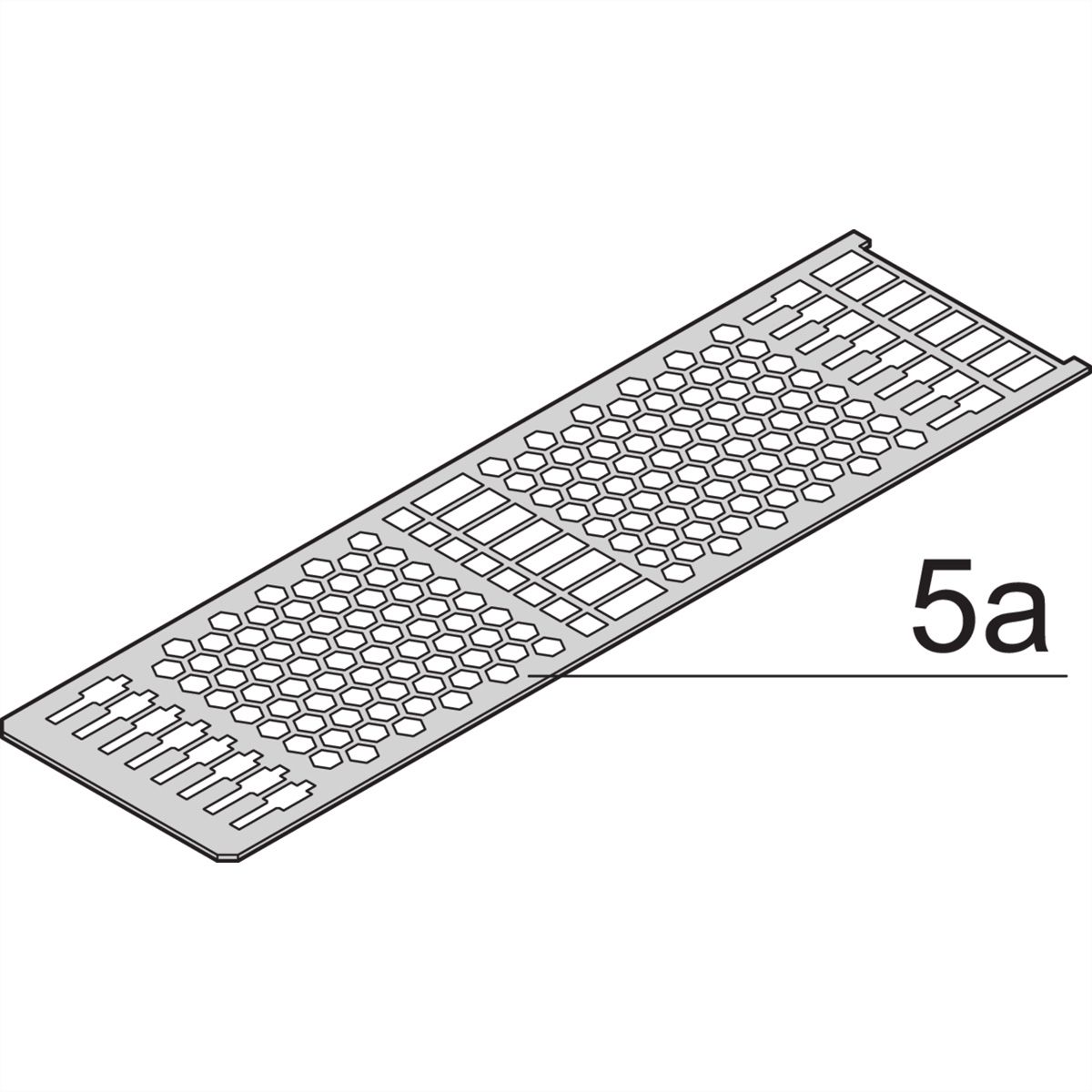

Right and left side panel profiles with groove, for inserting a PCB (standard-compliant position of the PCB only in the left side panel profile) - Cover plate version (5a): For guide rail mounting (perforated, air flow rate approx. 60 %), please order guide rails separately - Rear panel version (3a): With a cut-out for a plug connector,plug connector to EN 60603 (DIN 41612), designs: B, C, D, F, H, Q, R, S

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type Cassettes
Height units 6 U
Width units 8 HP
Depth 167 mm
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 250 mm
Depth of packaging (single piece) 320 mm
Package weight (single piece) 0.909 kg

Downloads

Manufacturer data sheet - Deutsch (1.1 MB)

Download

Manufacturer data sheet - English (1.1 MB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
