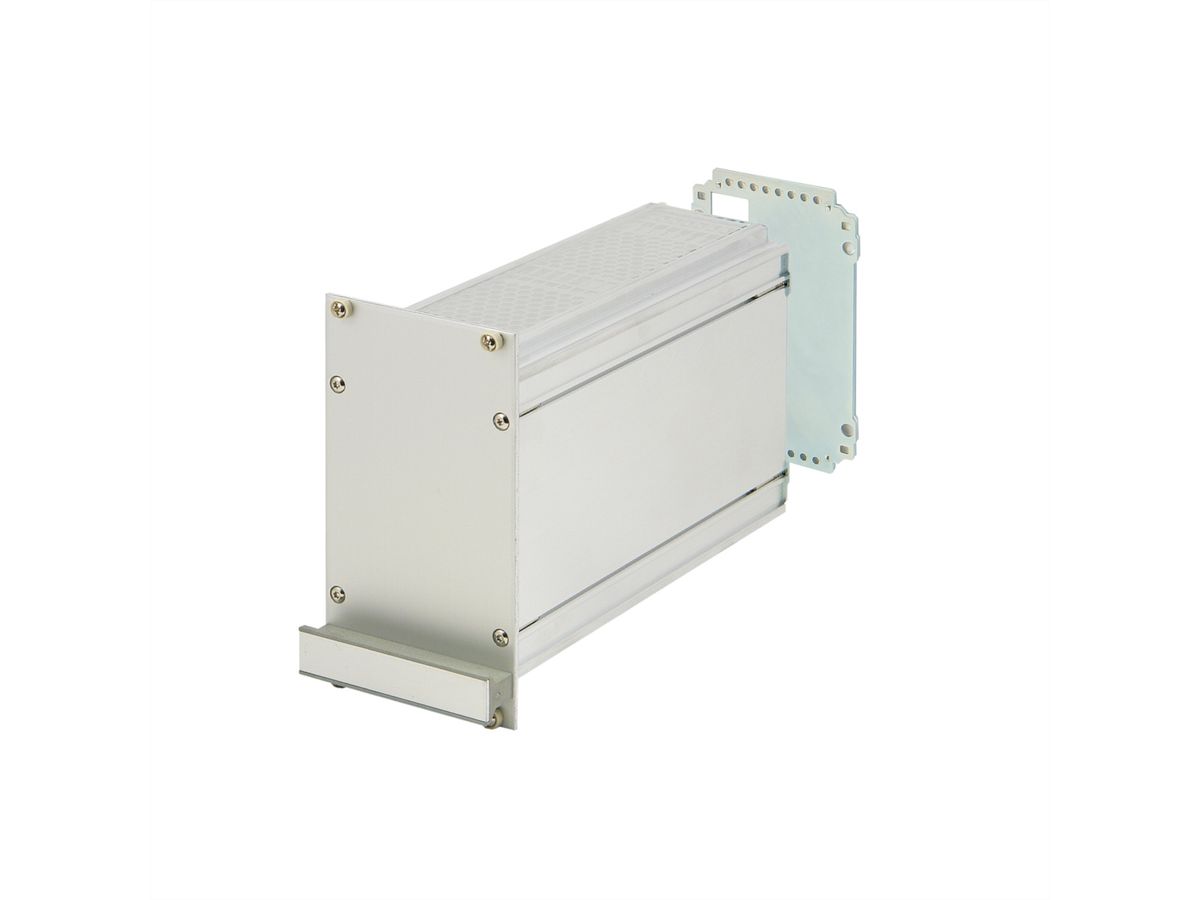

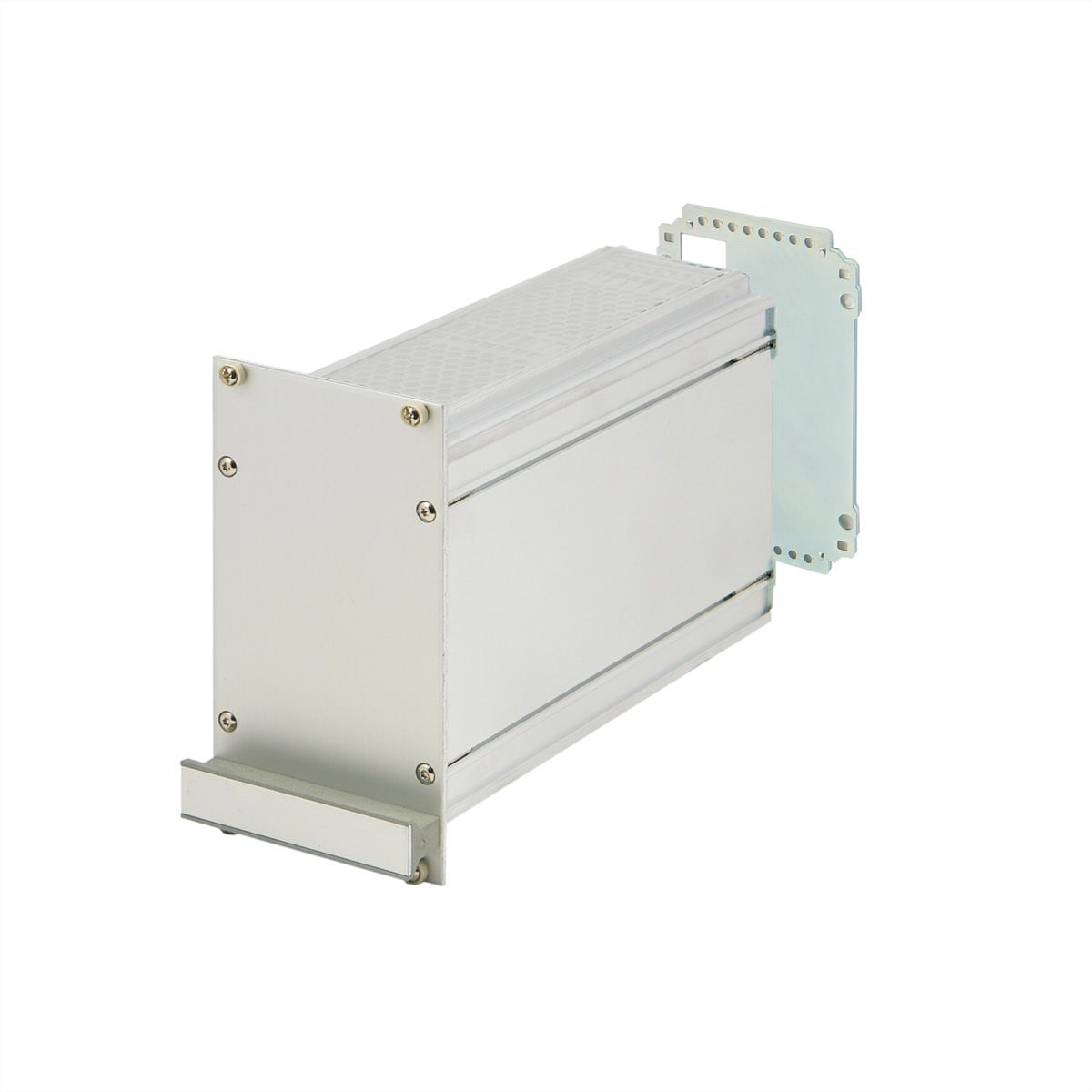

SCHROFF Frame Type Plug-In Unit PRO, Plain Cover, 1 Connector, 3 U, 12 HP, 167 mm

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26156098
Brand / Manufacturer	SCHROFF
Manuf. item no.	24812412
EAN	4036088064319
Item weight	0.536 kg

Description

Cassette kit, cover plate closed, cut-out in the rear panel for 1 plug connector, 3 U, 12 HP, 167 mm

PIU S1 WO P 3U 12HP 167D

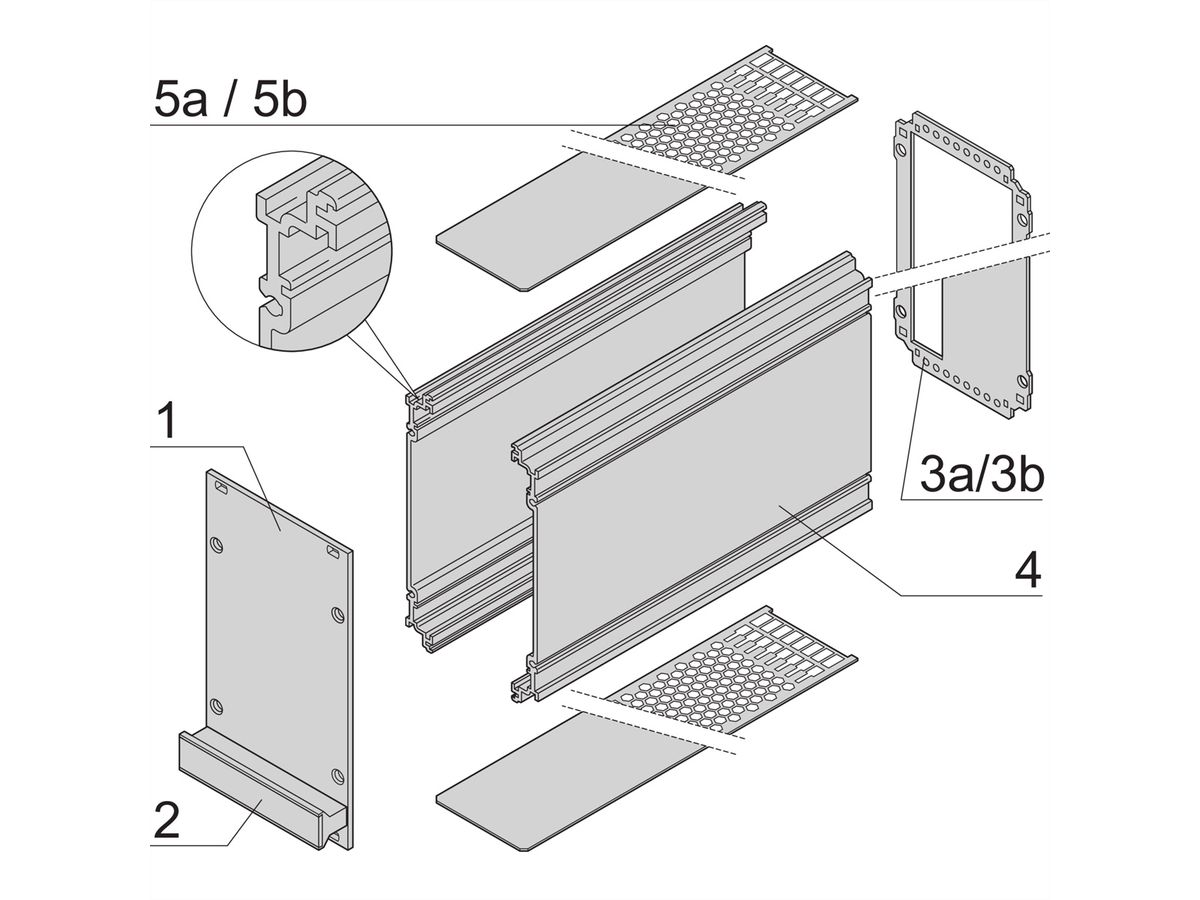

Right and left side panel profiles with groove, for inserting a PCB (standard-compliant position of the PCB only in the left side panel profile) - Cover plate version (5a): Without perforation - Rear panel version (3a): With a cut-out for a connector,Connectors to EN 60603 (DIN 41612), types: B, C, D, F, H, Q, R, S

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	Cassettes
Height units	3 U
Width units	12 HP
Depth	167 mm
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.536 kg

Downloads

Manufacturer data sheet - Deutsch (975.9 KB)

Download

Manufacturer data sheet - English (975.1 KB)

Download

Manufacturer data sheet - English (1.6 MB)

Download
