SCHROFF PSU 19" AC/DC Linear Regulator, Single, PSG 124

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	26151169
Brand / Manufacturer	SCHROFF
Manuf. item no.	13105014
EAN	4036088204227
Item weight	2.147 kg

Description

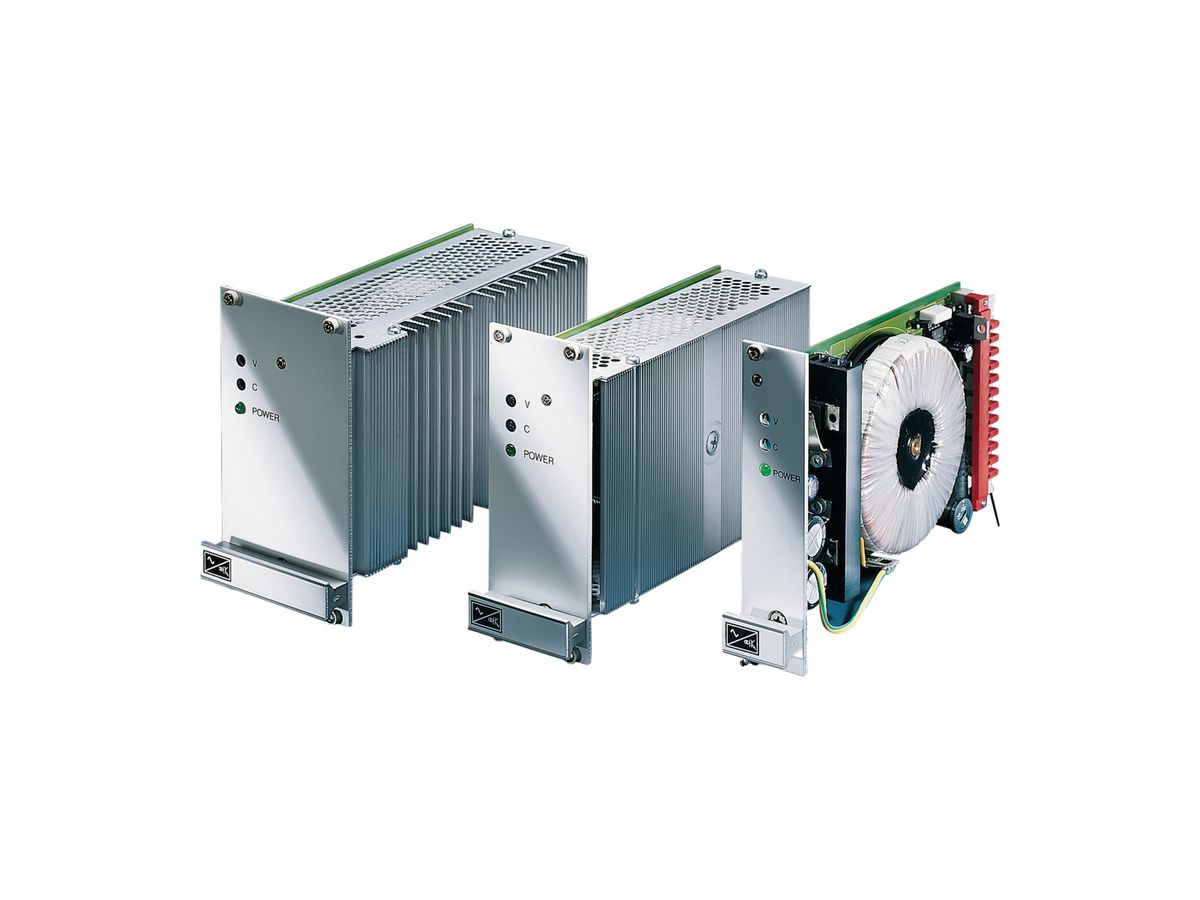

Power supply unit 19'' AC/DC linear regulator, single, PSG 124

POWER SUPPLY PSG124 14HP

Mains input voltage 230 VAC (can be converted to 115 VAC with mains voltage conversion kit) - High control accuracy, low residual ripple and very low interference, suitable for medical applications (8 mm safety distances) - Output voltage can be remote-controlled externally (1 ... 10 V) - Conversion of the control characteristic for sensitive loads (U/I - fold back) - Current measurement via shunt

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	power Supplies

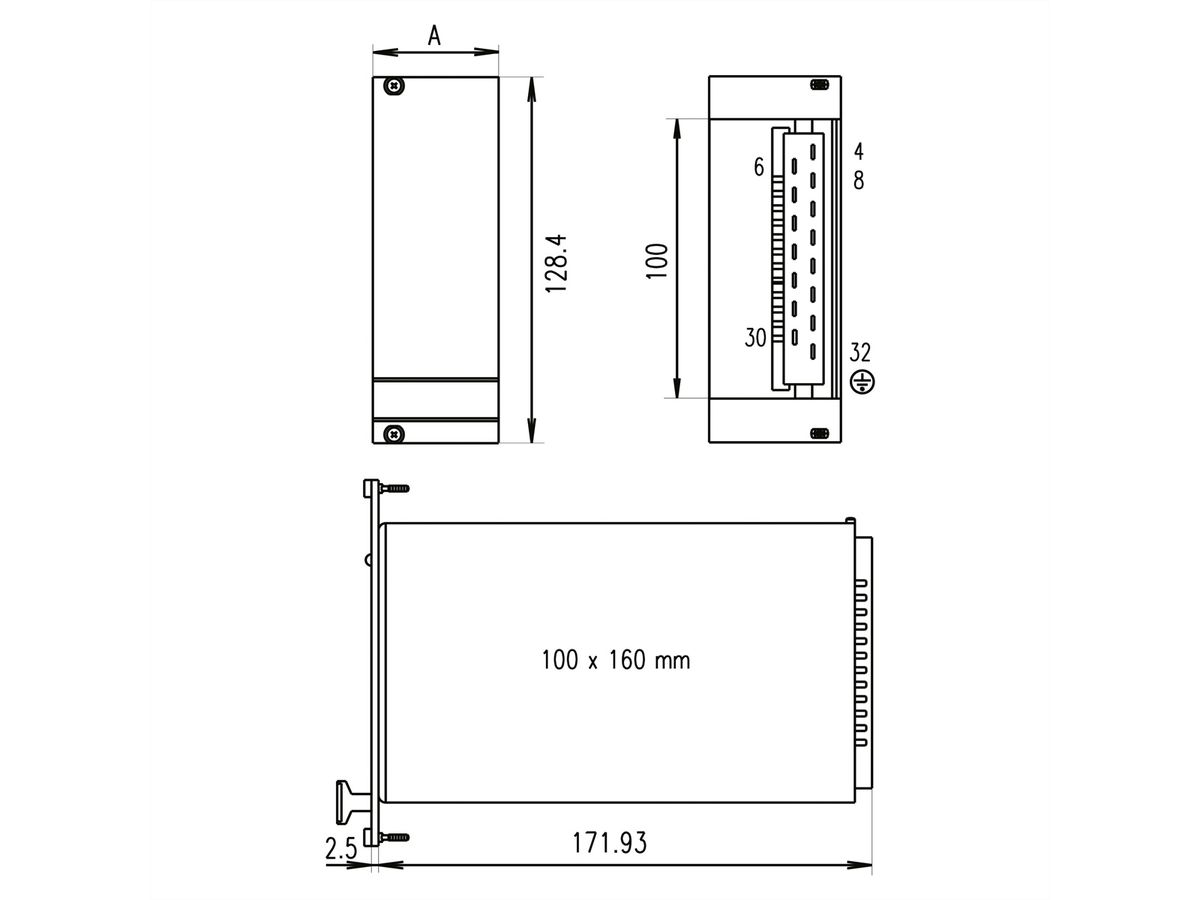

Height units	3 U
Width units	14 HP
Depth	171.93 mm
Height of packaging (single piece)	110 mm
Width of packaging (single piece)	220 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	2.147 kg

Downloads

Manufacturer data sheet - Deutsch (360.4 KB)

Download

Manufacturer data sheet - English (359.8 KB)

Download

PDF data sheet - Benutzeranleitung/Datenblatt - Deutsch (643.2 KB)

Download

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

More about SCHROFF
