SCHROFF PSU 19" AC/DC Linear Regulator, Single, PSM 115

SCHROFF PSU 19" AC/DC Linear Regulator, Single, PSM 115

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 12/13/2024
Item no. 26151164
Brand / Manufacturer SCHROFF
Manuf. item no. 13105008
EAN 4036088204173
Item weight 1.779 kg

Description

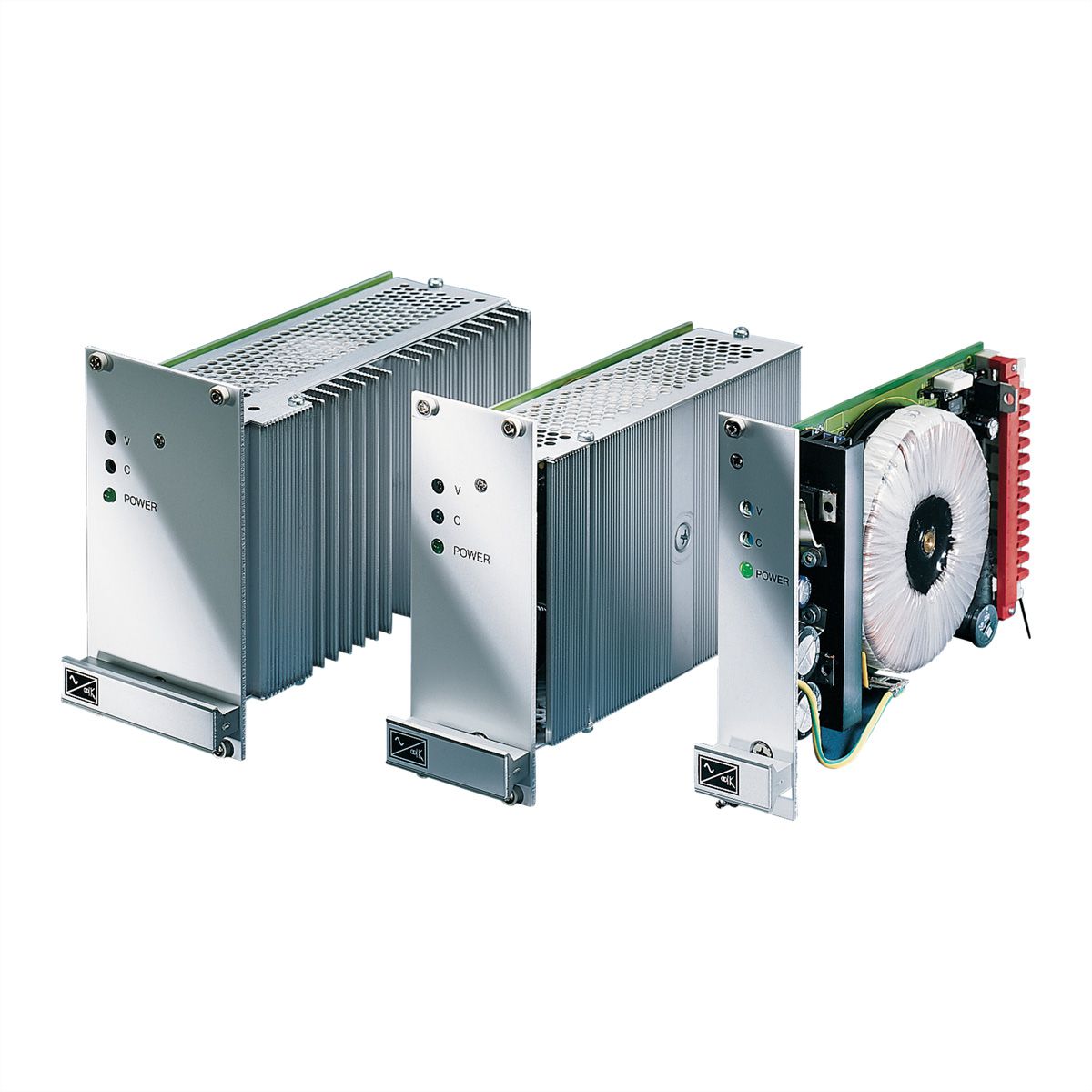

Power supply unit 19'' AC/DC linear controller, single, PSM 115

POWER SUPPLY PSM 115 OVP 10HP

Mains input voltage 230 VAC (can be converted to 115 VAC with mains voltage conversion kit) - High control accuracy, low residual ripple and very low interference, suitable for medical applications (8 mm safety distances) - Output voltage can be remote-controlled externally (1 ... 10 V) - Conversion of the control characteristic for sensitive loads (U/I - fold back) - Current measurement via shunt

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type power Supplies
Height units 3 U
Width units 10 HP

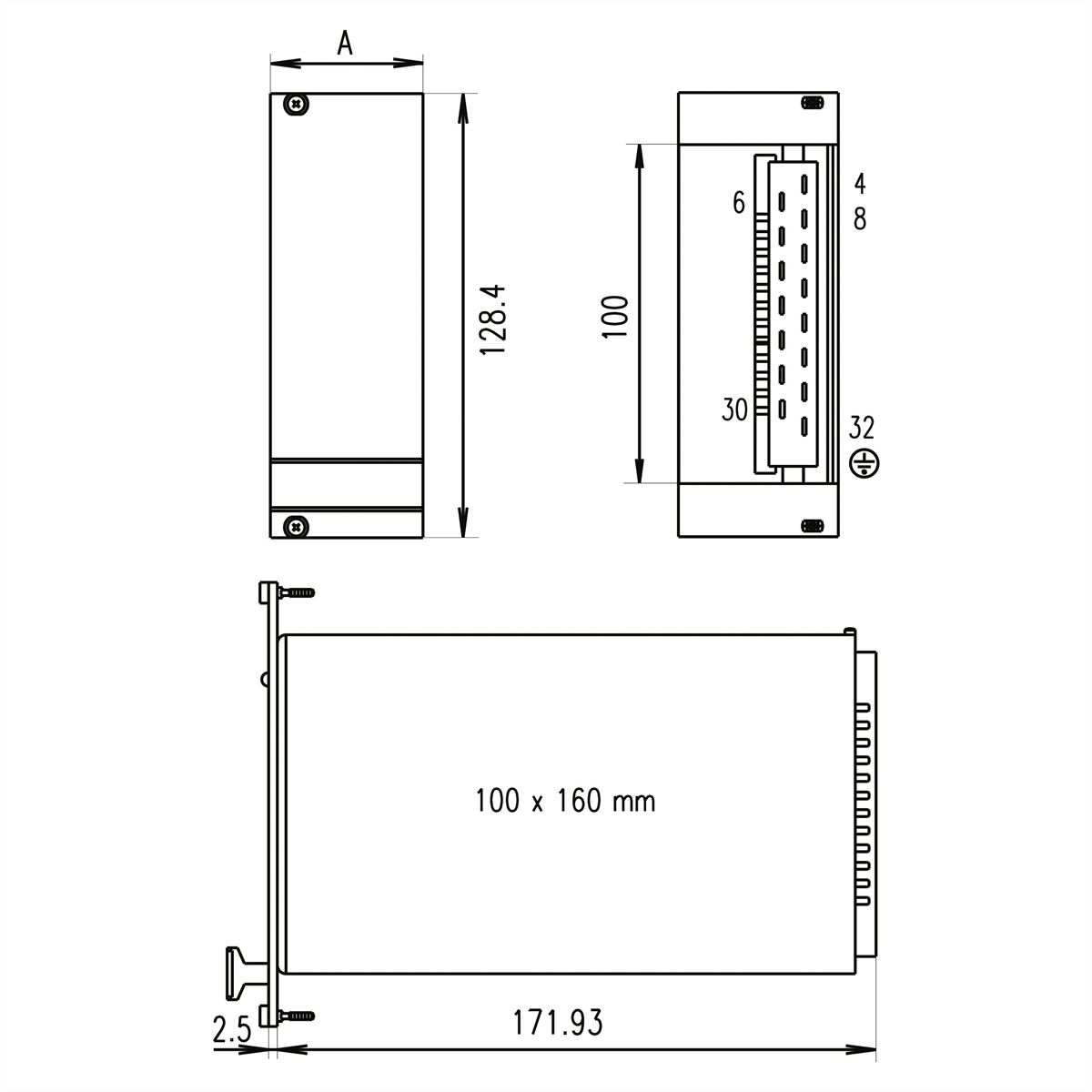

Depth 171.93 mm
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 290 mm
Package weight (single piece) 1.779 kg

Downloads

Manufacturer data sheet - Deutsch (360.4 KB)

Download

Manufacturer data sheet - English (359.8 KB)

Download

PDF data sheet - Benutzeranleitung/Datenblatt - Deutsch (643.2 KB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
