SCHROFF Rack Safety Plus, 3 U, 120 V AC, EMC Filter

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/13/2024

Item no.	26185426
Brand / Manufacturer	SCHROFF
Manuf. item no.	21272003
EAN	4036088226441

Description

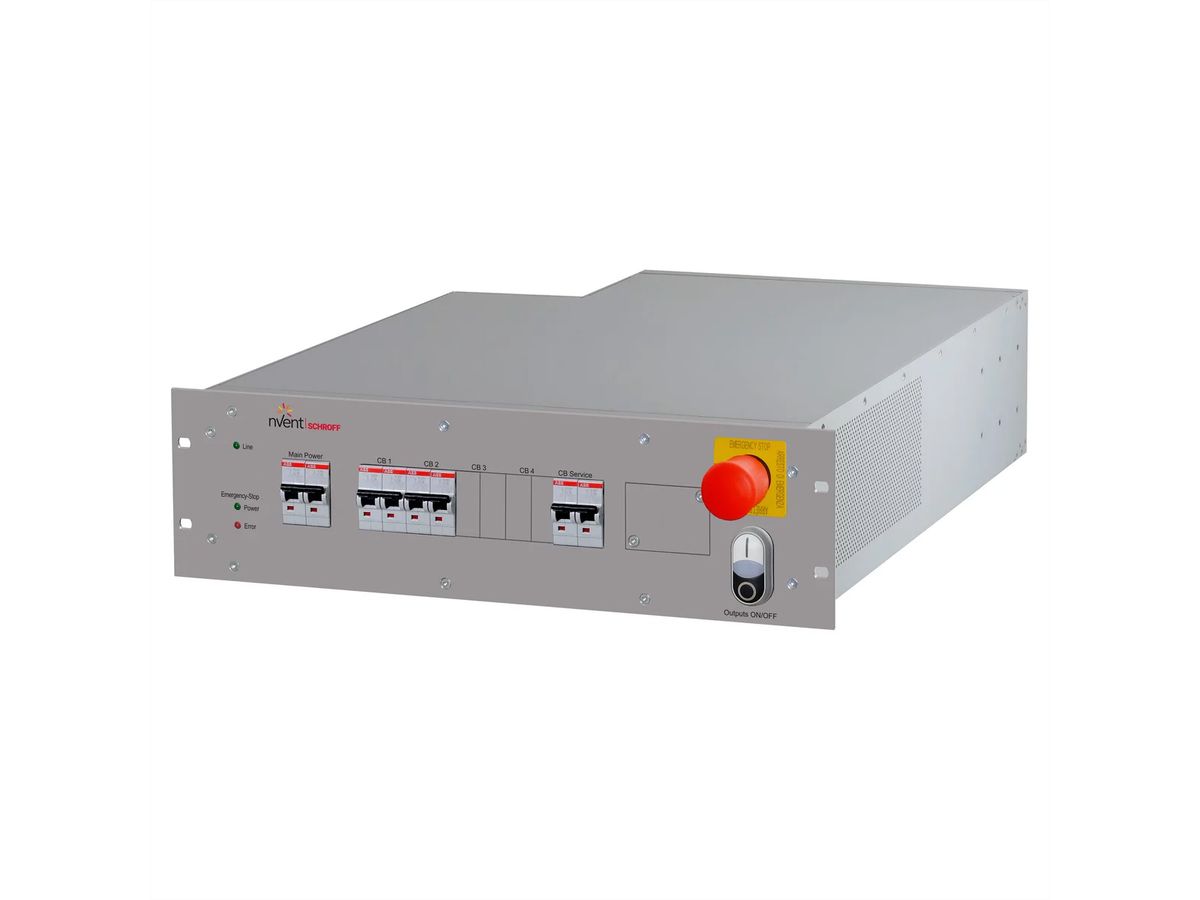

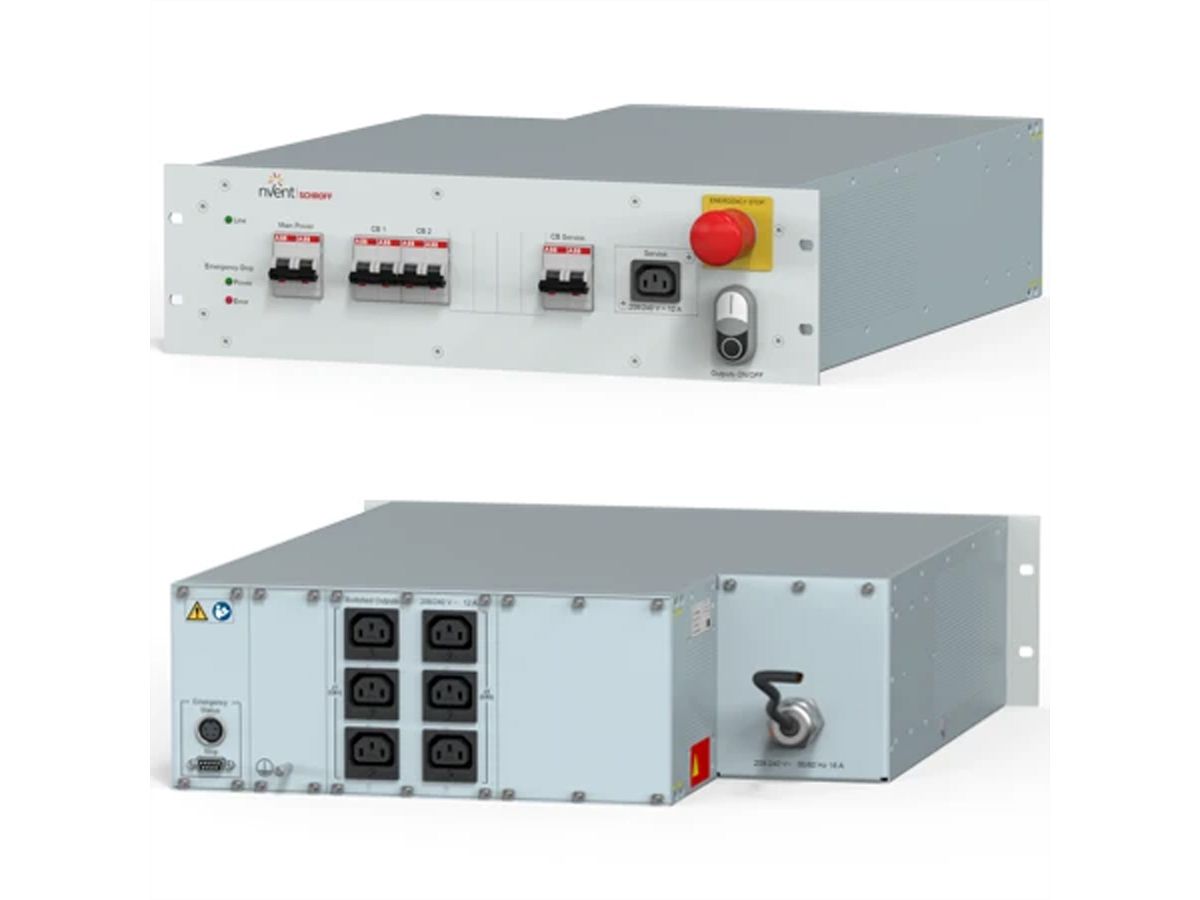

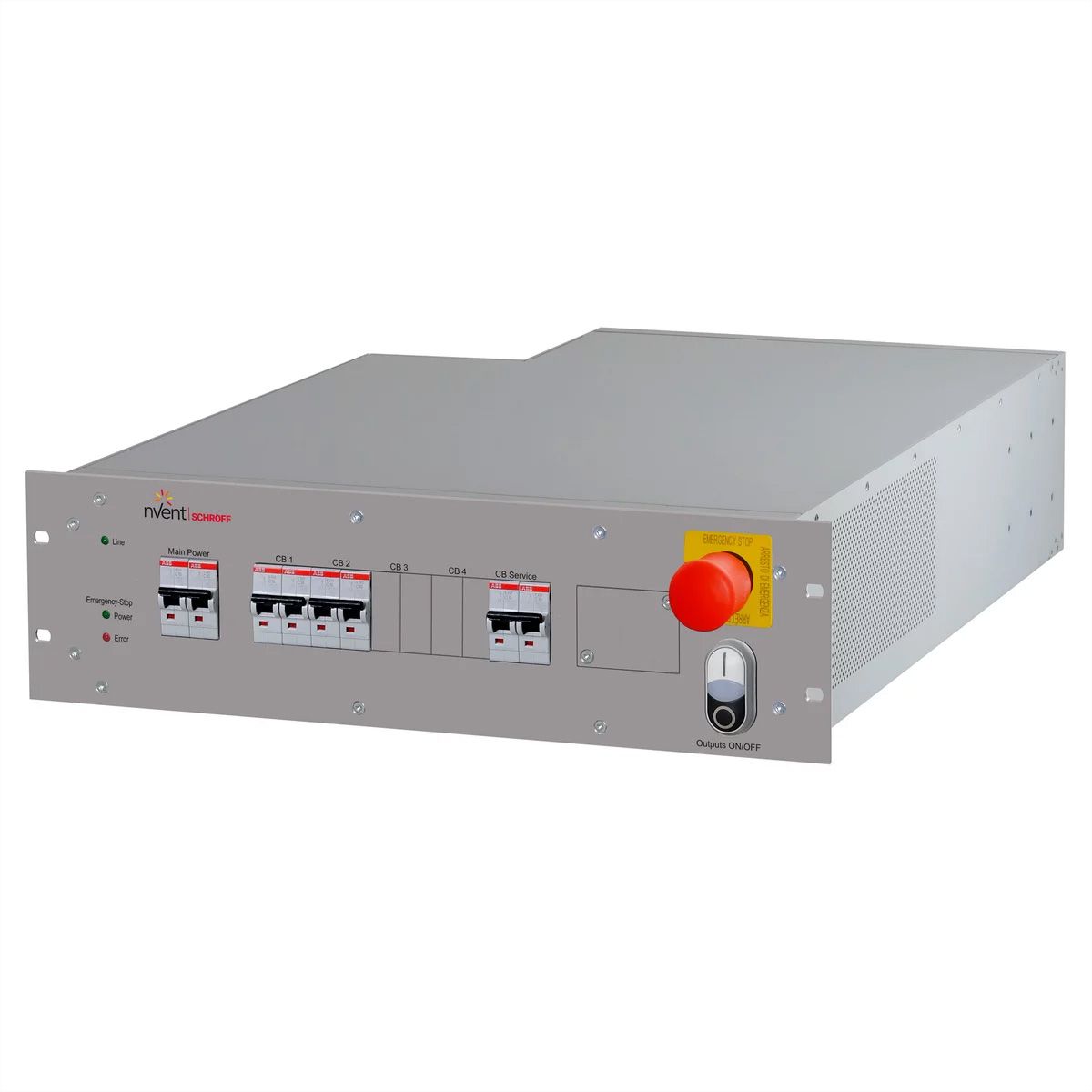

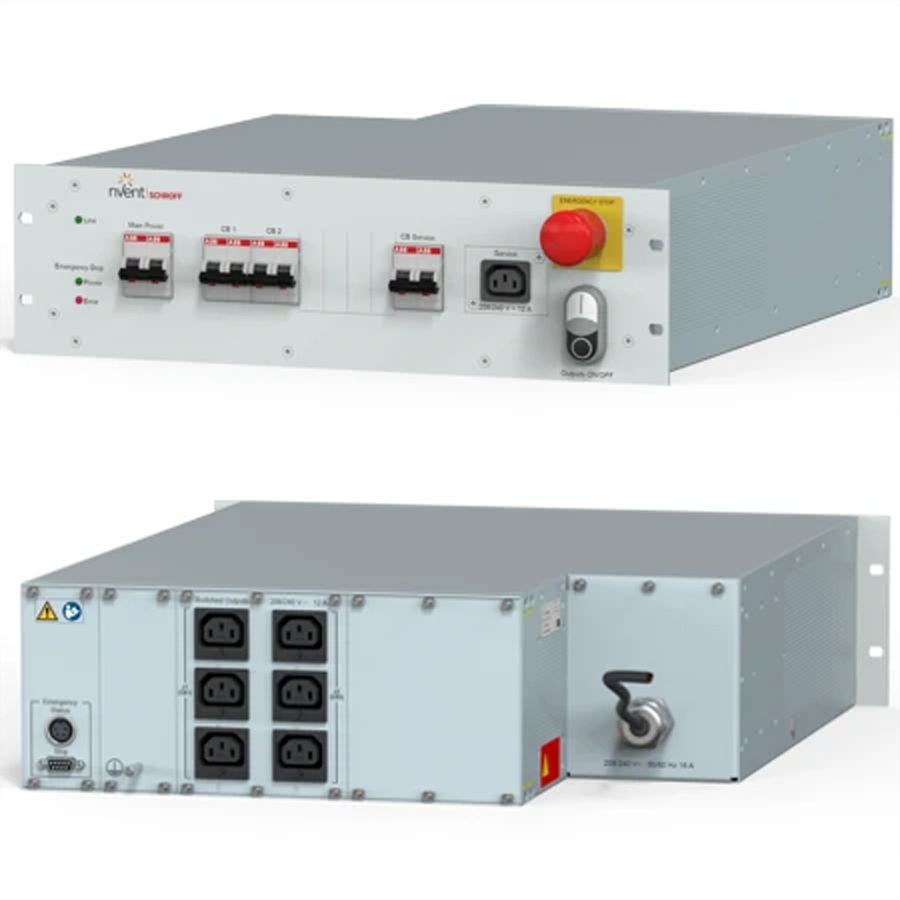

The nVent SCHROFF Rack Safety Plus unit is a 19" power distribution unit used to supply AC mains power to electrical or electronic devices as a central power switch. In addition it is equipped with an emergency stop function.

19“, 3 U Power Distribution Unit with Emergency Stop function
Supplies AC mains power to electrical or electronic devices as a central power switch
120 V phase to neutral mains input
AC outputs with different connector types, switched by ON/OFF switch
Permanent AC Outputs (Service)
All outputs are protected by circuit breakers
The emergency stop function meets the requirements of EN 60947-5-1 and EN 60204-1 and is vandalism-proof
An additional external emergency stop push button can be connected to the system
UL pending

PRODUCT ATTRIBUTES

Works With: Varistar; Varistar CP; Novastar
Function: Emergency Stop
Input Voltage AC: 120 V
Number of Phases: 1
EMC Filter: Yes
Surge Arrester: Yes
Inrush Current Limiter: No
Residual Current Device: No
Circuit Breaker Cover: No
Rack Height: 3 U
Socket Type: NEMA 5-15R; NEMA 5-20R
Accessory Type: Power distribution accessories

Specifications

Manufacturer	SCHROFF
Product group	Power supply
Product type	19" power strip
Height units	3 U
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

User manual - English (1.6 MB)

Download

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

More about SCHROFF
