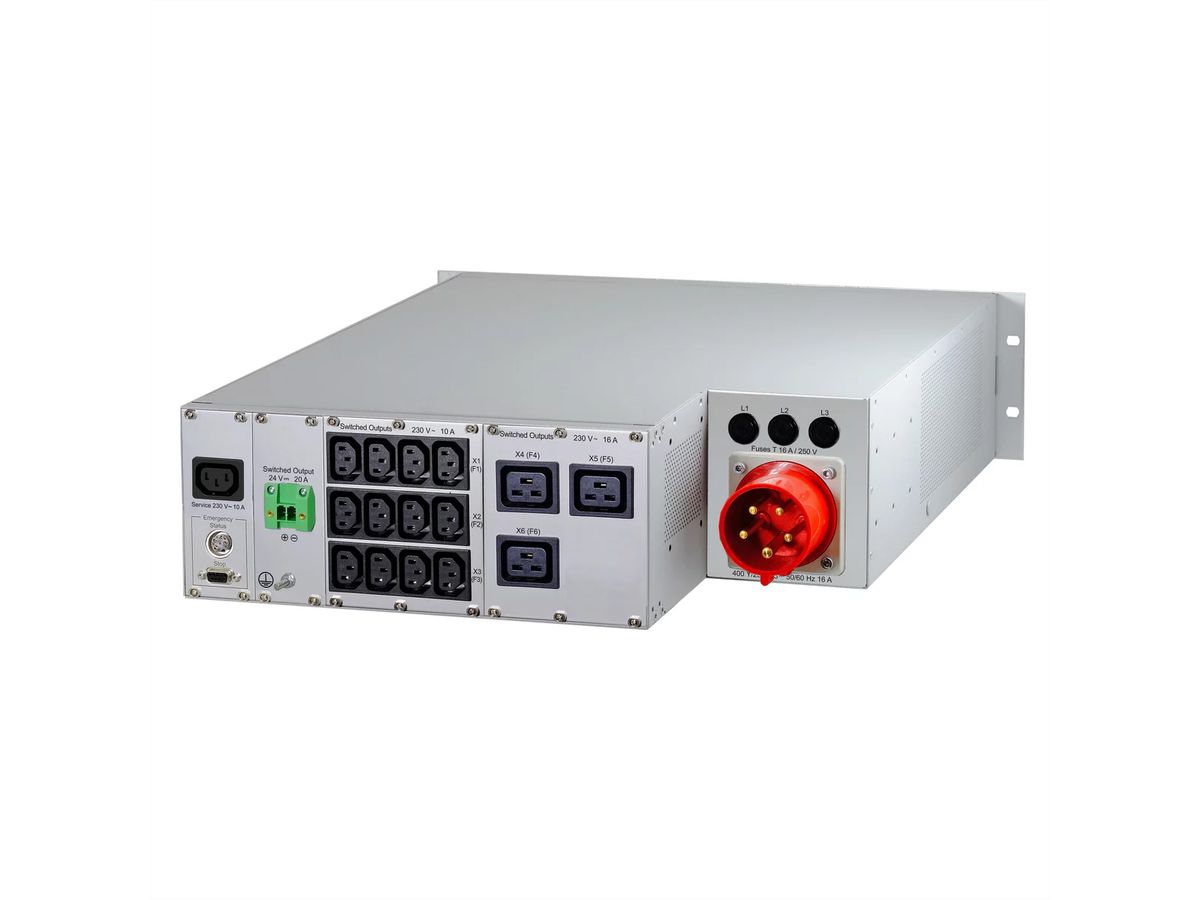

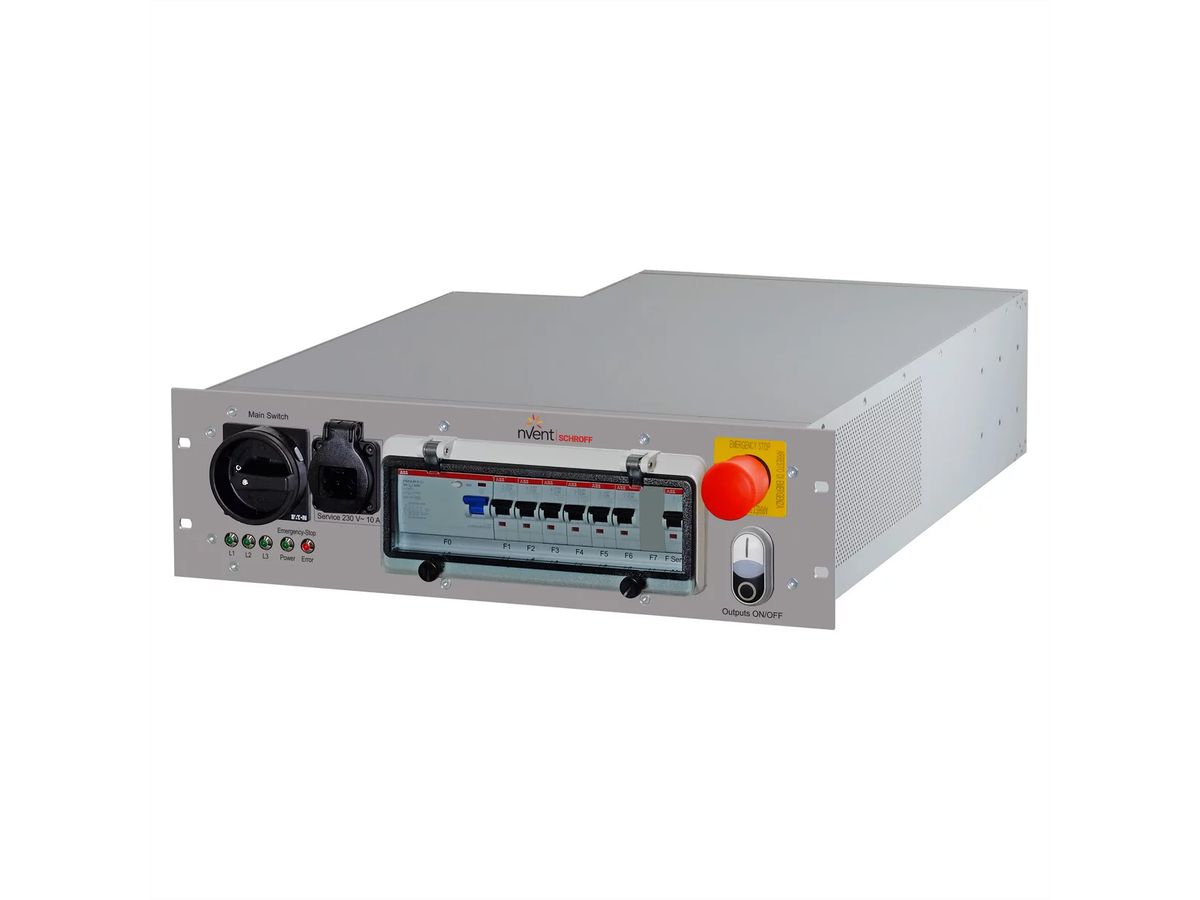

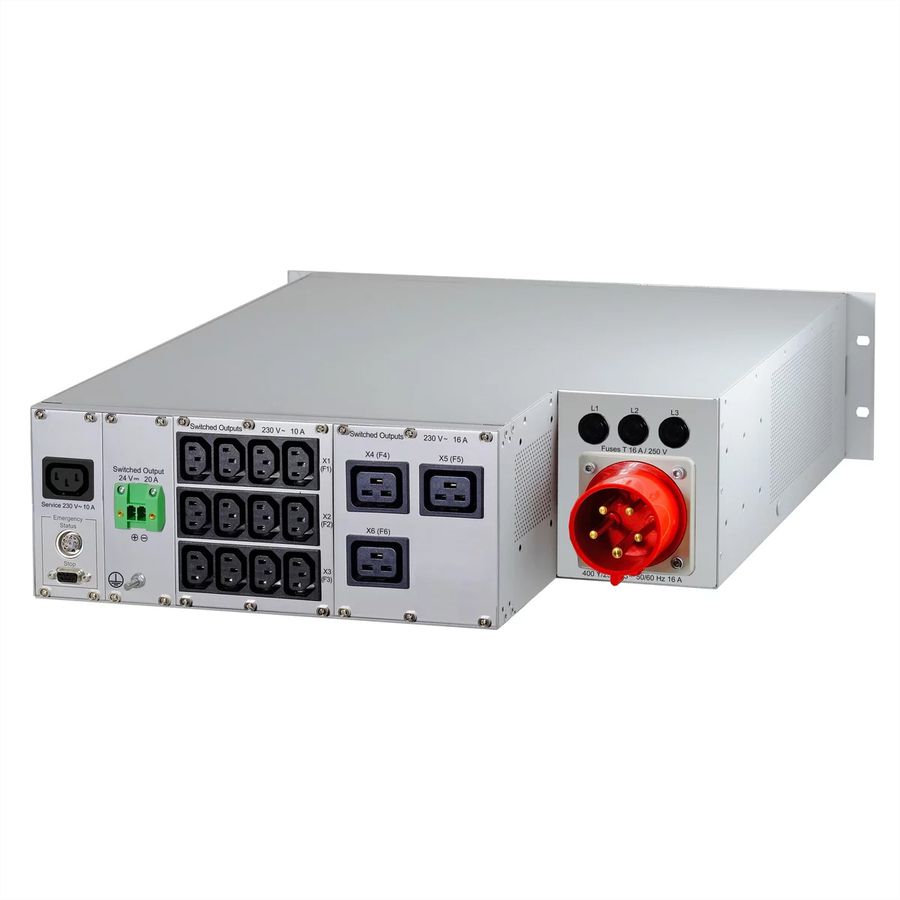

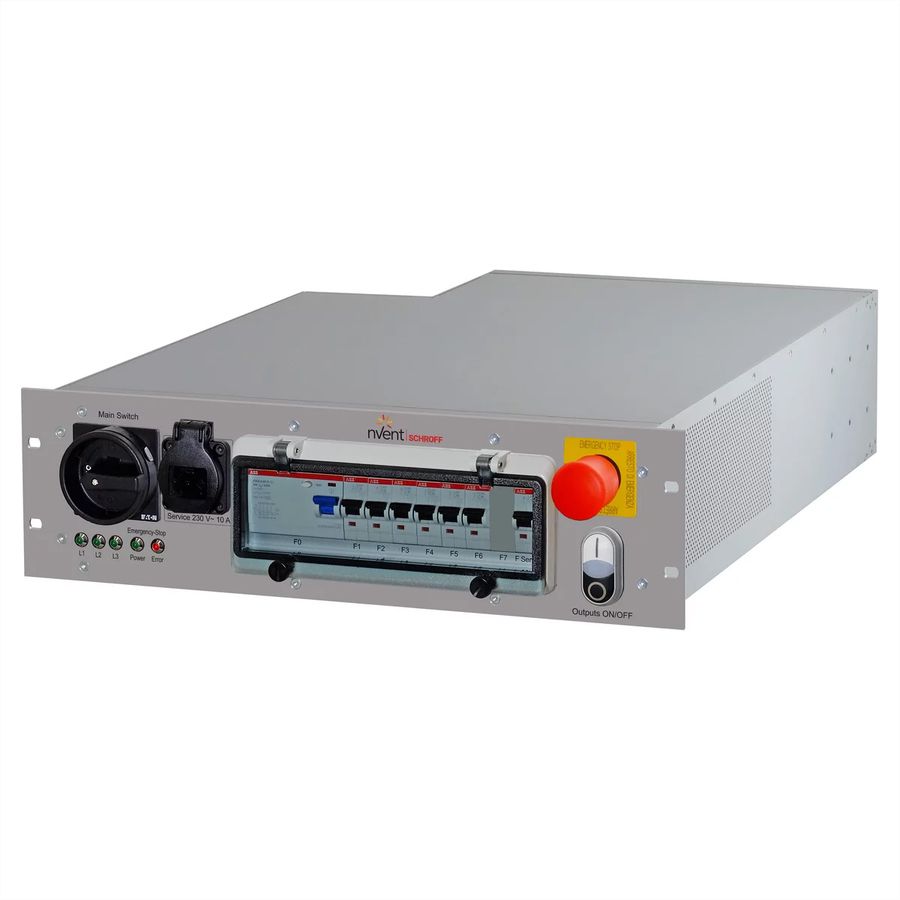

SCHROFF Rack Safety Plus, 3 U, 400 V AC, CEE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/16/2024

Item no.	26185419
Brand / Manufacturer	SCHROFF
Manuf. item no.	21270001
EAN	4036088224669
Item weight	15.8 kg

Description

The nVent SCHROFF Rack Safety Plus unit is a 19" power distribution unit used to supply AC mains power to electrical or electronic devices as a central power switch. In addition it is equipped with an emergency stop function.

19“, 3 U Power Distribution Unit with Emergency Stop function
Supplies AC mains power to electrical or electronic devices as a central power switch
400 V 3-phase or 230 V 1-phase mains input with mains fuses
AC outputs with different connector types, switched by ON/OFF switch
Permanent AC Outputs (Service)
All outputs are protected by circuit breakers
The emergency stop function meets the requirements of EN 60947-5-1 and EN 60204-1 and is vandalism-proof
An additional external emergency stop push button can be connected to the system

PRODUCT ATTRIBUTES

Works With: Varistar; Varistar CP; Novastar
Function: Emergency Stop
Input Voltage AC: 400 V
Number of Phases: 3
EMC Filter: Yes
Surge Arrester: Yes
Inrush Current Limiter: Yes
Residual Current Device: Yes
Circuit Breaker Cover: Yes
Rack Height: 3 U
Socket Type: SCHUKO; IEC C13
Accessory Type: Power distribution accessories

Specifications

Manufacturer	SCHROFF
Product group	Power supply
Product type	19" power strip
Height units	3 U
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	15.8 kg

Downloads

Manufacturer data sheet - English (570.6 KB)

Download

User manual - English (2.5 MB)

Download

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
