Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26100505 |
|---|---|
| Brand / Manufacturer | SCHROFF |
| Manuf. item no. | 10130099 |
| EAN | 4036088120459 |
| Item weight | 130 kg |
:strip_icc():strip_exif()/logos/schroff.png "SCHROFF")

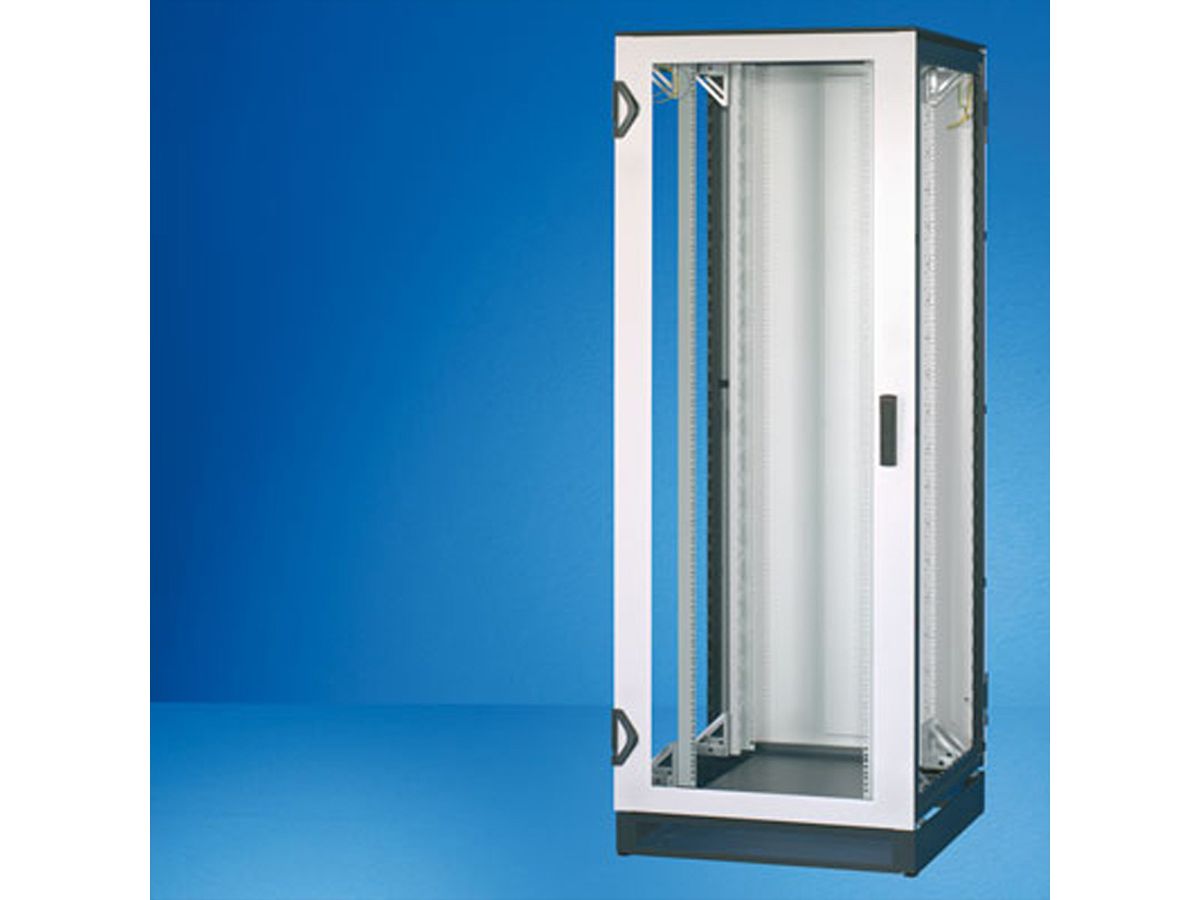

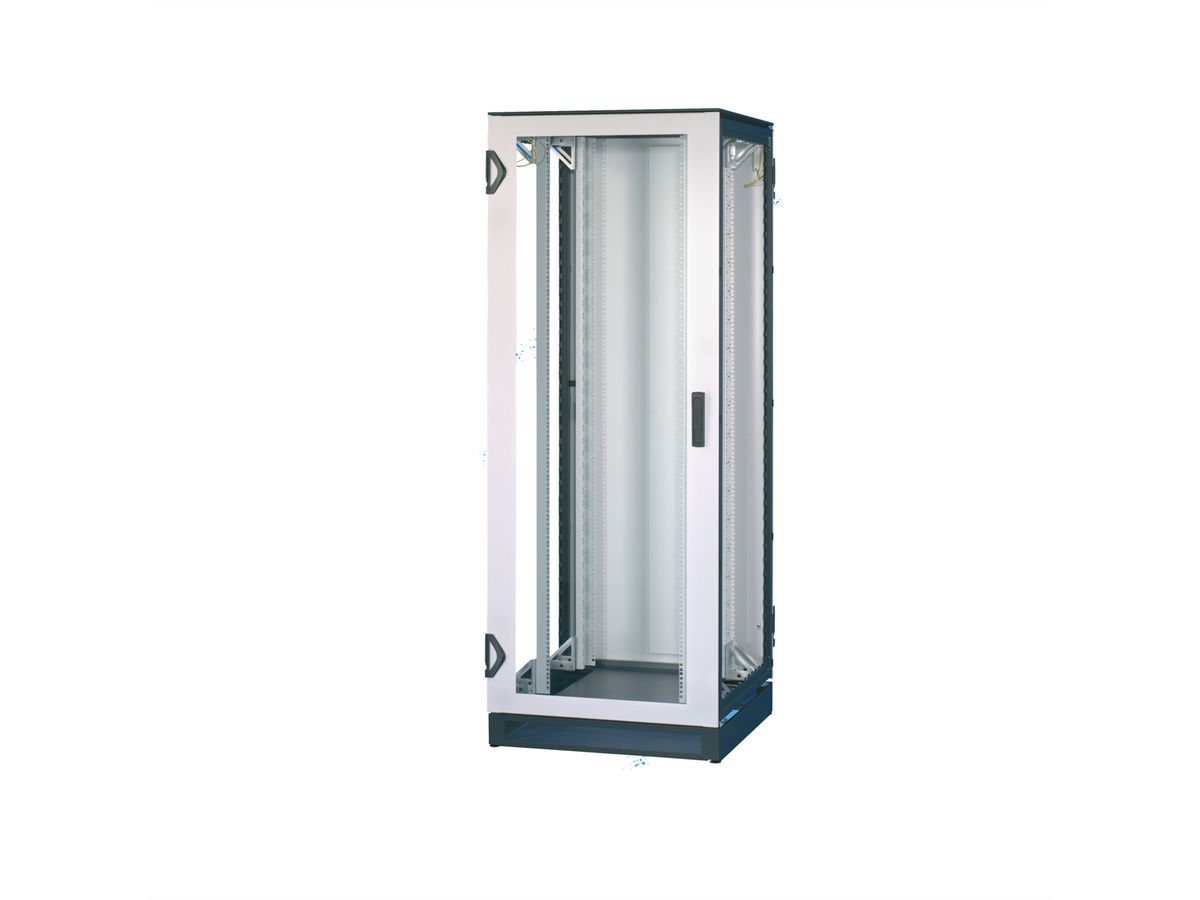

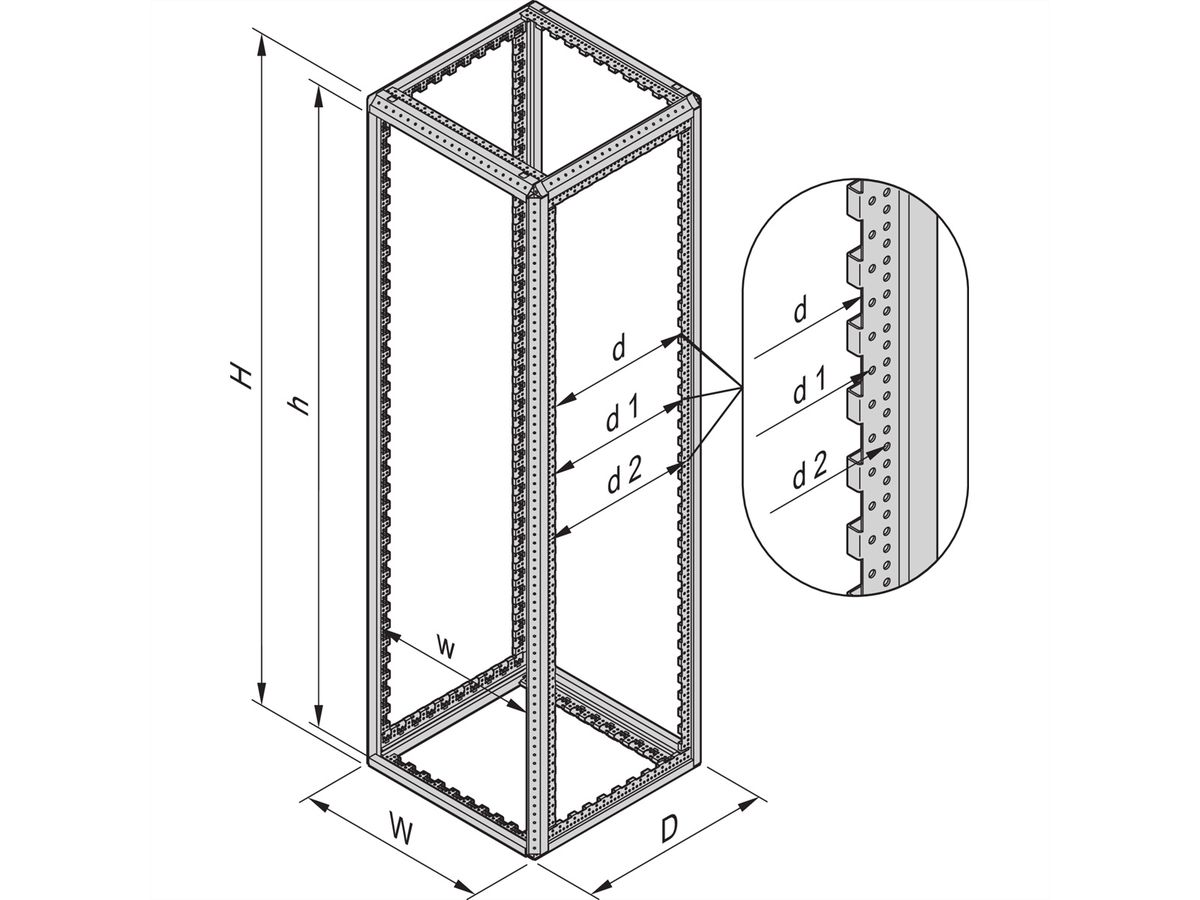

New enclosure series from SCHROFF: The VARISTAR NET Plus is a very flexible network enclosure in various designs. - With two 19" shelves and plinth - Static load capacity up to 400 kg - Baying cabinet without side panels, but with baying kit - Unique meander profile with many mounting options - Welded base frame made of steel profiles - Front door with safety glass, 180° hinge, 1-point locking and swivelling lever handle, Rear door made of sheet steel - otherwise the same - Plinth with ventilation panels at the front and rear and integrated levelling feet - Complete range of accessories - Colour: RAL 7035 (light grey) - Also available on request as a server enclosure with a load capacity of up to 800 kg - Also available in RAL 7021 (black grey) on request - Optional accessories: - 19" shelves 26. 10.0538 or 26.10.0539 - Sliding rails 26.10.00537 for heavy 19" shelves, max. 25 kg per shelf - Optional accessories: - 19" shelves 26.
26.10.0531, kit with three fans - Brush strip, nylon black, 26.10.00534 for cable entry via roof - Brush strip, nylon black, 26.10.00535 for cable entry through base plate - Cable eyelets: Plastic 100x100 26.10.0540, steel 100x100 26.10.0541, steel 100x180 26.10.0542 - Base plate for lateral cable entry 26.10.0537 - Fastening material 26.10.0530 consisting of 50 M5 cage nuts and M5 x 10 screws each
| Manufacturer | SCHROFF |
|---|---|
| Product group | 19"-/10"-Cabinet |
| Product type | 19"-Floor cabinet |
| Colour | grey |
| Height units | 42 U |
| Maximum rack depth supported | 650 mm |
| Server cabinet | no |
| Socket | yes |
| Socket with tilt protection | no |
| Dimensions (HxWxD) w/o socket | 1900 x 800 x 800 mm |
| Dimensions (HxWxD) with socket | 2000 x 800 x 800 mm |
| Socket height | 100 mm |
| Maximum weight capacity | 400 kg |
| Protection class (IP Code) | IP20 |
| Front | Glass door with frame |
| Backside | Steel door |
| Side panel | Not available |
| 19" level | Ahead and behind |
| Roof | Cable entry possibility |
| Roof raised | no |
| Socket type | Cable entry possibility |
| Socket plinth panel | partially |
| Floor | Open |
| Ventilation | Passive |
| Grounding set mounted | yes |
| Adjustable feets | yes |
| Fan ready | yes |
| Colour (Cabinet) | RAL 7021 Black grey |
| Colour (Covering) | RAL 7035 Light grey |
| RAL colour | RAL 7035 Light grey |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 800 mm |
| Height of packaging (single piece) | 2200 mm |
| Width of packaging (single piece) | 800 mm |
| Depth of packaging (single piece) | 800 mm |
| Package weight (single piece) | 130 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/nvent_schroff.png)
The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.
The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
