Description

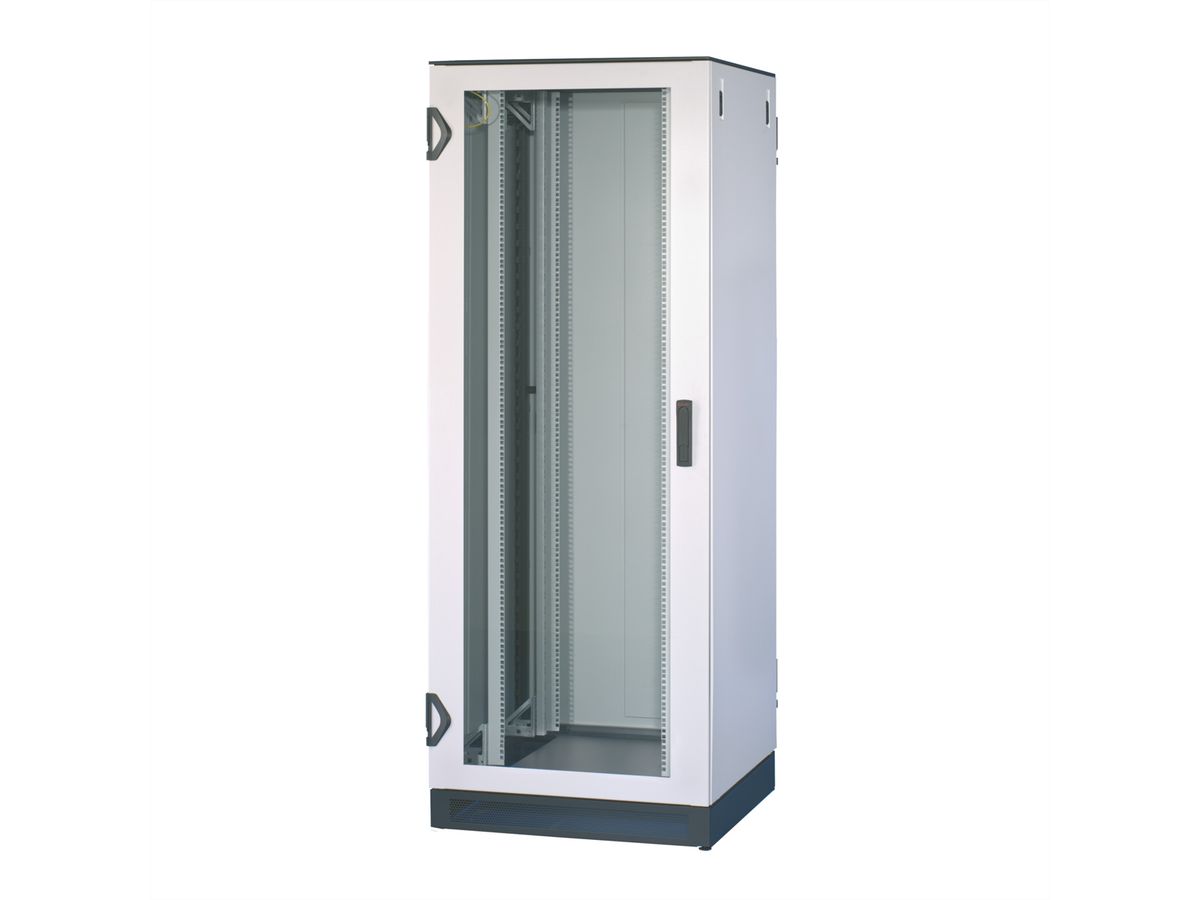

Varistar NET Plus cabinet, RAL 7035, single cabinet, 24 U, 1200 H, 800 W, 800 D

New enclosure series from SCHROFF: The VARISTAR NET Plus is a very flexible network enclosure in various designs. - With two 19" shelves and plinth - Static load capacity up to 400 kg - Single cabinet incl. side panels with quick-release fastener side panels with quick-release fasteners - Also available as a bayed enclosure (without side panels, but with baying kit) - Unique meander profile with many mounting options - Welded base frame made of steel profiles - Front door with safety glass, 180° hinge, 1-point locking and swivelling lever handle, Rear door made of sheet steel - otherwise the same - Plinth with ventilation panels at the front and rear and integrated levelling feet - Complete range of accessories - Colour: RAL 7035 (light grey) - Also available on request as a server enclosure with load capacity up to 800 kg - Also available in RAL 7021 (black grey) on request - Note: Image similar - Optional accessories:

Shelves 26.10.0538 or 26.10.0539 - Slide rails 26.10.00537 for heavy 19" racks, max. 25 kg per pair - Brush strip, nylon black, 26.10.00534 for cable entry via roof - Brush strip, nylon black, 26.10.00535 for cable entry through base plate - Cable eyelets: Plastic 100x100 26.10.0540, steel 100x100 26.10.0541, steel 100x180 26.10.0542 - Base plate for lateral cable entry 26.10.0537 - Fastening material 26.10.0530 consisting of 50 M5 cage nuts and M5 x 10 screws each
