SCHROFF Varistar NET Plus Cabinet, RAL 7035, Single, 47 U, 2200H, 800W, 800D

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/13/2024

Product is a shipping prodcut! Shipping costs may arise!

Item no.	26100508
Brand / Manufacturer	SCHROFF
Manuf. item no.	10130114
EAN	4036088120909
Item weight	170 kg

Description

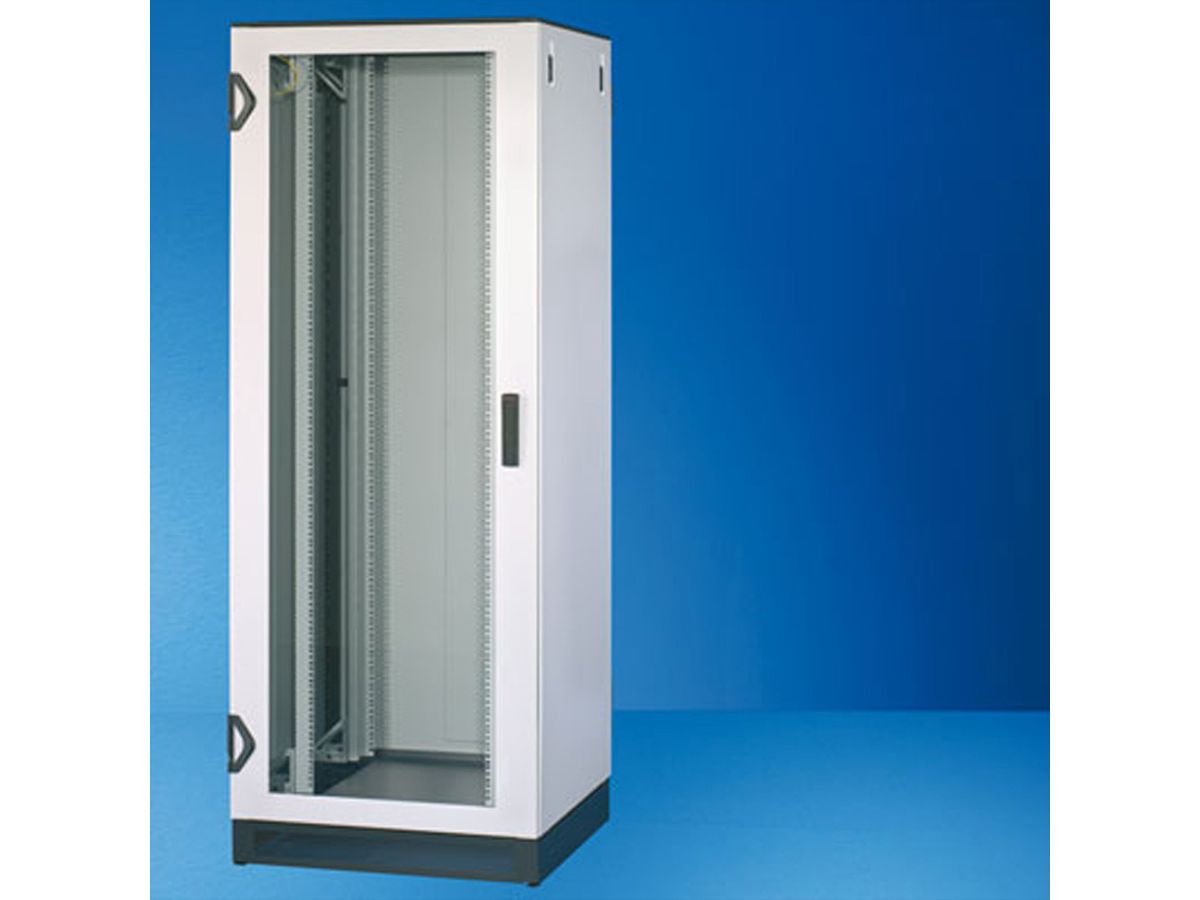

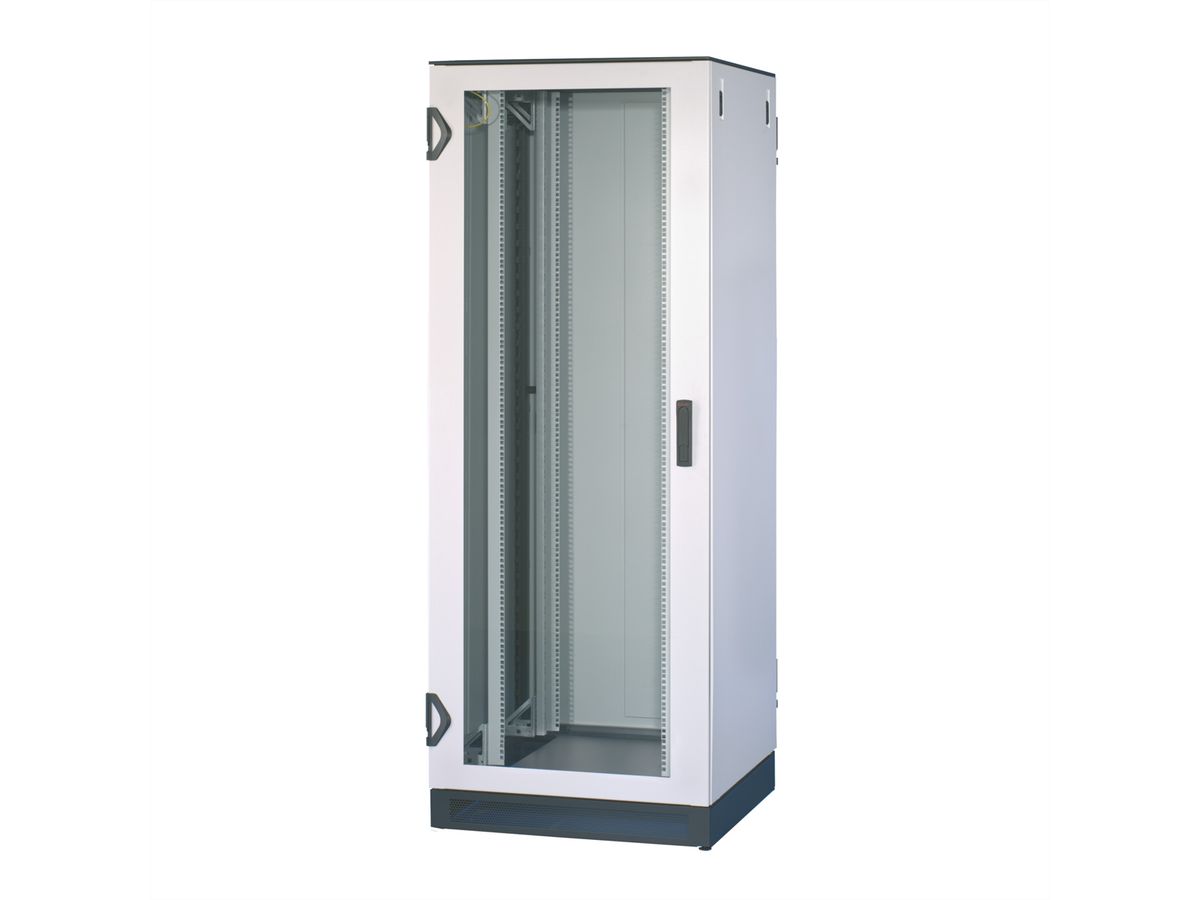

Varistar NET Plus enclosure, RAL 7035, single enclosure, 47 U, 2200 H, 800 B, 800 T

New enclosure series from SCHROFF: The VARISTAR NET Plus is a very flexible network enclosure in various designs. - With two 19" shelves and plinth - Static load capacity up to 400 kg - Single cabinet incl. side panels with quick-release fastener side panels with quick-release fasteners - Also available as a bayed enclosure (without side panels, but with baying kit) - Unique meander profile with many mounting options - Welded base frame made of steel profiles - Front door with safety glass, 180° hinge, 1-point locking and swivelling lever handle, Rear door made of sheet steel - otherwise the same - Plinth with ventilation panels at the front and rear and integrated levelling feet - Complete range of accessories - Colour: RAL 7035 (light grey) - Also available on request as a server enclosure with load capacity up to 800 kg - Also available in RAL 7021 (black grey) on request - Optional accessories: - 19" shelves 26. 10.0538 or

26.10.00537 for heavy 19" racks, max. 25 kg per pair - Fan insert 26.10.0531, kit with three fans - Brush strip, nylon black, 26.10.00534 for cable entry via roof - Brush strip, nylon black, 26.10.00535 for cable entry through base plate - Cable eyelets: Plastic 100x100 26.10.0540, steel 100x100 26.10.0541, steel 100x180 26.10.0542 - Base plate for lateral cable entry 26.10.0537 - Fastening material 26.10.0530 consisting of 50 M5 cage nuts and M5 x 10 screws each

Specifications

Manufacturer	SCHROFF
Product group	19"-/10"-Cabinet
Product type	19"-Floor cabinet
Colour	grey
Height units	47 U
Maximum rack depth supported	650 mm
Server cabinet	no
Socket	yes
Socket with tilt protection	no

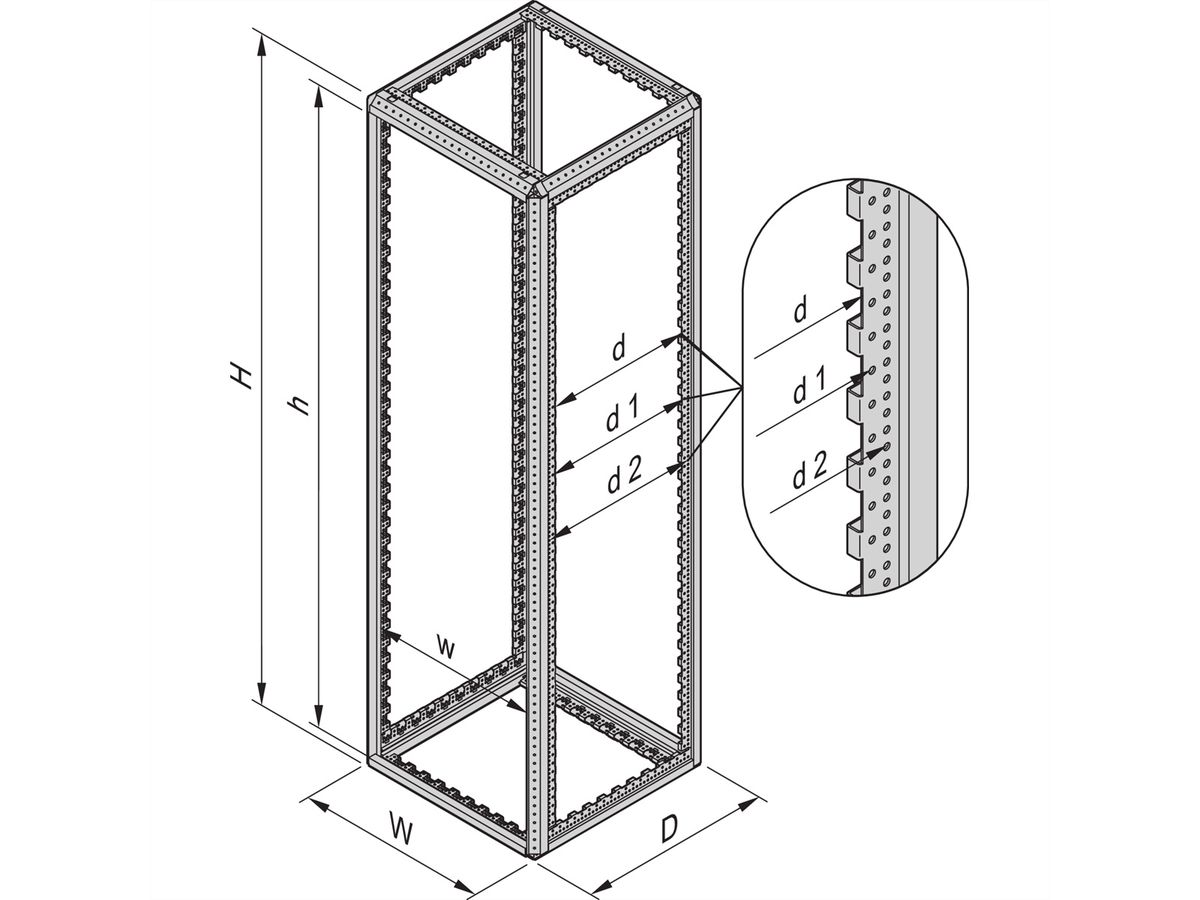

Dimensions (HxWxD) w/o socket	2100 x 800 x 800 mm
Dimensions (HxWxD) with socket	2200 x 800 x 800 mm
Socket height	100 mm
Maximum weight capacity	400 kg
Protection class (IP Code)	IP20
Front	Glass door with frame
Backside	Steel door
Side panel	Plug door
19" level	Ahead and behind
Roof	Cable entry possibility
Roof raised	no
Socket type	Cable entry possibility
Socket plinth panel	partially
Floor	Open
Ventilation	Passive
Grounding set mounted	yes
Adjustable feets	yes
Fan ready	yes
Colour (Cabinet)	RAL 7021 Black grey
Colour (Covering)	RAL 7035 Light grey
RAL colour	RAL 7035 Light grey
Height	2200 mm
Width	800 mm
Depth	800 mm
Height of packaging (single piece)	2200 mm
Width of packaging (single piece)	800 mm
Depth of packaging (single piece)	800 mm
Package weight (single piece)	170 kg
