Description

Very flexible server enclosure with perforated doors, air throughput 78%

- With two 19" shelves - Tested load capacity up to 400 kg in shock and vibration test in accordance with IEC 61587-1 - Single enclosure incl. side panels - Single enclosure incl. side panels side panels - Unique meander profile with many mounting options - Welded base frame made of steel profiles - Front and rear door made of sheet steel with perforation, 180° hinge, 1-point locking and swivel lever handle - Complete range of accessories - Protection class IP 20 - Colour: RAL 7021 (black-grey)

Optional accessories: - 19" shelves 26.10.0546 - up to 75 kg daily load - Slide rails 26.10.0543 for heavy 19" racks, max. 25 kg per pair - Brush strip, nylon black, 26.10.0534 for cable entry via roof - Cable eyelets: Plastic 100x100 26.10.0540, steel 100x100 26.10.0541 - Fastening material 26.14.0010 consisting of 32 cage nuts M6, plastic washers and pan-head screws M6 x 16 each

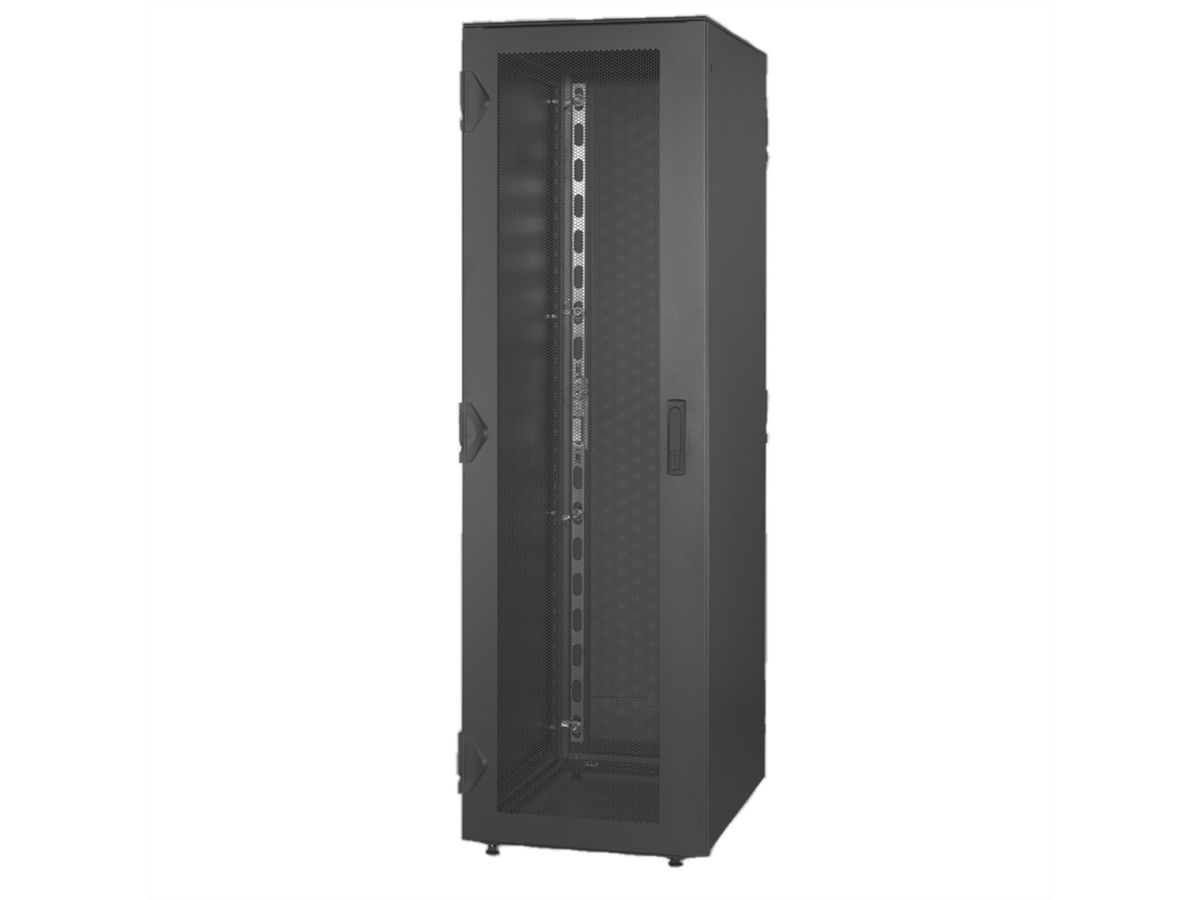

Remark: Picture similar

Specifications

Manufacturer	SCHROFF
Product group	19"-/10"-Cabinet
Product type	Server cabinet
Colour	grey
Height units	42 U
Maximum rack depth supported	850 mm
Server cabinet	yes
Socket	no
Socket with tilt protection	no
Dimensions (HxWxD) w/o socket	2000 x 800 x 1000 mm
Maximum weight capacity	400 kg
Protection class (IP Code)	IP20
Front	Steel door with perforation
Backside	Steel door with perforation
Side panel	Plug door
19" level	Ahead and behind
Roof	Cable entry possibility
Roof raised	no
Floor	Open
Ventilation	Passive
Grounding set mounted	yes
Adjustable feets	yes
Fan ready	no
Colour (Cabinet)	RAL 7021 Black grey
Colour (Covering)	RAL 7021 Black grey
RAL colour	RAL 7021 Black grey
Height	2000 mm
Width	800 mm
Depth	1000 mm
Height of packaging (single piece)	2280 mm
Width of packaging (single piece)	860 mm
Depth of packaging (single piece)	1050 mm
Package weight (single piece)	152 kg
