SCHROFF VME System, 8 U, 21 Slot, Open Frame PSU

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/09/2024

Item no.	26152195
Brand / Manufacturer	SCHROFF
Manuf. item no.	20836815
Item weight	17.72 kg

Description

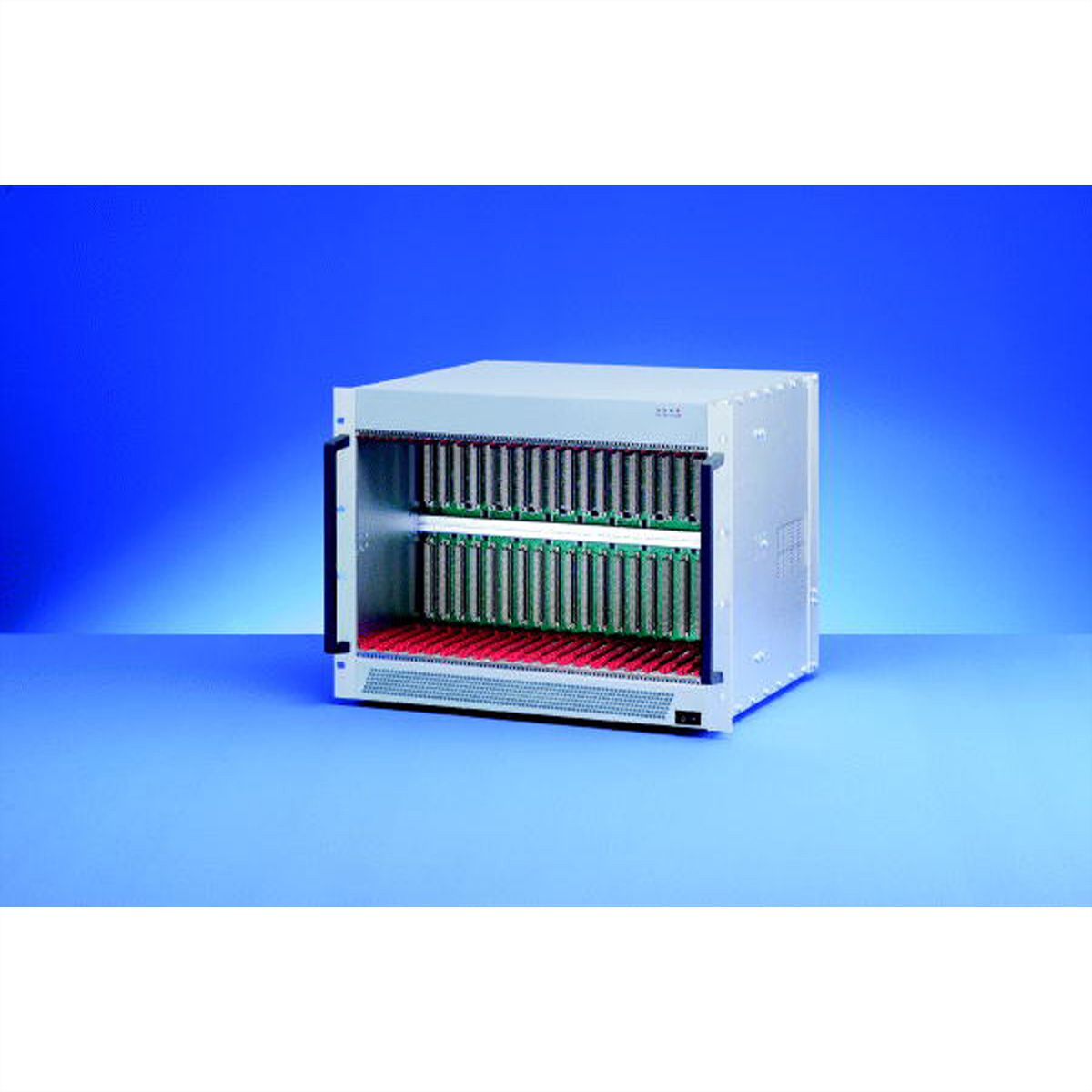

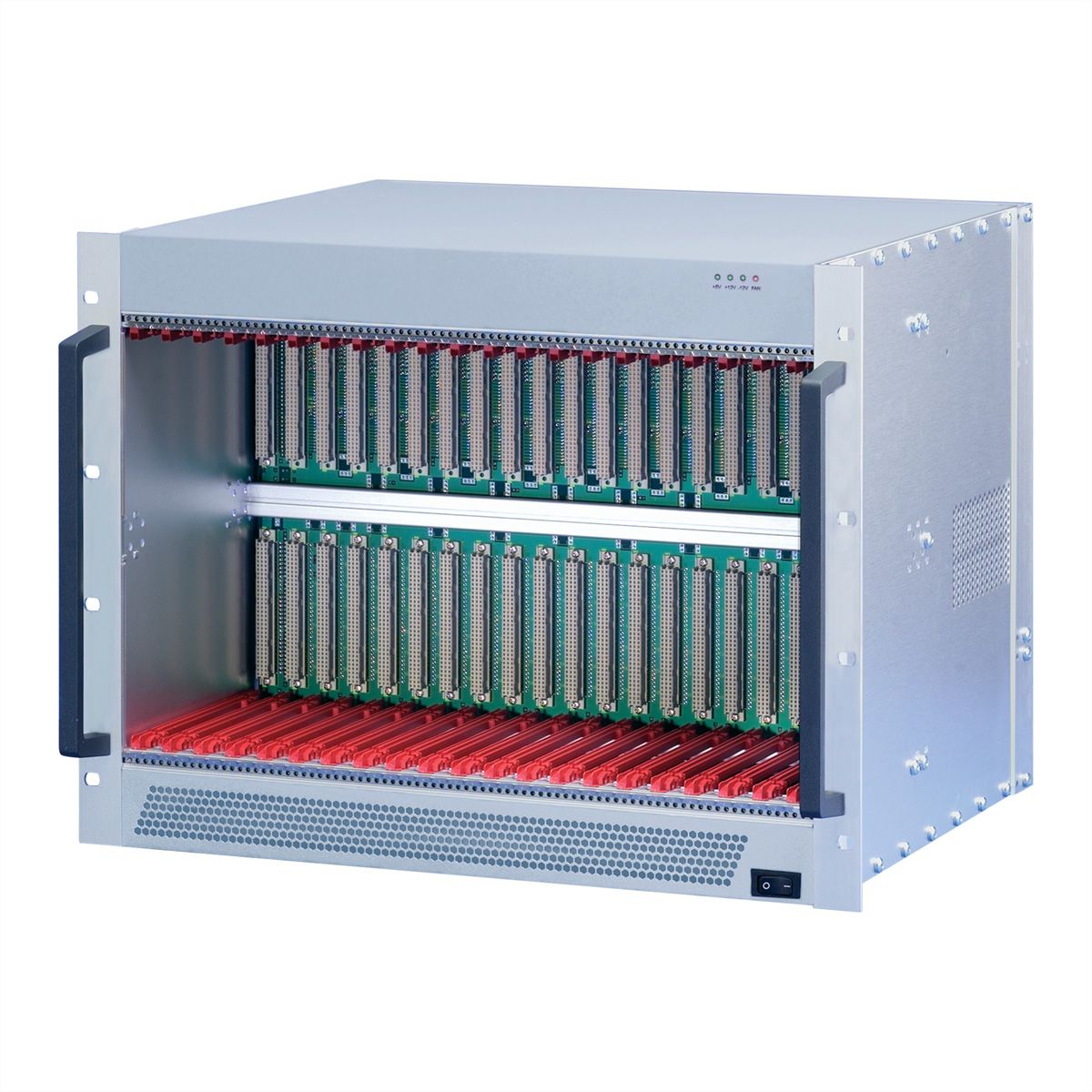

VME system, 8 U, 21 slot, open-frame power supply unit

SUBR VME 8U 84HP 21SLOT

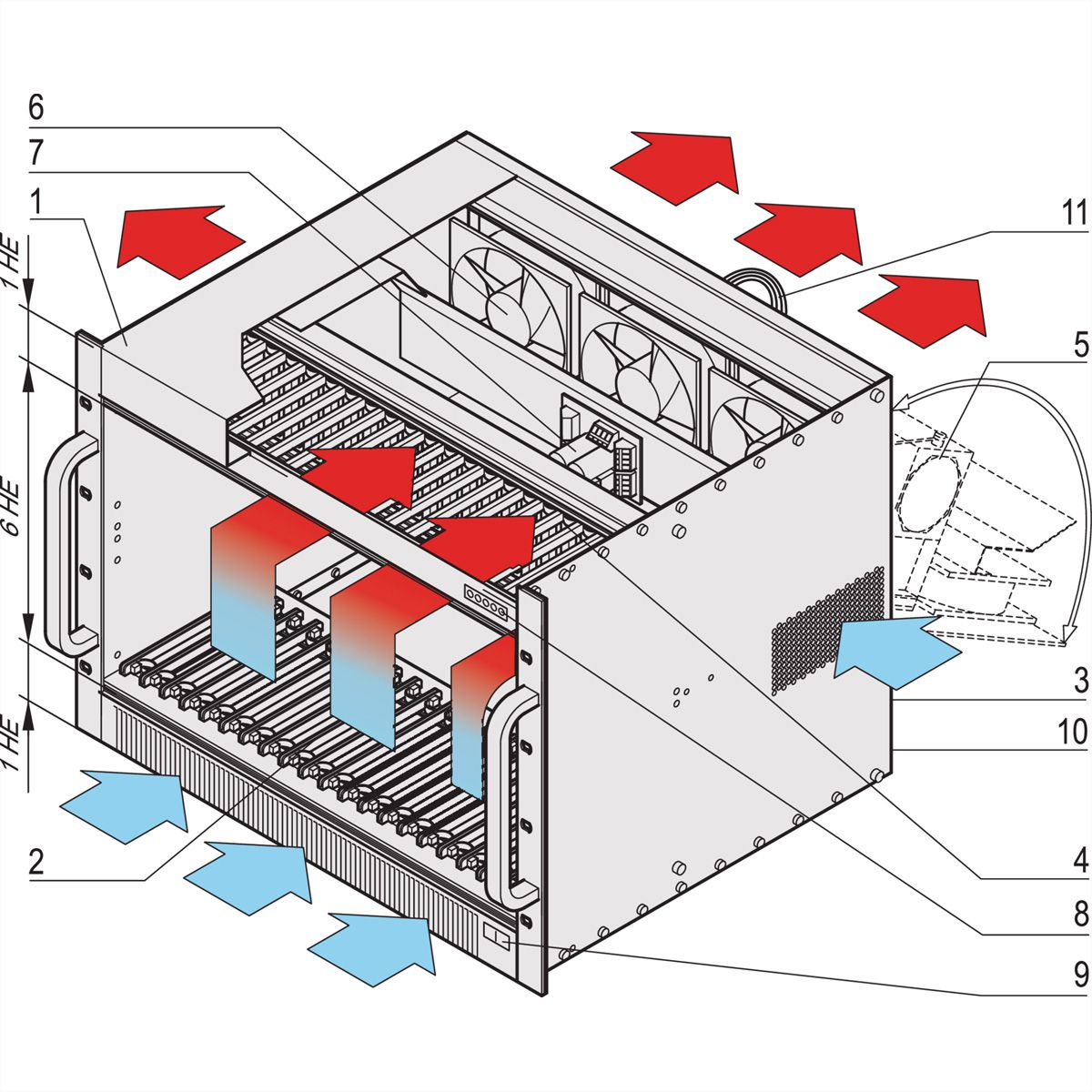

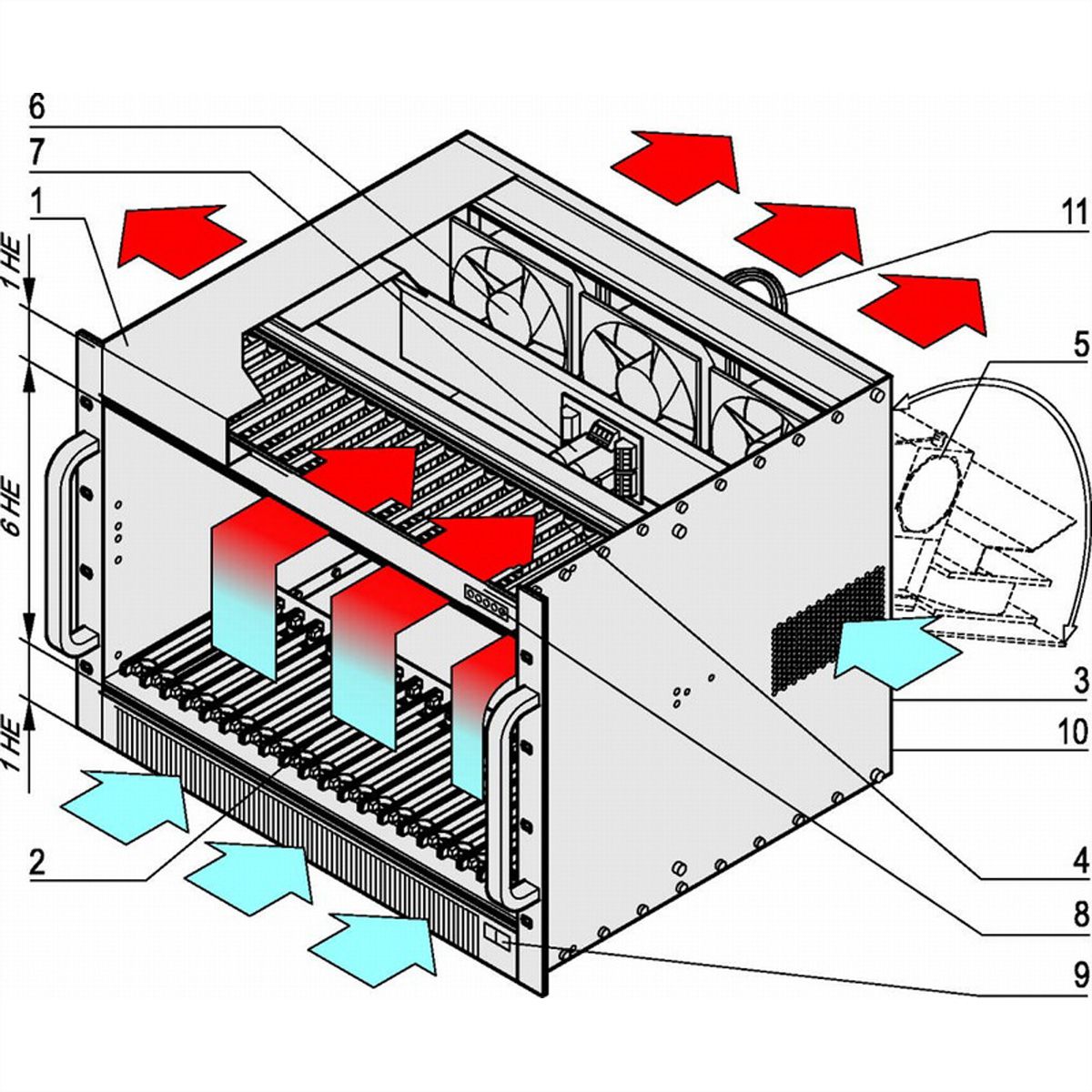

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with VITA 1. 1-1994 - System for vertical card installation with card formats - Front: 6 U, 160 mm deep - Rear: 6 U, 12 HP, 80 mm deep, for transition modules - Backplane VME21 slot, 6 U, J1/J2 monolithic - Power supply unit, open frame, 744 W (600 W at < 180 VAC) - Heat dissipation with three fans from front to rear, temperature-monitored with Fan Control Module (FCM) - Display module for DC operating voltages, fan and temperature alarm

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	VME PRO systems
Height units	8 U
Height	354.8 mm
Depth	355 mm

Downloads

Manufacturer data sheet - Deutsch (1.2 MB)

Download

Manufacturer data sheet - English (1.2 MB)

Download

PDF data sheet - Benutzeranleitung System - Deutsch (1.3 MB)

Download
