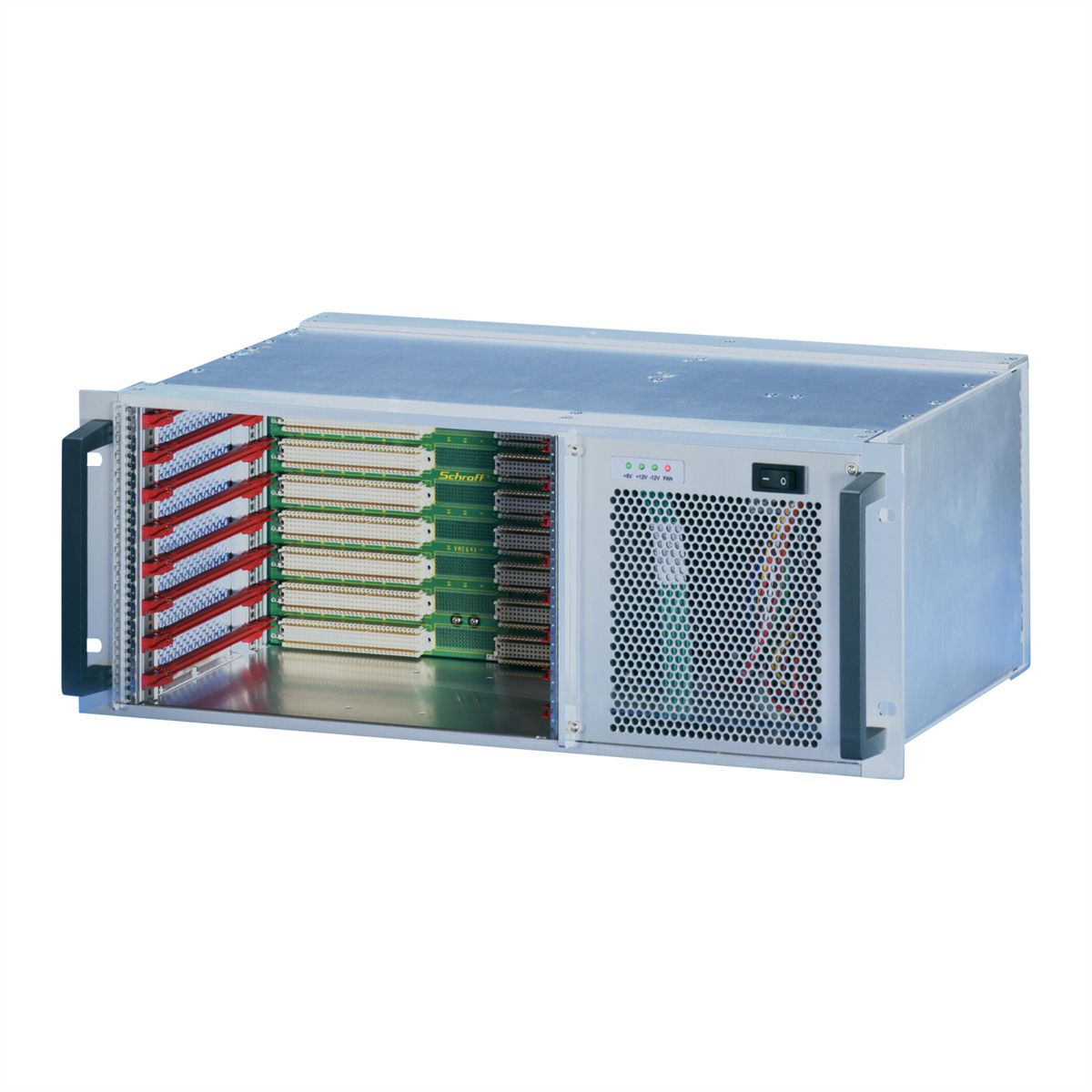

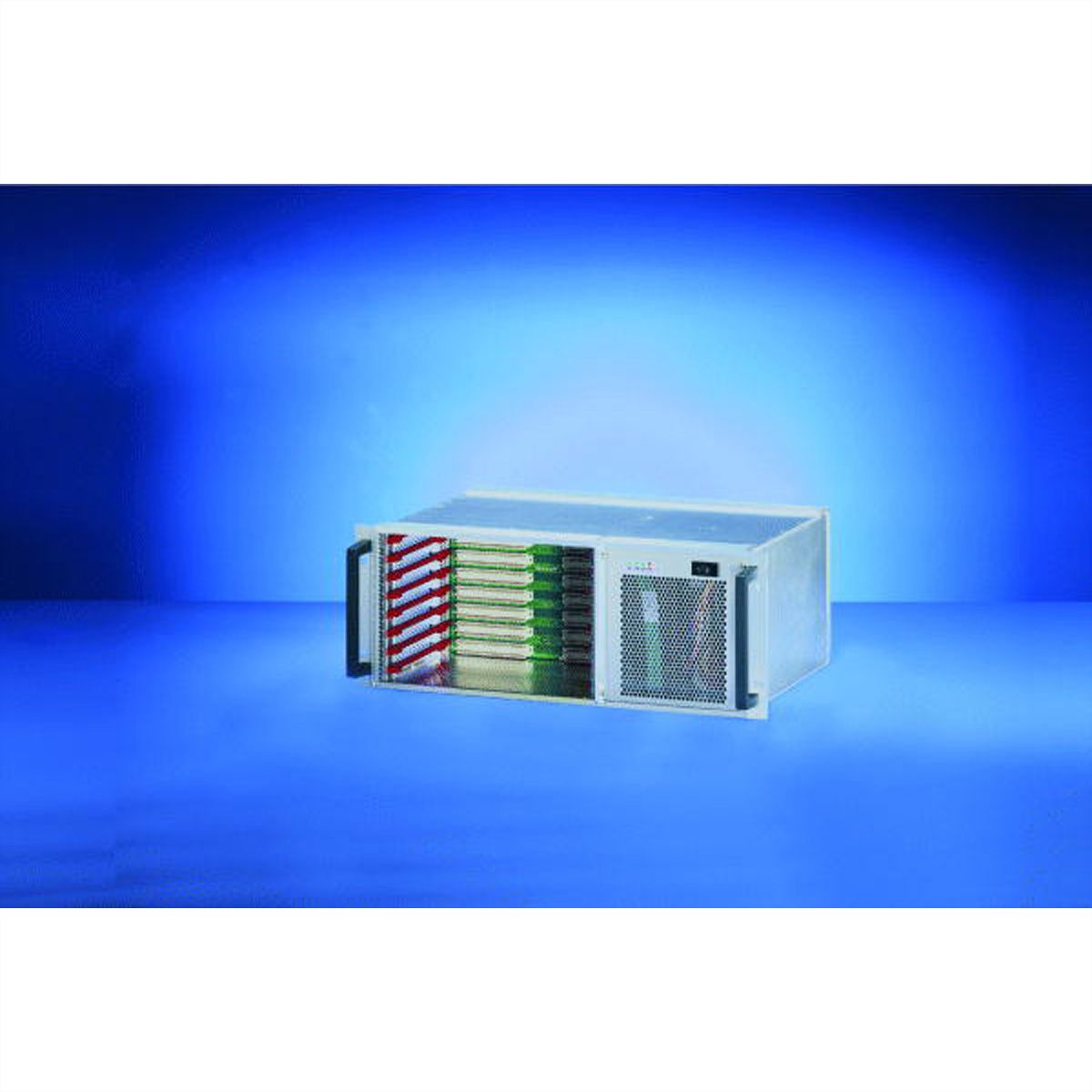

SCHROFF VME64x System, 4 U, 8 Slot, Open Frame PSU

SCHROFF VME64x System, 4 U, 8 Slot, Open Frame PSU

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 01/08/2025
Item no. 26152188
Brand / Manufacturer SCHROFF
Manuf. item no. 20836416
EAN 4036088051692
Item weight 11.1 kg

Description

VME64x system, 4 U, 8 slot, open-frame power supply unit

SUBR VME 64X 4U 84HP 8SL HOR

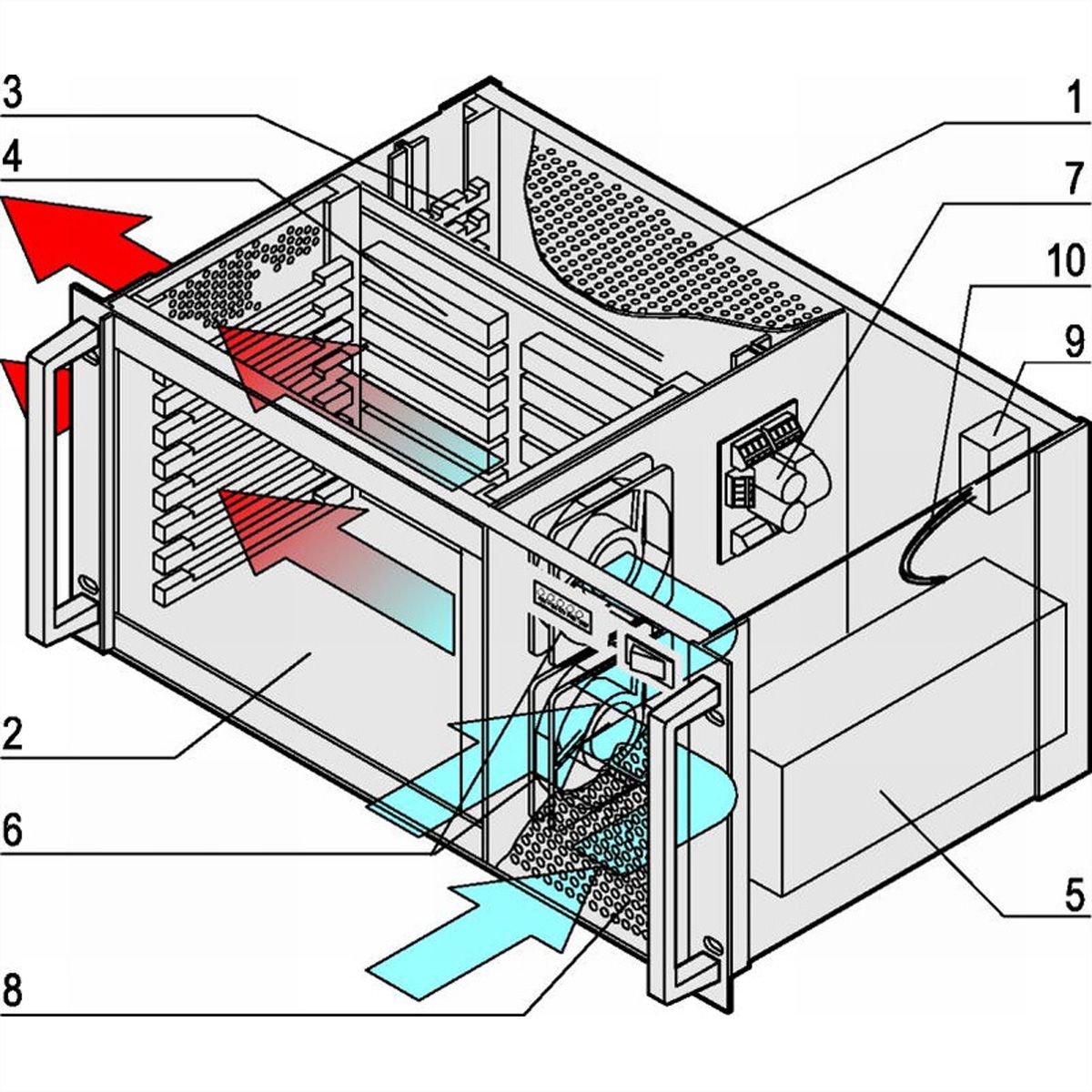

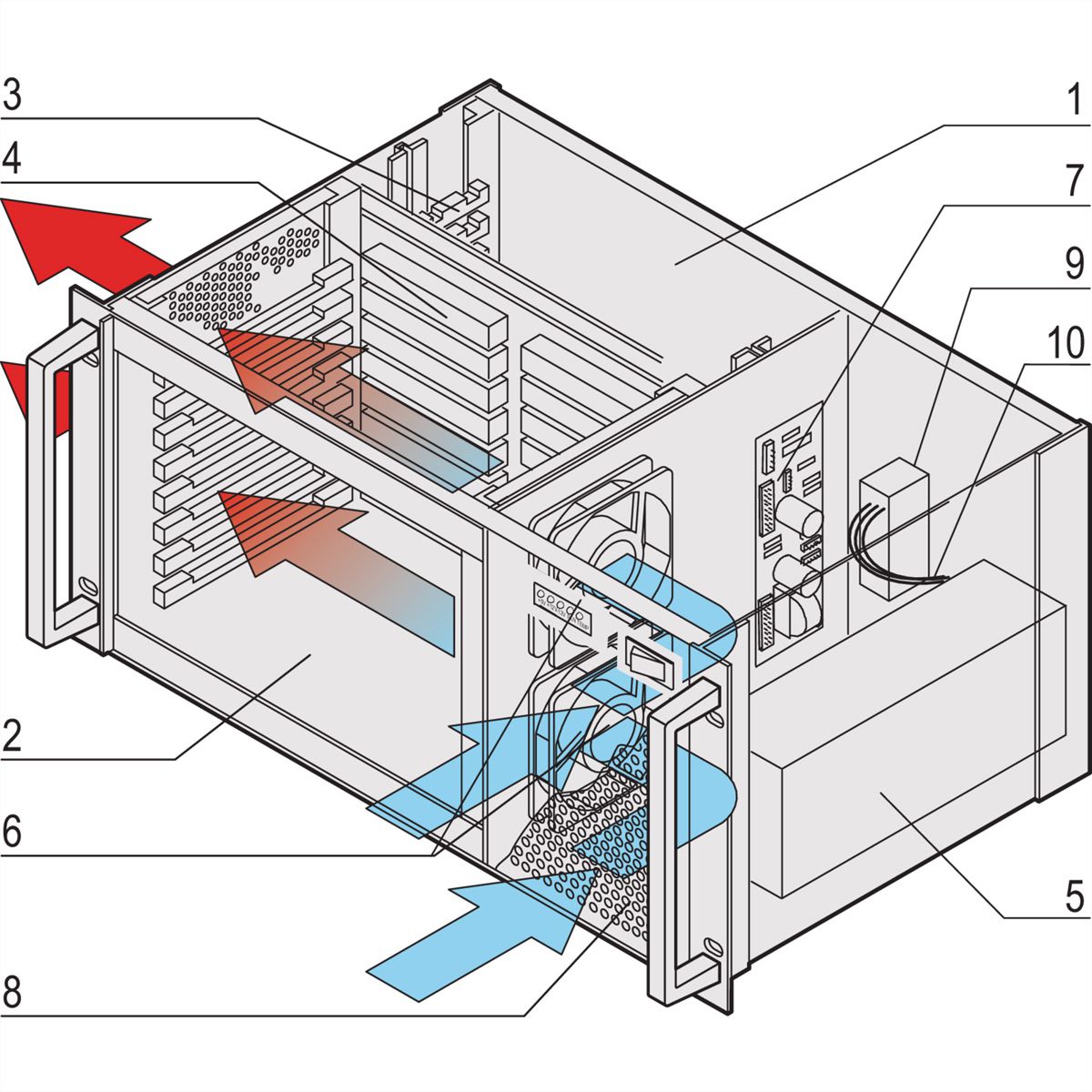

System conforms to IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane conforms to VITA 1. 1-1997 - System for horizontal card installation with card formats - Front: 6 U, 160 mm deep - Rear, rear I/O: 6 U, 80 mm deep - Backplane: VME64x8 slot, 6 U, without P0 connector - Power supply unit, open frame, 560 W (400 W at < 180 VAC) - Heat dissipation with fan from front to left - Display module for DC operating voltages, fan and temperature alarm

Specifications

Manufacturer SCHROFF
Product group SCHROFF 19" cabinets & expansion parts
Product type VME PRO systems
Height units 4 U
Height 177 mm
Depth 277.5 mm
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 11.1 kg

Downloads

Manufacturer data sheet - Deutsch (952.0 KB)

Download

Manufacturer data sheet - English (951.4 KB)

Download

PDF data sheet - Benutzeranleitung System - Deutsch (1.0 MB)

Download



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
