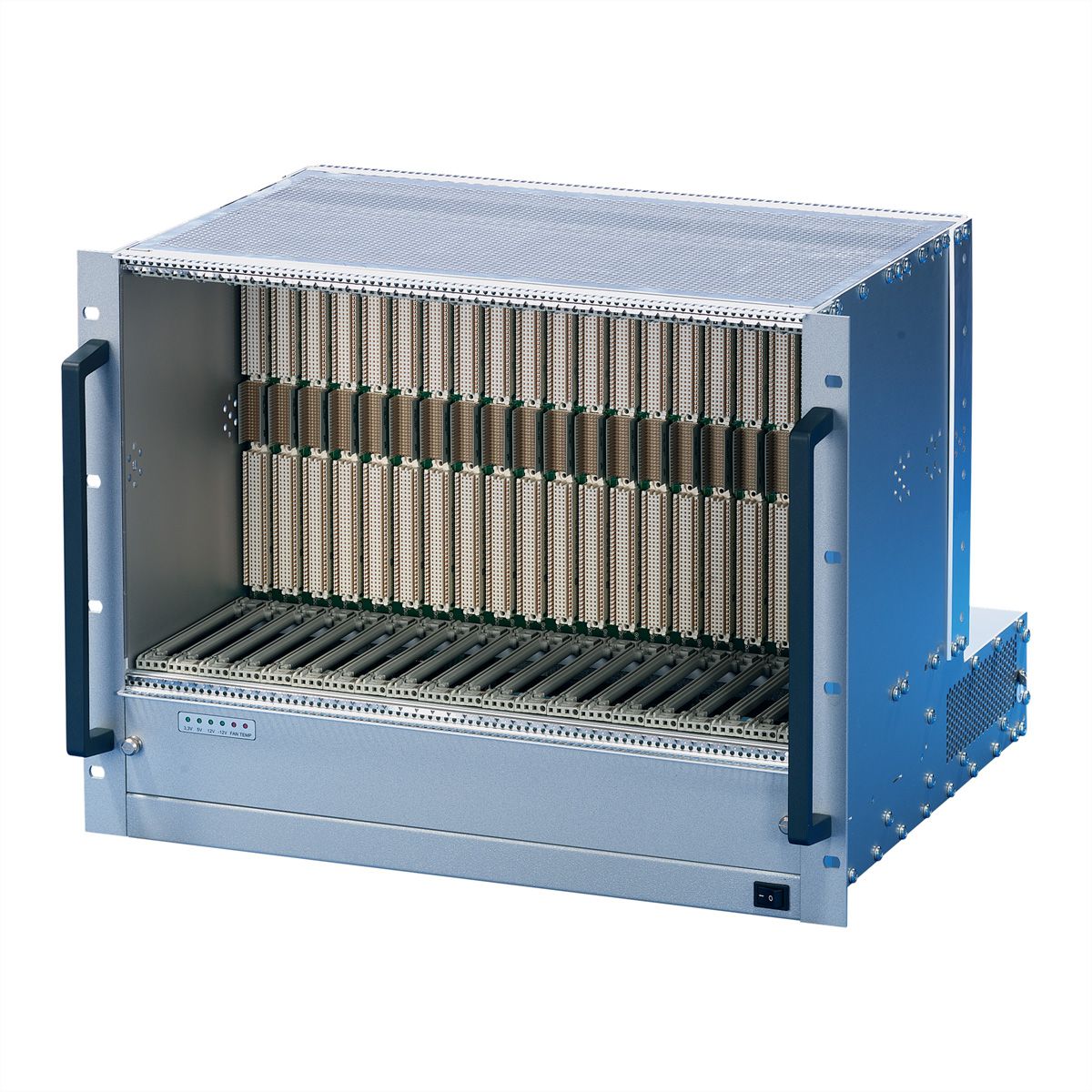

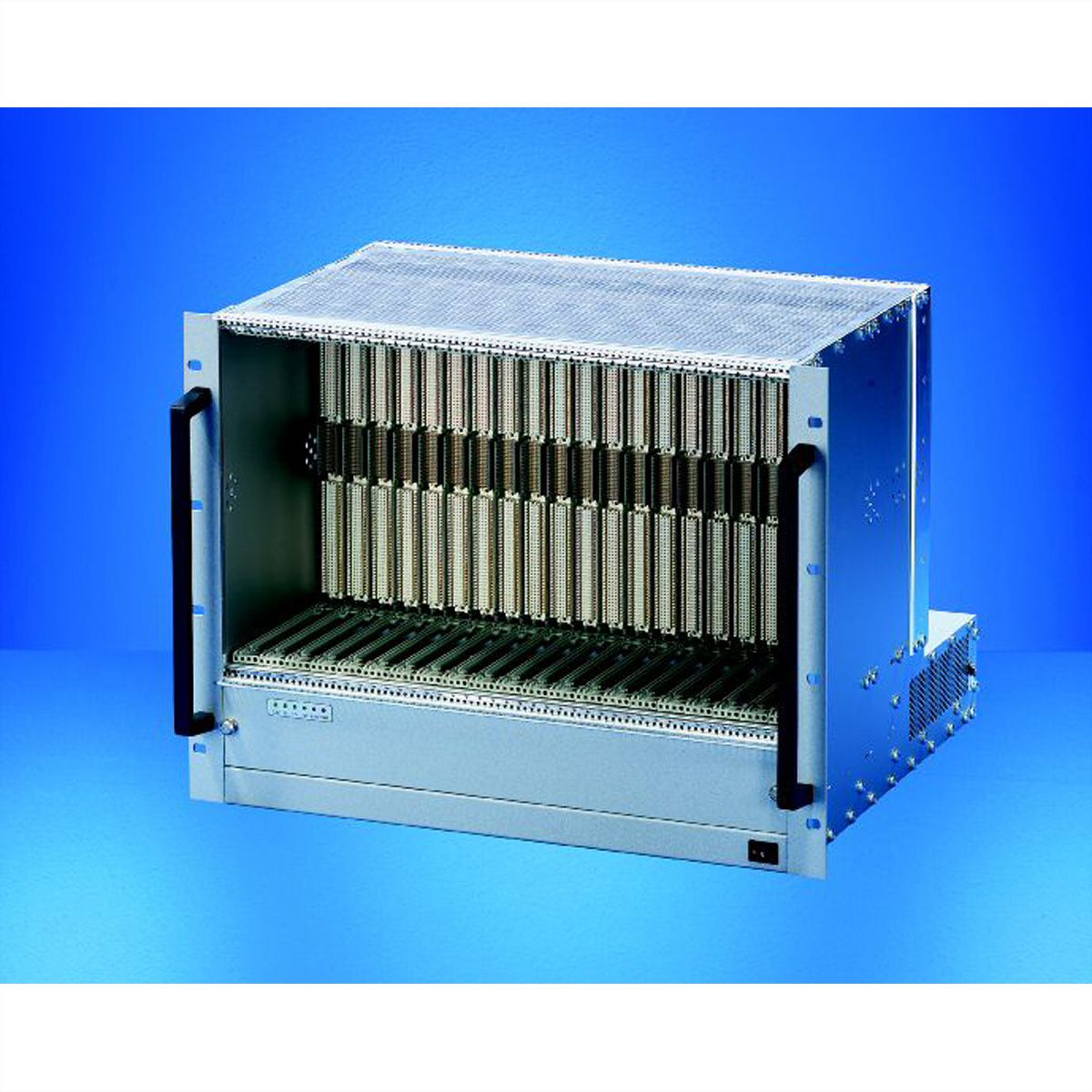

SCHROFF VME64x System, 8 U, 21 Slot, Open Frame PSU

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/09/2024

Item no.	26152196
Brand / Manufacturer	SCHROFF
Manuf. item no.	20836820
Item weight	19 kg

Description

VME64x system, 8 U, 21 slot, open-frame power supply unit

SUBR VME64X 8U 160/80 21SL

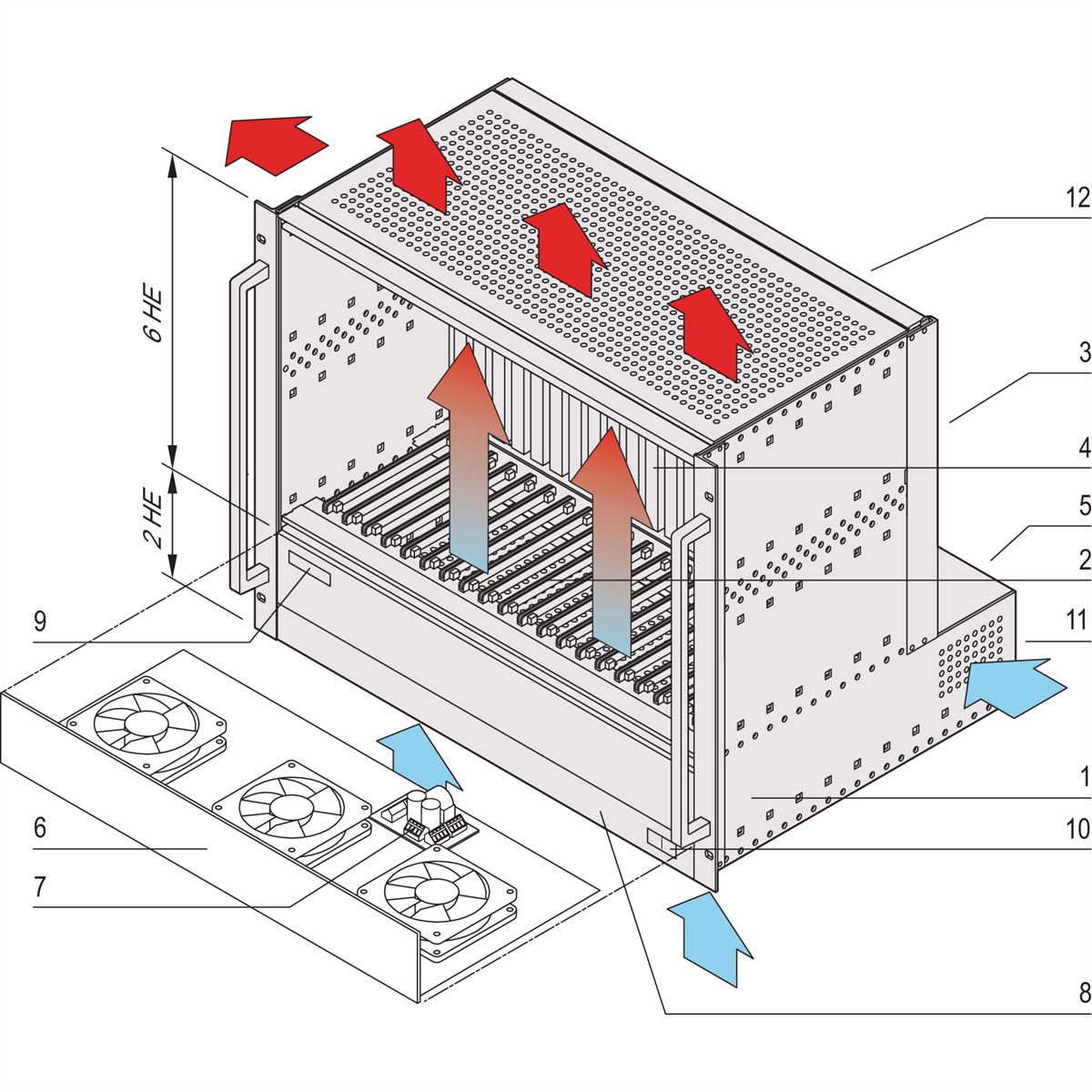

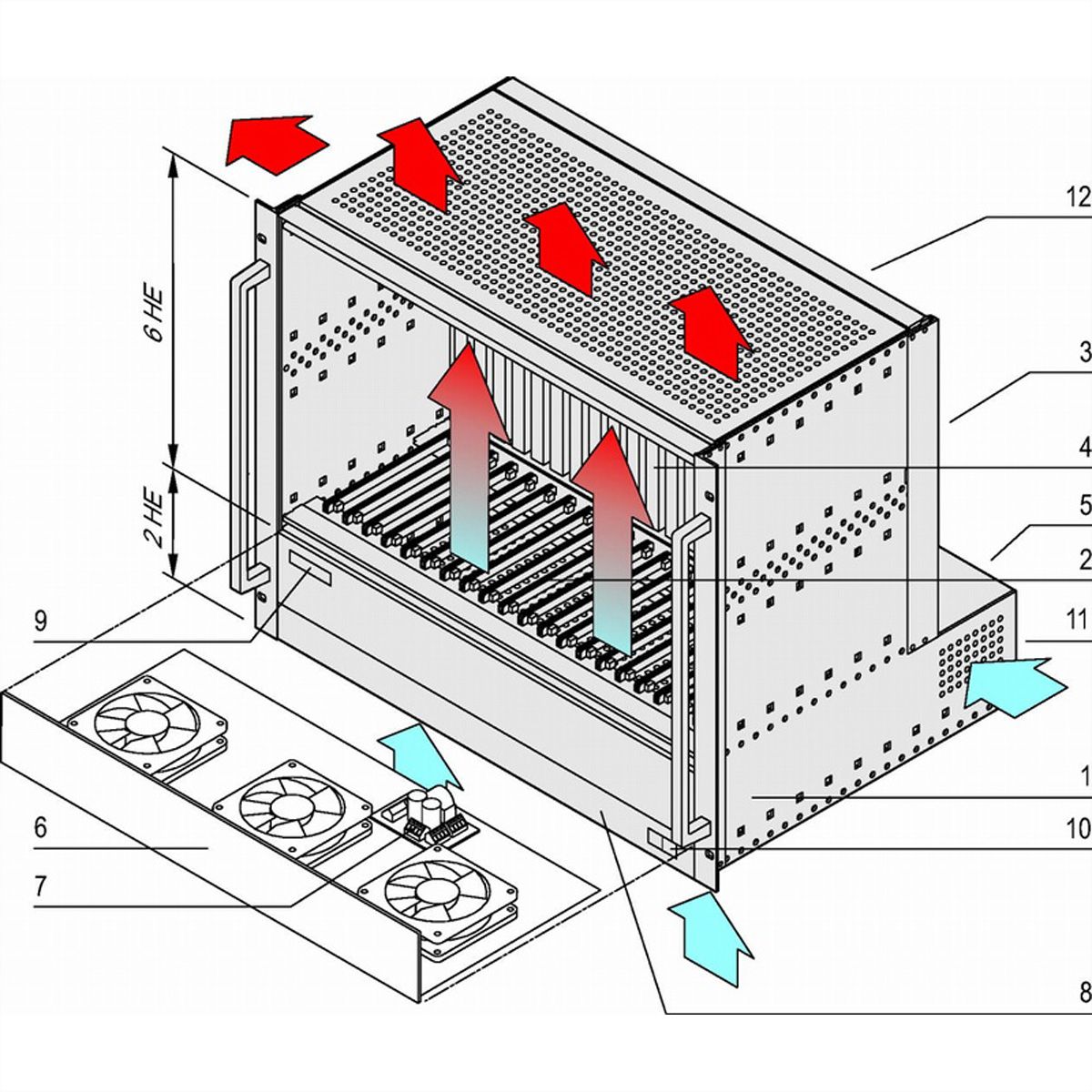

System in accordance with IEC 60297-3-101, -102, -103, IEEE 1101.1, 1101.10/11), backplane compliant with VITA 1. 1-1997 - System for vertical card installation with card formats - Front: 6 U, 160 mm deep - Rear, rear I/O: 6 U, 80 mm deep - Backplane: VME64x21 slot, 6 U, with P0 connector - Power supply unit, open frame, 642 W (600 W at < 180 VAC) - Heat dissipation with pull-out fan unit from bottom to top, temperature-monitored with fan control module (FCM) - Display module for DC operating voltages, fan and temperature alarm

Specifications

Manufacturer	SCHROFF
Product group	SCHROFF 19" cabinets & expansion parts
Product type	VME PRO systems
Height units	8 U
Height	354.8 mm
Depth	412 mm
