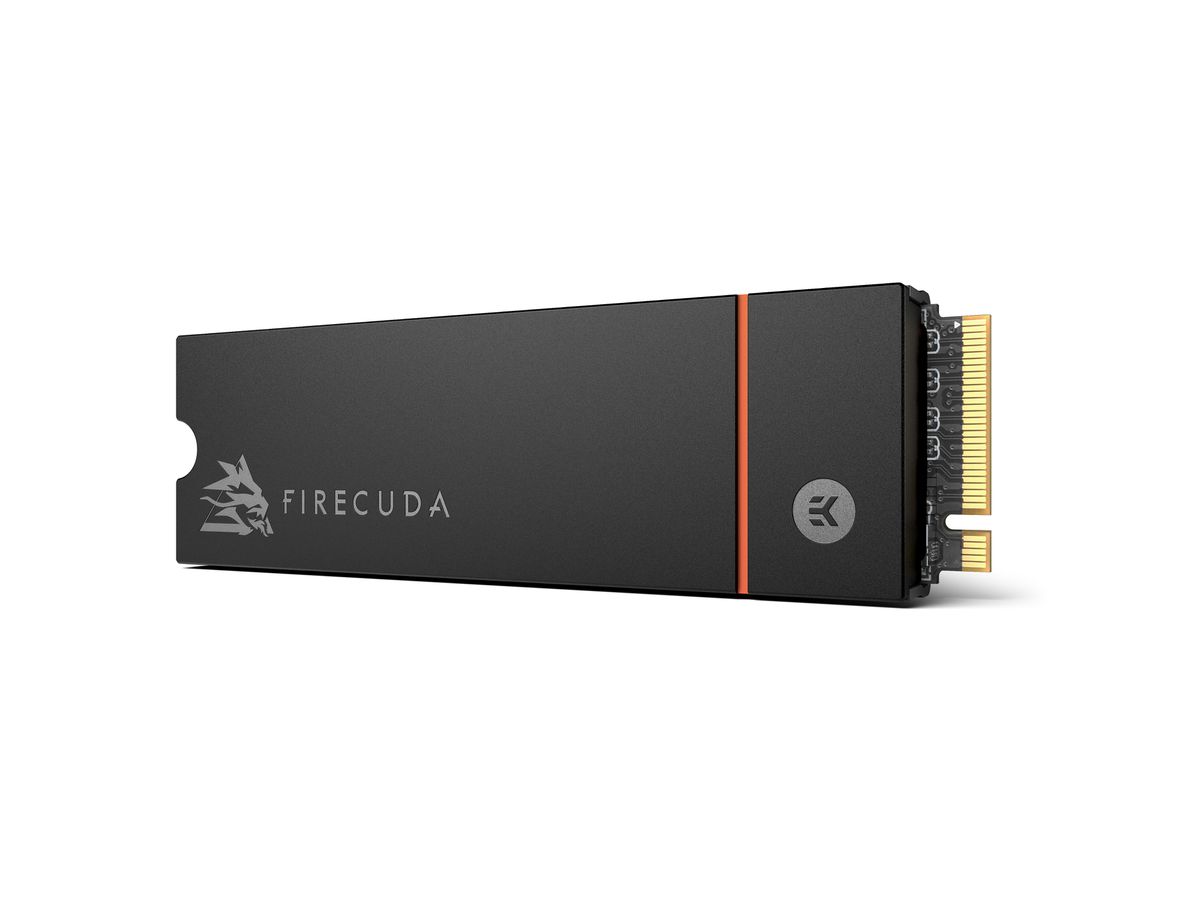

Seagate FireCuda 530 M.2 500 GB PCI Express 4.0 3D TLC NVMe

Seagate FireCuda 530 M.2 500 GB PCI Express 4.0 3D TLC NVMe

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Item no. 525619363
Brand / Manufacturer SEAGATE
Manuf. item no. ZP500GM3A023
EAN 0763649167540

Description

Seagate FireCuda 530. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 3000 MB/s, Component for: PC

FireCuda 530 with heatsink offers a minimalist design, anodized aluminium body, and finely textured micropore surface to improve heat transfer and lower SSD temps — making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.

FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.

Speed Reigns — The Fastest FireCuda Ever

FireCuda 530 dominates the SSD lineup, delivering:

- Blistering transfer speeds of up to 7,300 MB/s
- Absolute power to make content creations apps run faster and smoother
- Lightning-fast video rendering and exporting
- Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeat

Absolute Performance

Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.

Cool Speed Ahead

NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.

Form and Function

Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.

Endurance Unleashed

Designed to perform under heavy use and tough enough to go the distance with:

- 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years
- 1.8 Million Hours Mean Time Between Failures for trusted reliability
- Up to 5,100 TB Total Terabytes Written — durability delivered

Latest Tech

Push your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.

Storage Expansion for PS5™

The FireCuda 530 is compatible with PS5™ consoles, and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.

Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.

Rescue Data Recovery Services
We’ve Got Your Back

When the unexpected happens — like water damage or natural disaster —Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.

DiscWizard and SeaTools — Making Drive Management Easier

Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.

Specifications

Manufacturer SEAGATE
Product type Internal Solid State Drives
Storage capacity 500 GB
Hard disk size M.2
Technical details
Sustainability certificates RoHS
Doesn't contain Halogen
Pallet gross weight 47.5 kg
Weight & dimensions
Width 24.2 mm
Depth 80.2 mm
Height 9.84 mm
Weight 47 g
Power
Power consumption (average) 5.8 W
Power consumption (idle) 0.014 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 40 - 85 °C
Non-operating shock 1500 G
Packaging data
Package width 109 mm
Package depth 24 mm
Package height 134.2 mm
Package weight 62 g
Features
SSD form factor M.2
SSD capacity 500 GB
Interface PCI Express 4.0
Memory type 3D TLC
NVMe Yes
Component for PC
NVMe version 1.4
Read speed 7000 MB/s
Write speed 3000 MB/s
Random read (4KB) 400000 IOPS
Random write (4KB) 700000 IOPS
PCI Express interface data lanes x4
S.M.A.R.T. support Yes
TRIM support Yes
Mean time between failures (MTBF) 1800000 h
Windows operating systems supported Windows 10
Linux operating systems supported Yes
TBW rating 640
Logistics data
Pallet gross length 121.9 cm
Pallet gross width 50.8 cm
Pallet gross height 70.6 cm
Master (outer) cases per pallet 48 pc(s)
Layers per pallet 4 pc(s)
Products per pallet 480 pc(s)
Master (outer) case width 278 mm
Master (outer) case length 169 mm
Harmonized System (HS) code 84717070
Master (outer) case height 129 mm
Master (outer) case gross weight 920 g
Products per master (outer) case 10 pc(s)

Downloads

PDF data sheet - Seagate FireCuda 530 M.2 500 GB PCI Express 4.0 3D TLC NVMe - English (171.8 KB)
