SOFTING CableMaster PoE, Wiring and PoE++ tester

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 11/25/2024

Item no.	24010142
Brand / Manufacturer	Softing IT Networks
Manuf. item no.	226102
EAN	0046382254082
Item weight	0.416 kg

Description

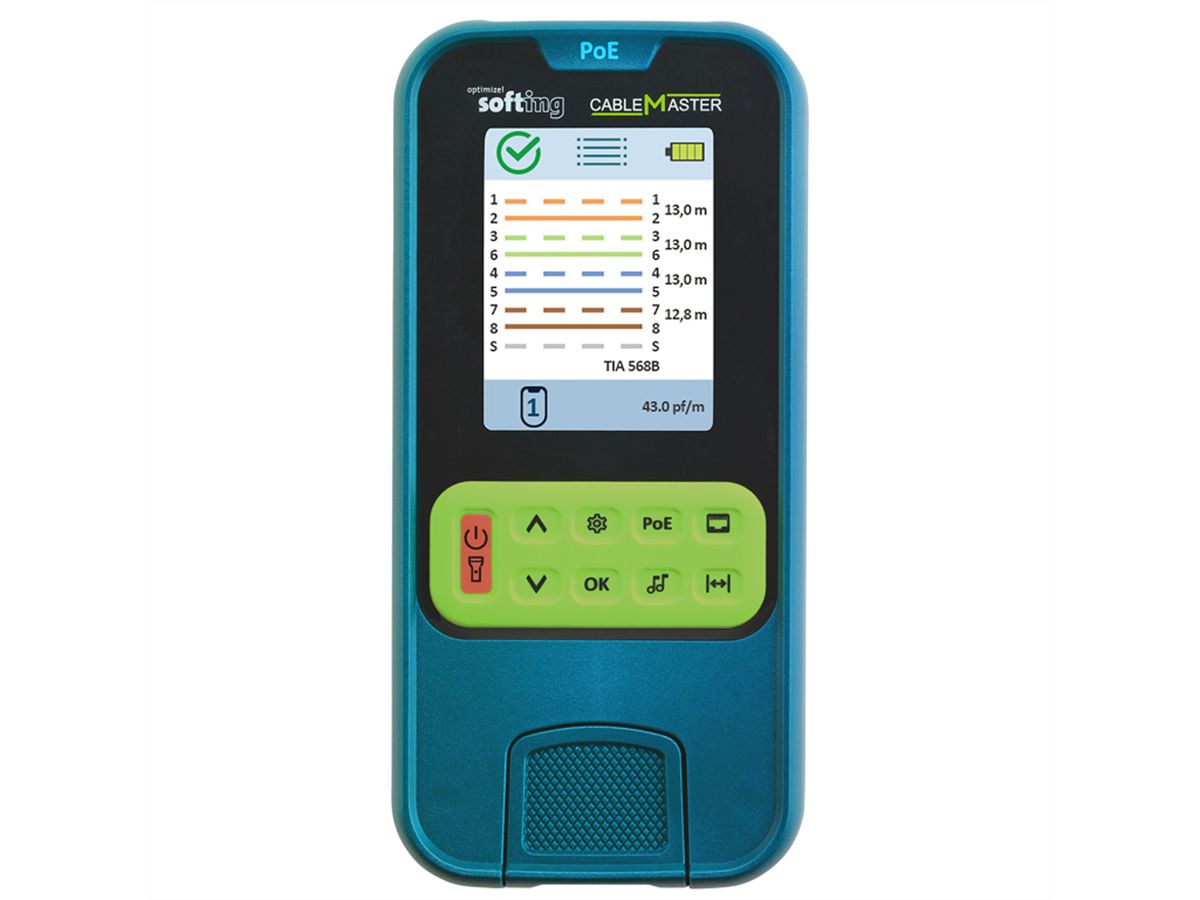

Handy wiring tester with colour display and PoE diagnostics up to 90 W

Handy wiring tester with integrated length measurement and tone generator.
In addition, the device recognises PoE up to class 8, 90 W (PoE++), and briefly applies power accordingly to test the PoE supply.
The device has a 3.5" colour screen with a graphical user interface, making it extremely easy to operate and providing easy-to-understand test results.

Compact wiring and PoE++ tester (PoE: Power Over Ethernet)
Length measurement
Tone generator, compatible e.g. with Softing CP15
Colour display with intuitive menus
Removable remote unit

Specifications

Manufacturer	Softing IT Networks
Product group	Tester
Product type	Cable tester
Scope of delivery	CableMaster PoE with integrated remote, card with QR code with link to manual, 6x AA battery (non-rechargeable)
Accessories: Rechargeable battery/battery required	Mignon battery (AA), 06x
Operating temperature min.	-10 °C
Operating temperature max.	50 °C
Height	38 mm
Width	85 mm
Depth	175 mm
Weight	600 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.416 kg
