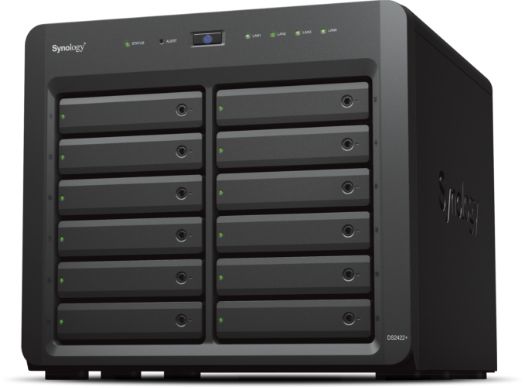

Synology DiskStation DS2422+ NAS/storage server Tower Ethernet LAN Black V1500B
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
LoginDescription
Synology DiskStation DS2422+. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: AMD Ryzen, Processor manufacturer: AMD, Processor model: V1500B. Internal memory: 4 GB, Internal memory type: DDR4, Maximum RAM supported: 32 GB. Ethernet LAN data rates: 1000 Mbit/s, Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. Chassis type: Tower, Cooling type: Active, Product colour: Black
Built for high-performance mass storageThe 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.Faster performanceComfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.Rise to the challengePrepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.Ready for remote workEmpower your workforce to collaborate, share files, and communicate from anywhere. Certified virtual machine storageDSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.
Specifications
Manufacturer | SYNOLOGY |
---|---|
Product type | NAS & Storage Servers |
Technical details
Sustainability certificates | RoHS |
---|---|
Harmonized System (HS) code | 84714100 |
Processor
Processor family | AMD Ryzen |
---|---|
Processor manufacturer | AMD |
Processor model | V1500B |
Processor frequency | 2.2 GHz |
Processor cores | 4 |
Number of processors supported | 1 |
Memory
Internal memory | 4 GB |
---|---|
Internal memory type | DDR4 |
Maximum RAM supported | 32 GB |
Memory slots | 2 |
Memory form factor | SO-DIMM |
ECC | Y |
Ports & interfaces
Ethernet LAN (RJ-45) ports | 4 |
---|---|
USB port | Y |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
PCI Express x8 (Gen 3.x) slots | 1 |
Weight & dimensions
Width | 300 mm |
---|---|
Depth | 340 mm |
Height | 270 mm |
Weight | 9.5 kg |
Power
Power supply location | Built-in |
---|---|
Power supply unit (PSU) capacity | 550 W |
Number of power supply units | 1 |
Power consumption (typical) | 73.11 W |
Power consumption (HDD standby) | 32.12 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Operational conditions
Operating temperature (T-T) | 0 - 40 °C |
---|---|
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 5 - 95% |
Network
Ethernet LAN | Y |
---|---|
Ethernet LAN data rates | 1000 Mbit/s |
Wake-on-LAN ready | Y |
Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
Link aggregation | Y |
Storage
Storage drives installed | N |
---|---|
Number of storage drives supported | 12 |
Installed storage drive type | N |
Supported storage drive types | HDD & SSD |
RAID support | Y |
Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
Storage drive sizes supported | 2.5,3.5" |
Maximum supported storage capacity | 108 TB |
RAID levels | 0, 5, 6, 10, JBOD |
Hot-swap drive bays | Y |
Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
Certificates
Certification | FCCCEBSMIVCCIRCMUKCAEACCCCKCUL |
---|
Software
Operating system installed | DiskStation Manager |
---|
Packaging content
Cables included | AC, LAN (RJ-45) |
---|
Design
Chassis type | Tower |
---|---|
Cooling type | Active |
Product colour | Black |
Number of fans | 2 fan(s) |
Fan diameter | 12 cm |
Fan diameter 2 | 12 cm |
Drive bay locking | Y |
Performance
Type | NAS |
---|---|
Device class | Small & Medium Business |
Backup function | Y |
Backup features | Cloud, iSCSI LUN |
Multilingual support | Y |
Noise level | 25 dB |
Web-based management | Y |
Access Control List (ACL) | Y |
Browser supported | Chrome, Firefox, Edge, Internet Explorer, Safari |
