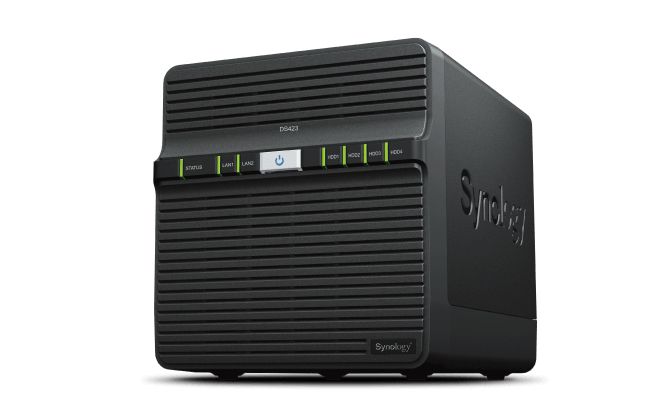

Synology DiskStation DS423 NAS/storage server Realtek RTD1619B 2 GB DDR4 DiskStation Manager Black

Item no.	527768768
Brand / Manufacturer	SYNOLOGY
Manuf. item no.	DS423
EAN	4711174724918

Description

Synology DiskStation DS423. Type: NAS, Device class: Home & Home Office. Processor family: Realtek, Processor model: RTD1619B, Processor frequency: 1.7 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Operating system installed: DiskStation Manager

Simplify your data management

Secure cloud storage
Flexibly store up to 72 TB of data1 with 100% ownership and enjoy multi-platform access from anywhere.

Data sharing made easy
Safely share files and media over your private cloud for easier collaboration and better productivity.

Versatile video surveillance
Leverage intuitive surveillance tools to protect your premises and store footage from up to 30 IP cameras.2

Create a private cloud hub for your data
Import and sync data scattered across PCs, Macs, phones, and external storage devices to implement well-organized file management for your business.

Multi-device access
Browse, access, edit, and share files securely and conveniently via desktop, mobile, or web browser platforms. Use intuitive admin tools to track and set file permissions and control access to documents, files, and other data.

On-demand sync
Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility.

Cloud integration
Sync your private storage servers with public cloud services such as Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.

Cross-platform sharing
Build a private data cloud that syncs and shares files swiftly between multiple storage servers, letting everyone access the same set of data at their convenience.

Safeguard your data
Powered by Synology DiskStation Manager (DSM), the DS423 utilizes Btrfs, a next-generation file system, to secure data against corruption and allows users to roll back any accidental or malicious changes with instantaneous snapshots.

Versatile storage solution for essential needs
Manage and organize photos efficiently, back up and secure your digital data, and safeguard your physical premises with the DS423.

Smart and secure photo management
Store and organize photos, albums, and other media with smart and intuitive features. Back up your memories with the mobile app, and leverage privacy-focused options to share media securely with friends, family, or colleagues.

30%
faster photo indexing

Protect all your data
Safeguard your digital world and back up all your documents, files, photos, and more with license-free backup solutions.

Automatically back up memories and files
Safeguard mobile media such as photos and videos by automatically storing remote copies onto Synology Photos or Synology Drive.

Survive cyberattacks and prevent data leaks
Protect your data against ransomware attacks or accidental deletion with real-time or scheduled backups of computer folders with Synology Drive.

Intuitive video surveillance
Secure your home or business with a powerful solution to monitor, archive, and analyze footage centrally.

Wide device compatibility
Connect up to 30 IP cameras by selecting from a wide variety of over 8,300 validated models or ONVIF devices.2

Access from anywhere
Monitor video streams in real time via web browsers, desktop clients, or mobile apps to protect your premises 24/7. Set up alerts and triggers to get notified of suspicious activity.

Intuitive video surveillance
Multi-layered backup solutions
Leverage Synology solutions to back up all data stored on your DS423 onto a secondary server, external storage device, or the cloud.

Flexible off-site backups
Back up your Synology device, including system settings, applications, and shared folders, save space with data deduplication, and store copies to multiple destinations.

Near-instantaneous protection
Create point-in-time snapshots of shared folders and LUNs for added protection of your data. Snapshot Replication enables an RPO as low as 5 minutes and recovery within seconds.

Specifications

Manufacturer	SYNOLOGY
Product type	NAS & Storage Servers

Processor

Processor family	Realtek
Processor manufacturer	Realtek
Processor model	RTD1619B
Processor frequency	1.7 GHz
Processor cores	4

Memory

Internal memory	2 GB
Internal memory type	DDR4
Maximum RAM supported	2 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Weight & dimensions

Width	184 mm
Depth	168 mm
Height	230 mm
Weight	2.21 kg

Power

Power supply location	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Redundant power supply (RPS) support	No
Power consumption (typical)	32.41 W
Power consumption (sleep)	4.97 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
iSCSI support	Yes
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Storage

Storage drives installed	No
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	HDD & SSD
RAID support	Yes
Supported storage drive interfaces	Serial ATA
Storage drive size	2.5/3.5"
Storage drive sizes supported	2.5,3.5"
Maximum supported storage capacity	108 TB
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4

Software

Operating system installed	DiskStation Manager

Packaging content

External power adapter	Yes
Cables included	AC, LAN (RJ-45)
Power cables quantity	1

Other features

Compliance certificates	CCC, CE, Federal Communications Commission (FCC), UKCA

Design

Cooling type	Active
Product colour	Black
Number of fans	2 fan(s)
Fan diameter	8 cm
Fan diameter 2	8 cm
LED indicators	Yes
Built-in display	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in speaker(s)	No

Performance

Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	1024 user(s)
Noise level	22.9 dB
Card reader integrated	No
Security algorithms	HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
Reset button	Yes
On/off switch	Yes
Built-in FTP server	Yes
Browser supported	Google Chrome, Firefox, Microsoft Edge, Safari
System log	Yes

Sustainability

Sustainability certificates	CCC, CE, Federal Communications Commission (FCC), UKCA
