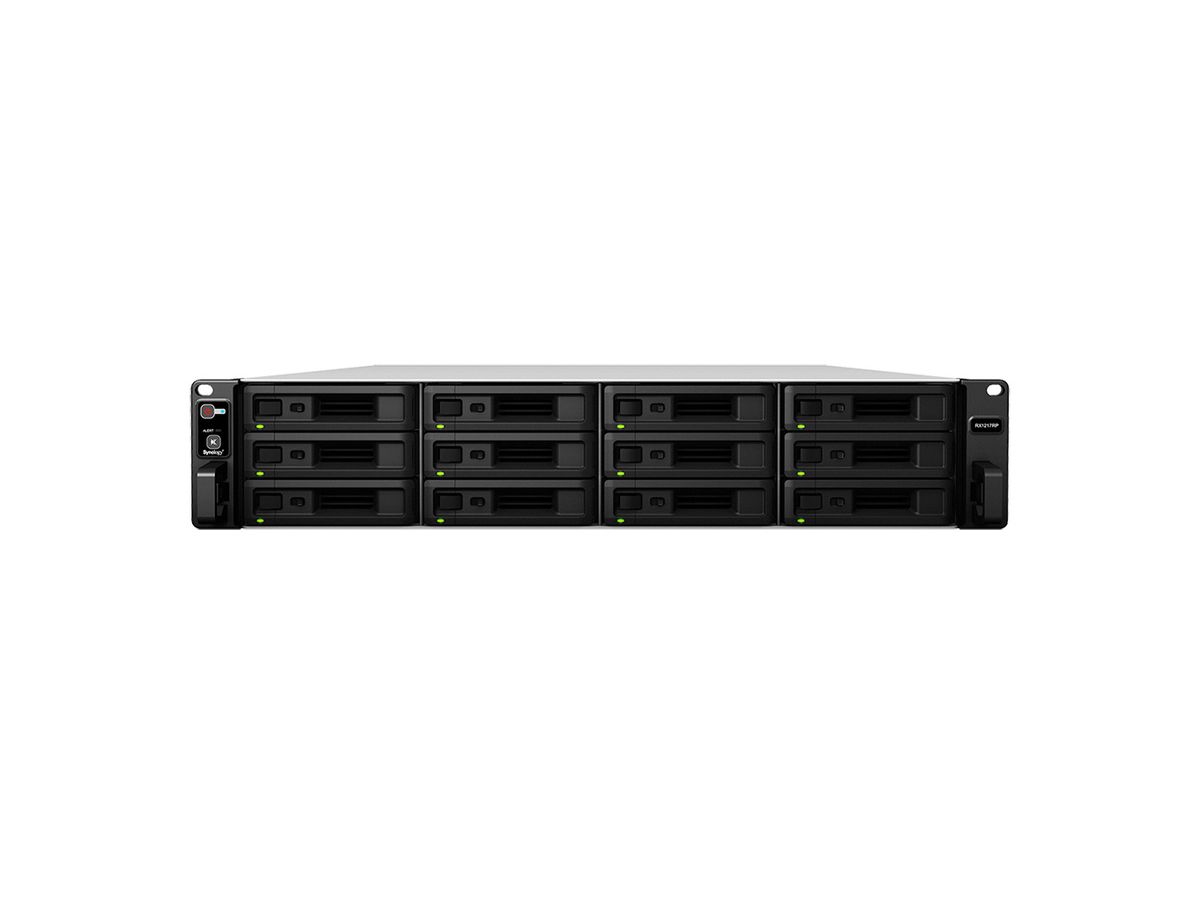

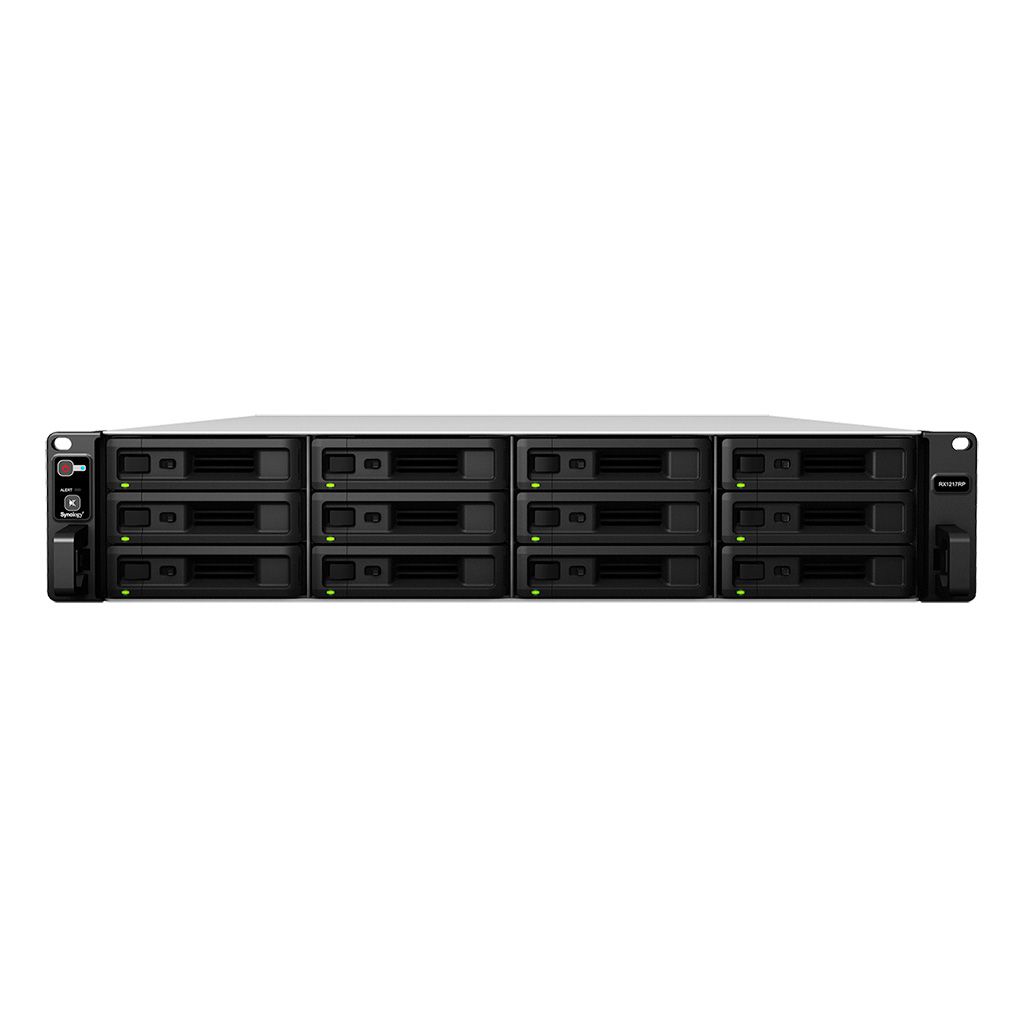

Synology RX1217RP Rack (2U) Black disk array

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 12/02/2024

Item no.	517477988
Brand / Manufacturer	SYNOLOGY
Manuf. item no.	RX1217RP
EAN	4711174722310
Item weight	18.875 kg

Description

Synology RX1217RP. Supported storage drive types: HDD, SSD, Maximum supported storage capacity: 120 TB, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Chassis type: Rack (2U), Colour of product: Black, Number of fans: 3 fan(s). Compatible products: Synology RS3617xs. Power supply unit (PSU) capacity: 500 W, Power consumption (typical): 71.32 W, AC input voltage: 100-240. Width: 430.5 mm, Depth: 692 mm, Height: 88 mm

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations. Volume expansion & backup When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail. When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations. Reliable plug-and-use design Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance. Green & easy to manage Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Specifications

Manufacturer	SYNOLOGY
Product type	Disk Arrays

Ports & interfaces

USB connectivity	N
InfiniBand	Y

Weight & dimensions

Width	430.5 mm
Depth	692 mm
Height	88 mm
Weight	13.4 kg

Power

Power supply unit (PSU) capacity	500 W
Number of power supply units	2
Redundant power supply (RPS) support	Y
Power consumption (typical)	71.32 W
AC input voltage	100-240
AC input frequency	50/60

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C

Storage

Storage drives installed	N
Installed storage drive type	N
Supported storage drive types	HDD, SSD
Number of storage drives supported	12
Maximum supported storage capacity	120 TB
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Data transfer rate	6 Gbit/s
Hot-swap drive bays	Y

Packaging content

Cables included	AC, InfiniBand

Design

Chassis type	Rack (2U)
Colour of product	Black
Number of fans	3 fan(s)
Noise level	54.2 dB
RoHS compliance	Y
Certification	FCC A, CE A, BSMI A

Performance

Compatible products	Synology RS3617xs

Downloads

PDF data sheet - Synology RX1217RP Rack (2U) Black disk array - English (436.7 KB)

Download
