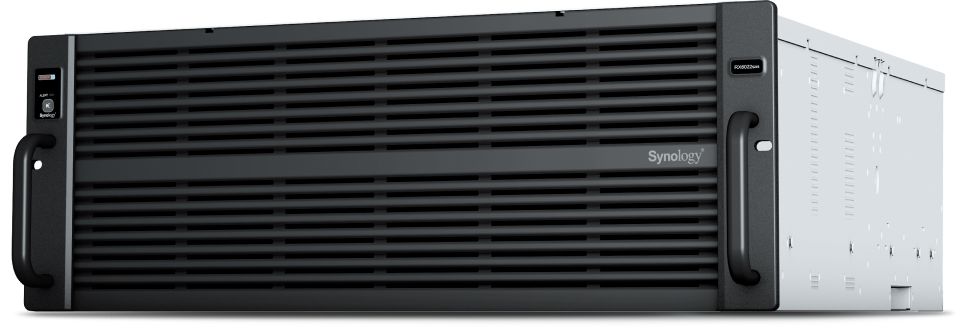

Synology RX6022SAS storage drive enclosure HDD enclosure Black 3.5"
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 526837208 |
|---|---|
| Brand / Manufacturer | SYNOLOGY |
| Manuf. item no. | RX6022SAS |
| EAN | 4711174723935 |
:strip_icc():strip_exif()/logos/synology.png "SYNOLOGY")
Description
Synology RX6022SAS. Product type: HDD enclosure. Number of storage drives supported: 60, Storage drive size: 3.5", Supported storage drive interfaces: SAS, Maximum storage capacity: 960 TB, Hot-swap. Product colour: Black
Massively expand your storageMaximize the potential of your cold or warm storage deployment by adding 60 additional drives to your HD6500server in minutes. With support for up to four expansion units, you can easily accommodate massive storage growth without incurring in costly disruptions. Support for SAS multipathing allows you to achieve up to twice the performance when deploying multiple expansion units, while online storage expansion and comprehensive storage management tools in Synology DiskStation Manager (DSM) simplify initial configuration and management down the road.Designed for service uptimeExcel in tackling large-scale applications while maintaining the highest level of service availability through clever hardware solutions.SAS multipathingMaximize resiliency against hardware malfunctions with SAS multipathing. Thanks to alternate physical paths, the system can reroute data when the primary interface or connection fails.Redundant componentsReduce the impact of maintenance on service availability with modular design for drive trays and system fans, enabling easy and quick replacement. Redundant power supply units keep your data online in the event of power source failure.Plug-and-play deploymentMinimize downtime when expanding your storage infrastructure with online storage expansion, which allows you to add new volumes or expand RAID volumes on the RX6022sas without affecting services on the HD6500.Achieve peak performance with Synology drivesSynology drives’ finely tuned firmware ensures maximum integration with Synology hardware and software. Backed by a testing regimen that replicates heavy data center use, they deliver optimal performance and reliability even when tackling the most demanding applications.
Specifications
| Manufacturer | SYNOLOGY |
|---|---|
| Product type | Storage Drive Enclosures |
Technical details
| Harmonized System (HS) code | 84733080 |
|---|
Ports & interfaces
| USB connectivity | N |
|---|
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 985 mm |
| Height | 176 mm |
| Weight | 33.9 kg |
Power
| Power source type | AC |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 200 - 240 V |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Storage
| Storage drive size | 3.5" |
|---|---|
| Supported storage drive interfaces | SAS |
| Number of storage drives supported | 60 |
| Hot-swap | Y |
| Maximum storage capacity | 960 TB |
Packaging content
| Cables included | AC, SAS |
|---|---|
| Quick installation guide | Y |
Design
| Product type | HDD enclosure |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| Certification | ULFCCCEBSMIUKCAEACVCCIRCMKC |
