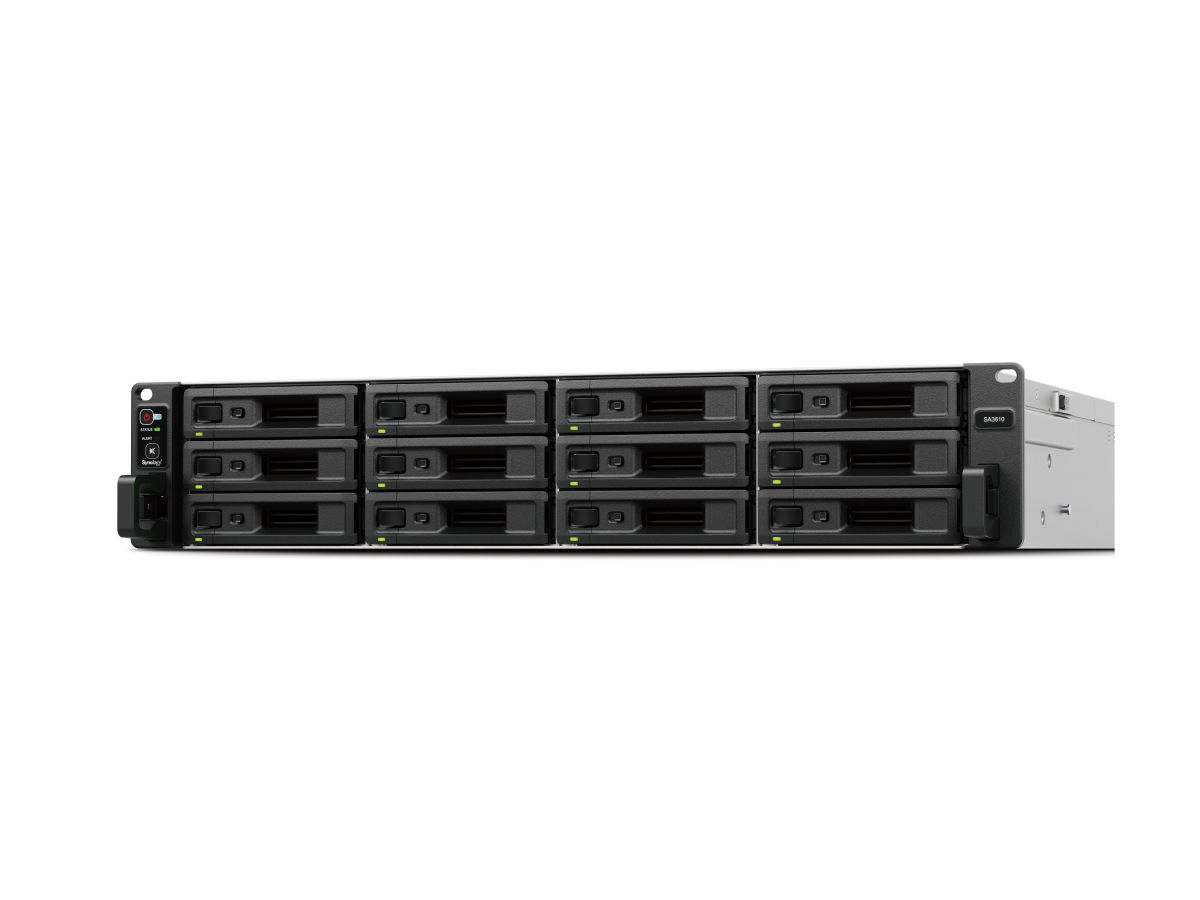

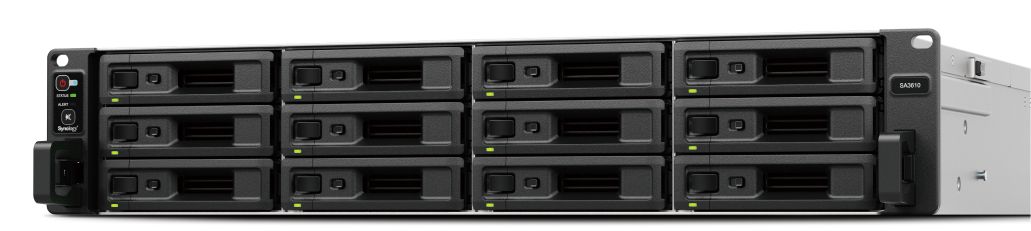

Synology SA SA3610 NAS/storage server Rack (2U) Ethernet LAN Black, Grey D-1567
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 527700083 |
|---|---|
| Brand / Manufacturer | SYNOLOGY |
| Manuf. item no. | SA3610 |
| EAN | 4711174725038 |
:strip_icc():strip_exif()/logos/synology.png "SYNOLOGY")
Description
Synology SA SA3610. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS), Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Xeon®, Processor manufacturer: Intel, Processor model: D-1567. Internal memory: 16 GB, Internal memory type: DDR4, Maximum RAM supported: 128 GB. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T. Chassis type: Rack (2U), Cooling type: Active, Product colour: Black, Grey
Specifications
| Manufacturer | SYNOLOGY |
|---|---|
| Product type | NAS & Storage Servers |
Technical details
| Sustainability compliance | Y |
|---|---|
| Sustainability certificates | CE, RoHS |
Processor
| Processor family | Intel® Xeon® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | D-1567 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 12 |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| Conflict-Free processor | Y |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | RDIMM |
| ECC | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 7 |
|---|---|
| USB port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
Weight & dimensions
| Width | 482 mm |
|---|---|
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 14.5 kg |
Power
| Power supply location | Built-in |
|---|---|
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | N |
| Power consumption (typical) | 137.54 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Network
| Ethernet LAN | Y |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| iSCSI support | Y |
| Wake-on-LAN ready | Y |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Link aggregation | Y |
Storage
| Storage drives installed | N |
|---|---|
| Number of storage drives supported | 12 |
| Installed storage drive type | N |
| Supported storage drive types | HDD & SSD |
| RAID support | Y |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Online RAID migration | Y |
| Online RAID expansion | Y |
| Hot-swap drive bays | Y |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
Certificates
| Certification | FCCCEBSMIVCCIRCMUKCAEACCCCKCUL |
|---|
Software
| Operating system installed | DiskStation Manager |
|---|
Packaging content
| Cables included | AC |
|---|---|
| Power cables quantity | 1 |
Design
| Chassis type | Rack (2U) |
|---|---|
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | Y |
| Built-in display | N |
| Built-in speaker(s) | N |
Processor special features
| Embedded options available | Y |
|---|---|
| Enhanced Intel SpeedStep Technology | Y |
| Execute Disable Bit | Y |
| Idle States | Y |
| Intel 64 | Y |
| Intel Enhanced Halt State | Y |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Y |
| Intel TSX-NI | Y |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
Performance
| Type | NAS |
|---|---|
| Device class | Small & Medium Business |
| Backup function | Y |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Y |
| Multilingual support | Y |
| Noise level | 49.8 dB |
| Card reader integrated | N |
| Snapshot | Y |
| Management protocols | SNMP |
| Security algorithms | AES |
| Access Control List (ACL) | Y |
| Reset button | Y |
| On/off switch | Y |
| Built-in UPnP AV media server | Y |
| Built-in FTP server | Y |
| Browser supported | Google Chrome Firefox Microsoft Edge Safari |
| System log | Y |
