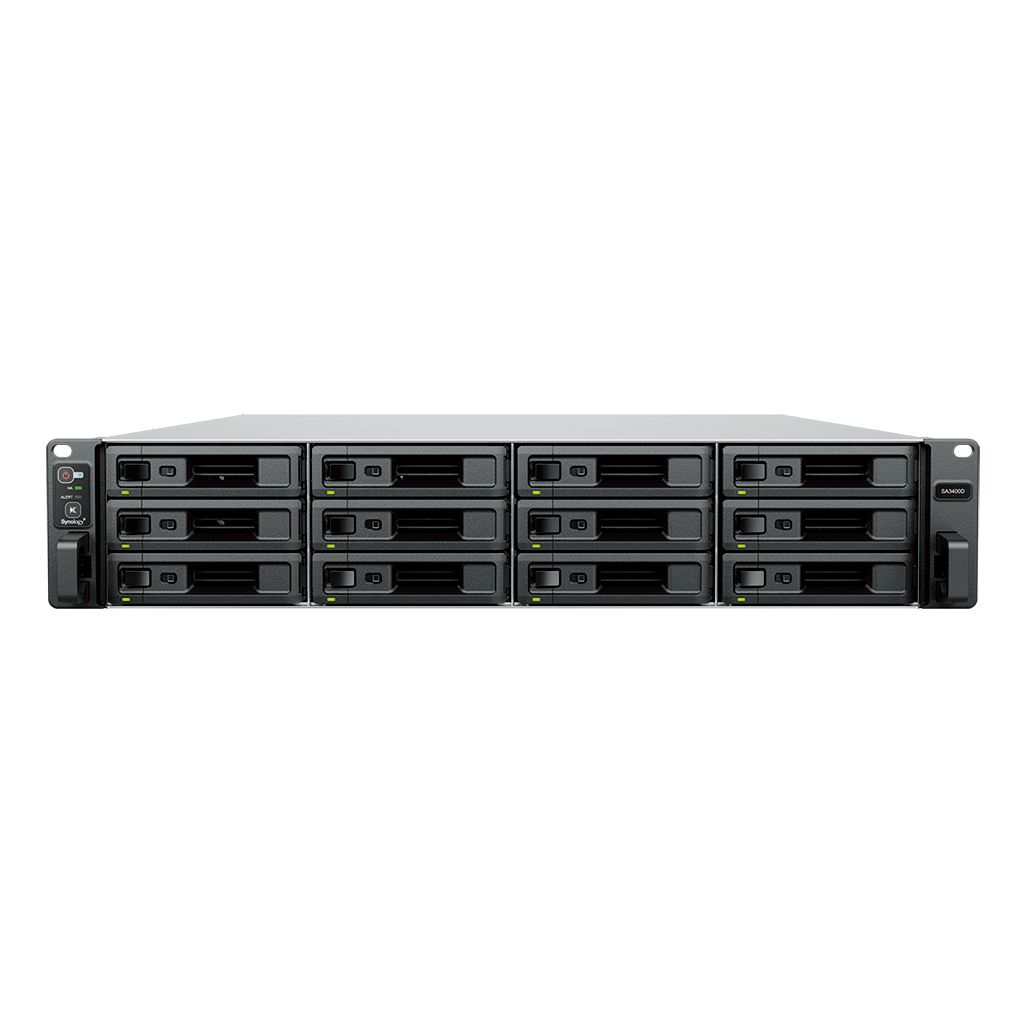

Synology SA3400D NAS/storage server Rack (2U) Ethernet LAN D-1541
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 528120215 |
|---|---|
| Brand / Manufacturer | SYNOLOGY |
| Manuf. item no. | SA3400D |
| EAN | 4711174725212 |
:strip_icc():strip_exif()/logos/synology.png "SYNOLOGY")
Description
Synology SA3400D. Supported storage drive types: HDD & SSD, Storage drive interface: Serial Attached SCSI (SAS), Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-1541. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel,.... Chassis type: Rack (2U), Cooling type: Active, Number of fans: 2 fan(s)
Built-in High Availability
Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments
The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.
Consolidate your data infrastructure
Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.
Add storage capacity on demand
Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.
Boost network and I/O performance
Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.
Performance backed by Synology drives
Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.
Specifications
| Manufacturer | SYNOLOGY |
|---|---|
| Product type | NAS & Storage Servers |
Processor
| Processor family | Intel® Xeon® D |
|---|---|
| Processor manufacturer | Intel |
| Processor model | D-1541 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| CPU configuration (max) | 1 |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
|---|---|
| USB port | No |
Weight & dimensions
| Width | 482 mm |
|---|---|
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 19.7 kg |
Power
| Power supply unit (PSU) capacity | 500 W |
|---|---|
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Network
| Ethernet LAN | Yes |
|---|---|
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Link aggregation | Yes |
Storage
| Storage drives installed | No |
|---|---|
| Number of storage drives supported | 12 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial Attached SCSI (SAS) |
| RAID support | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, ext4 |
Design
| Chassis type | Rack (2U) |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
Processor special features
| Intel Secure Key Technology version | 1.00 |
|---|---|
| Intel TSX-NI version | 1.00 |
Performance
| Type | NAS |
|---|---|
| Backup function | Yes |
| Number of users | 16000 user(s) |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
