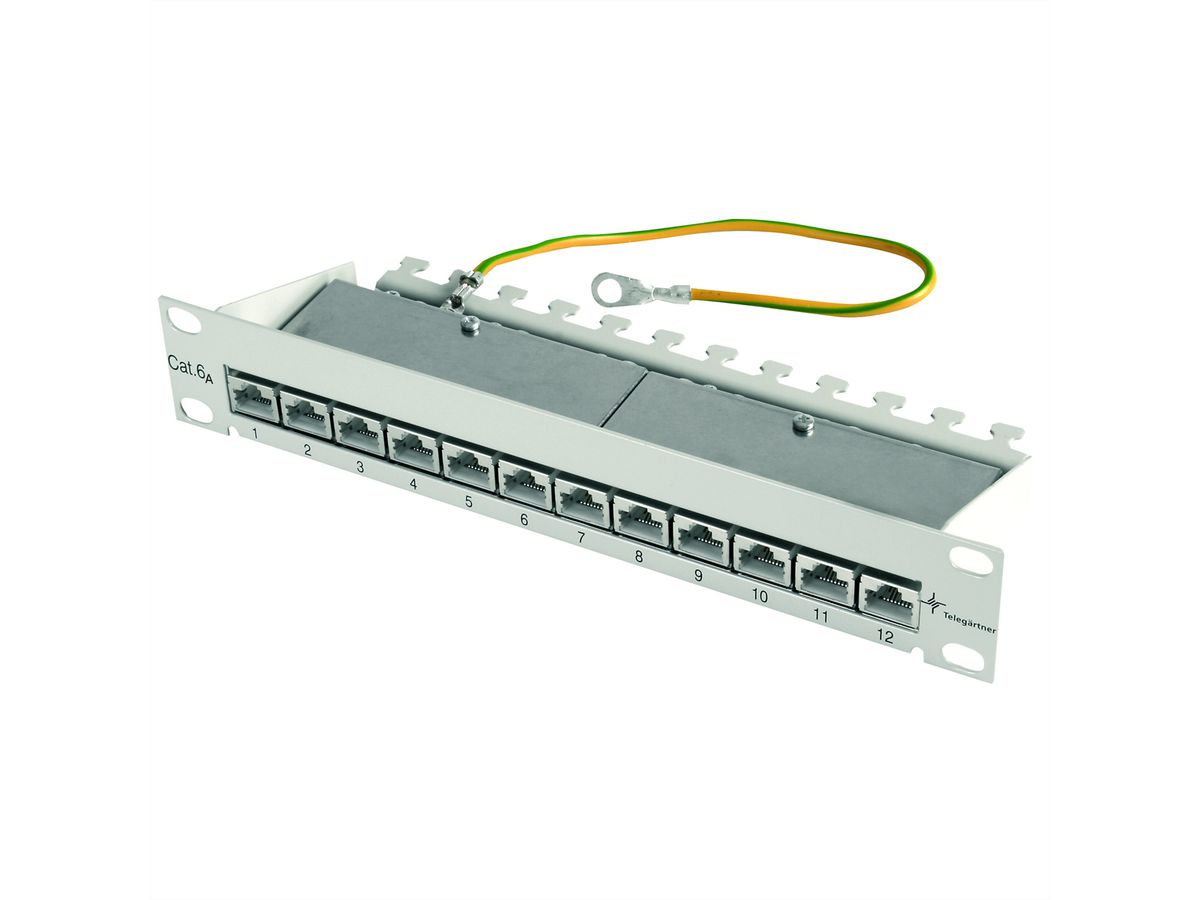

TELEGÄRTNER 10" Patch Panel 255 mm, RAL 7035, MPP12-HS K Cat.6A
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26110164 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100007002 |
| EAN | 4018359368135 |
| Item weight | 0.779 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
10" Mini Patch Panel MPP12-HS K Cat.6A
- 19"/10" rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB
- 360° shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type)
- cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B
- limit of 13 mm max. of untwisted length of wires can be easily achieved without restricting an easy installation
- risk of short-circuit between screening braid andwires is minimized due to sufficient space between data terminals and screening contact
- Cat.6A, Class EA 500 & Cat.6A types with overbending protection: >750 mating cylces with RJ45/RJ11/RJ12 plugs
- modular jacks are numbered on the front panel
- housing is made of steel and powder-laminated in light grey (RAL 7035) or black; the cover is made of stainless steel
- enclosed cable ties for strain relief of the cables without need of screws and special tools
- printed circuit board is mounted horizontally
- bonding with the enclosed bonding kit (shielded types)
- no special tooling required for mounting of cover (shielded type)
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6A / Class EA |
| Colour | grey |
| Transfer quality | Cat6A / Class EA |
| Material (casing) | ABS |
| Protection class (IP Code) | IP20 |
| Height units | 1 U |
| RAL colour | RAL 7035 Light grey |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Height | 44 mm |
| Width | 255 mm |
| Depth | 96 mm |
| Weight | 765 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 290 mm |
| Package weight (single piece) | 0.779 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
